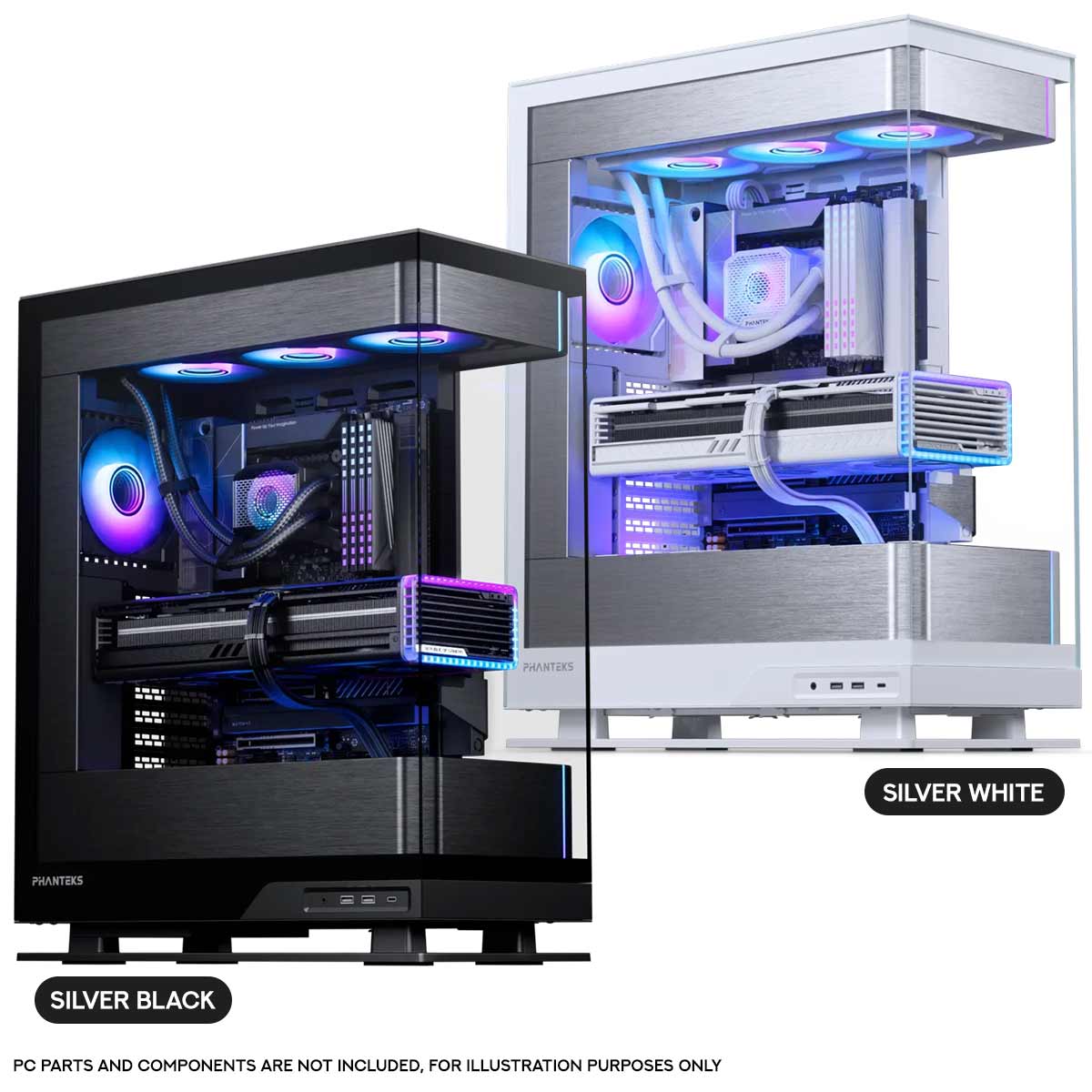

Phanteks Evolv S2 D-RGB TG Premium Mid-Tower Case (Silver Black, Silver White)
Evolv S2

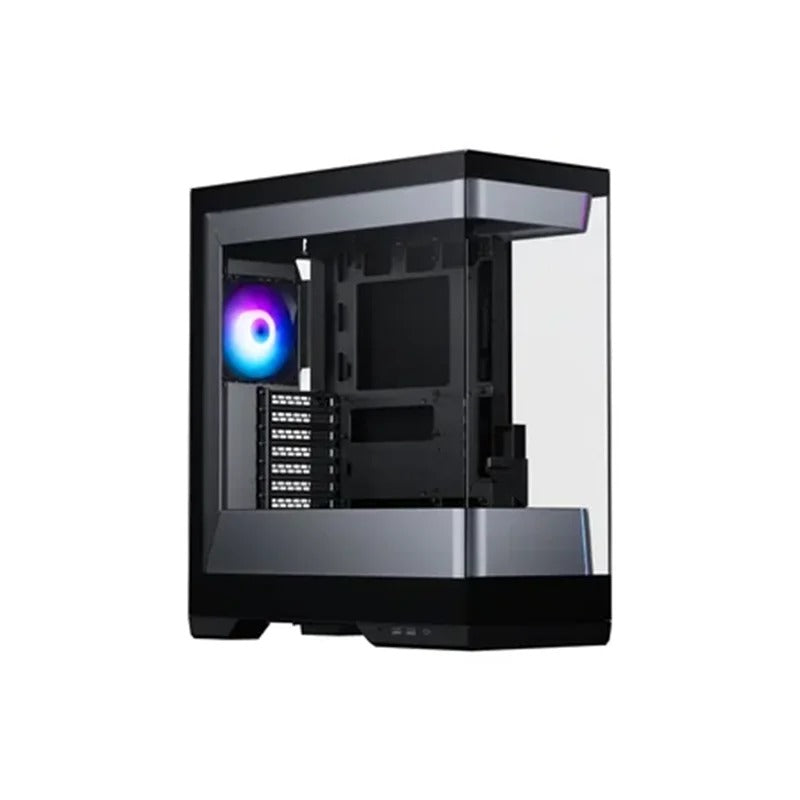

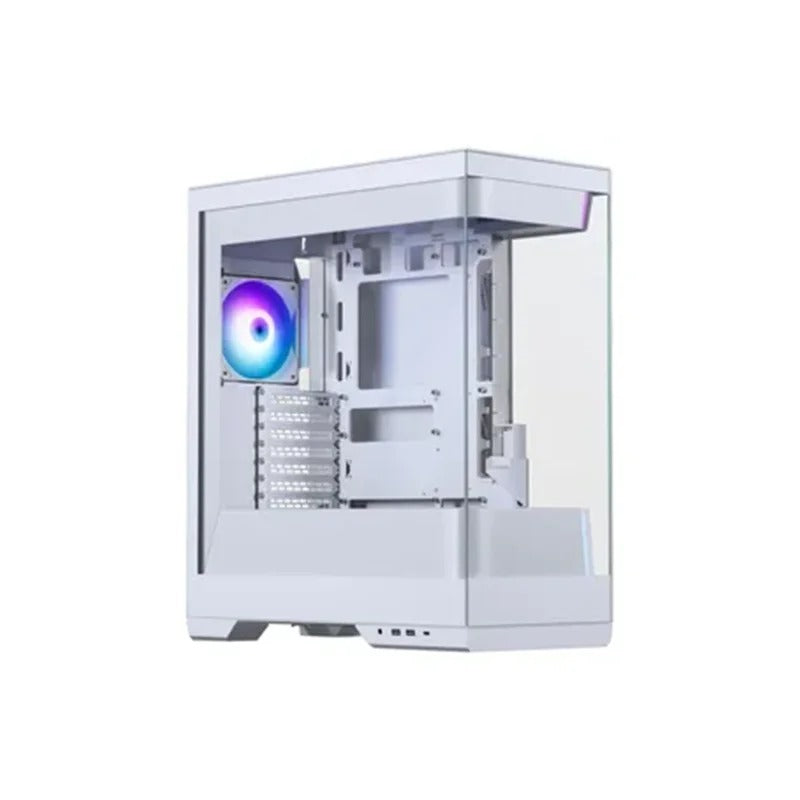

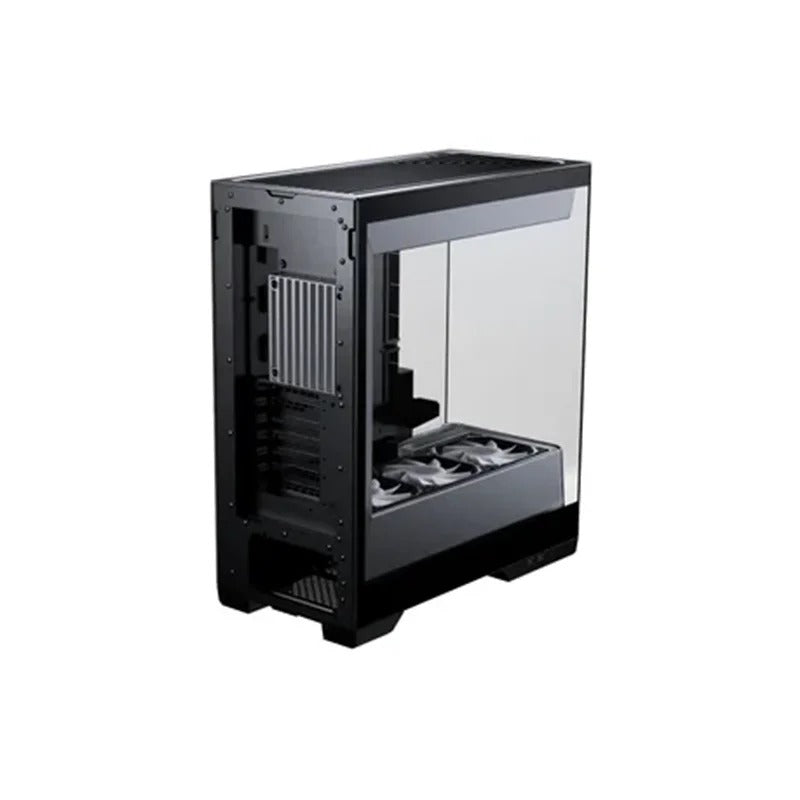

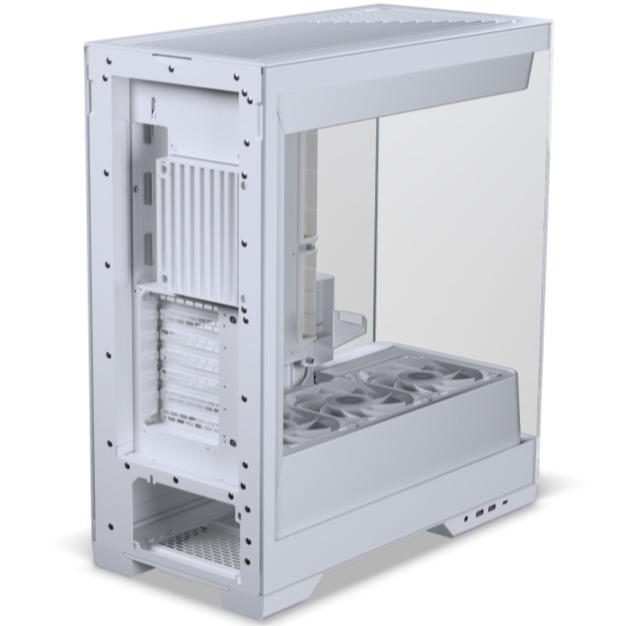

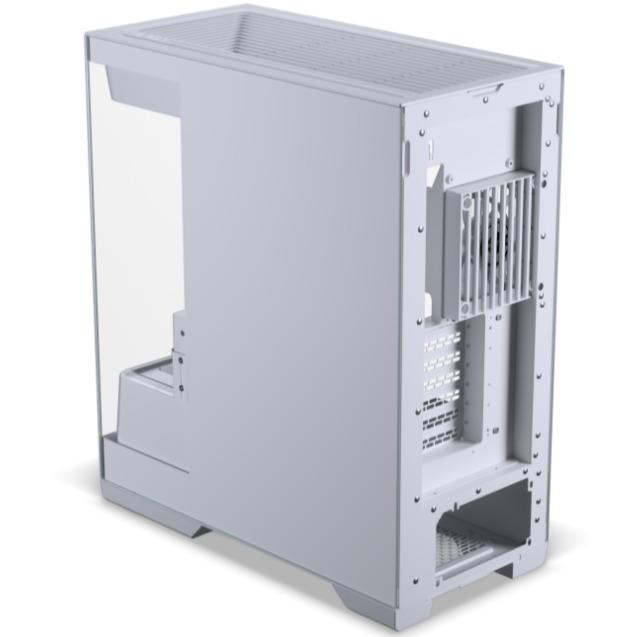

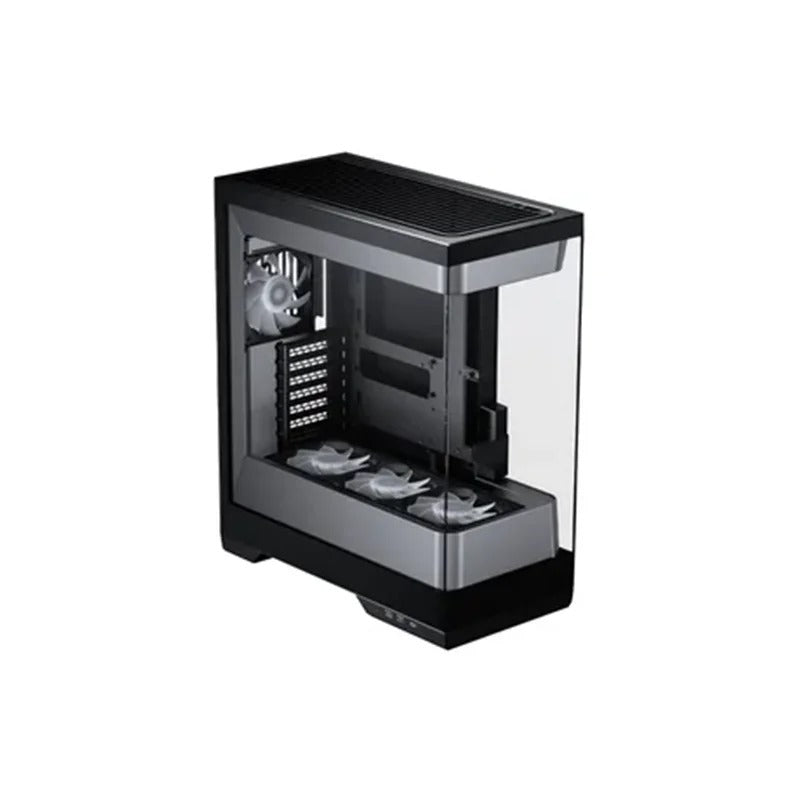

See-Through Tempered Glass Chassis
A unique see-through ATX chassis design makes the Evolv S2 stand out from the crowd. It feels spacious and highlights the main system components with a compact footprint making it look perfect on any desk.

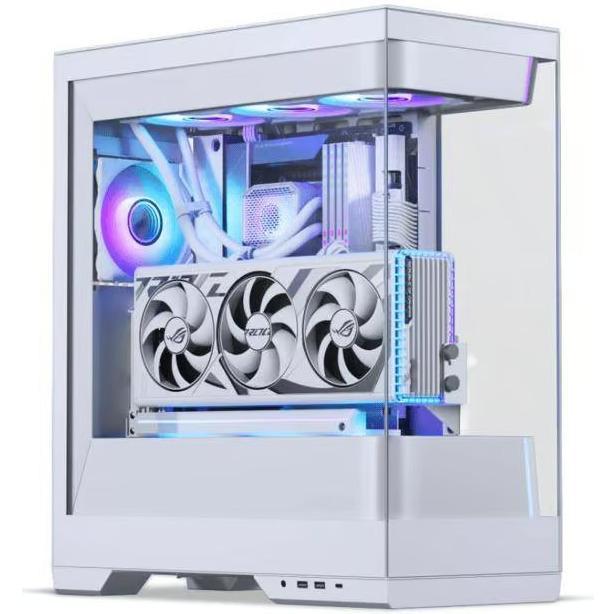

The interior of the Evolv S2 blends with the hardware components for a fully integrated look with all cooling components sitting flush into the top and base. Having a vertical cooling system with triple intake fans in the bottom that directly cool the GPU and a dedicated top 360 radiator area makes the Evolv S2 perform in any condition.
- Unique see-through tempered glass chassis design
- Integrated D-RGB Lighting throughout the chassis
- Support for ATX rear-connect mainboards
- Four high airflow M25-120 mm D-RGB fans included and built-in
- All fans and radiators fully integrate into the chassis for a clean look

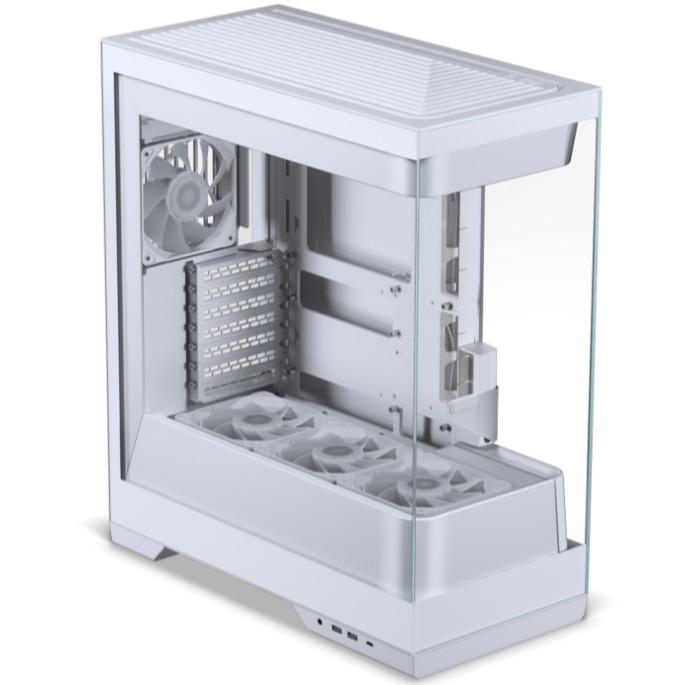

- Triple 120mm fan positions in the bottom for air intake and direct GPU cooling
- Triple 120mm fan positions in the top with dedicated 360 radiator clearance for exhaust
- Rear 120mm fan position for a total of 7x 120mm fan positions
Ultra Clean Look
One of the main features that sets the Evolv S2 apart from other cases is the extremely clean look. All screws are covered by panels, all cables are hidden behind silkprint on the left glass panel and the support for rear-side connectors enables a zero cable setup.
Good Cooling Performance

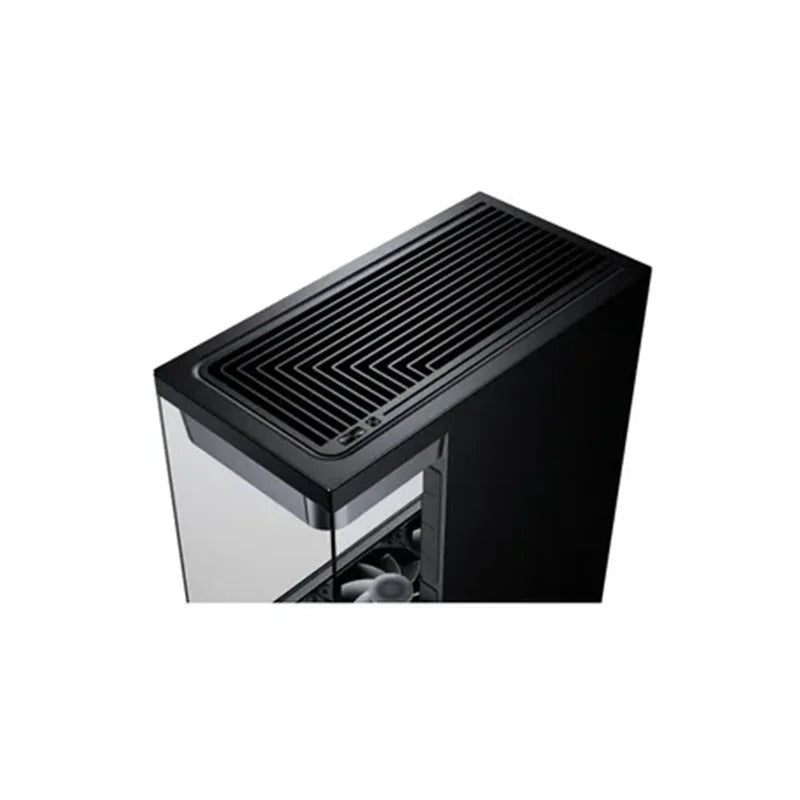

The Evolv S2 has good cooling performance with its bottom air intake and top exhaust. The top features dedicated space for a 360 radiator.
Premium Aesthetics
The Evolv S2 has a unique design with its see through chassis and integrated D-RGB running from the top to the bottom.
| Model Number | PH-ES524S2_DBK01 / PH-ES524S2-DWT01 |
| Colour | Silver Black / Silver White |
| Product Dimension (D x W x H) | 455 x 230 x 525 mm |
| Form Factor | Mid Tower |
| Mainboard Support | ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide) |
| Rear-Sided Mainboard Support | Yes, ATX |
| Integrated Fans Look | Yes |
| Cable Management Cover | Silkscreen on tempered glass |
| Integrated D-RGB Lightstrip | Yes |
| Materials | Steel Chassis, Tempered Glass, ABS plastic covers |
| Front IO | 1x USB-C 3.2 Gen2x2 + 2x USB 3.0 Microphone/Headphone combo Reset Button Power Button |
| Connectors | Power Switch Reset Switch HD-audio USB 3.0 USB-C Type-E |
| Warranty | 5 Years Limited |
| Weight | 9.90 kg |
| What’s Included | 1x Evolv S2 chassis 1x M25-120 mm Regular D-RGB fan 3x M25-120 mm Reverse D-RGB fan 1x Storage Bracket (2x HDD / 2x SSD) 1x Accessory box with necessary screws |
Expansion
| PCI Slots | 7 |
| Internal 3.5″ Bay | 2 (1x if 2x SSD installed) |
| Internal 2.5″ Bay | 2 (0x if 2x HDD installed) |
| Vertical GPU Support | Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01 |
Fans & Radiators
| Top Fan | 3 x 120 mm |
| Bottom Fan | 3 x 120 mm (3x included) |
| Rear Fan | 1 x 120 mm (1x included) |
| Top Radiator | Up to 360 |
Clearances
| GPU Length | 395 mm |
| GPU Width | 175 mm |
| CPU Cooler Height | 175 mm |
| Power Supply | 210 mm |
| Top 360 Radiator | 410 x 125 x 55 mm |
