Evolv X2
Redefine the desktop computer
The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior, and powerful vertical cooling solution. The entire chassis floats above its base, drawing in surrounding air and channeling it efficiently through the GPU and CPU. Hot air is expelled through the top ventilation, enhancing thermal performance.
The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look, with all cooling components sitting flush into the top and base. The integrated lighting and high-quality aluminum internal panels add flair to your system.

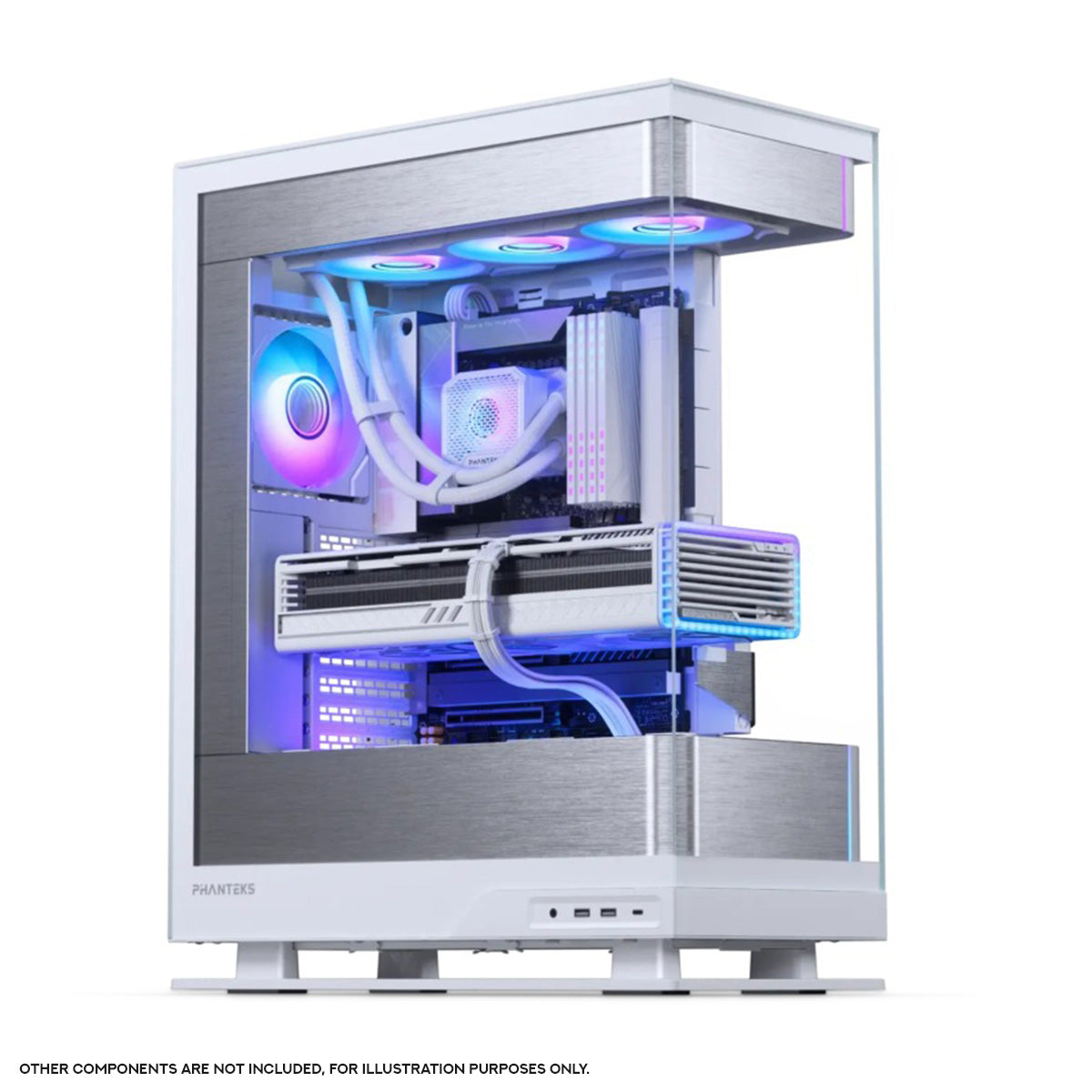

Note: Other components are not included, for illustration purposes only.
Designed To Cool |
|
Looking Clean |
 |
|
|
Premium Build Quality |
Specification:
| Case Dimensions | 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in |
|---|---|
| Form Factor | Mid-Tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide |
| Rear Mainboard Support | MSI Project Zero | ASUS BTF | Gigabyte Project Stealth |
| Materials | Steel chassis | Aluminium panels | Tempered glass window | ABS plastic |
| Color | Brushed aluminium |
| Expansion Slots | 8 |
| Vertical GPU Support | Yes Riser cable & bracket sold separately |
| Internal 2.5″ Positions | 5 + 1x 3.5″ HDD |
| Internal 3.5″ Positions | 2 + 3x 2.5″ SSD |
| Front I/O | 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Fans (120 | 140) | Total: 7 | – Top: 3 | – Front: – | – Side: – | – Rear: 1 | – Bottom: 3 | – |
| Radiator (120 | 140) | Top: Max. 360 | – Front: – | – Rear: – | – Bottom: – | – |
| Clearance - CPU Cooler Height | 170 mm | 6.69 in |
| Clearance - GPU Length | 380 mm | 14.96 in |
| Clearance - GPU Width | 170 mm | 6.69 in |
| Clearance - Power Supply | 250 mm | 9.84 in |
| Clearance - Top 360 Radiator | 415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in |
