Description

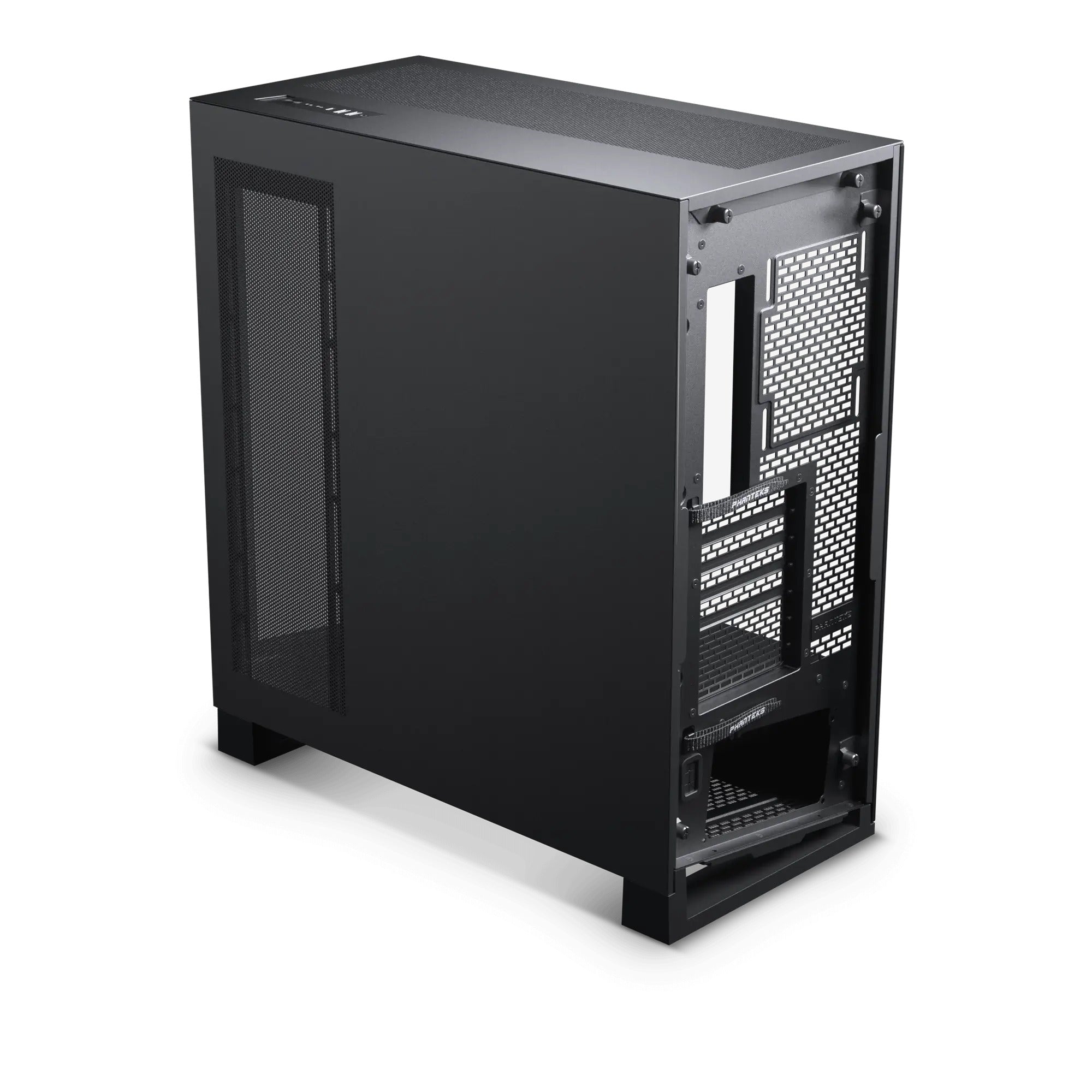

Phanteks NV5 MKII
Performance with a view

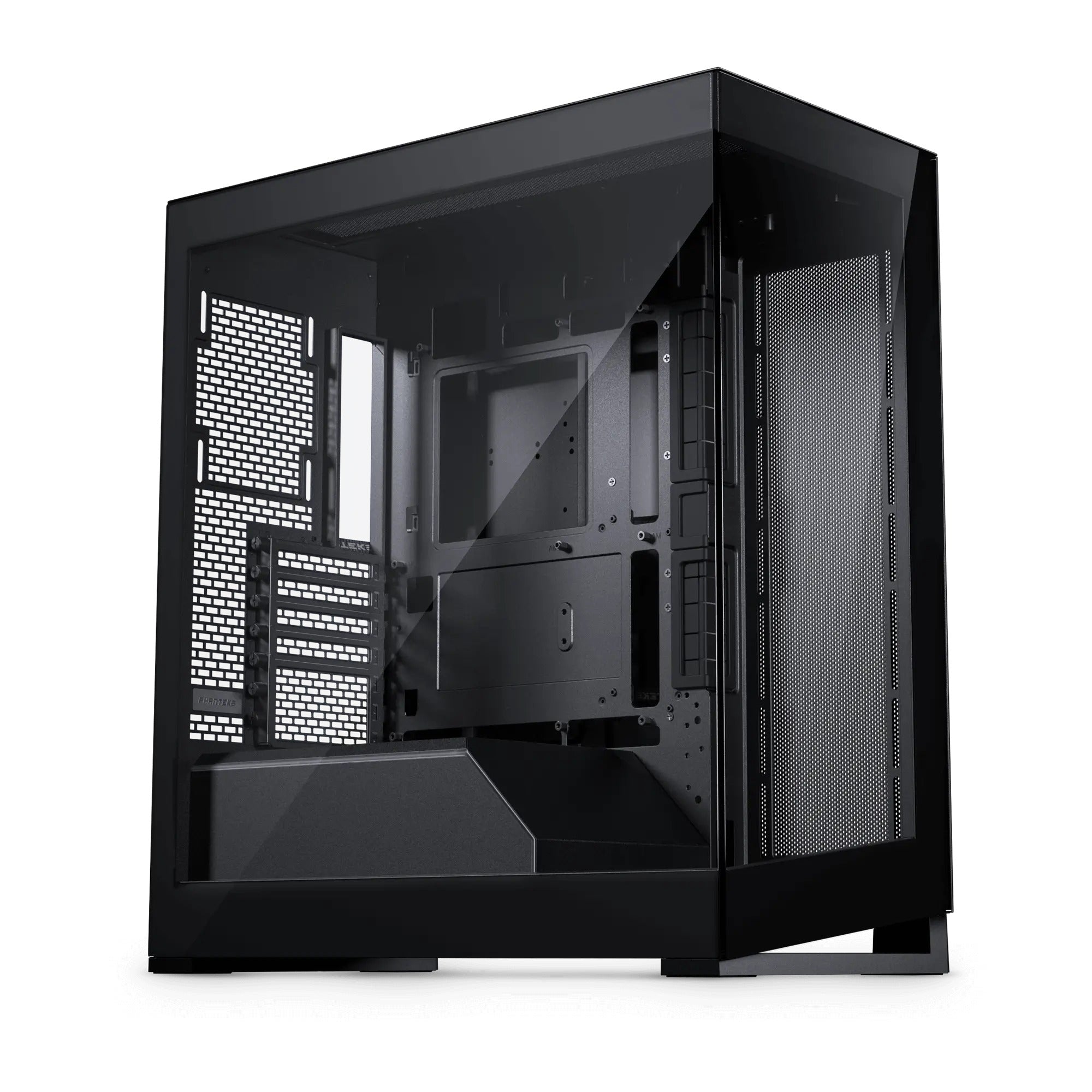

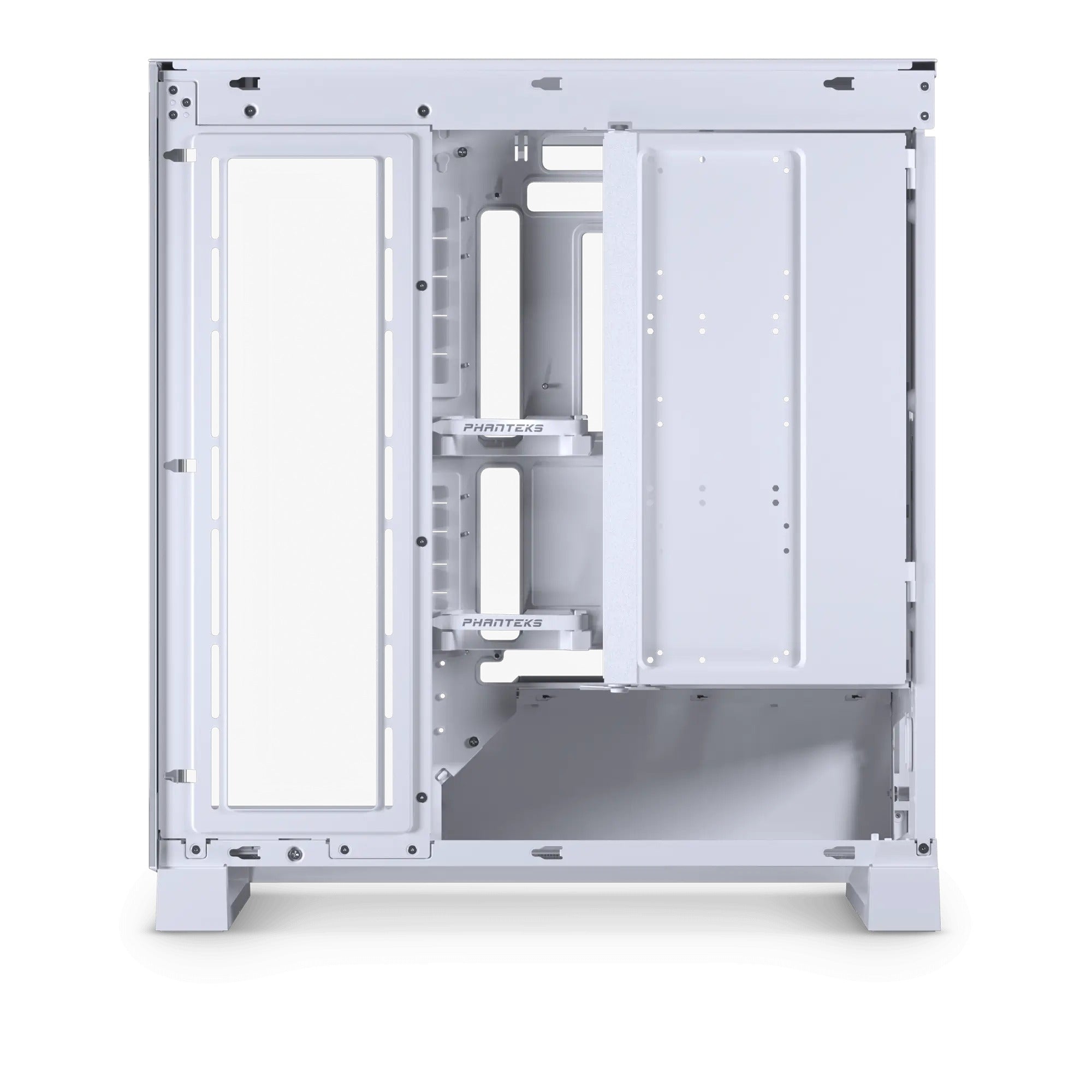

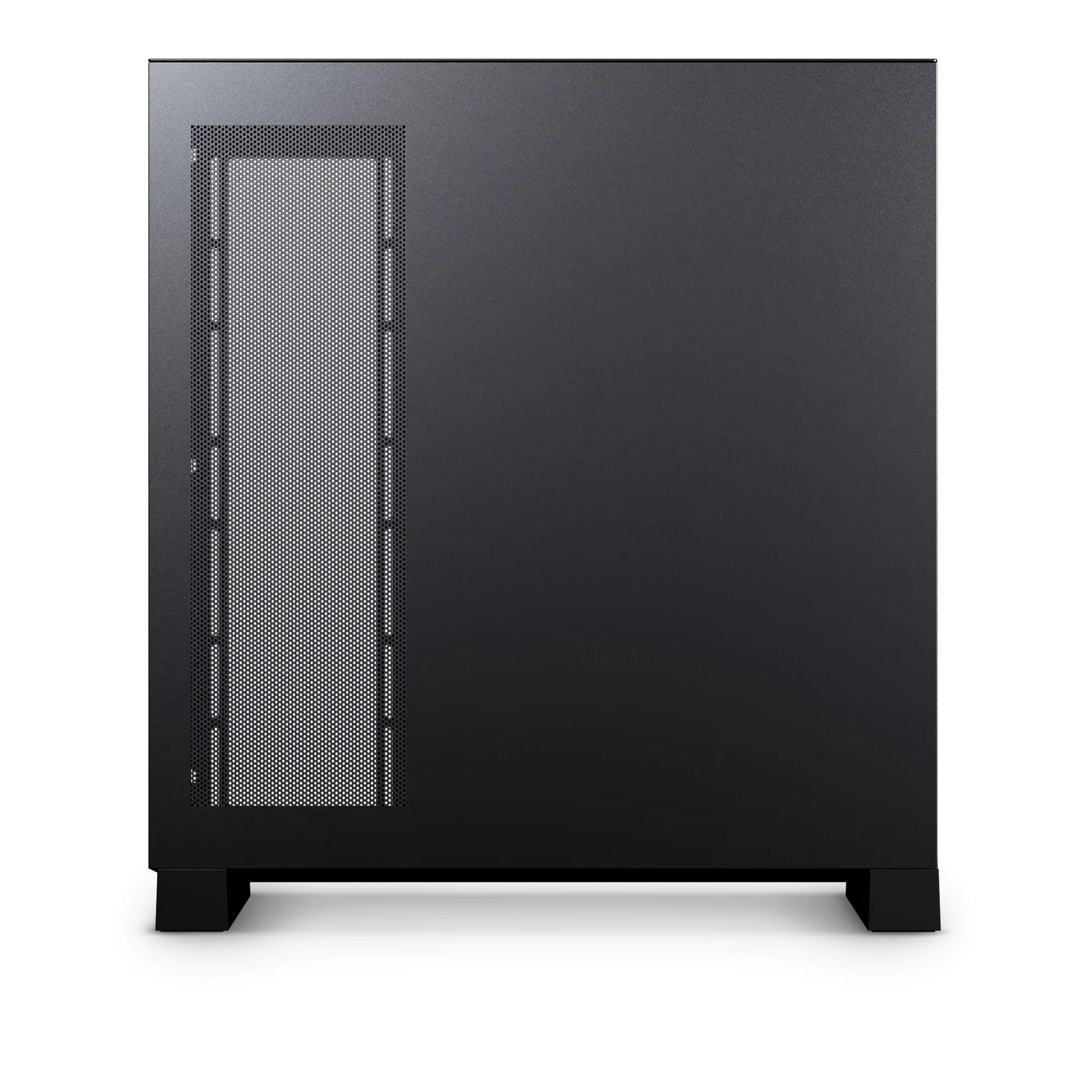

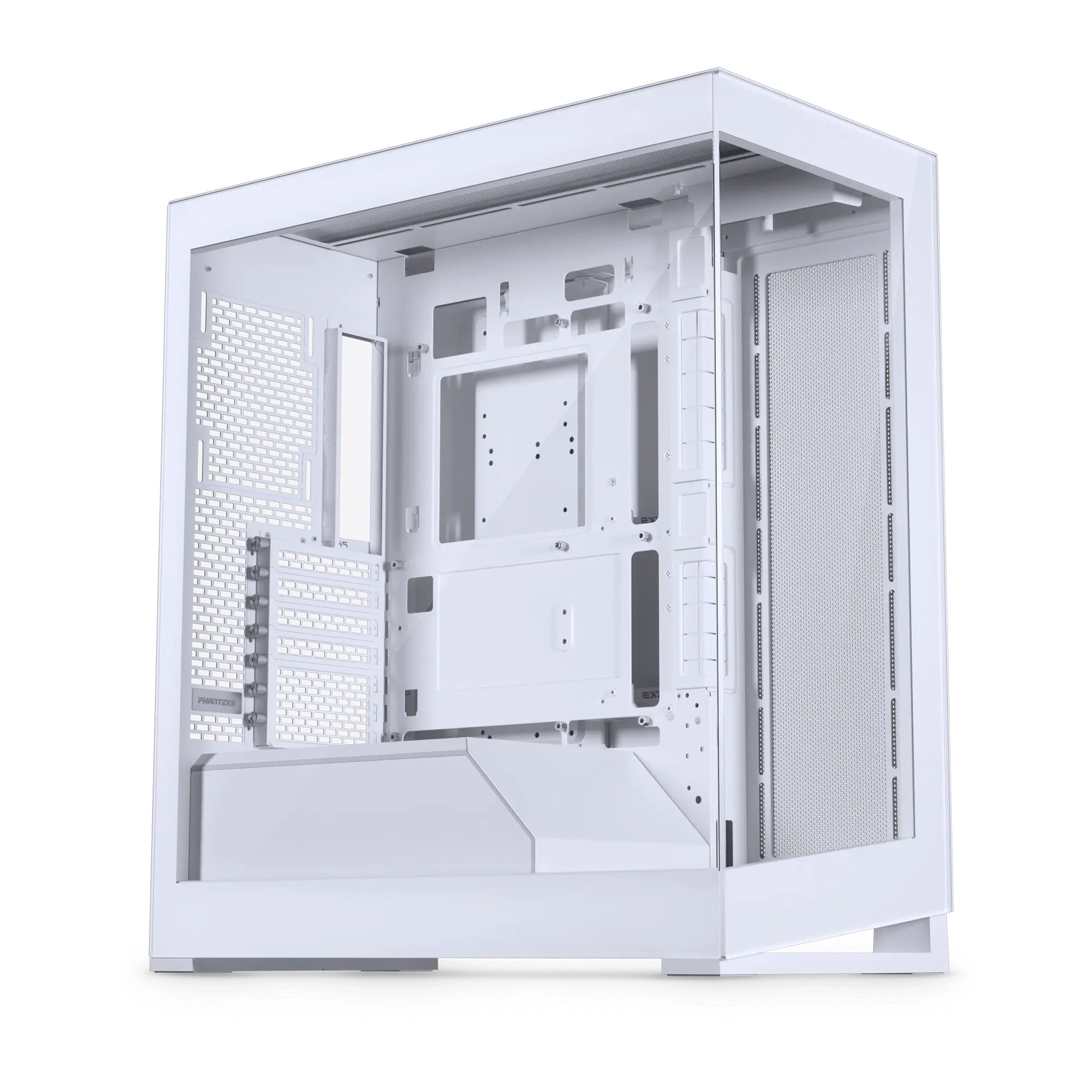

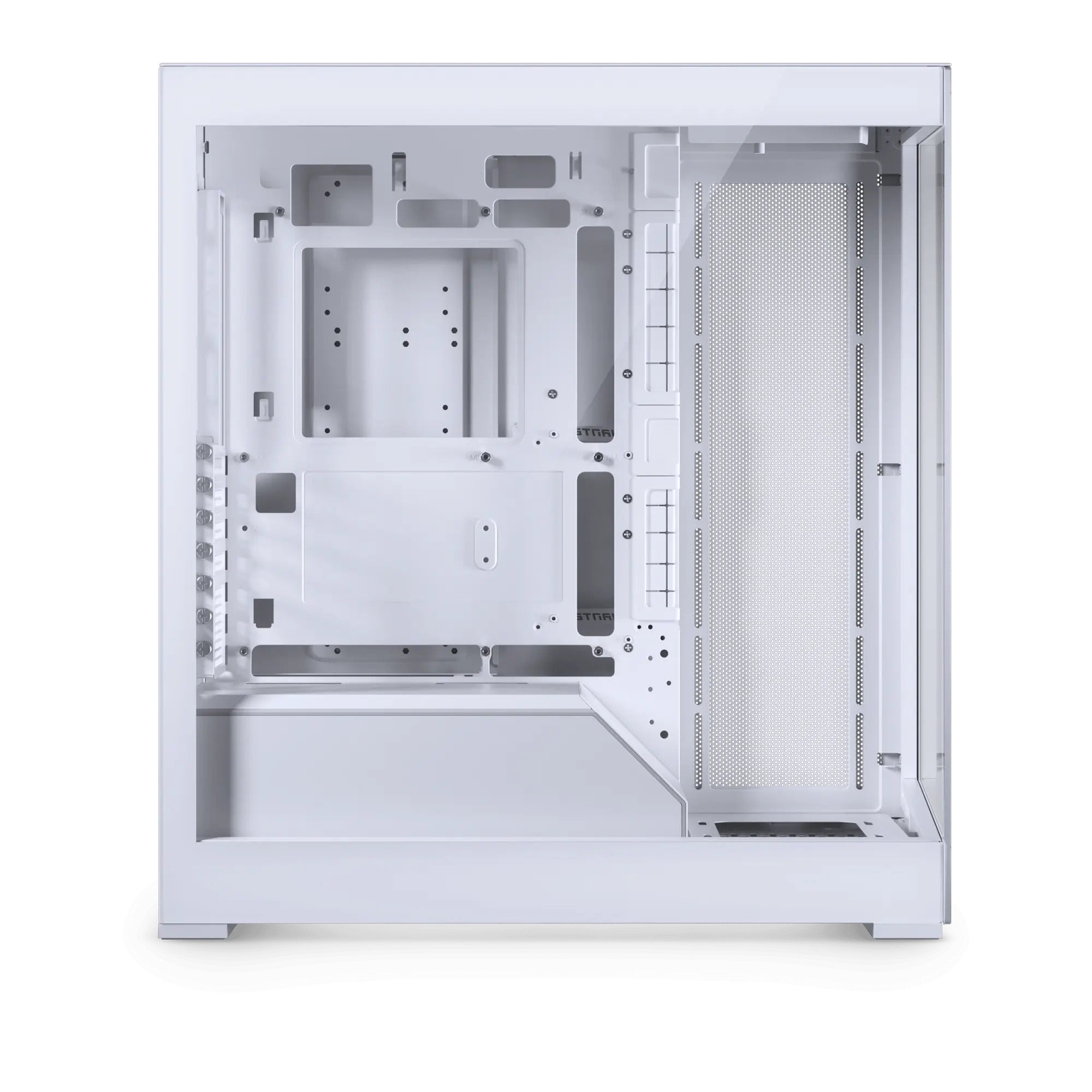

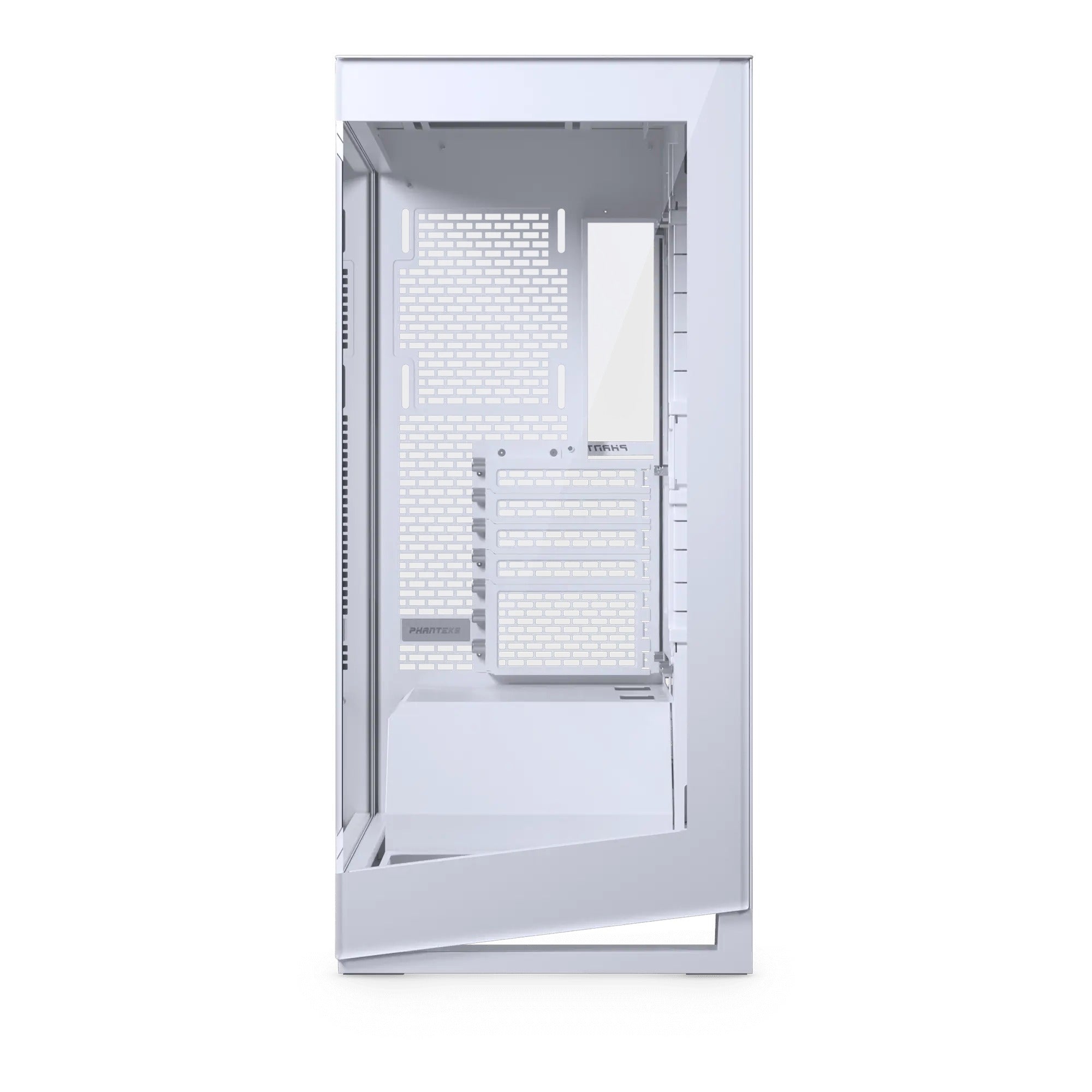

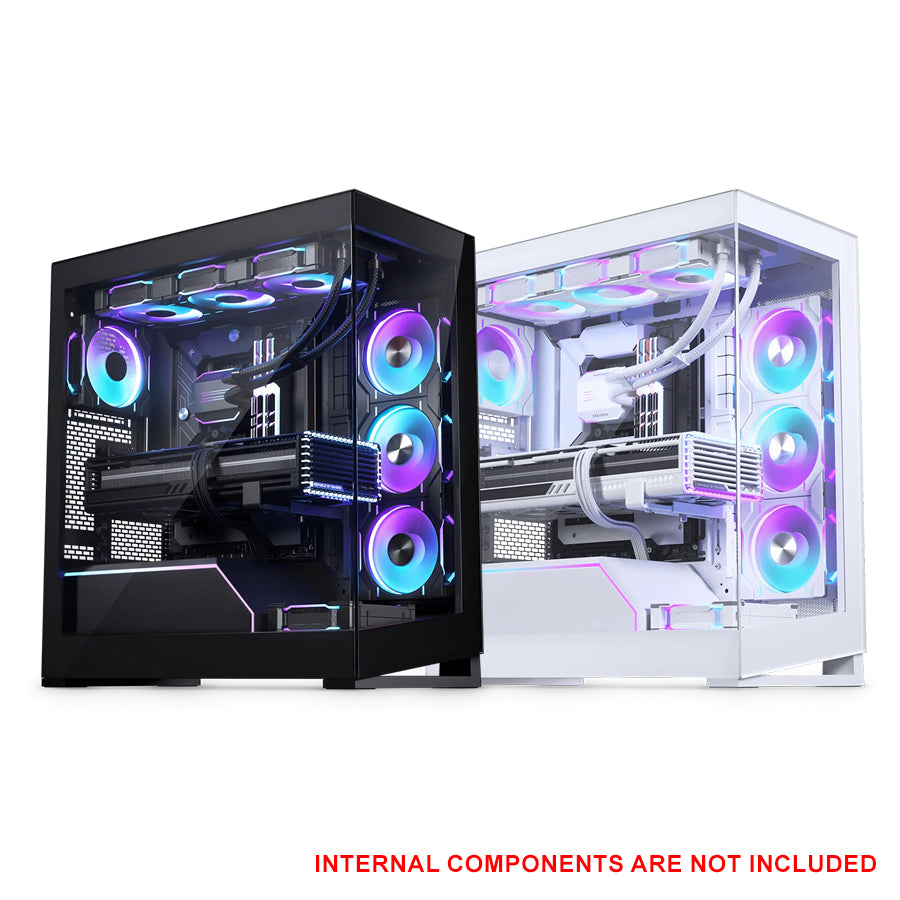

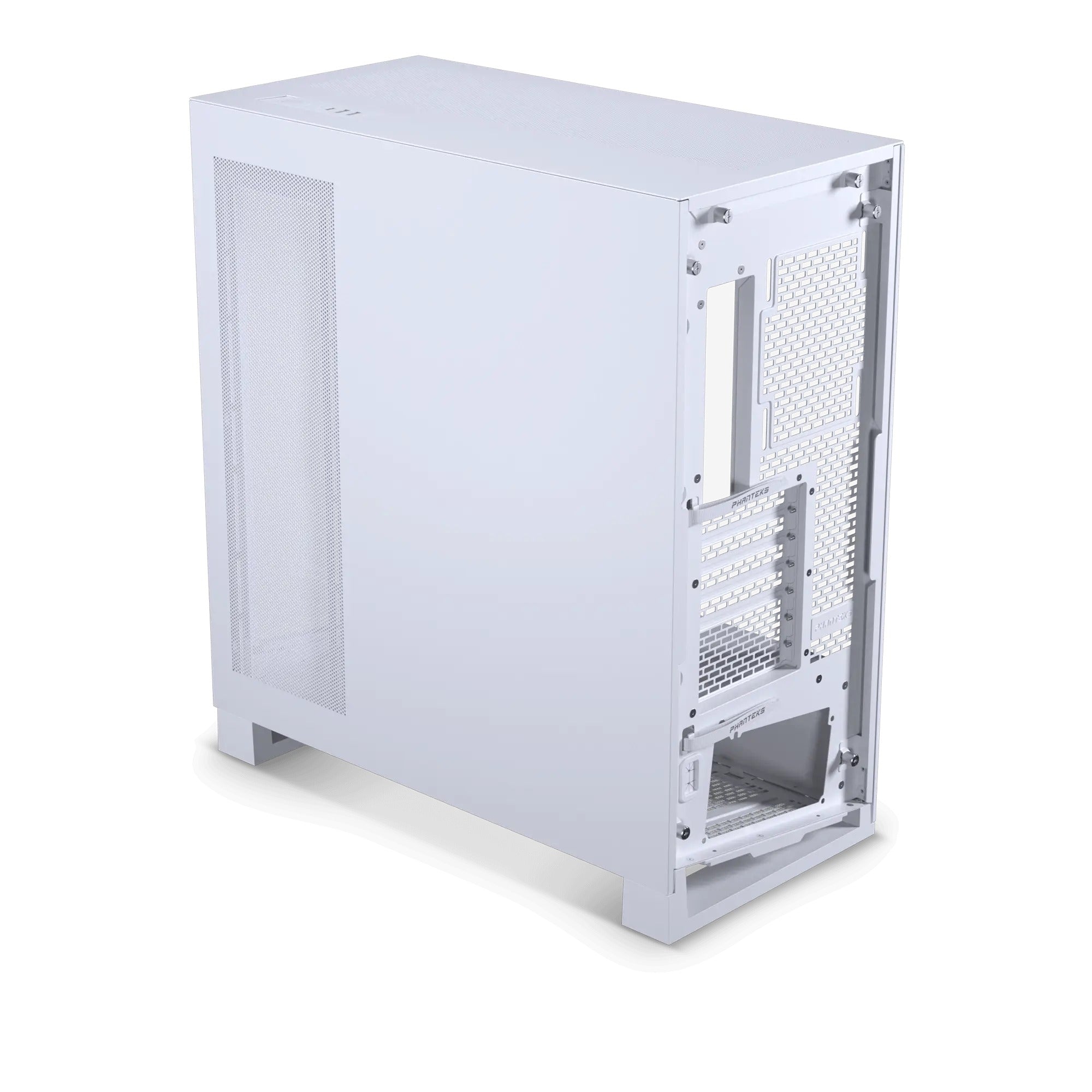

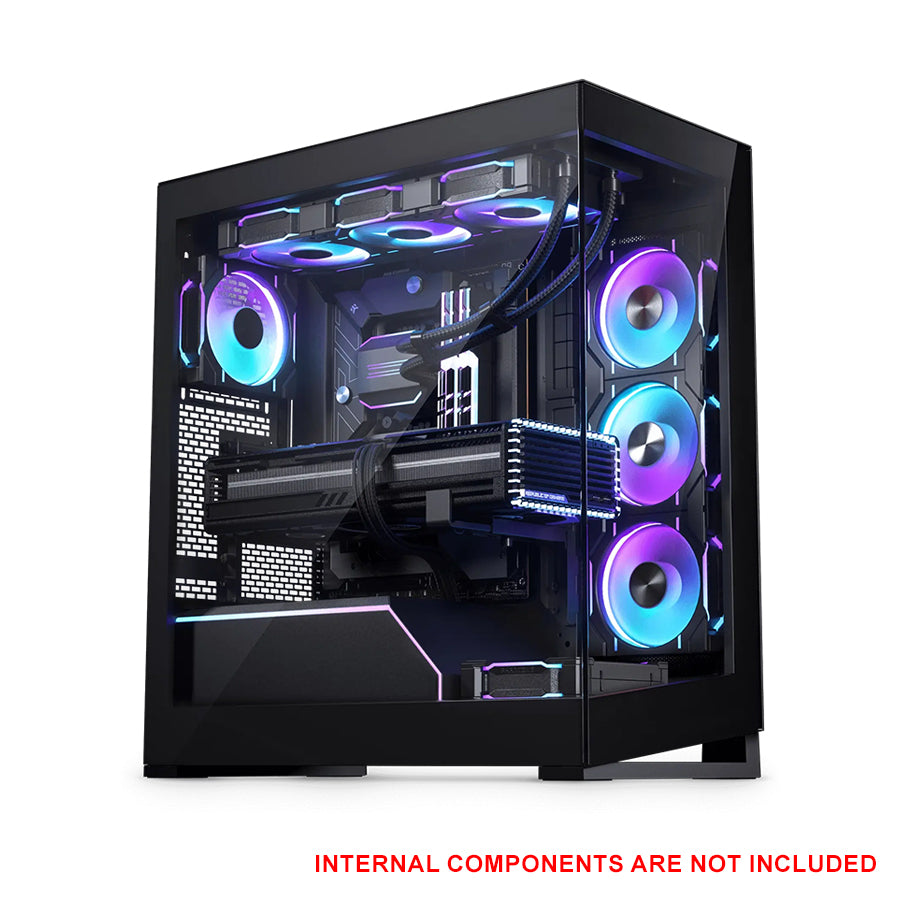

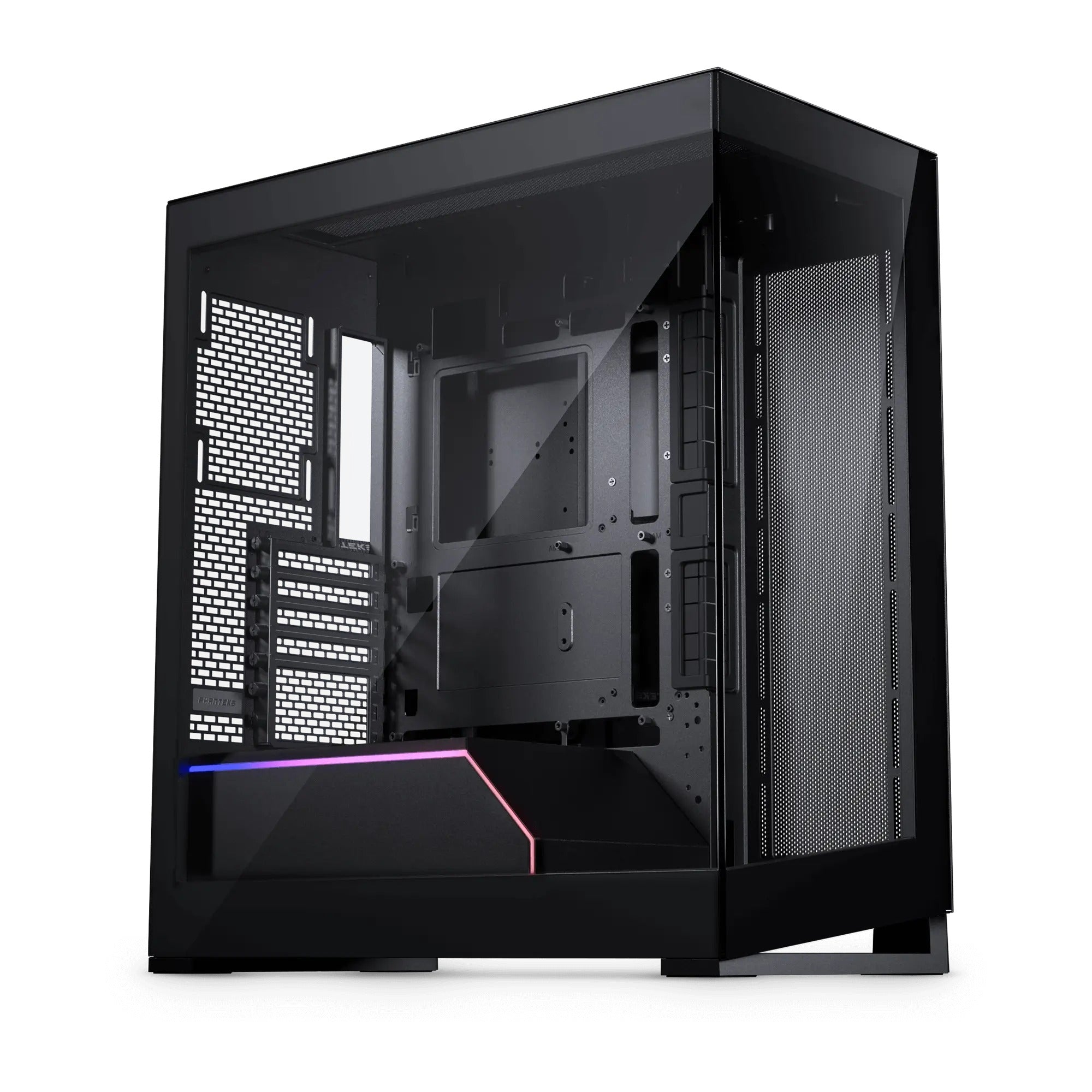

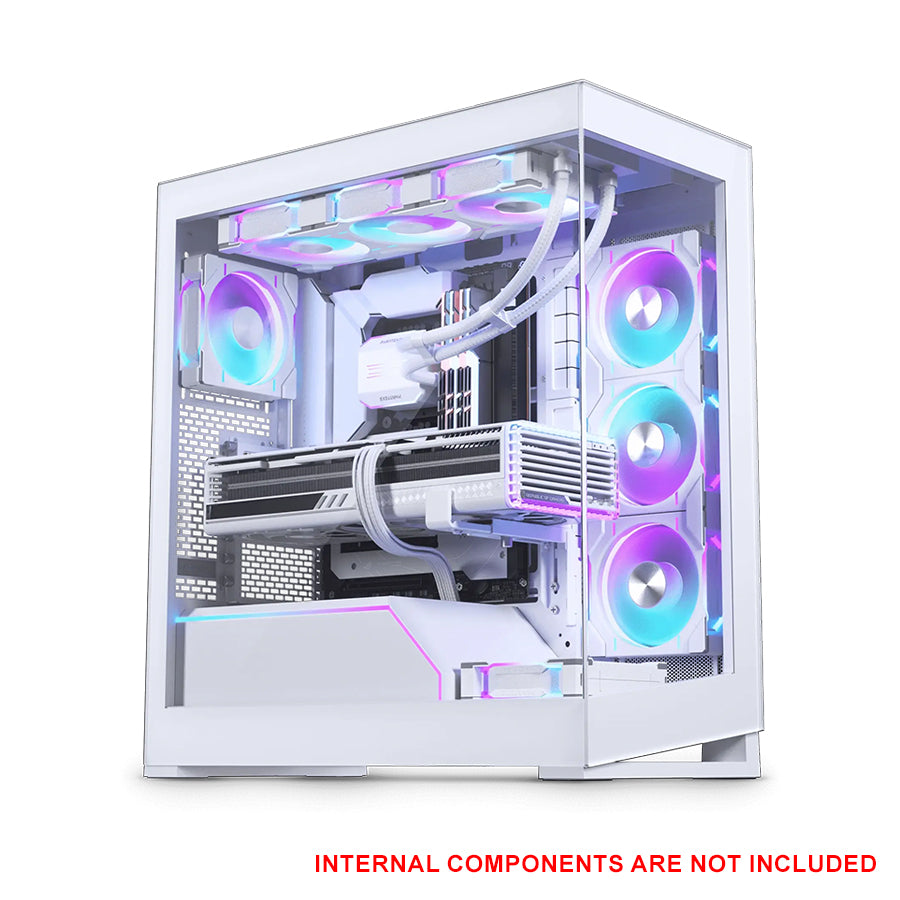

Meet the NV5 MKII mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. Supporting rear-side connector mainboards (BTF & Project Zero), with a dedicated bottom fan for enhanced GPU cooling and a spacious interior to accommodate modern GPUs and cables, the NV5 MKII is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 MKII is the perfect choice for a high-performance PC build that looks as good as it performs.
| Phanteks NV5 Specifications | |
|---|---|
| Model No. | PH-NV523TG_DBK02 |
| UPC Code | 886523303466 |
| Case Dimensions | 239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in |
| Form Factor | Mid-Tower |
| Mainboard Support | E-ATX*, ATX, Micro-ATX, Mini-ITX *Up to 280mm without GPU Support Bracket |
| Materials | Steel chassis, Tempered glass |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support | 3-slots Riser Cable sold separately |
| Internal Bays |
2.5″: 4 3.5″: 3 |
| Front I/O |
1x USB-C 3.2 Gen 2 2x USB 3.0 Microphone / Headphone D-RGB Mode Button D-RGB Color Button Power Button |
| Fan Support (120mm) |
Total: 8x Top: 3x Side: 3x Rear: 1x Bottom: 1x |
| Fan Support (140mm) | – |
| Radiator Support (120mm) |
Top: Max. 360 Side: Max. 360 Rear: 120 |
| Radiator Support (140mm) | – |
| Clearance |
CPU Cooler Height: 180 mm (7.08 in) GPU Length: 440 mm (17.32 in) GPU Height: 170 mm (6.69 in) PSU Length: 230 mm (9.05 in) |
| Radiator Mount Area |
Top: 134 x 430 x 62 mm (5.27 x 16.92 x 2.44 in) Side: 130 x 420 x 62 mm (5.11 x 16.53 x 2.44 in) Rear: 132 x 170 mm (5.19 x 6.69 in) Front: – |
| Net Weight | 11.28 kg | 24.9 lbs |
| Gross Weight | 13.97 kg | 30.8 lbs |
| Warranty | 5 Years Limited |
| Scope of Delivery |
1x NV5 Chassis Accessory Box: - 6x Zip Ties - 1x GPU Support Bracket Screws: - 22x Mainboard / SSD Screws - 4x PSU Screws - 4x Thumb Screws - 12x Case Screws - 1x Motherboard Stand-off - 1x Stand-off Removal Tool |
