Description

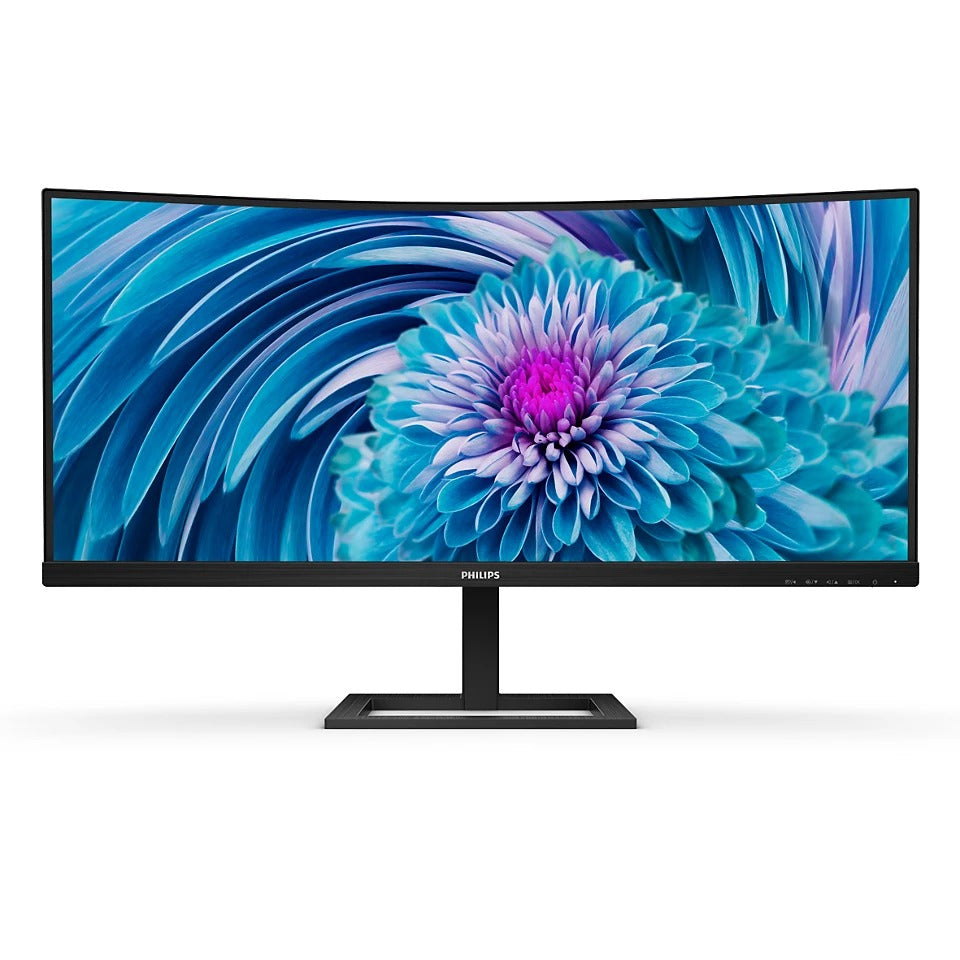

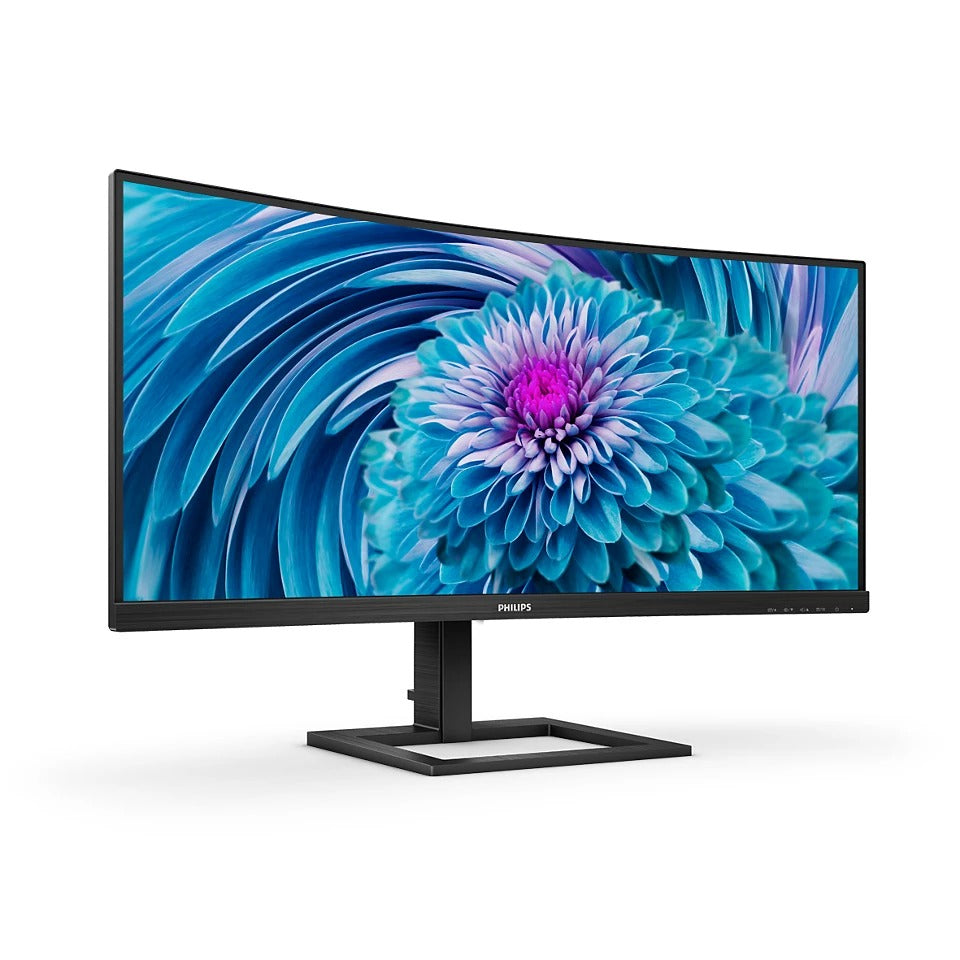

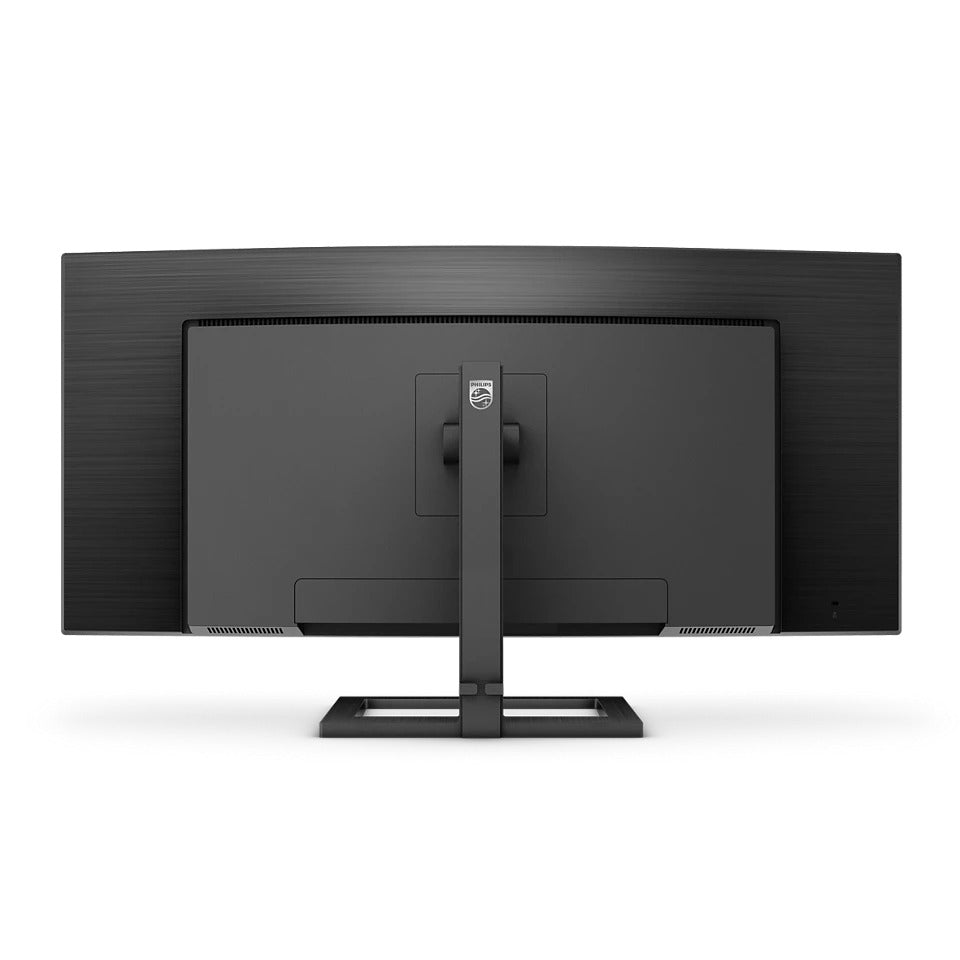

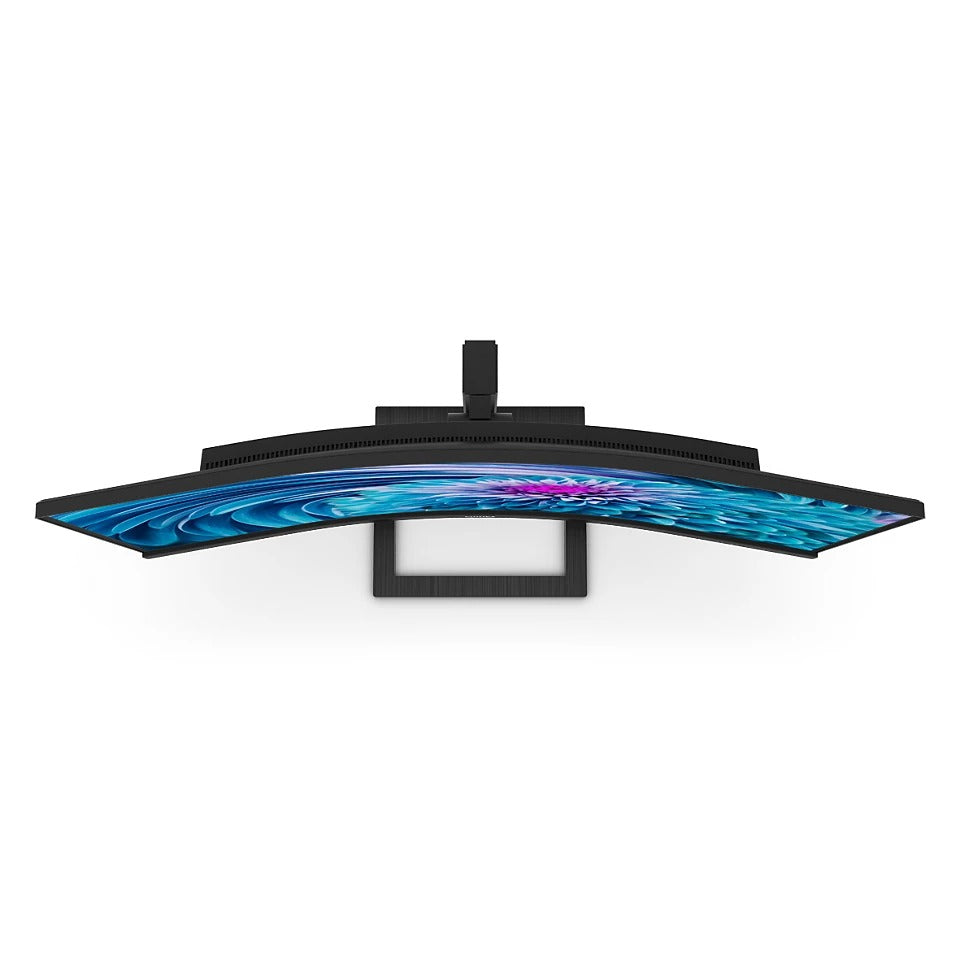

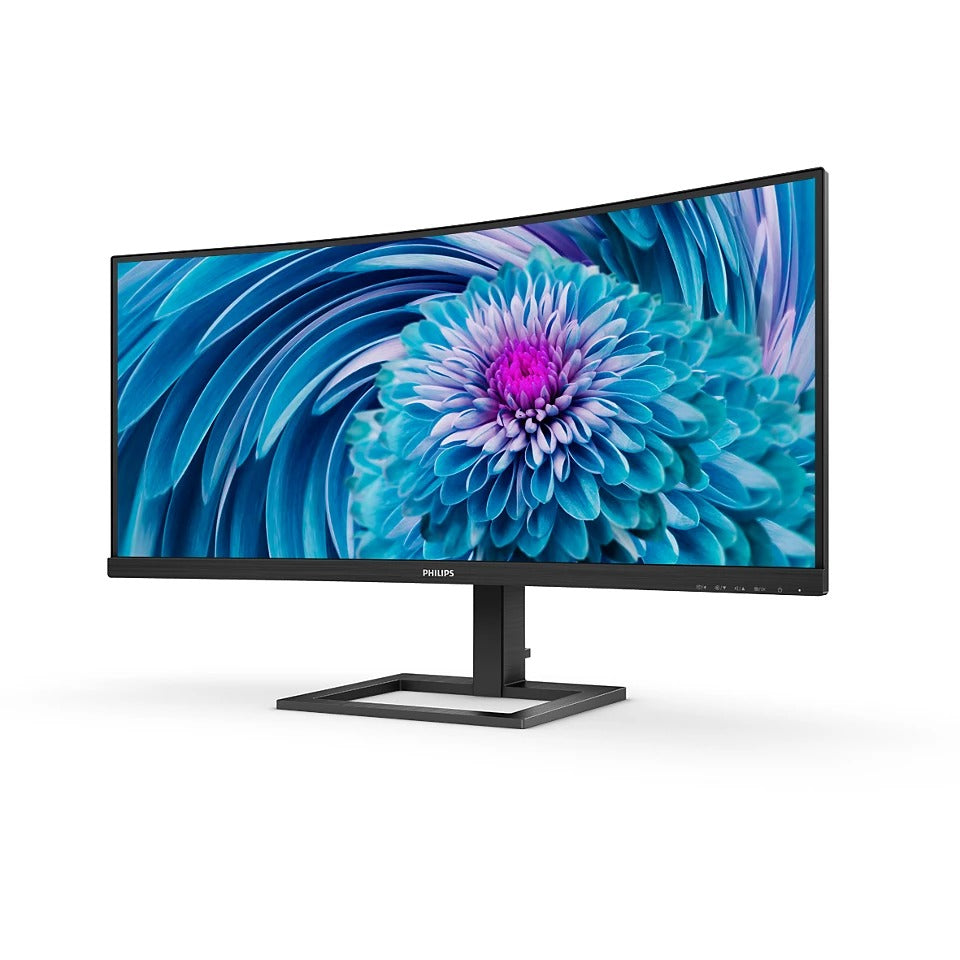

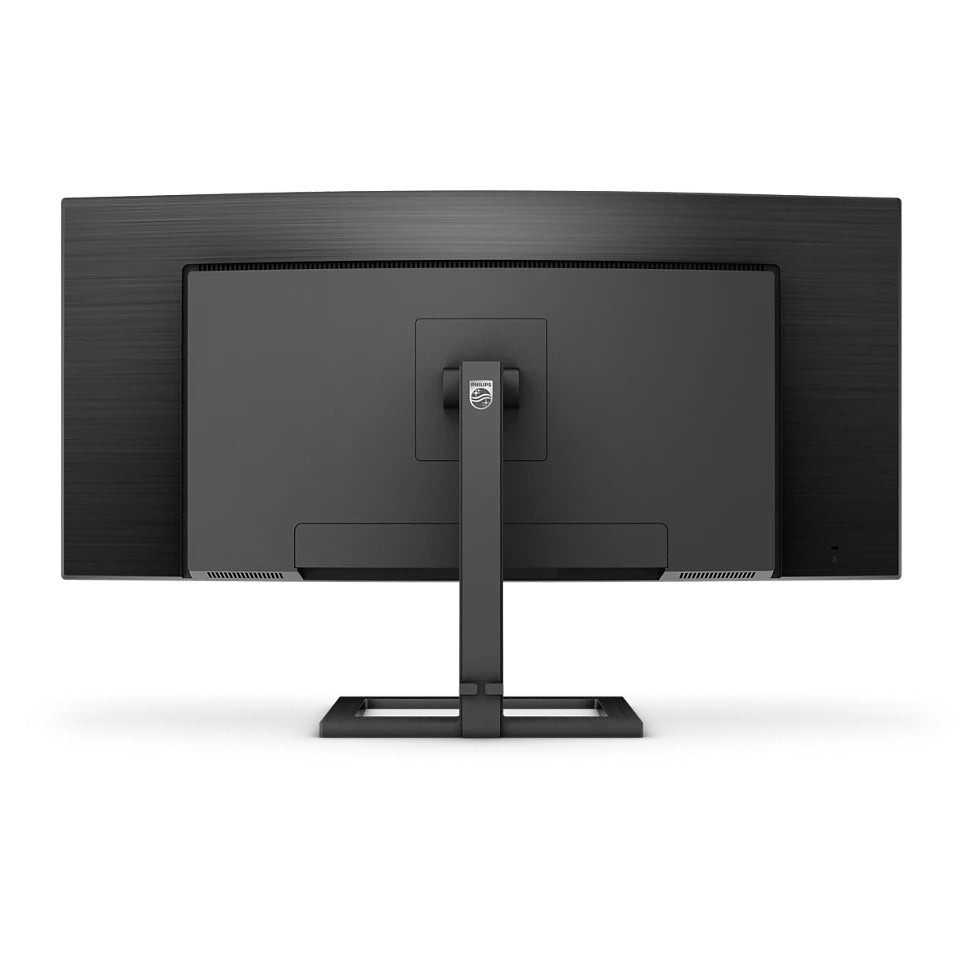

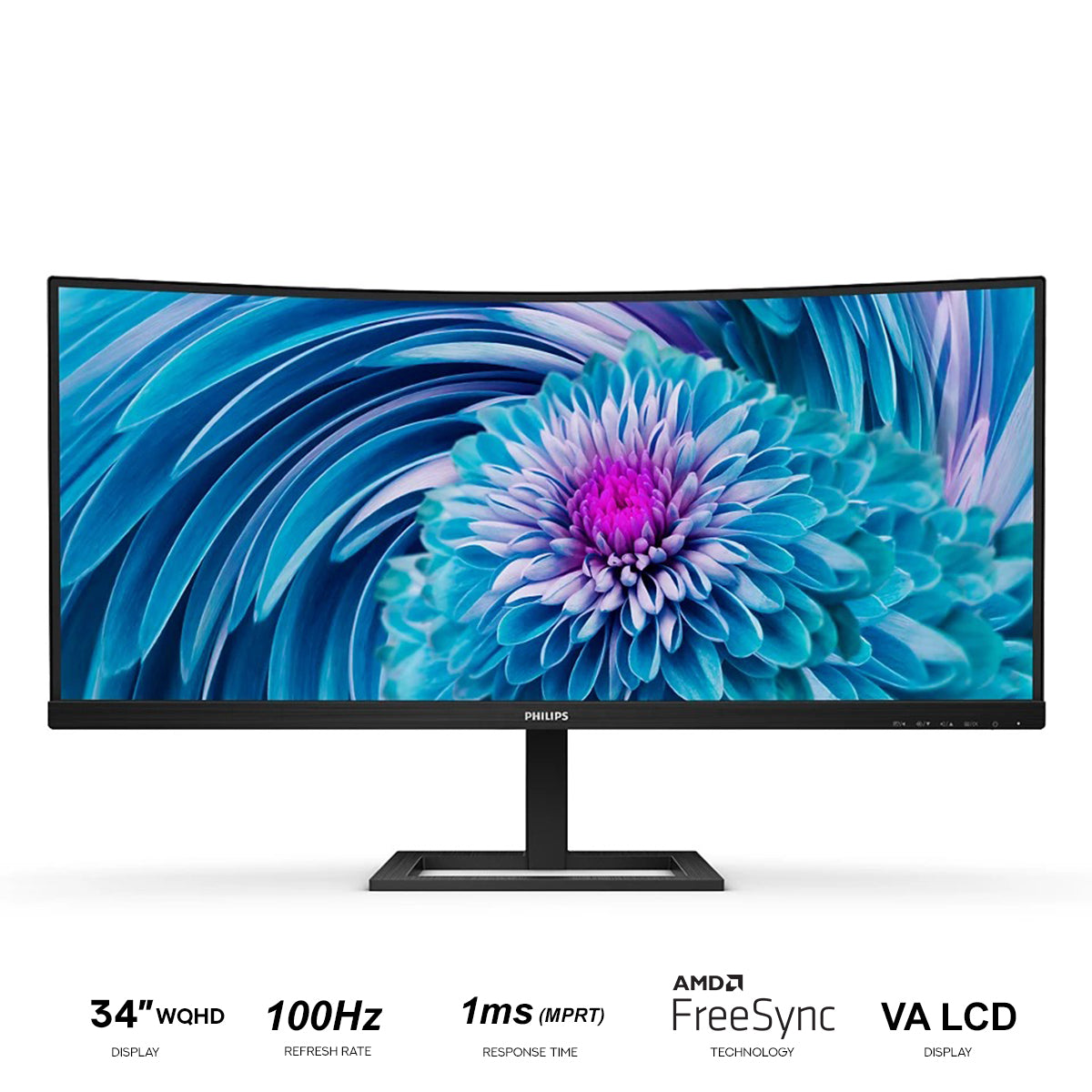

UltraWide LCD monitor
Simplify your connections with USB-C
The Philips E line curved UltraWide display offers expansive panoramic visuals. A WQHD display with an ergonomic stand make for optimal viewing conditions. All-in-one USB-C and MultiView meet the need for productivity.
- E Line
- 34" (86.36 cm)
- 3440 x 1440 (WQHD)
Specification:
| Picture/Display | |
|---|---|
| Panel Size | 34 inch / 86.36 cm |
| Aspect ratio | 21:9 |
| LCD panel type | VA LCD |
| Backlight type | W-LED system |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Brightness | 300 cd/m² |
| Display colors | 1.07 B (8 bits+FRC) |
| Color gamut (typical) | NTSC 99.5%*, sRGB 121.3%* |
| Contrast ratio (typical) | 3000:1 |
| SmartContrast | Mega Infinity DCR |
| Response time (typical) | 4 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V) @ C/R > 10 |
| Picture enhancement | SmartImage game |
| Maximum resolution | 3440 x 1440 @ 100 Hz* |
| Effective viewing area | 797.22 (H) x 333.72 (V) mm - at a 1500R curvature* |
| Scanning Frequency | 30 - 160 kHz (H) / 48 - 100 Hz (V) |
| sRGB | Yes |
| Flicker-free | Yes |
| Pixel Density | 110 PPI |
| LowBlue Mode | Yes |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| MPRT | 1 ms |
| EasyRead | Yes |
| AMD FreeSync™ technology | Premium |
| Connectivity | |
| Signal Input | DisplayPort 1.2 x 1, HDMI 2.0 x 1 |
| Sync Input | Separate Sync |
| Audio (In/Out) | Audio out |

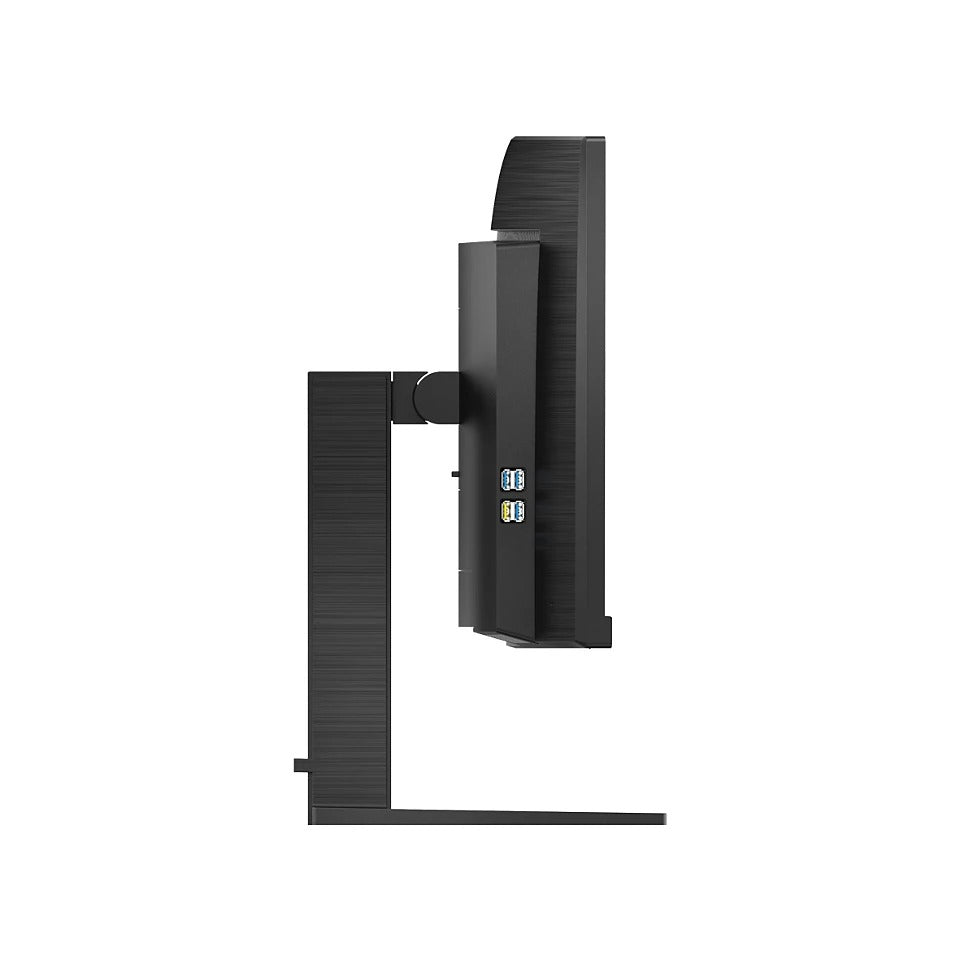

| USB: | USB-C x 1, USB 3.2 x 4 (downstream with 1 fast charge B. C 1.2) |
| USB | Power delivery USB PD version 3.0 Super speed Data and Video transfer DP Built-in Display Port Alt mode |
| USB-C max. power delivery | Up to 65W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A) |
| Convenience | |
| Built-in Speakers | 5 W x 2 |
| Plug & Play Compatibility | DDC/CI Mac OS X sRGB Windows 10 / 8.1 / 8 / 7 |
| User convenience | Power On/Off Menu Volume Input SmartImage |
| OSD Languages | Brazil Portuguese Czech Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish Ukrainian |
| Other convenience | Kensington lock VESA mount (100x100mm) MultiView PIP/PBP mode 2x devices |
| Stand | |
| Height adjustment | 100 mm |
| Tilt | -5/20 degree |
| Power | |
| Power supply | Internal 100-240VAC, 50-60Hz |
| Off mode | 0.3 W (typ.) |
| On mode | 31.81 W (typ.) (EnergyStar test method) |
| Standby mode | 0.5 W (typ.) |
| Power LED indicator | Operation - White Standby mode- White (blinking) |
| Dimensions | |
| Packaging in mm (WxHxD) | 980 x 500 x 224 mm |
| Product without stand (mm) | 807 x 367 x 110 mm |
| Packaging in inch (WxHxD) | 38.6 x 19.7 x 8.8 inch |
| Product without stand in inch | 31.8 x 14.4 x 4.3 inch |
| Product with stand(max height) | 807 x 495 x 257 mm |
| Product with stand(max height) | 31.8 x 19.5 x 10.1 inch |
| Weight | |
| Product with packaging (kg) | 13.06 kg |
| Product with stand (kg) | 10.05 kg |
| Product with packaging (lb) | 28.73 lb |
| Product with stand (lb) | 22.11 lb |
| Product without stand (kg) | 7.83 kg |
| Product without stand (lb) | 17.23 lb |
| Operating conditions | |
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0 to 40 °C |
| MTBF | 50,000 hrs (excluding backlight) hour(s) |
| Relative humidity | 20%-80 % |
| Temperature range (storage) | -20 to 60 °C |
| Sustainability | |
| Environmental and energy | EPEAT* TCO Certified RoHS Energy Star |
| Recyclable packaging material | 100 % |
| Compliance and standards | |
| Regulatory Approvals | cETLus CB TUV/GS TUV Ergo CU-EAC EAEU RoHS CE Mark FCC Class B ICES-003 UKRAINIAN CEC EAC MEPS PSB UKCA EMF |
| Cabinet | |
| Color | Black |
| Finish | Textured |
| What's in the box? | |
| Cables | HDMI cable, DP cable, USB-C to USB-C cable, Power cable |
| Monitor with stand | Yes |
| User Documentation | Yes |
