Description

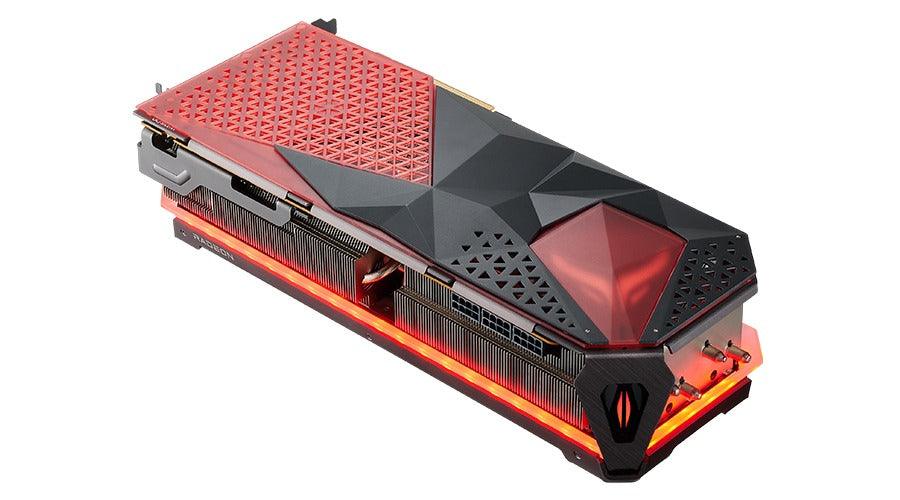

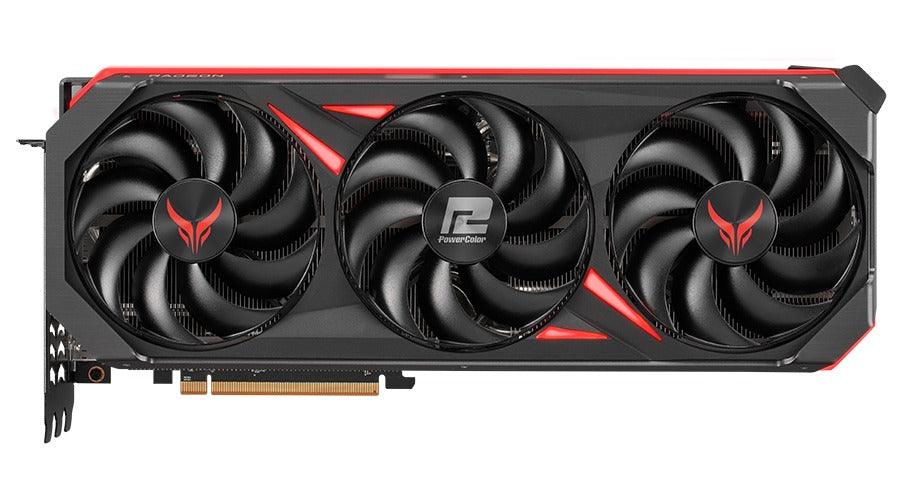

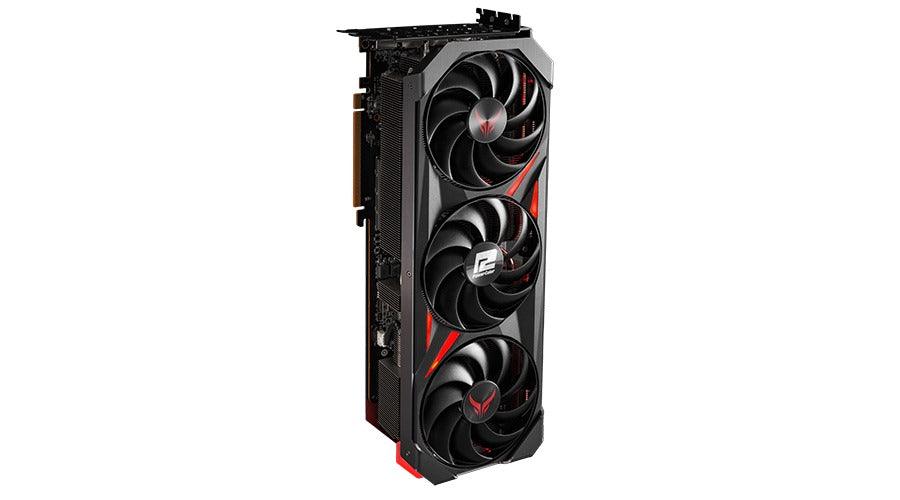

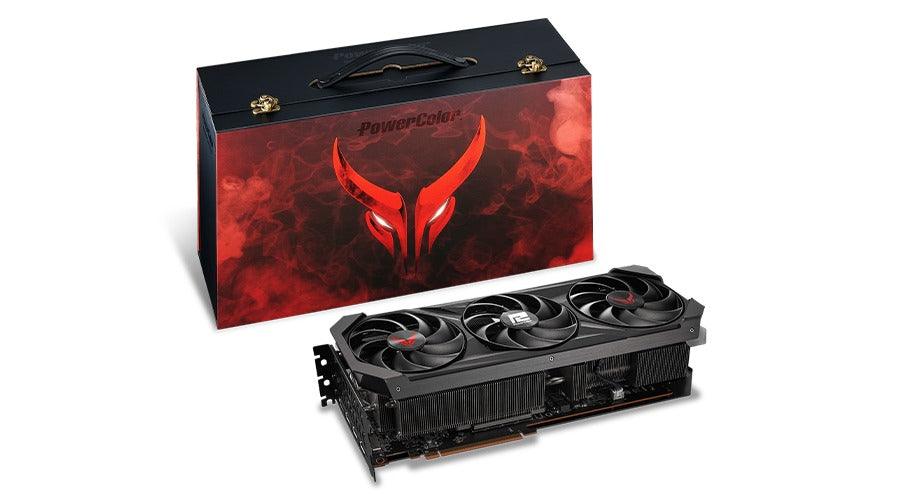

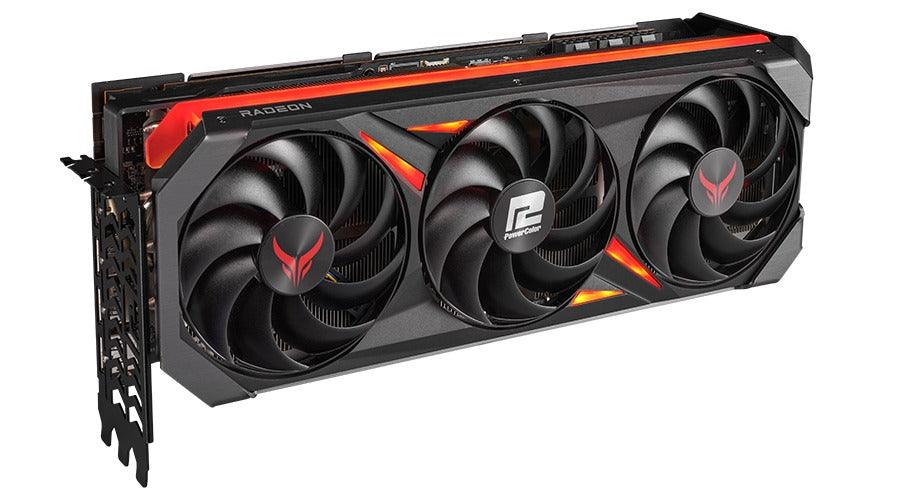

Red Devil AMD Radeon™ RX 7900 XTX 24GB GDDR6 Limited Edition
RADEON™ RX 7900 XTX
RX 7900 XTX 24G-E/OC/LIMITED
FEATURES
AMD FidelityFX™ Super Resolution Technology
AMD FidelityFX™ Super Resolution technology, or FSR, uses cutting-edge super-optimized spatial upscaling technology to generate super high-quality edges and distinctive pixel detail. With FSR, turn on the latest features and settings in your games while maintaining an acceptable framerate.
AMD RDNA™ 3 Architecture with Hardware Raytracing
The AMD RDNA™ 3 architecture features industry-advancing chiplet technology to deliver next-generation performance, visuals, and power efficiency. Discover new levels of performance with advanced AMD RDNA™ 3 compute units, featuring redesigned raytracing accelerators for incredible performance while improving image quality.
Optimized for Windows 11
AMD Radeon™ RX 7000 Series Graphics power the ultimate Windows 11 gaming experience with optimized support for DirectX® 12 Ultimate, AutoHDR, and DirectStorage.
AMD FreeSync™ Technology
Take full advantage of the AMD Radeon™ RX 7000 Series graphics cards by pairing with a certified AMD FreeSync™ technology-enabled monitor to enable an exceptional stutter and tear-free gaming experience with high refresh rates, low latency, and stunning HDR.
SPECIFICATIONS:
| Graphics Engine | RX 7900 XTX 24G-E/OC/LIMITED |
| Video Memory | 24GB GDDR6 |
| Stream Processor | 6144 Units |
| Engine Clock(OC) | up to 2395MHz(Game) up to 2565MHz(Boost) |
| Engine Clock(STD/Silent) | up to 2330MHz(Game) up to 2525MHz(Boost) |
| Memory Clock | 20.0 Gbps |
| Memory Interface | 384-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 |

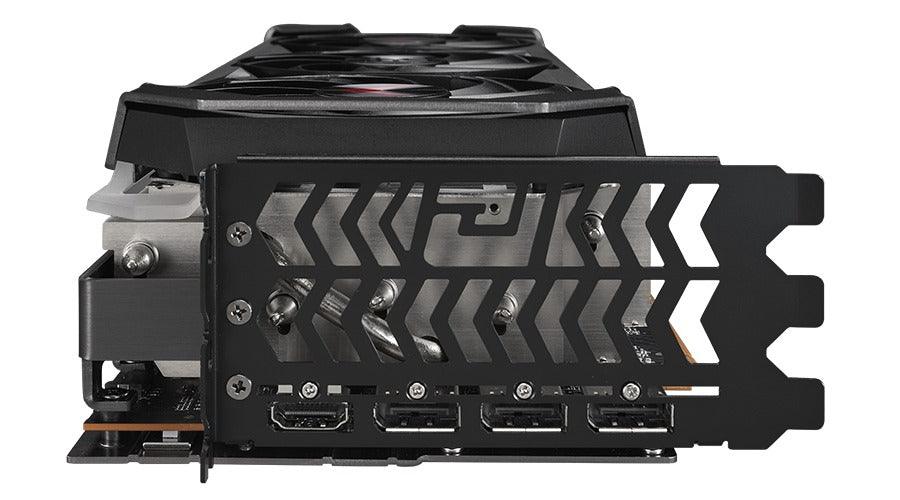

| Standard Display Connectors | 1 x HDMI 2.1，3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported) |
| Customized Specifications | |
| Product Remark | 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads. |
| Feature Support | |
| OpenGL | Support |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
| Maximum Resolution | |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
| Power Specs + Board Dimensions | |
| Board Dimensions | 338mm*135mm*73mm 348mm*147mm*73mm(with bracket) |
| Minimum System Power requirement (W) | 900W |
| Extension Power Connector | Three 8-pin PCI Express Power connectors |
