Description

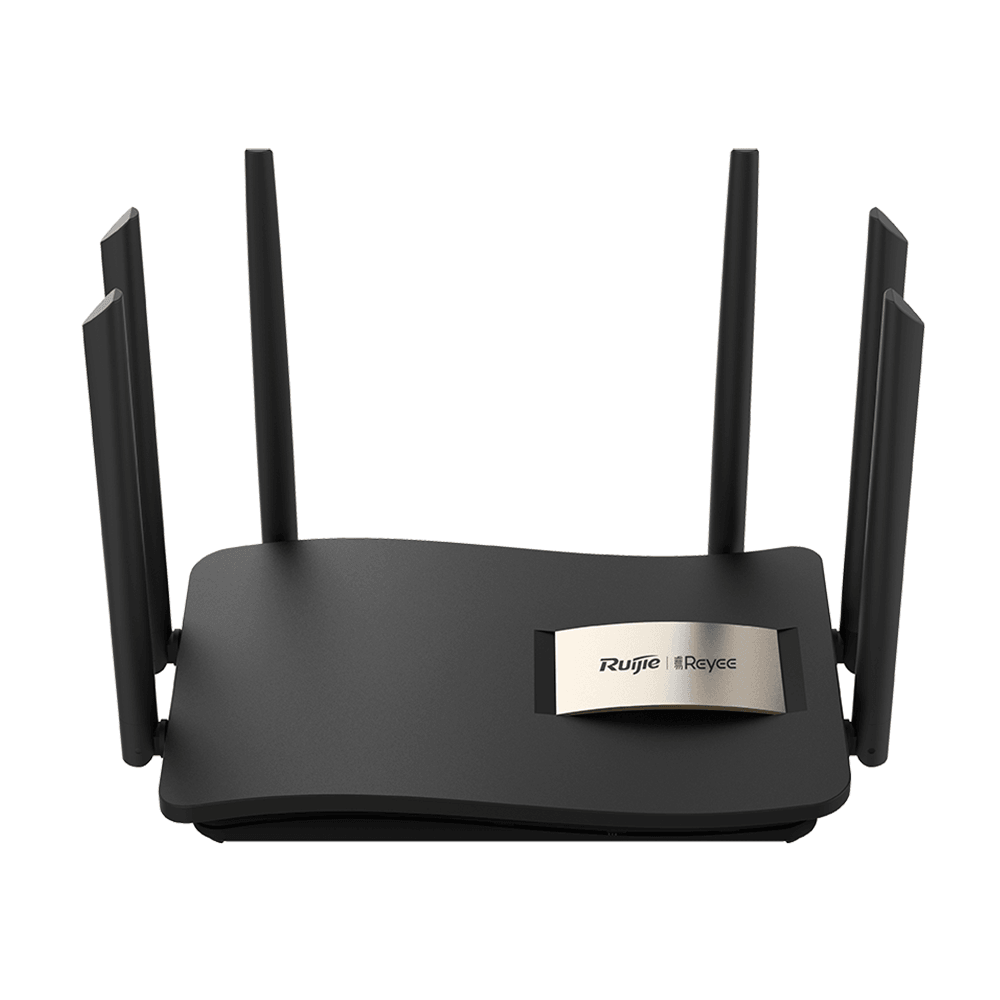

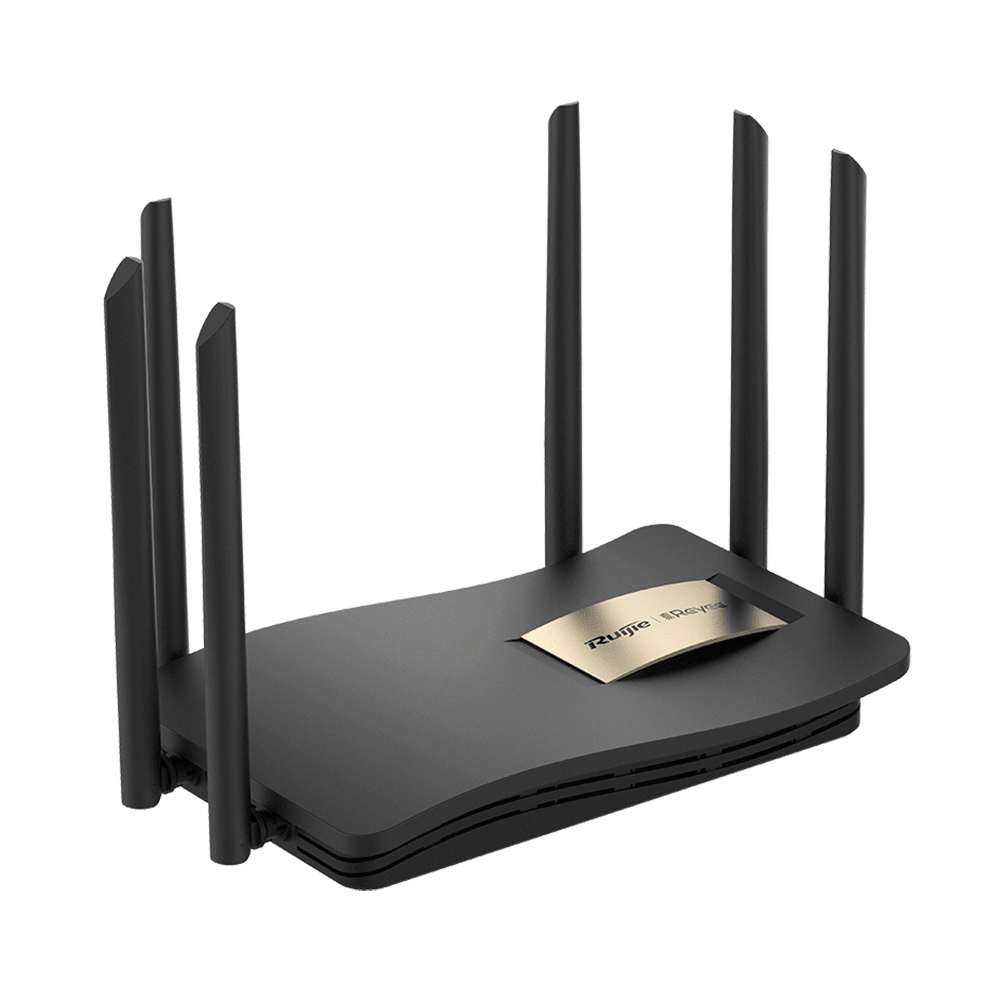

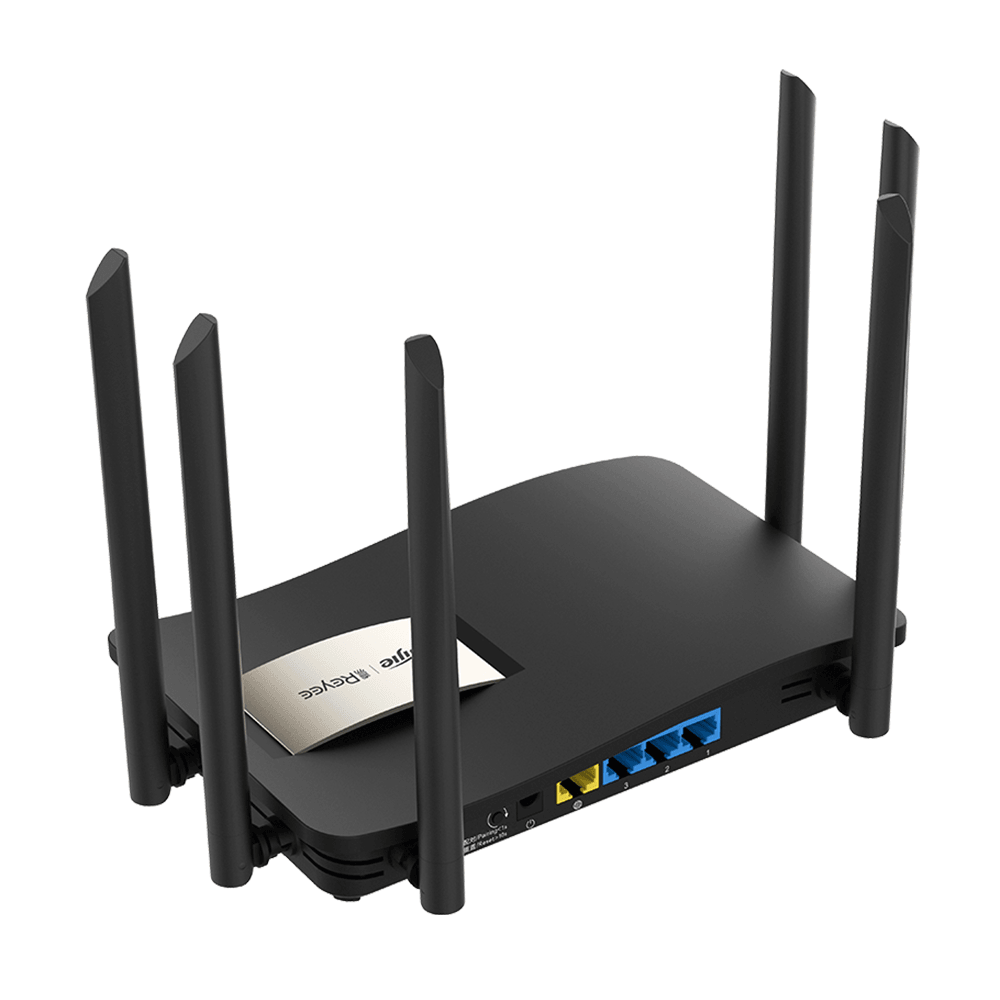

Ruijie Reyee RG-EW1200G PRO is a Gigabit dual-band wireless consumer router designed for all types of room and other SOHO scenarios. It comes with the next generation Wi-Fi standard 802.11ac Wave2 boosting up to 1267Mbps, which enables stable 4K streaming and online gaming. With build-in high-power amplifiers and multiple external antennas, additionally, with MU-MIMO technology and beamforming technology, EW1200G PRO brings optimized Wi-Fi coverage throughout all types of space.
RG-EW1200G PRO also equipped with Ruijie Cloud App to support comprehensive ways of smart management and remote operations.
High-performance Gigabit Routing

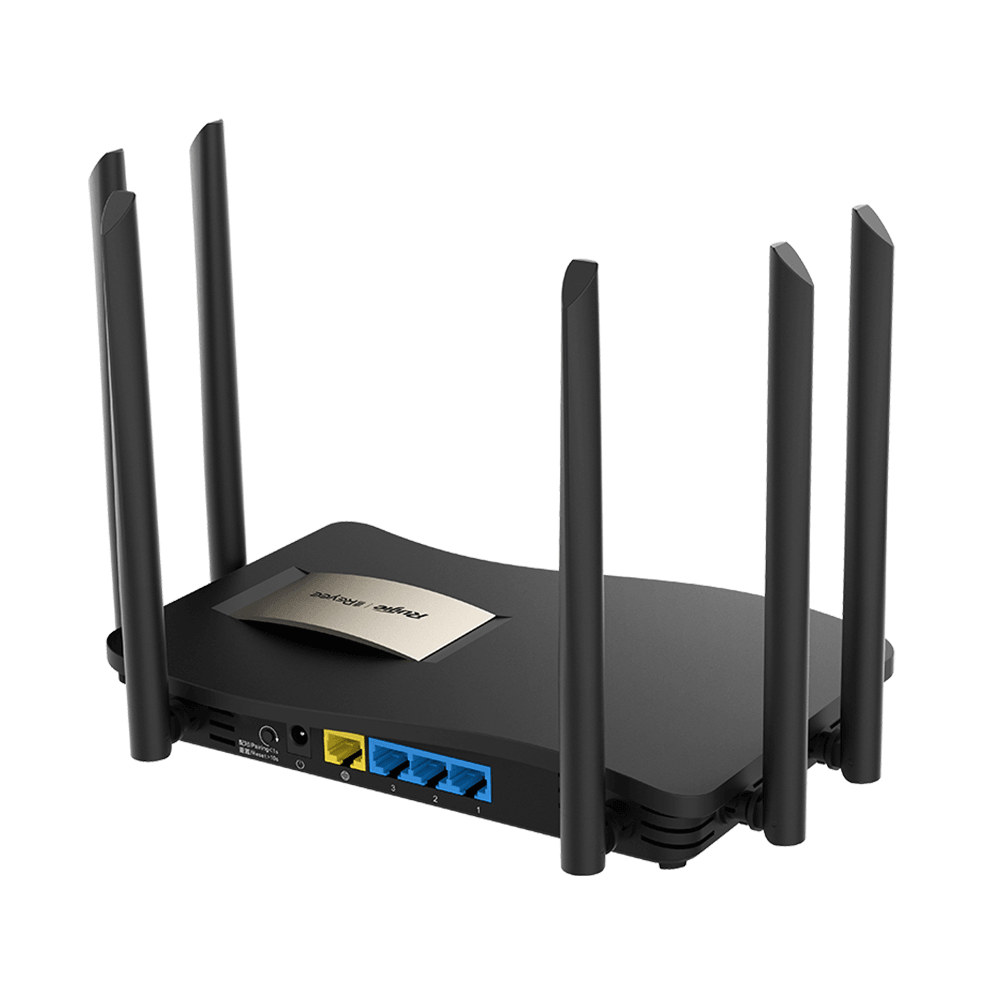

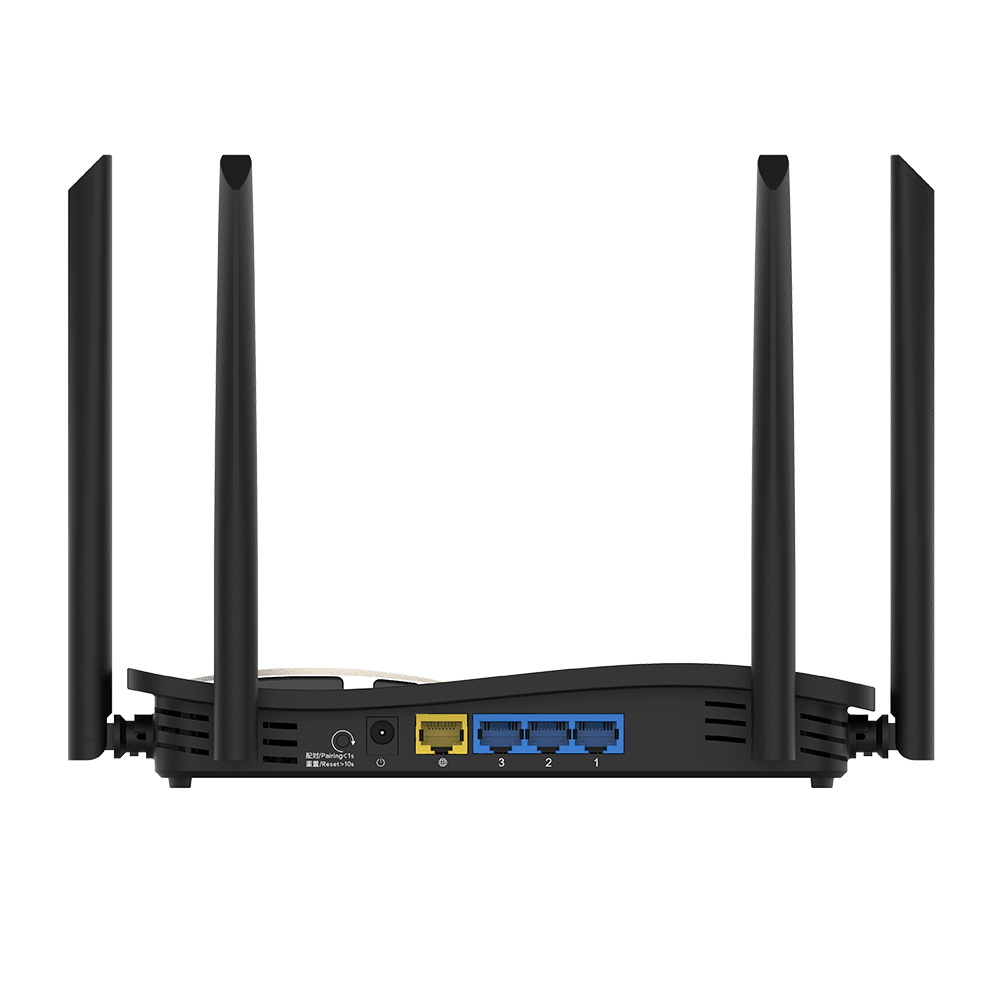

The device supports 4 Gigabit Ethernet ports and wireless access rate of up to 1267M. The powerful dual-core hyper-threading CPU, combined with the hardware NAT feature, performs high-speed data forwarding and maximizes the broadband performance. For gigabit broadband speed test of the wired network port, after deducting the basic network overhead, the measured network speed can reach more than 980M.
1267M Dual-Band Integration Offering Low Interference and Fast Internet Speed
Affected by the actual application environment, the 2.4GHz frequency band has high interference and the testing speed is usually only 40 to 50M, which is unlikely to reach 100M. RG-EW1200G PRO provides both 2.4GHz and 5GHz wireless frequency bands at the same time. The 2.4GHz frequency band offers good penetration, long transmission and wide coverage, providing good basic signal coverage. The 5GHz frequency band features low interference, high speed, and low latency, providing better experience when watching HD videos and playing online games. The SSIDs of 2.4GHz and 5GHz can be set separately, or the two can be combined into one, offering dual-band concurrent access, 5G priority and smart identification, which provides better Internet experience.
Optimize 2.4G to Increase the Limit of Smart Terminal Connections
In view of the widespread adoption of smart terminals, the device has applied the Wi-Fi 5 chip for Wi-Fi 4 device access to increase the maximum access rate of the 2.4GHz band from 300Mbps to 400Mbps, and provide a higher limit for the number of smart terminal connections.
MU-MIMO Offers Higher Transmission Efficiency
The device supports 802.11ac Wave2 MU-MIMO (multi-user, multiple-input, multiple-output), changing the previous inefficient transmission method in which only one terminal can occupy the channel at a time. MU-MIMO allows the device to transmit data to multiple terminals concurrently. Multi-terminal concurrent transmission is no longer in competitive mode, which improves the multi-user experience by 50% and offers extremely fast Internet access for all users.
Professional RF Design Multiplies the Coverage Distance
The quad-stream independent FEM design ensures that the LNA amplifies the received signal power during signal transmission to effectively improve the receiving sensitivity and to a certain extent reduce the problems caused by the unbalanced power between the router and the Wi-Fi terminal, such as false signal and terminal signal unable to transmit back to the router. In addition, the external omnidirectional antennas also further ensure the Wi-Fi signal coverage.
Exclusive Reyee Mesh Technology Enables Zero-configuration Networking for Multi-Devices
Reyee Mesh is a networking technology self-developed by Ruijie for multiple wireless routers’ connection, which supports both plug-in and one-key pairing. Without requiring any pre-configuration, you can complete the multiple devices pairing process, additional equipment installation, and coverage optimization with zero threshold. Multiple wireless routers connected by Easy-Link Technology can intelligently identify the connection status and automatically switch between wireless relay and wired relay modes to improve network reliability.
Reyee Mesh Technology Offers Seamless Roaming without Disconnection
The Reyee Mesh Technology supports wired or wireless networking of multiple devices. The RF adjustment algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between the equipment and fast switching between 2.4GHz and 5GHz. When users walk around under the Wi-Fi signal coverage, the optimal frequency band selection and network switching will be automatically performed without service interruption.
Parental Control Allow Parents to Monitor Their Child's Internet Use
Users can control the Internet access authority of the specified terminal through the Ruijie Cloud App and set rules to limit the online duration of the specified terminal.
Wi-Fi Acceleration Mode Put You One Step Ahead of Other Players
The Wi-Fi acceleration mode improves the anti-interference of the device and the wireless channel efficiency under high-interference environment, thereby reducing game delays and putting you one step ahead of other players.
Temporary Authorization for Remote Management
Users can use the Ruijie Cloud App for smart network inspection to determine the current network failures. Users can also temporarily grant network authorization and share network to technical personnel who can do remote-diagnosis through various technical tools such as Ruijie Cloud app and MACC cloud platform, to avoid unnecessary on-site services.
Professional Heat Dissipation Design for Long-Term Stable Operation
The CPU uses metal sheet for heat dissipation, offering heat dissipation coefficient close to 200W/m*K, which is 20 times that of the traditional ceramic heat-sinks. With an excellent aerodynamic heat dissipation structure design, the internal temperature of the equipment is greatly reduced. Long-term high-speed operation is stable and reliable, avoiding stability problems such as speed reduction and crashes caused by excessive temperature.
Enterprise-grade product design supporting connection with enterprise-grade equipment
The device can be deployed with Ruijie Reyee enterprise-grade gateway and AP for hybrid deployment, unified management, unified configuration, and seamless roaming.
