Description

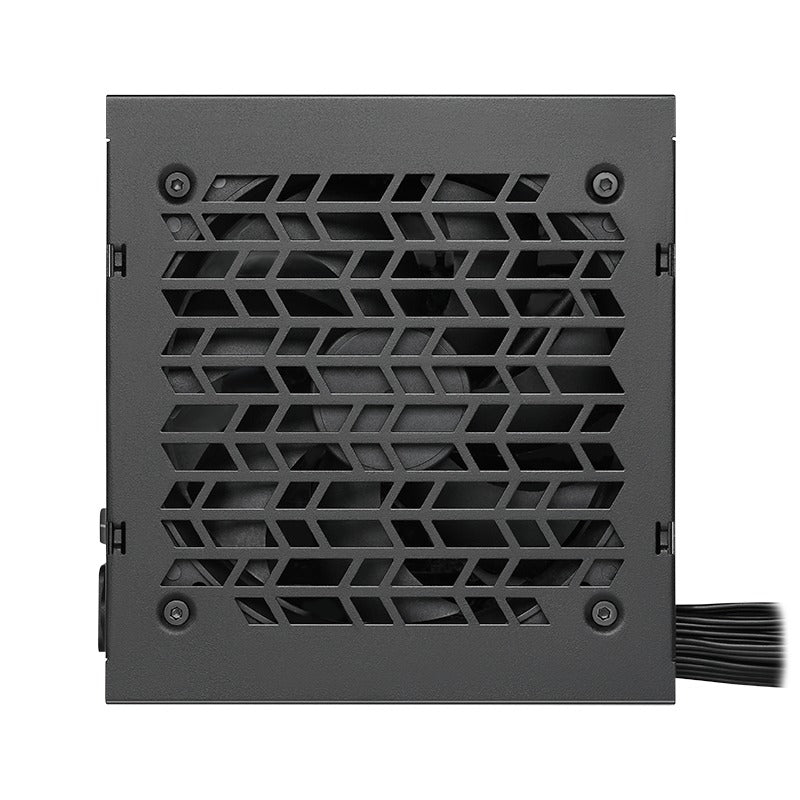

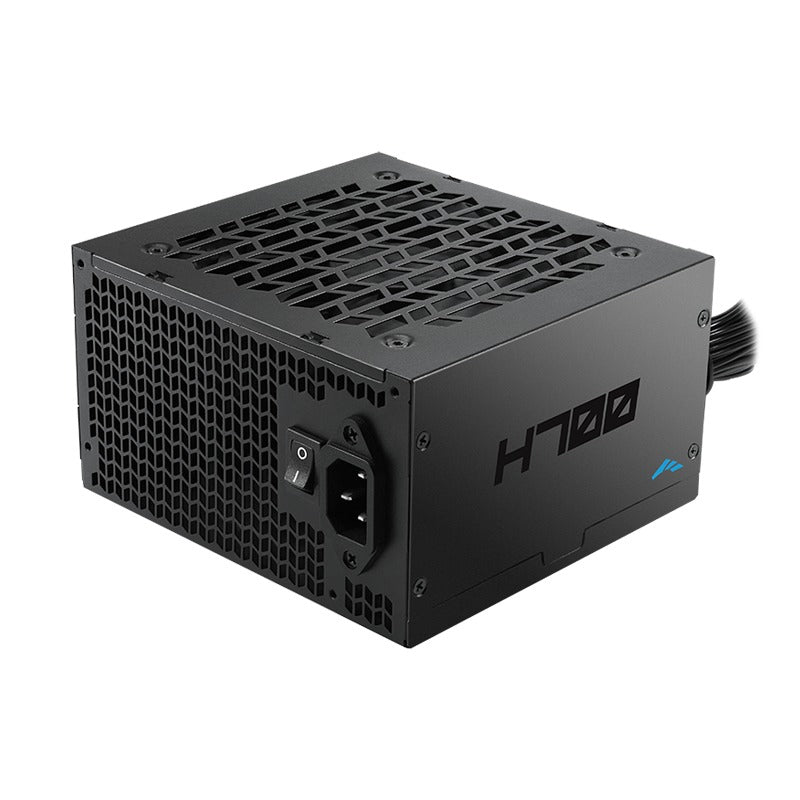

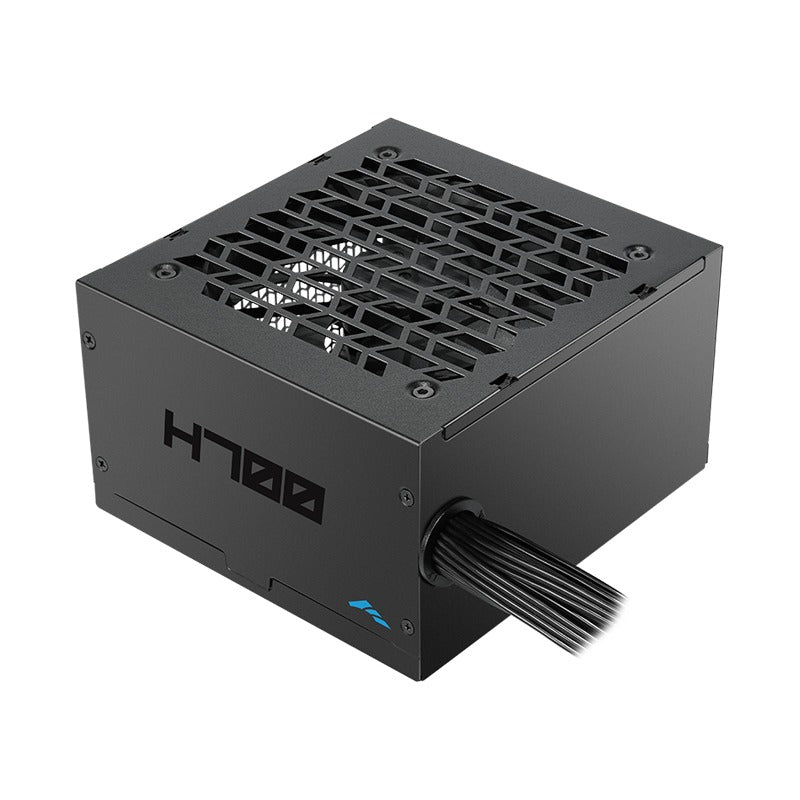

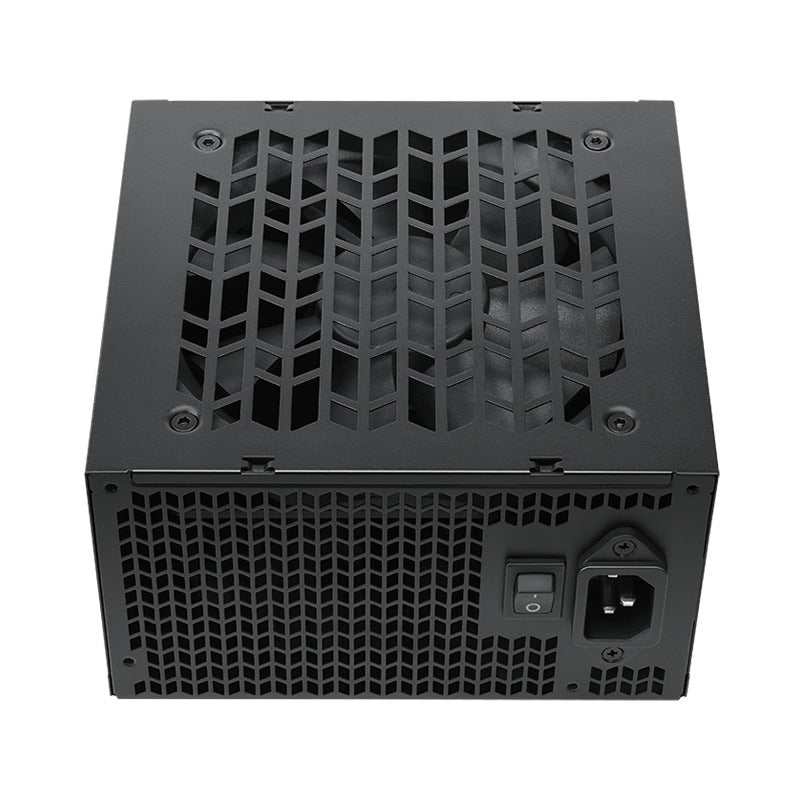

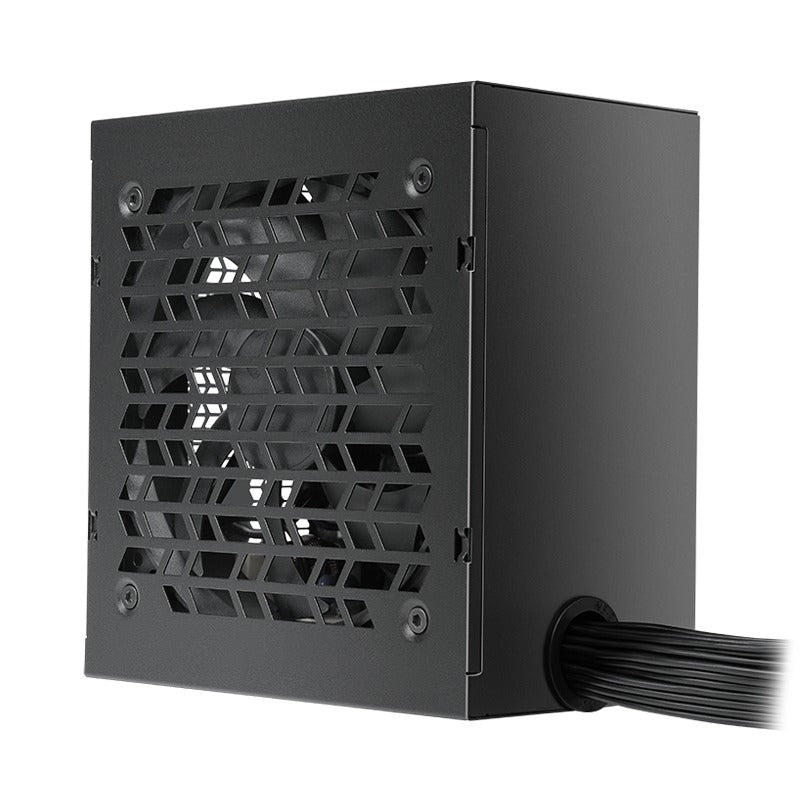

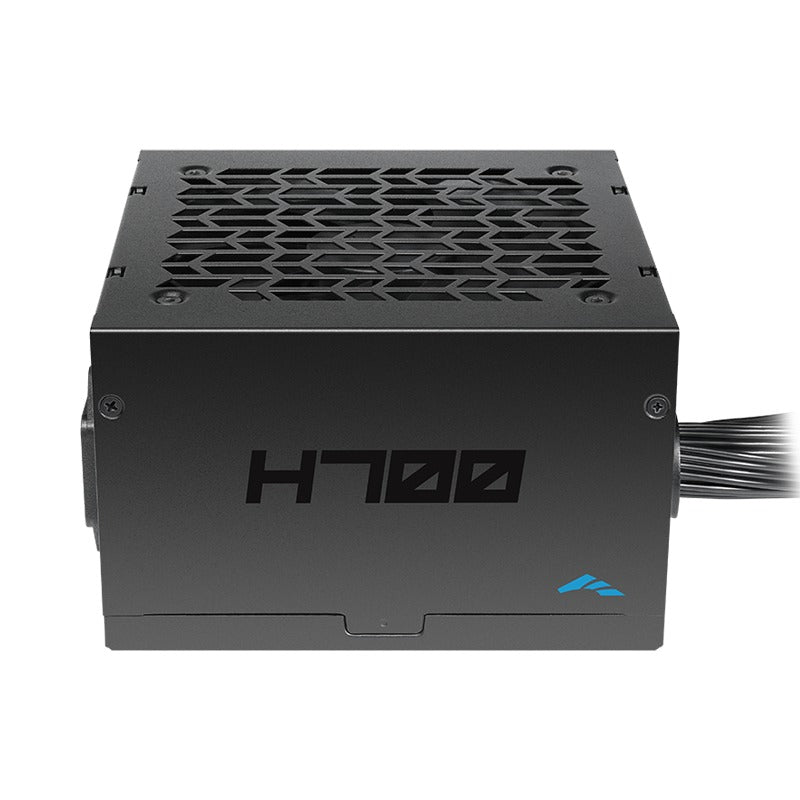

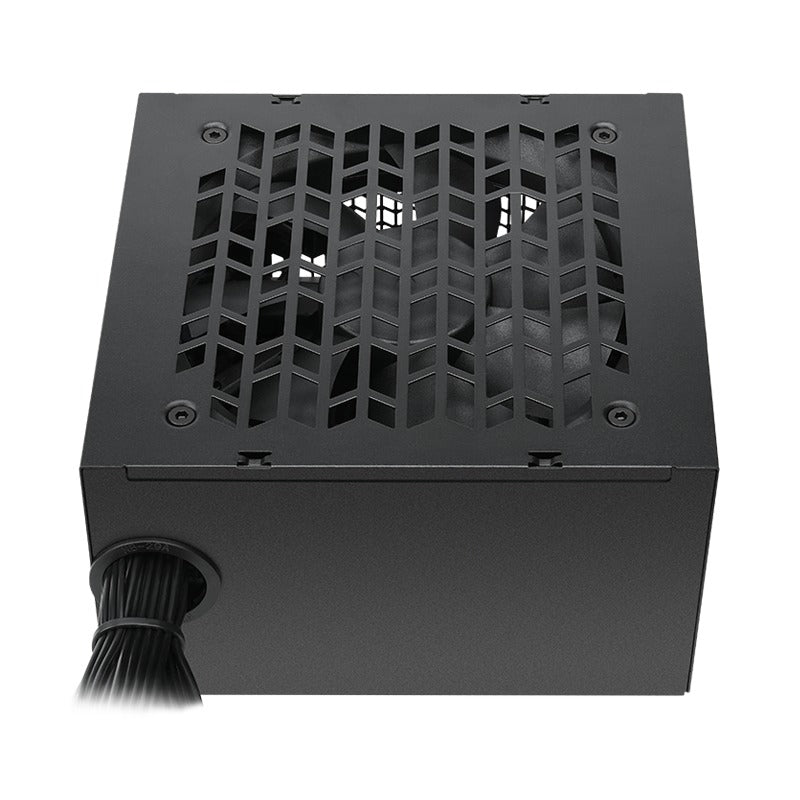

The H Series delivers reliable, stable power for gaming PCs. It features a single +12V rail to ensure consistent GPU and CPU performance, along with a DC-to-DC design for precise regulation of the +3.3V and +5V rails. Certified to 80 PLUS 230V EU standards, it minimizes heat waste. A quiet 120mm fan provides effective cooling under load while balancing efficiency and voltage stability.
| GENERAL SPECIFICATIONS | |
|---|---|
| Output Power | 700W |
| Form Factor | ATX 2.52 |
| Modularity | Non-Modular |
| Dimensions | 140 x 150 x 86 mm (L x W x H) |
| Color | Black |
| 80PLUS Certification | 80PLUS 230V EU Standard |
| Efficiency | >85% Under Typical Load (50% Load) |
| MTBF | 100,000 Hours |
| FAN & ELECTRICAL | |
| Fan Size / Bearing | 120 mm / Sleeve Fan |
| AC Input | 100–240 Vac |
| Topology | APFC + SR + DC-DC |

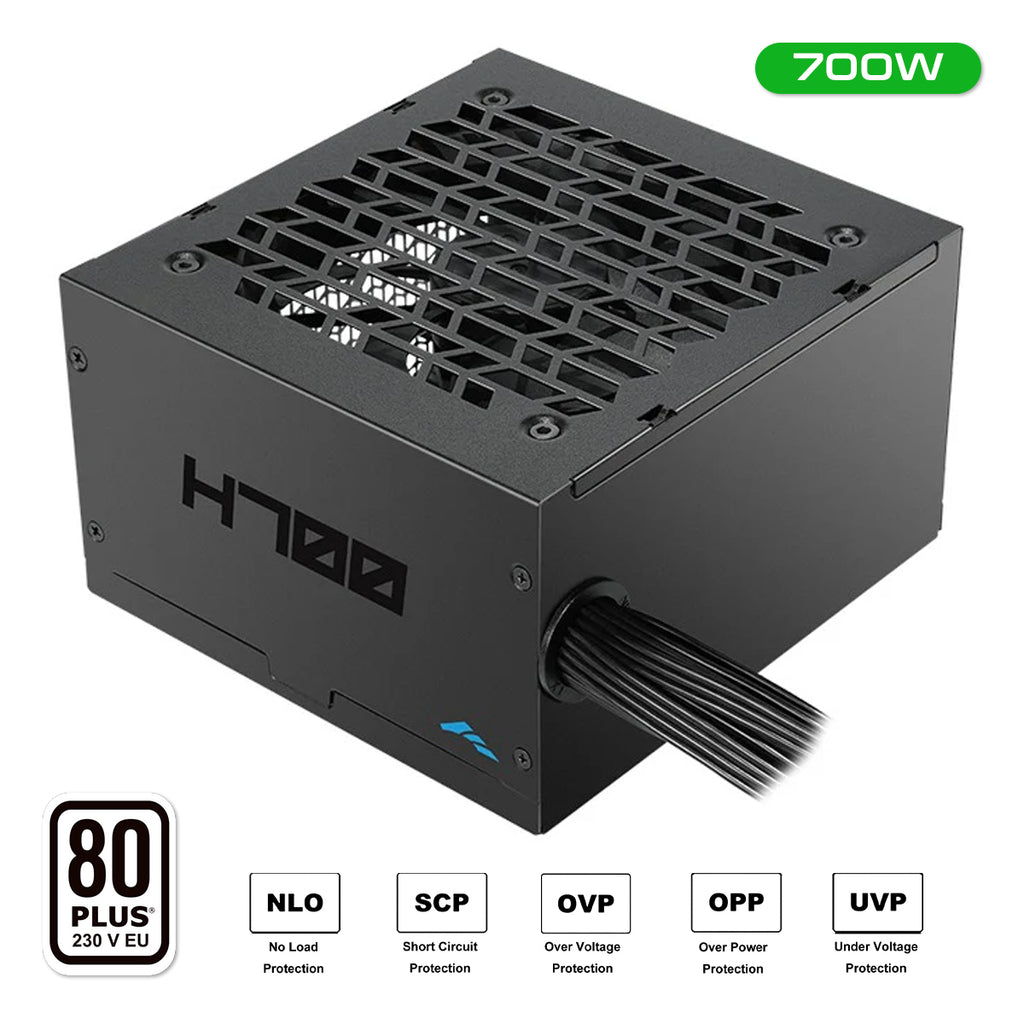

| Protection | OPP, SCP, OVP, UVP, NLO |
| Operating Temp. | 0–30 °C |
| CONNECTORS & CABLES | |
| MB ATX 24-Pin | 1x (550 mm) |
| CPU (4+4) Pin | 2x (600 + 150 mm) |
| PCI-E (6+2) Pin | 2x (550 + 150 mm) |
| SATA | 4x (450 + 150 + 150 + 150 mm) |
| Molex | 4x (450 + 150 + 150 + 150 mm) |
