Description

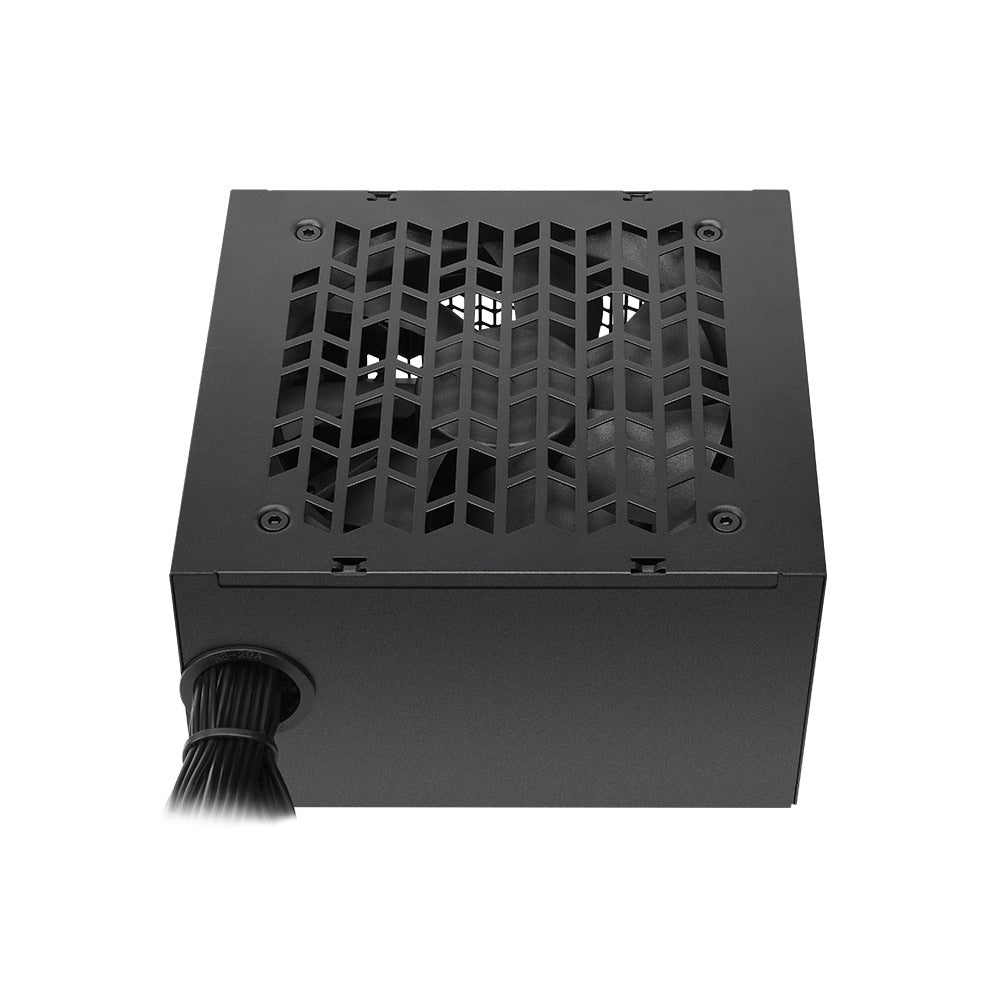

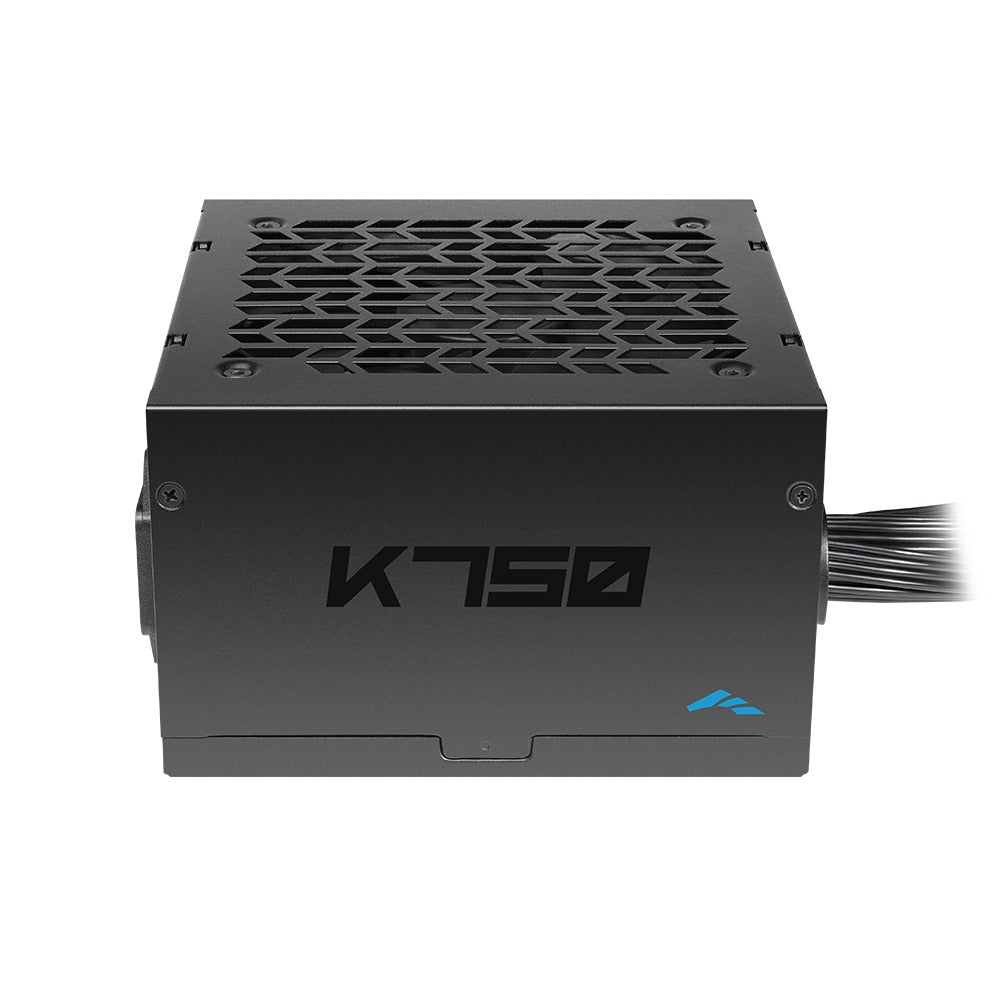

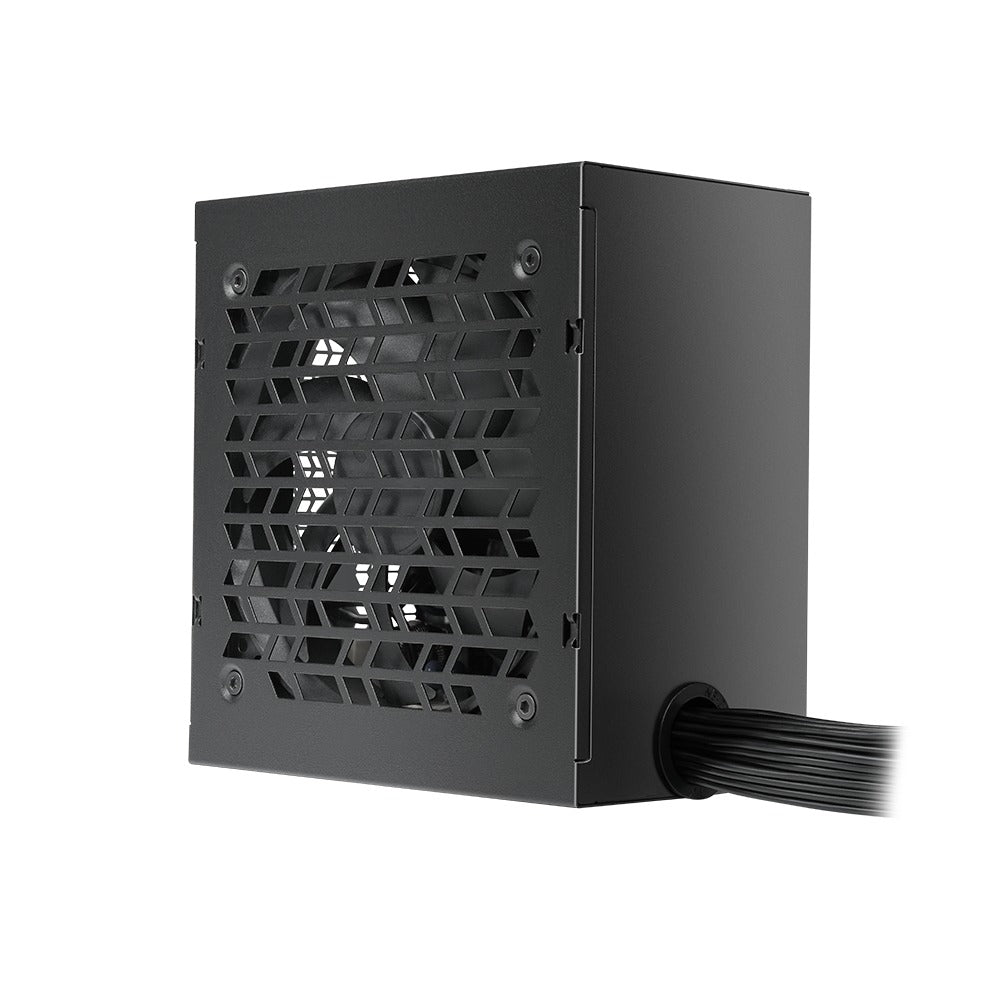

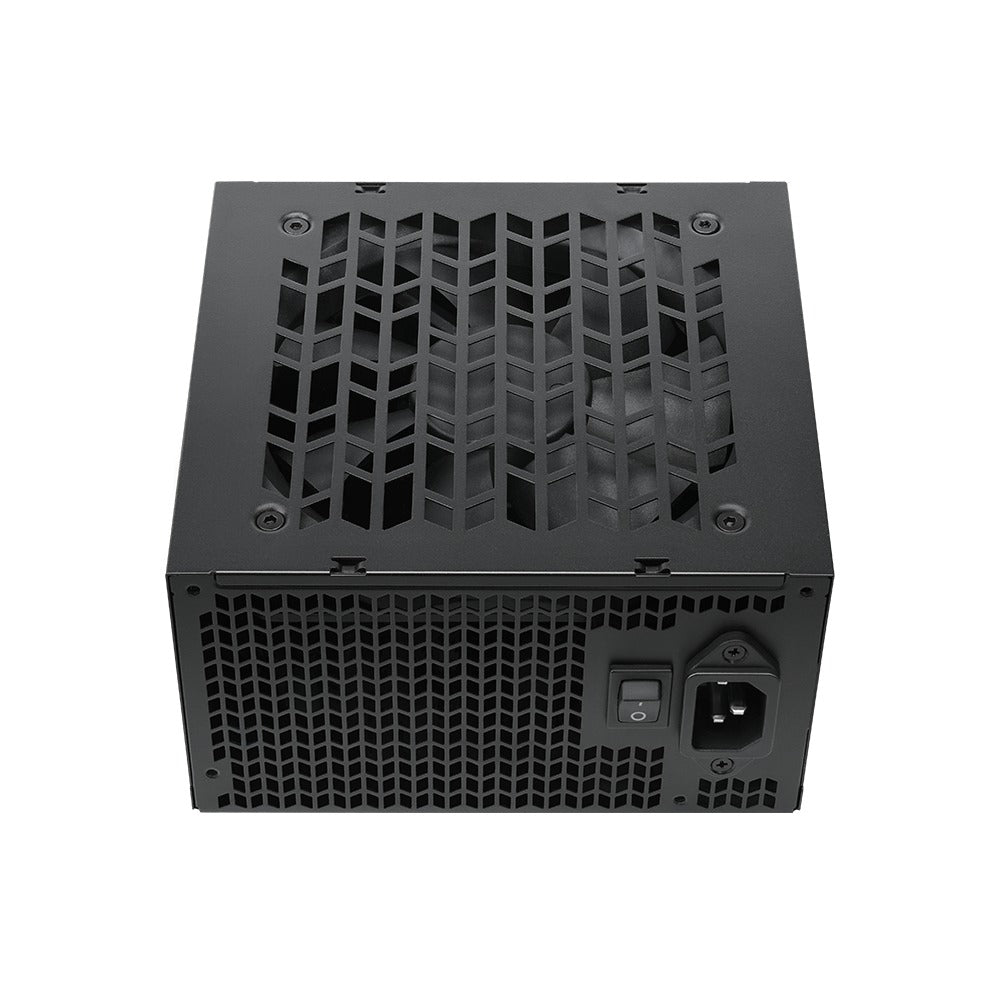

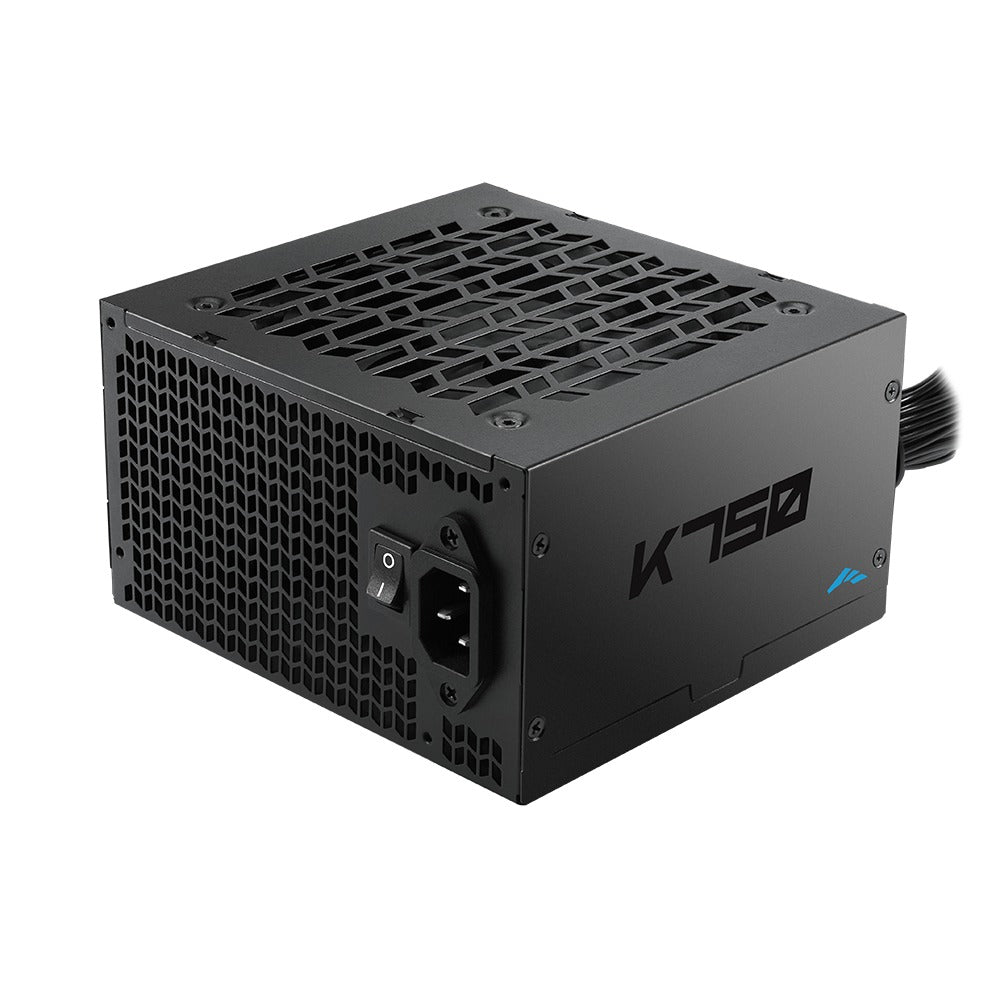

This 750W power supply unit is built to provide stable and efficient power for mid- to high-performance desktop systems. Designed in the ATX 2.52 form factor, it features a non-modular layout, meaning all cables are fixed to the unit for straightforward installation. The compact 140 × 150 × 86 mm chassis, finished in black, ensures compatibility with most standard PC cases.
With an 80 PLUS Bronze certification, the PSU delivers over 85% efficiency at typical 50% load, helping to reduce power loss and heat generation. It supports a wide AC input range of 100–240V, making it suitable for global use. The unit is engineered with a robust internal topology that includes Active Power Factor Correction (APFC), Half-Bridge LLC, synchronous rectification (SR), and DC-DC conversion, ensuring consistent voltage regulation and reliable performance under varying loads. Its MTBF rating of 100,000 hours reflects long-term durability.
| GENERAL SPECIFICATIONS | |
|---|---|
| Output Power | 750W |
| Form Factor | ATX 2.52 |
| Modularity | Non-Modular |
| Dimensions | 140 x 150 x 86 mm (L x W x H) |
| Color | Black |
| 80PLUS Certification | Bronze |
| Efficiency | >85% Under Typical Load (50% Load) |
| MTBF | 100,000 Hours |
| FAN & ELECTRICAL | |

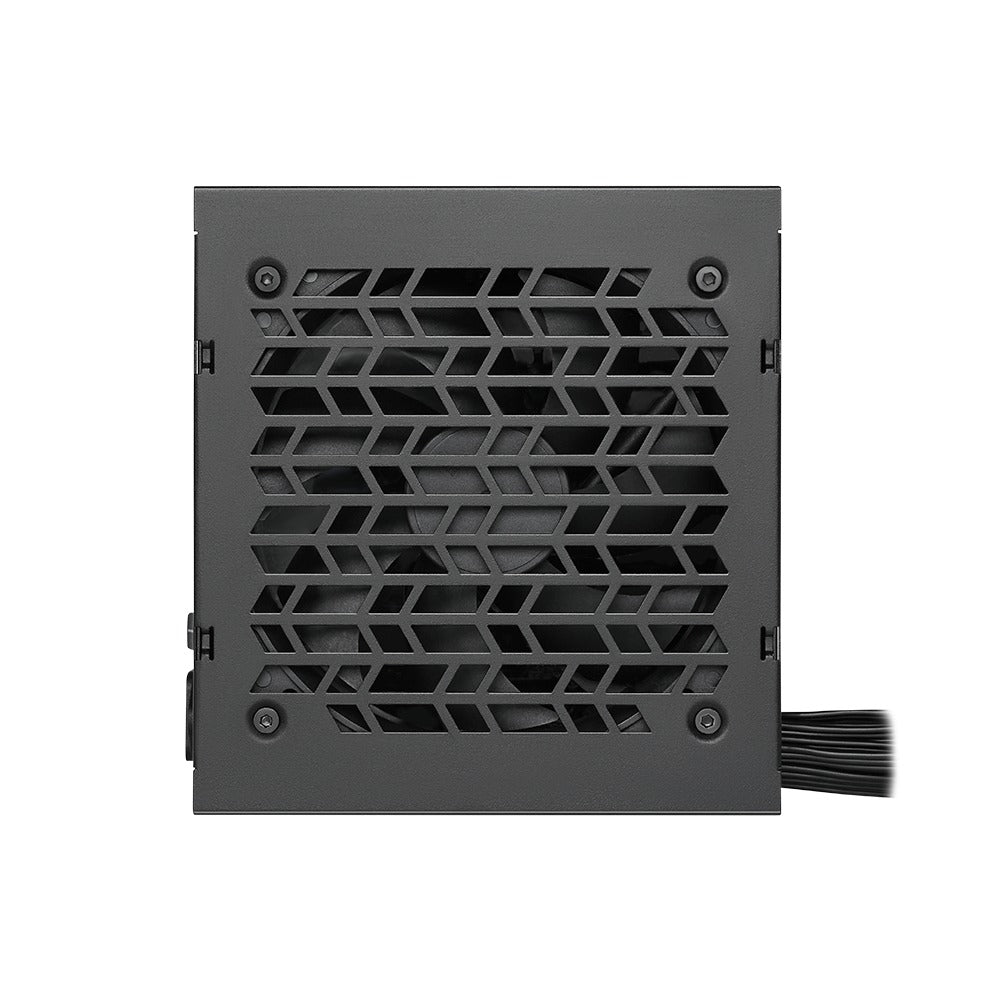

| Fan Size / Bearing | 120 mm / Sleeve Fan |
| AC Input | 100–240 Vac |
| Topology | APFC + Half-Bridge LLC + SR + DC-DC |

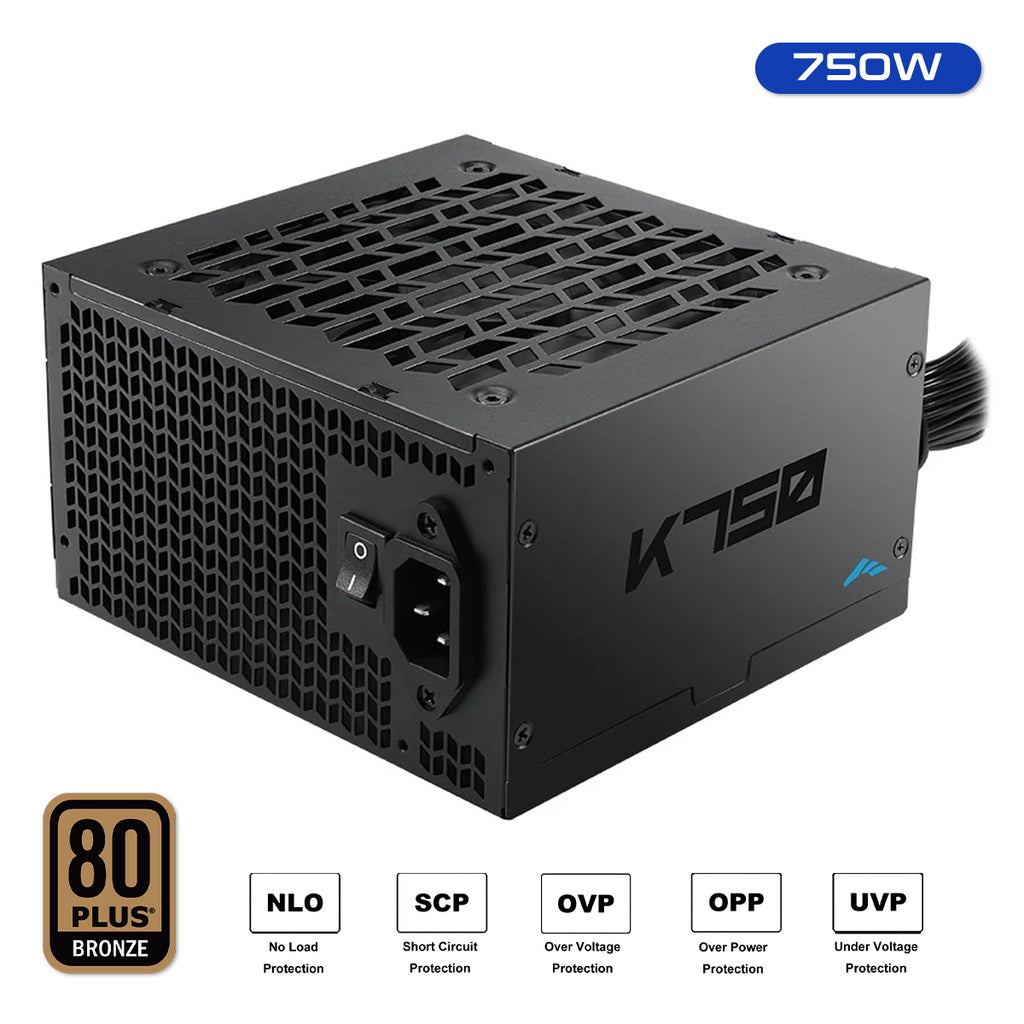

| Protection | UVP, OVP, OCP, OPP, NLP, SCP |
| Operating Temp. | 0–40 °C |
| CONNECTORS & CABLES | |
| MB ATX 24-Pin | 1x (550 mm) |
| CPU (4+4) Pin | 2x (700 + 150 mm) |
| PCI-E (6+2) Pin | 4x (2 cables, 550 + 150 mm each) |
| SATA | 6x (Across 2 cables) |
| Molex | 2x (Across 2 cables) |
