Description

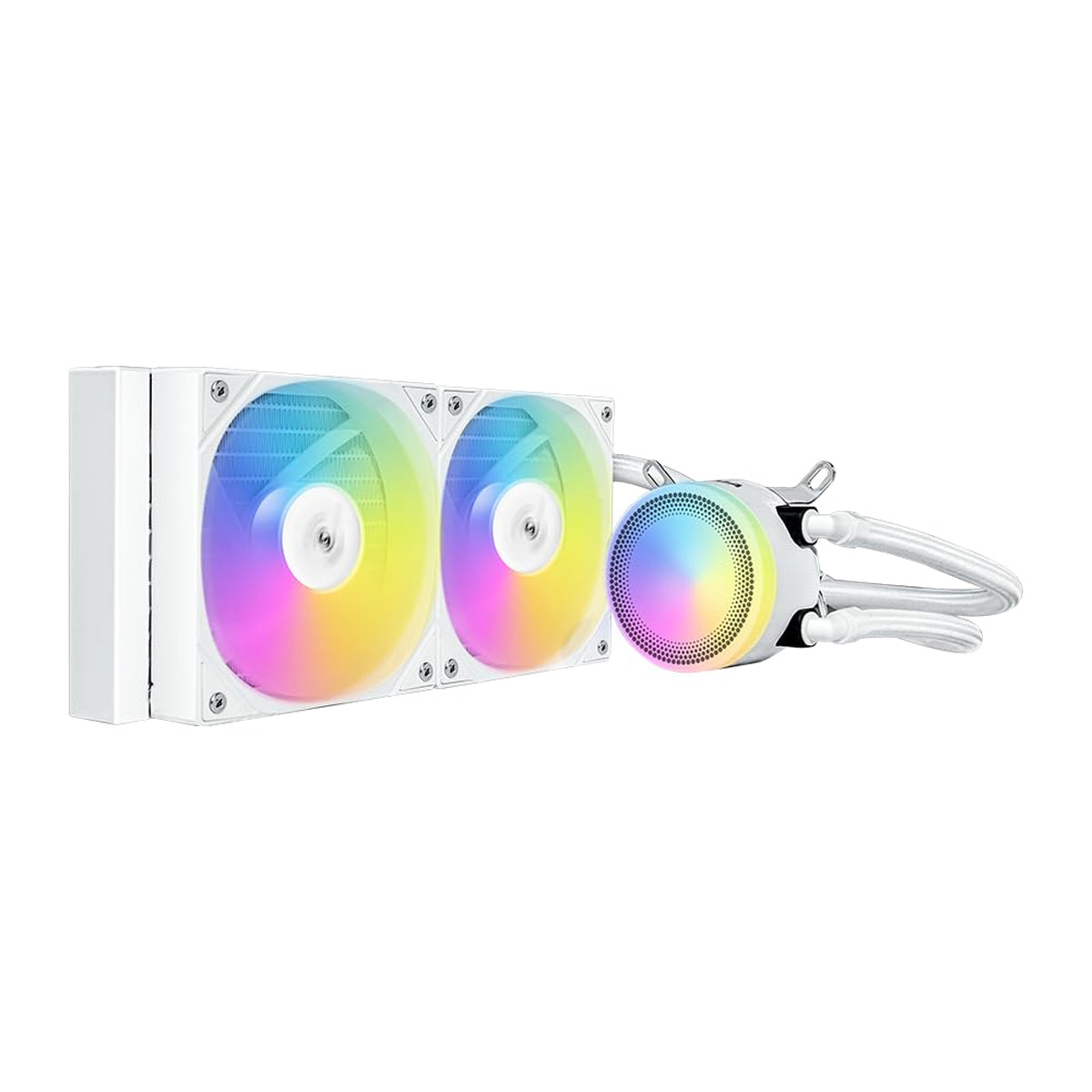

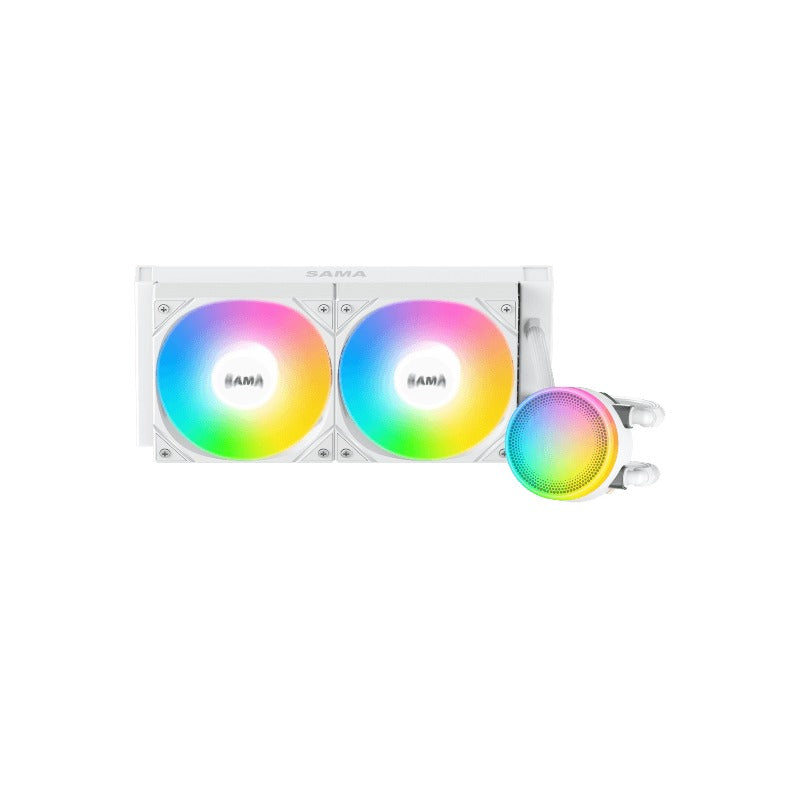

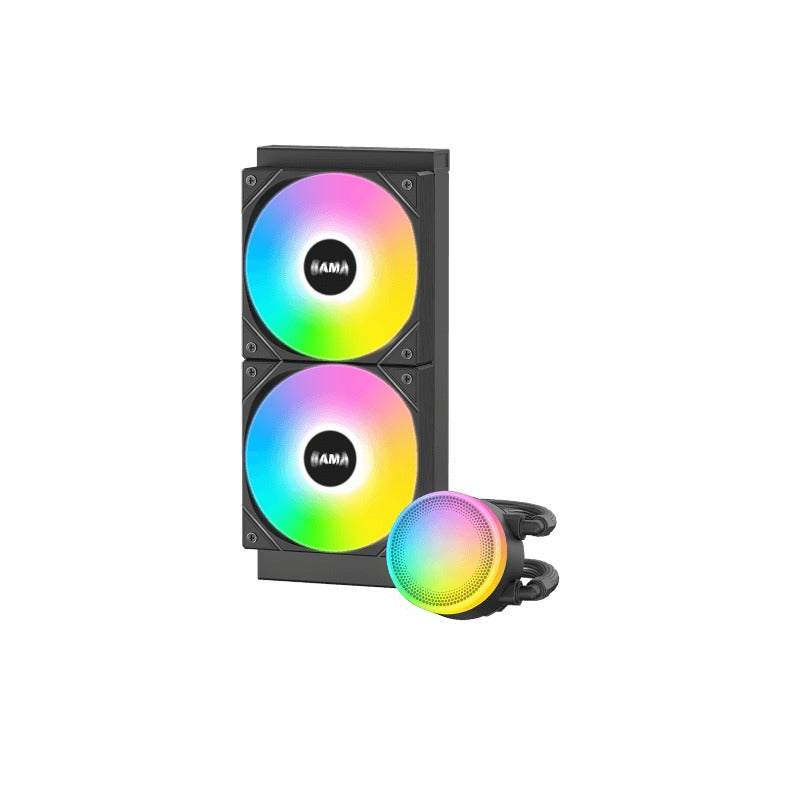

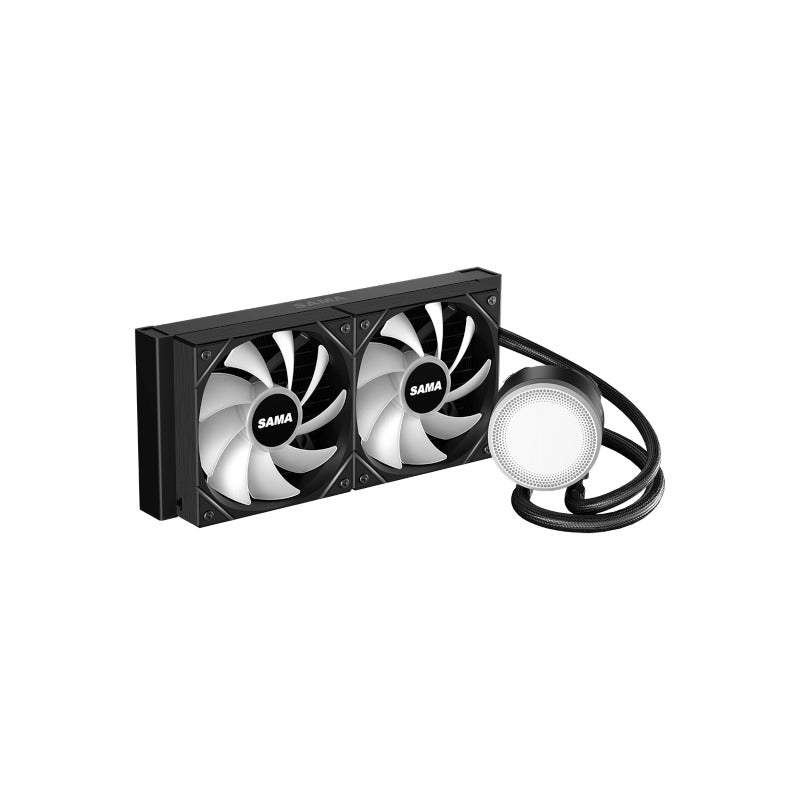

L Series

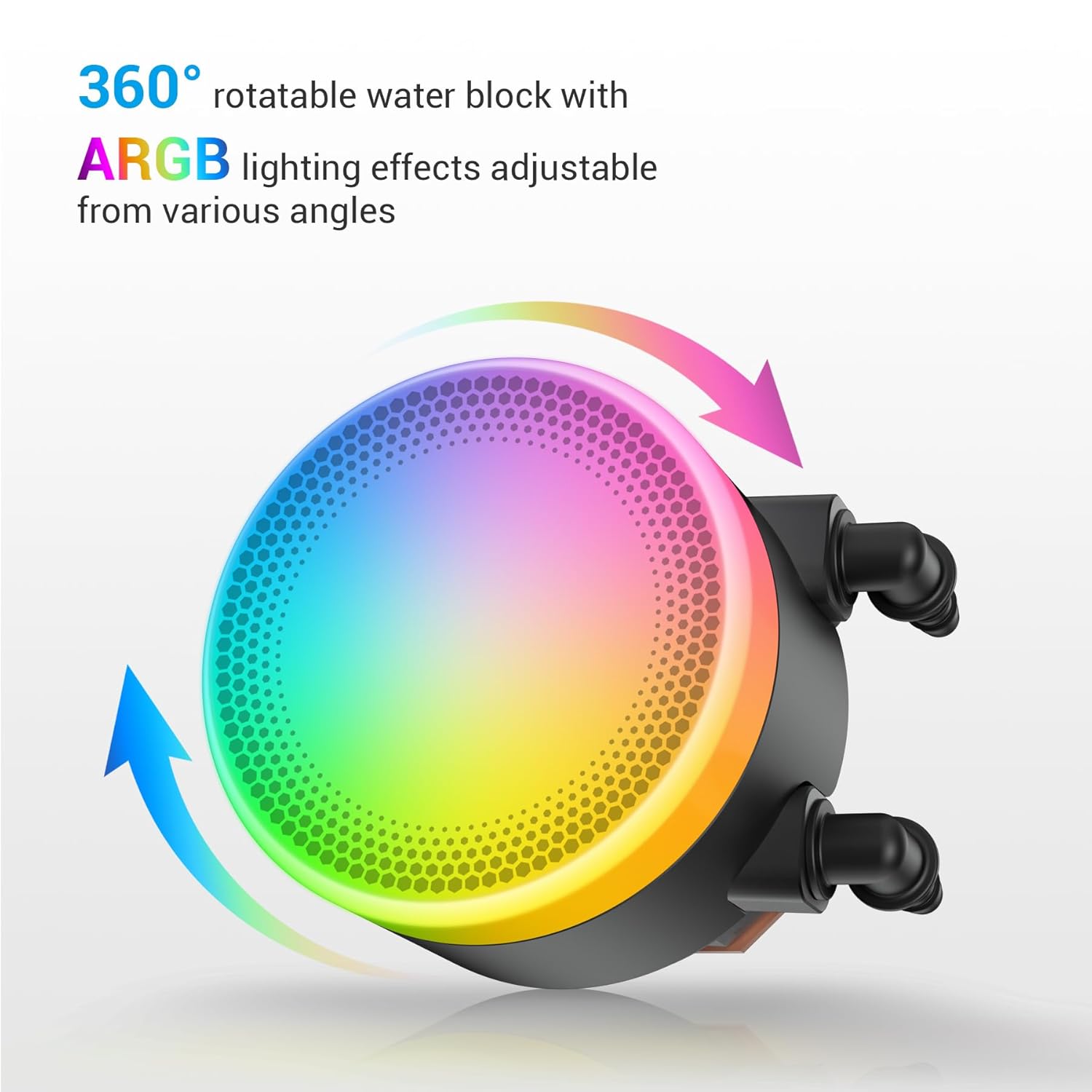

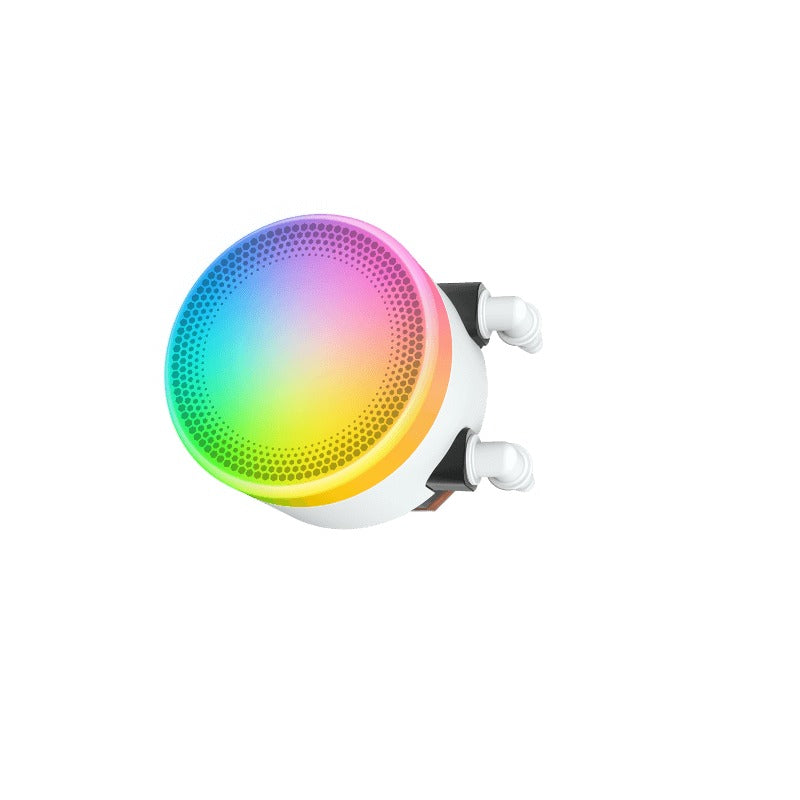

The water block’s reflective cap creates vibrant RGB lighting, while the aluminum radiator delivers efficient cooling—combining bold style with reliable performance.
Specifications:
| Model | L40 BK/WH |
| CPU Socket | Intel LGA: 115X / 1200 / 1700 / 1851 / 20XX AMD: AM5 / AM4 |
| Tube Length | 380mm |

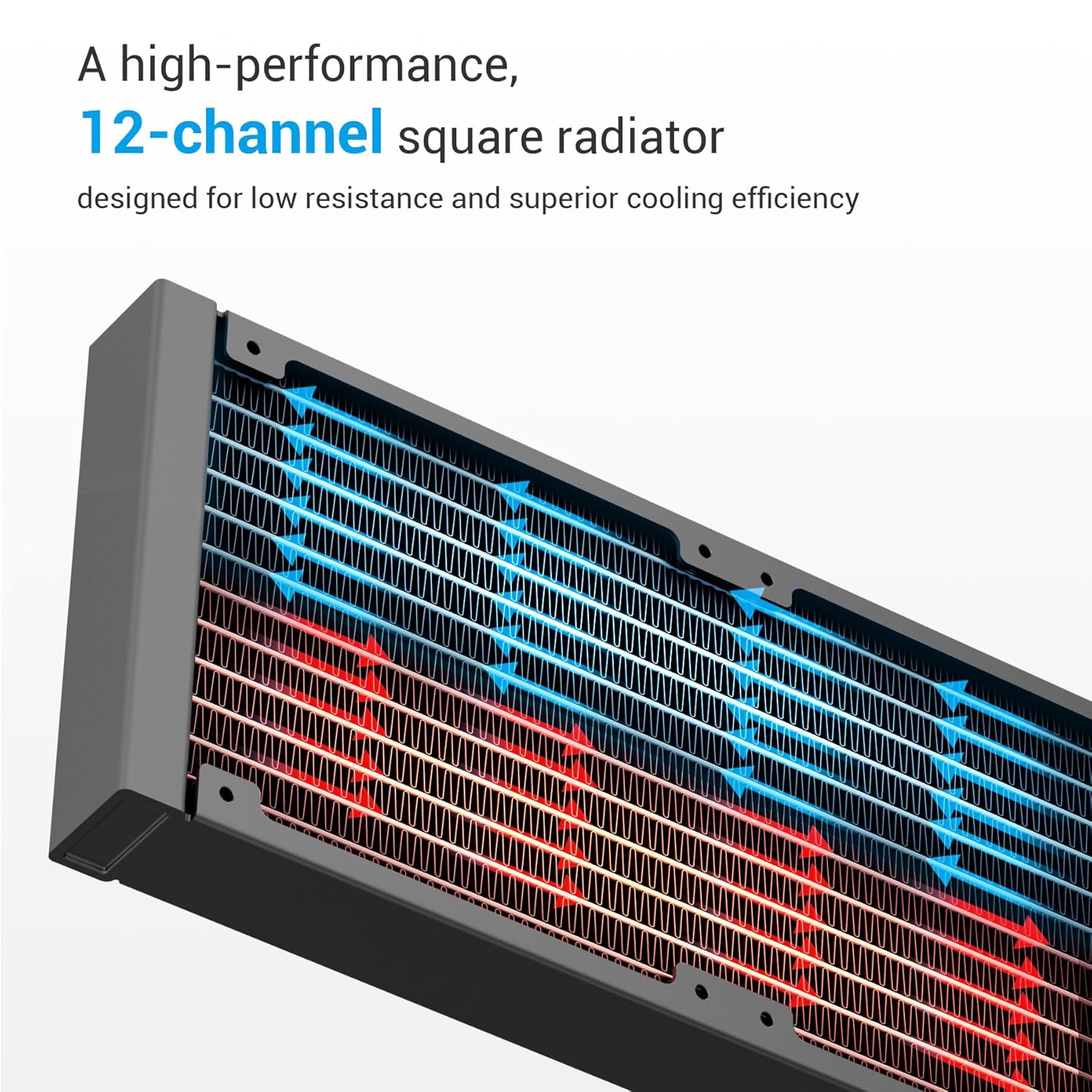

| Radiator | |

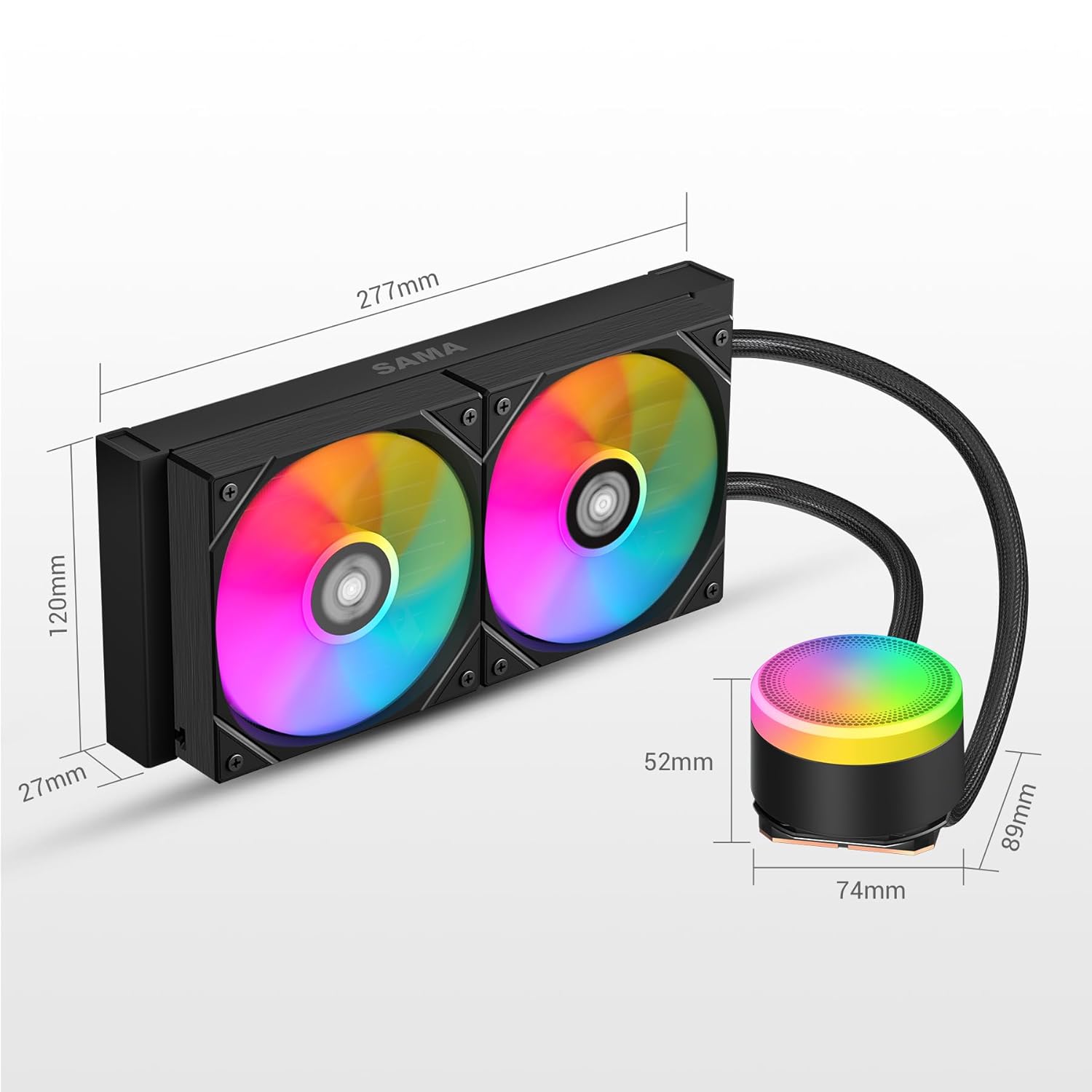

| Dimension | 277×120×27mm |
| Material | Aluminum Fins |

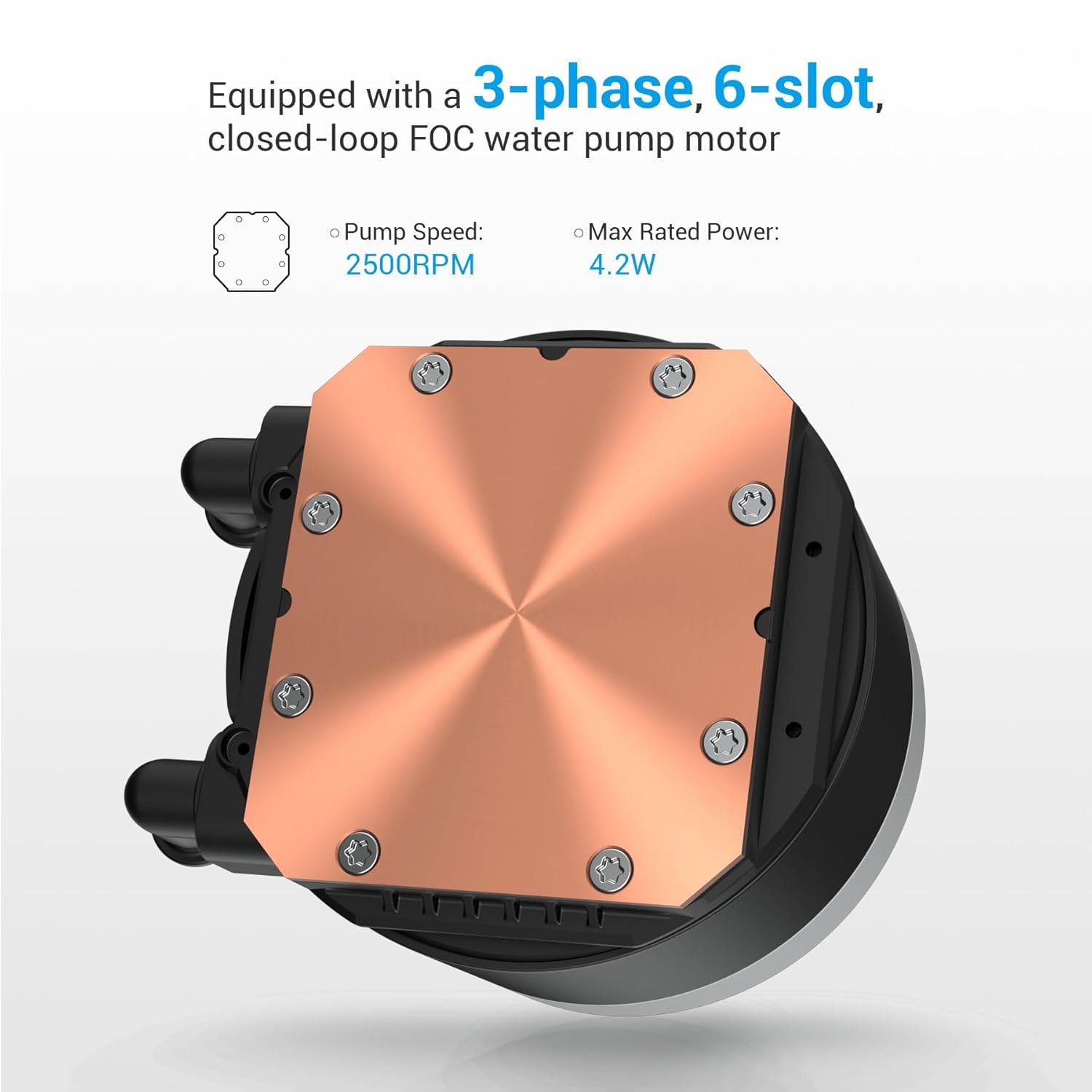

| Pump | |
| Dimension | 74×89×52mm (L×W×H) |
| Speed | 2500RPM ±10% PWM |
| Noise | ≤30 dB-A |
| Connector | 4-Pin |
| Rated Voltage | 12 VDC |
| Rated Current | ≤0.30 A |
| Power Consumption | ≤3.6 W |

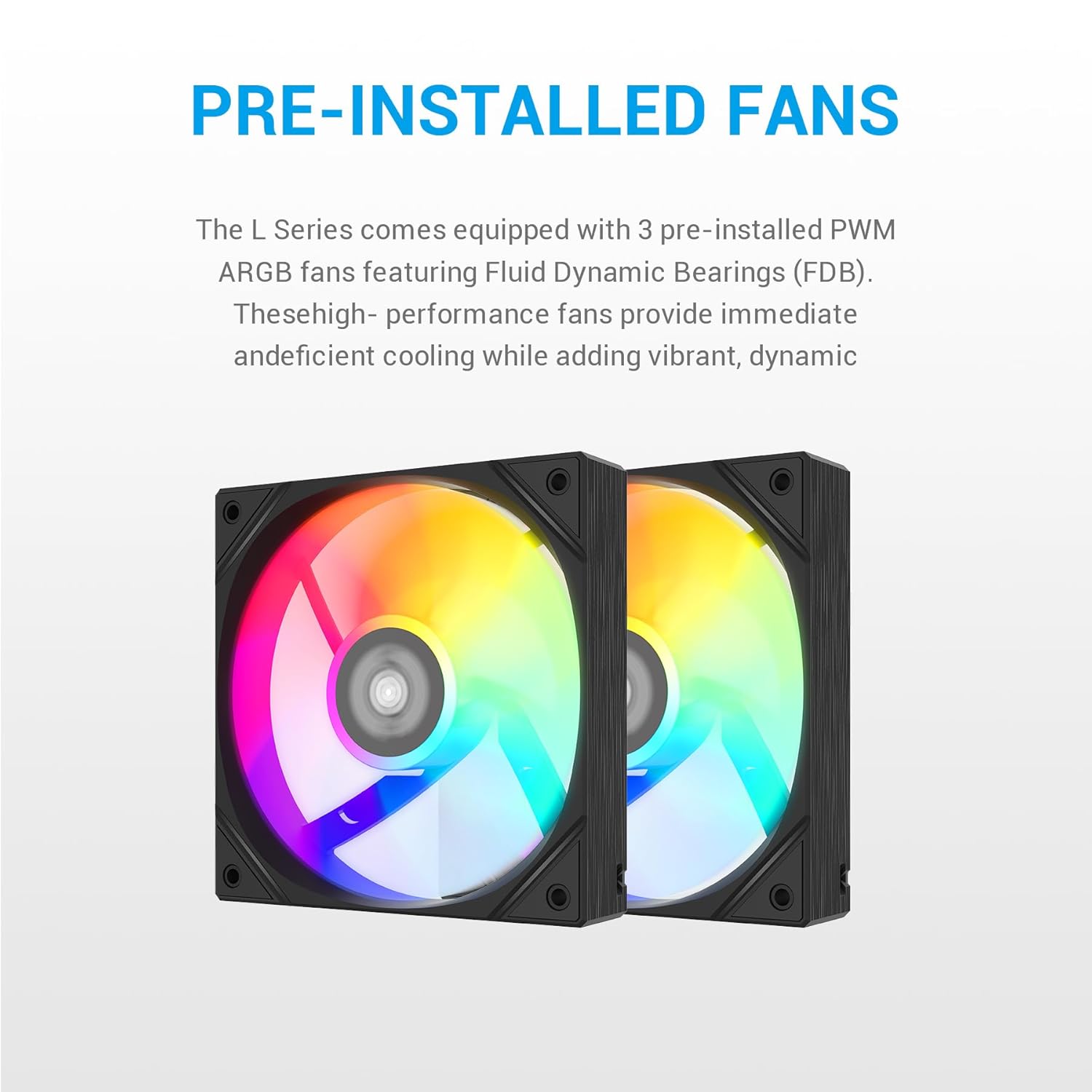

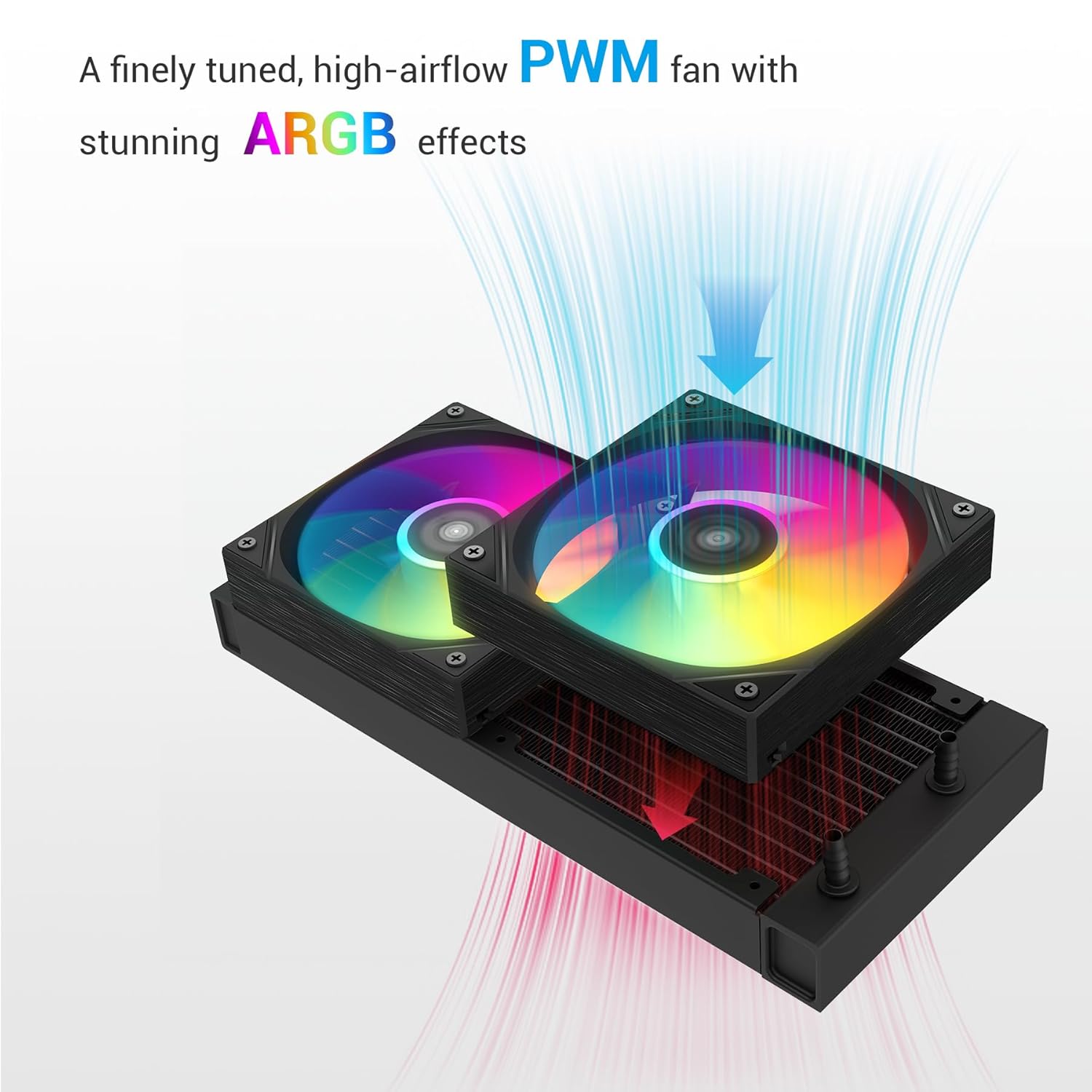

| Fan | |

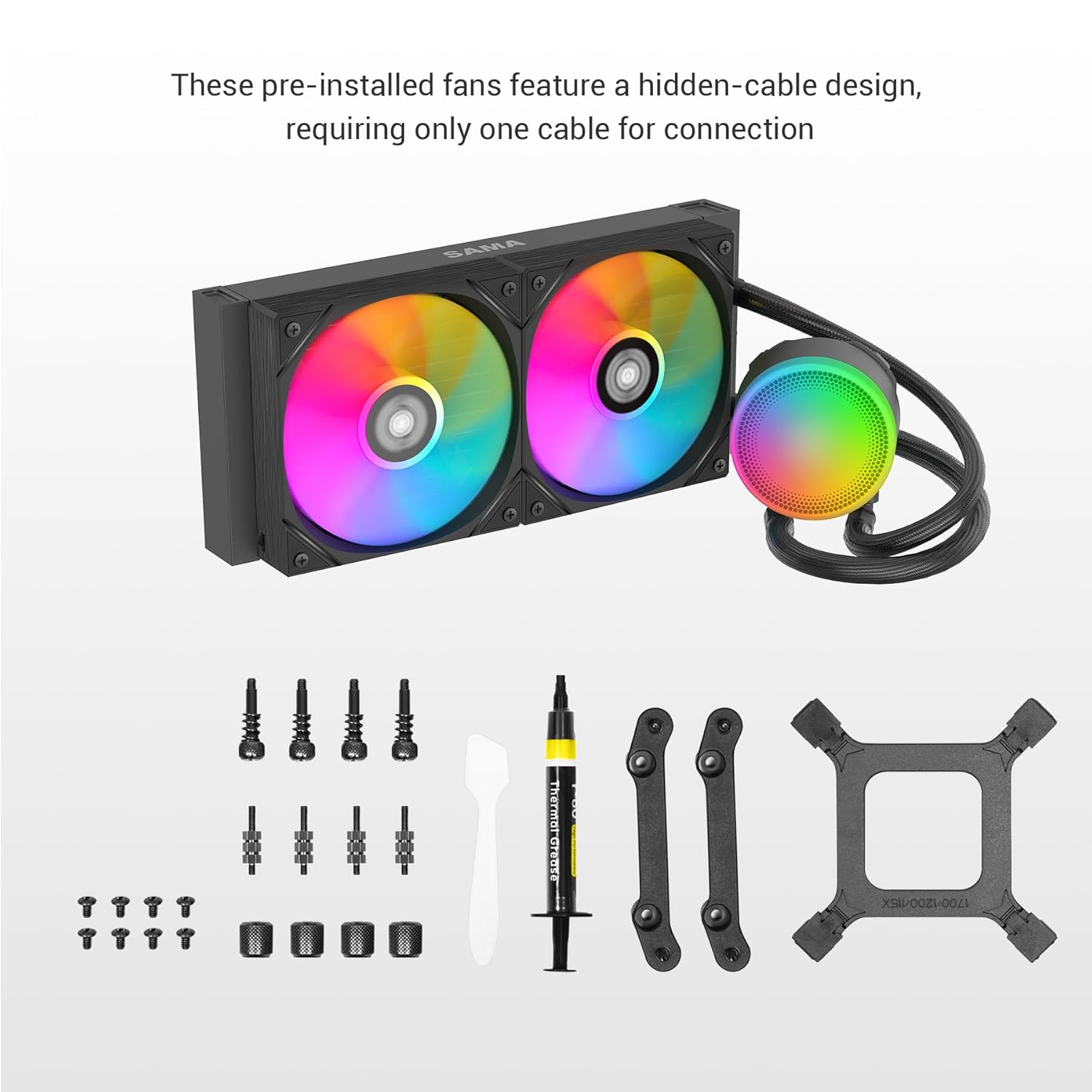

| Included Fans | 2pcs |
| Dimension | 120×120×25mm |
| Bearing Type | Hydraulic Bearing |
| Speed | 800–2000 ±10% RPM |
| Air Flow | 83 CFM (Max) |
| Air Pressure | 2.6 mmH2O |
| Fan Noise | ≤34.8 dB-A |
| Rated Voltage | DC 12V |
| Rated Current | 0.35 A |
| Power Consumption | 4.2 W |
| Connector | 4-Pin PWM |
| Fan LED | |
| Type | ARGB |
| Connector | ARGB 4-Pin Male/Female Connector |
| Rated Current | 0.28 A / 0.29 A |
| Power Consumption | ≤1.4 W / ≤1.45 W |
