Description

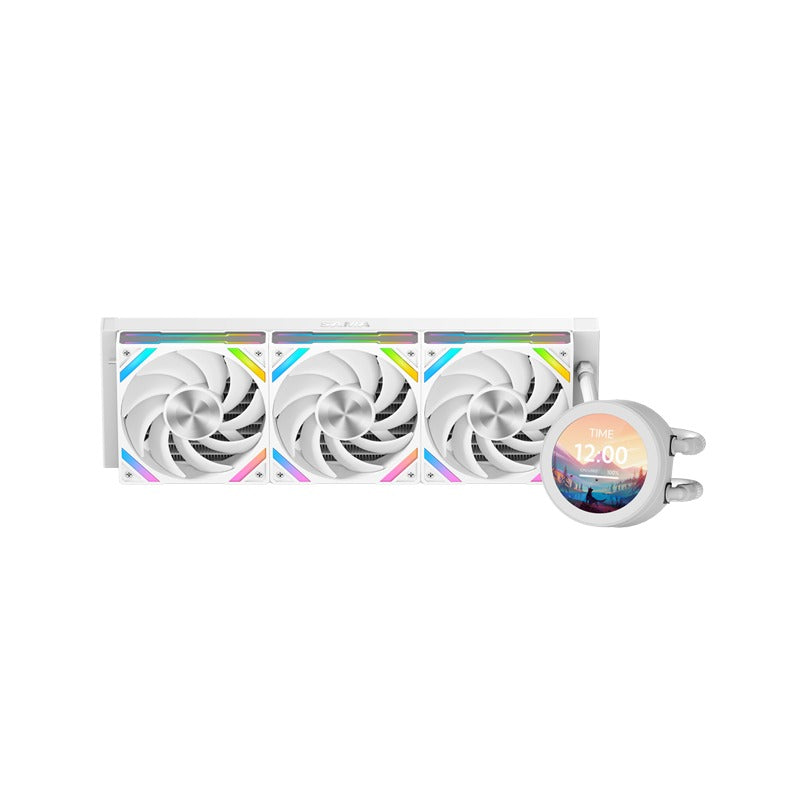

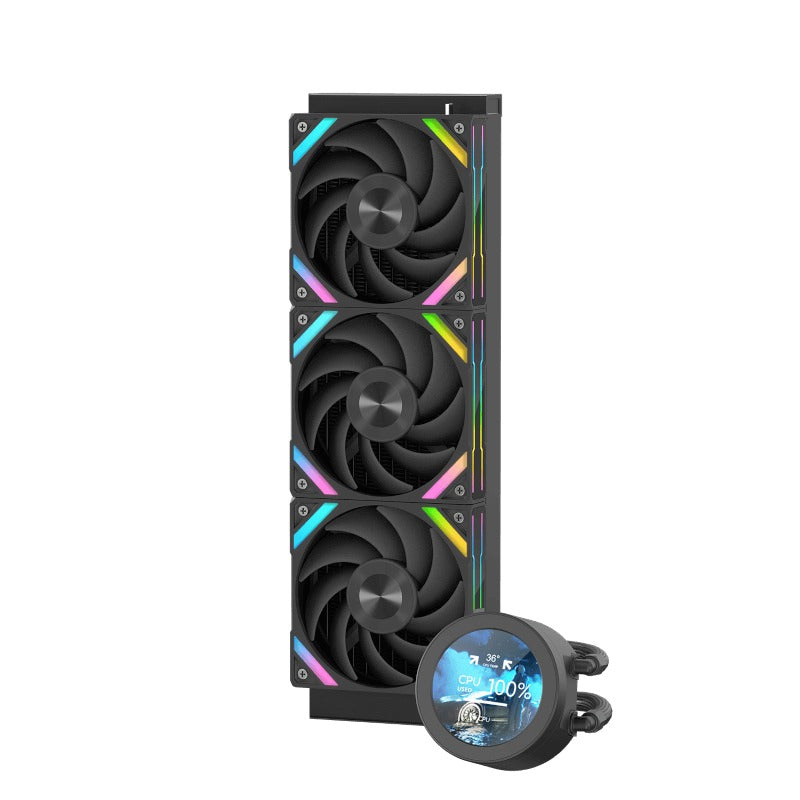

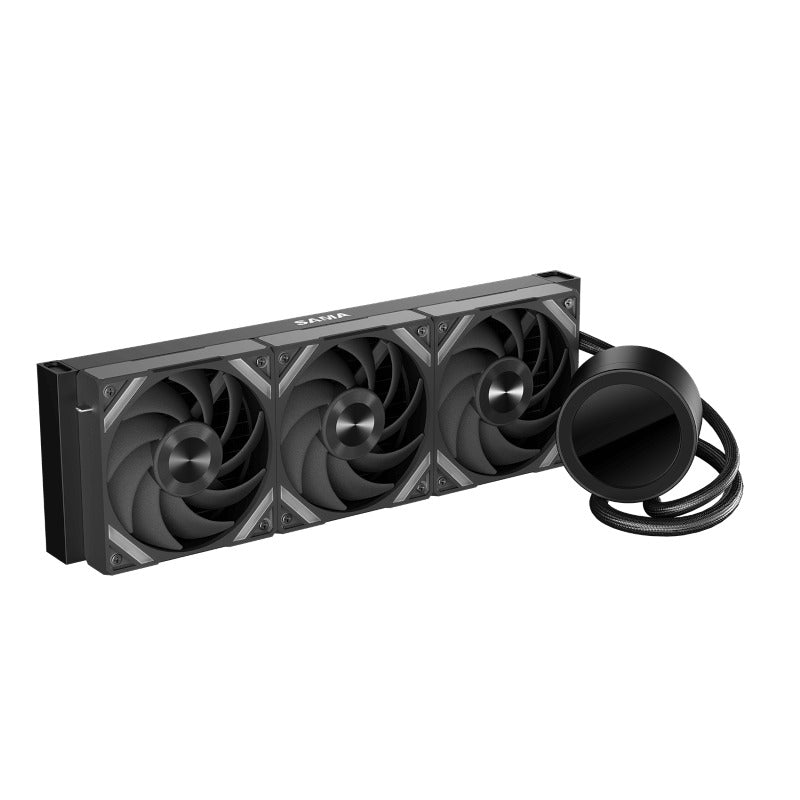

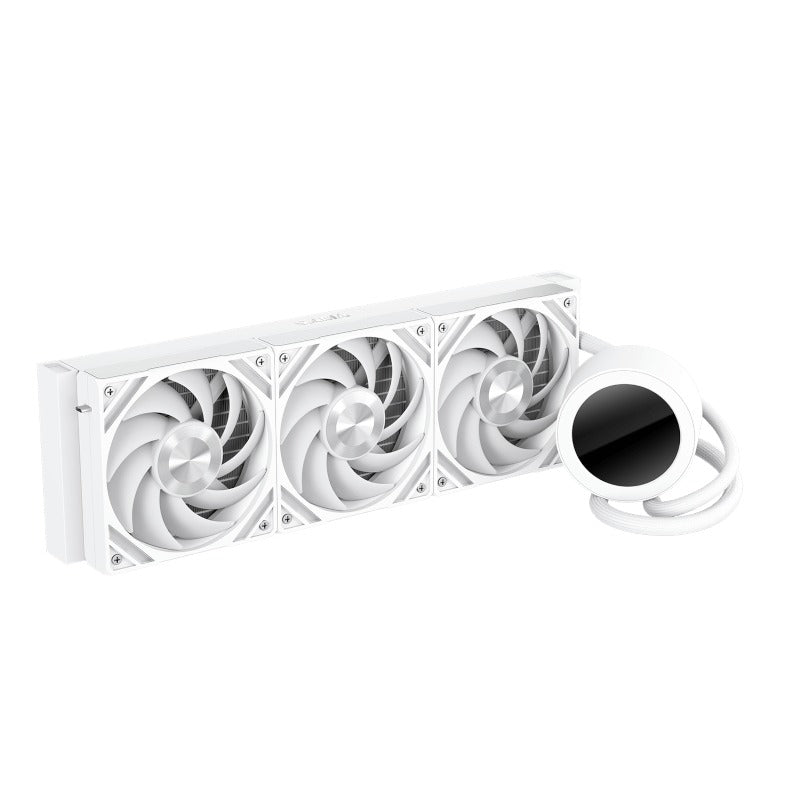

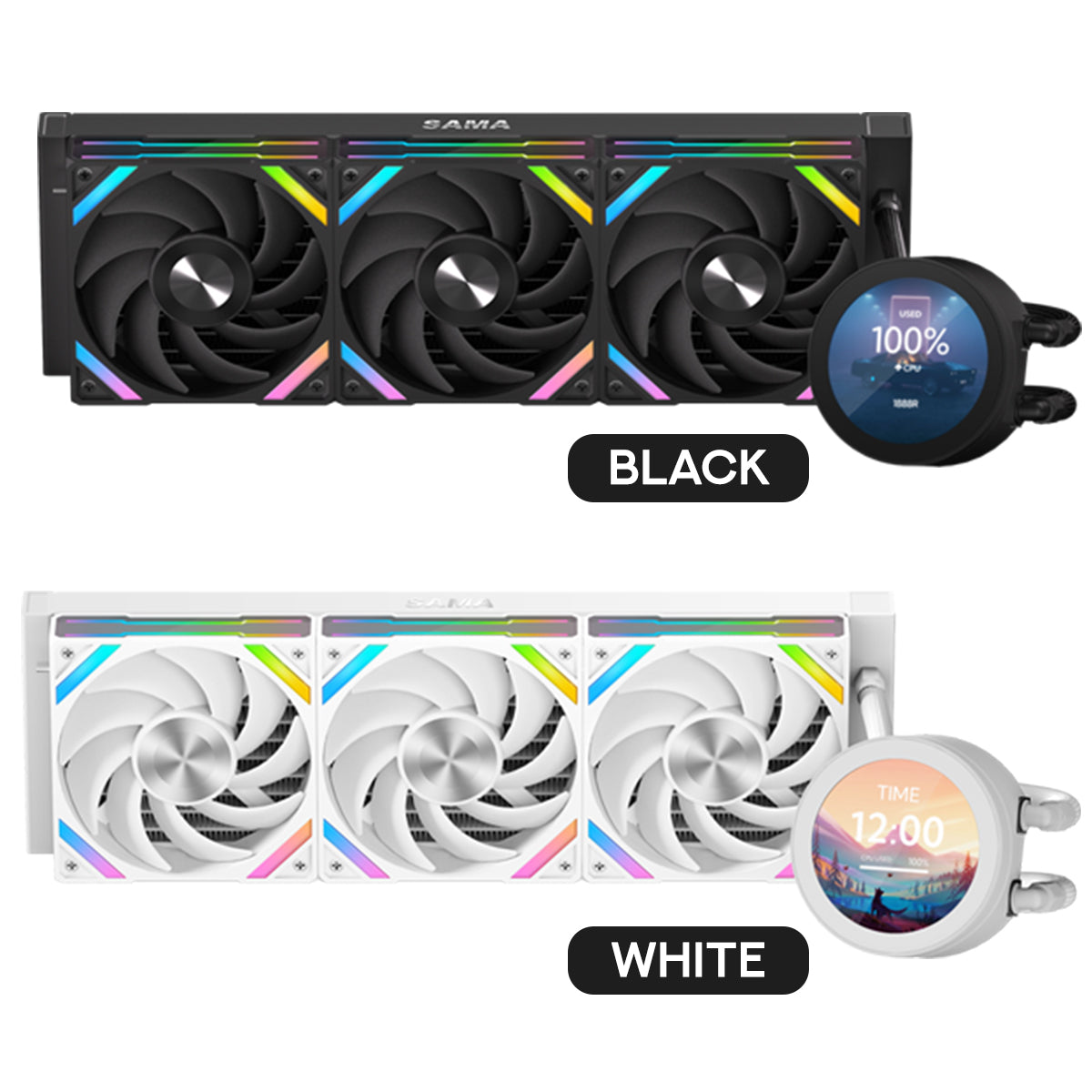

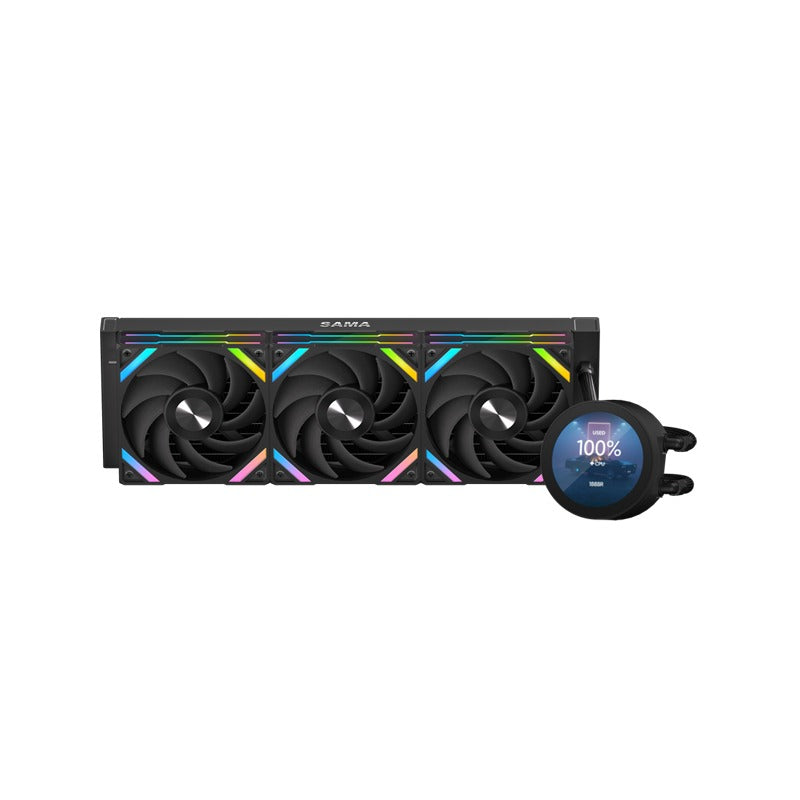

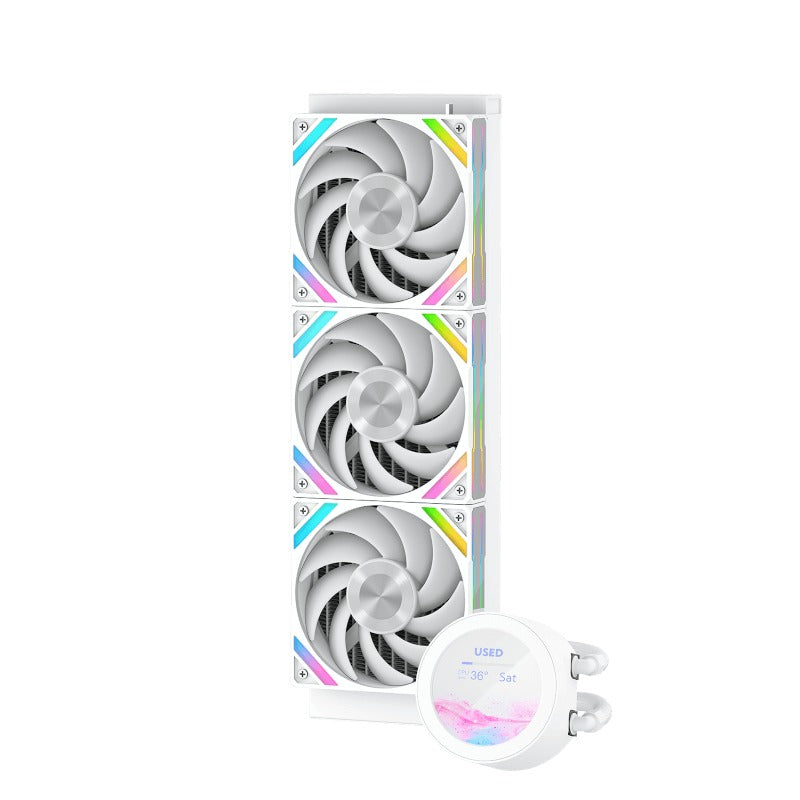

Q70
A 360 AIO with a detachable LCD screen, introducing modular functionality for greater customization. It combines powerful cooling with bold design for a dynamic balance of aesthetics and performance.
Specifications:
| Model | Q70 BK/WH |
| P/N | Q70-BKWAYNO3-G Q70-WHWAYNO3-G |
| CPU Socket | Intel LGA: 115X / 1200 / 1700 / 20XX AMD: AM5 / AM4 |
| Tube Length | 380mm |
| Radiator | |
| Dimension | 397×120×27mm |
| Material | Aluminum Fins |

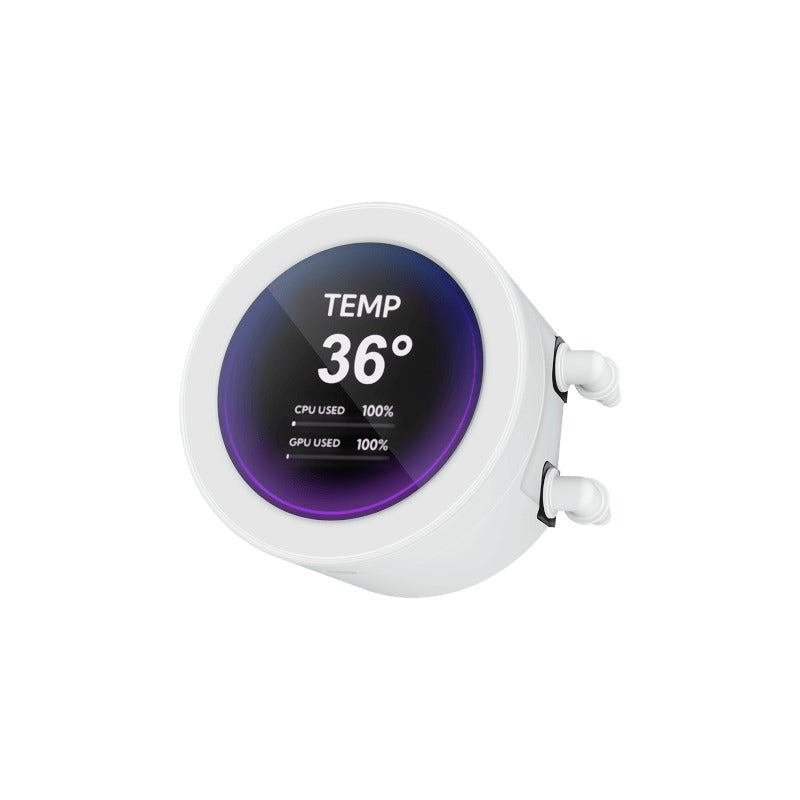

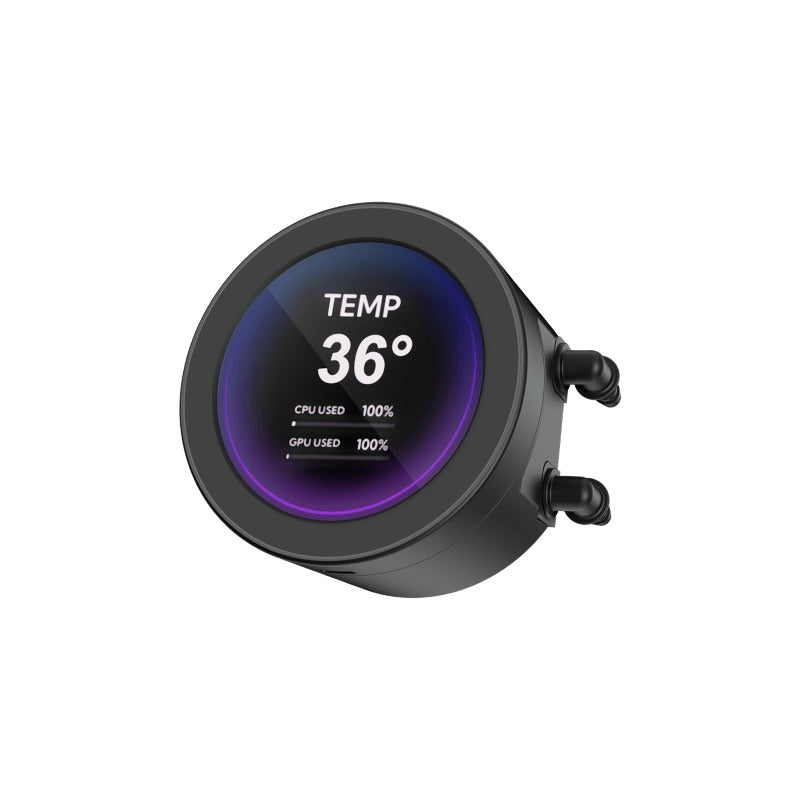

| Pump | |
| Dimension | 95×100.8×64.1mm (L×W×H) |
| Speed | 2500RPM ±10% PWM |
| Noise | ≤35 dB-A |
| Connector | 3-Pin |
| Rated Voltage | 12 VDC |
| Rated Current | ≤0.30 A |
| Power Consumption | ≤3.6 W |

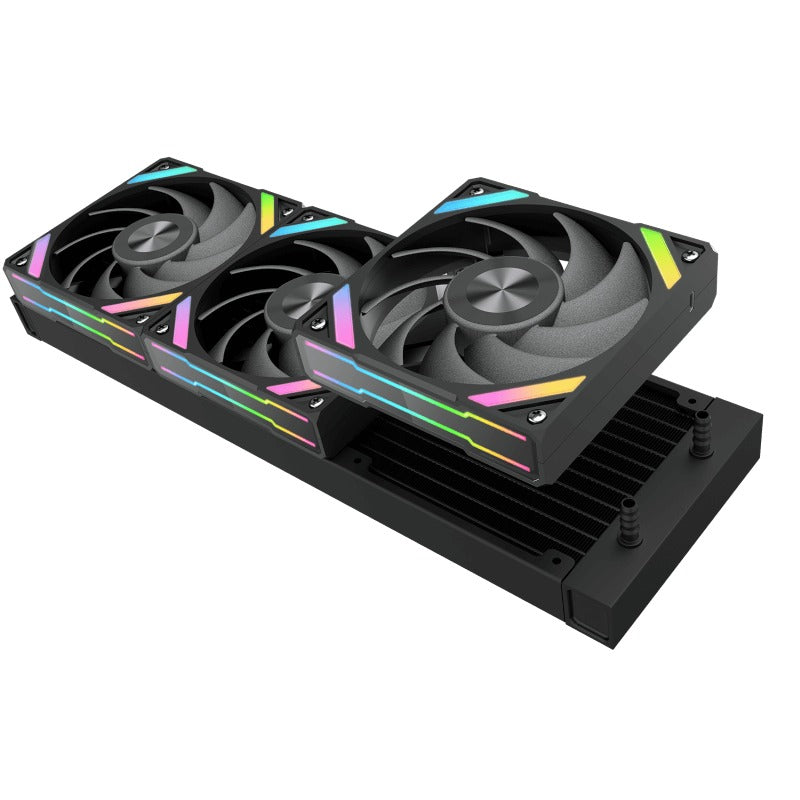

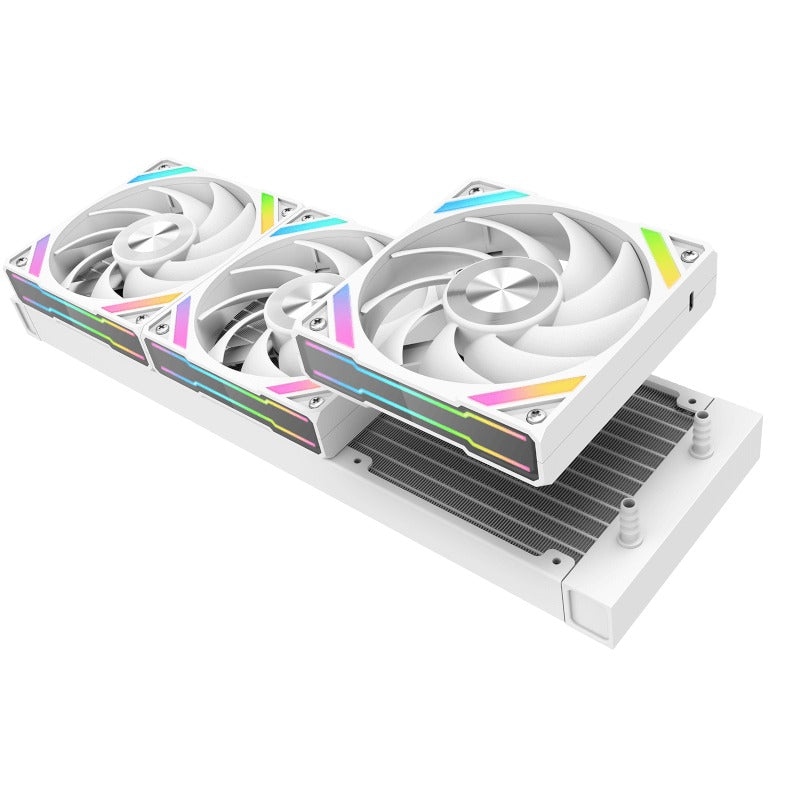

| Fan | |
| Included Fans | 3pcs |
| Dimension | 120×120×28mm |
| Bearing Type | Hydraulic Bearing (FDB) |
| Speed | 500–2600 ±10% RPM |
| Air Flow | 86 CFM (Max) |
| Air Pressure | 3.7 mmH2O |
| Fan Noise | ≤35 dB-A |
| Rated Voltage | DC 12V |
| Rated Current | 0.35 A |
| Power Consumption | 4.2 W |
| Connector | 2510-4Pin |
| Fan LED | |
| Type | ARGB |
| Connector | ARGB 4-Pin Male/Female Connector |
| Rated Current | 0.72 A |
| Power Consumption | ≤3.6 W |
