Description
S40

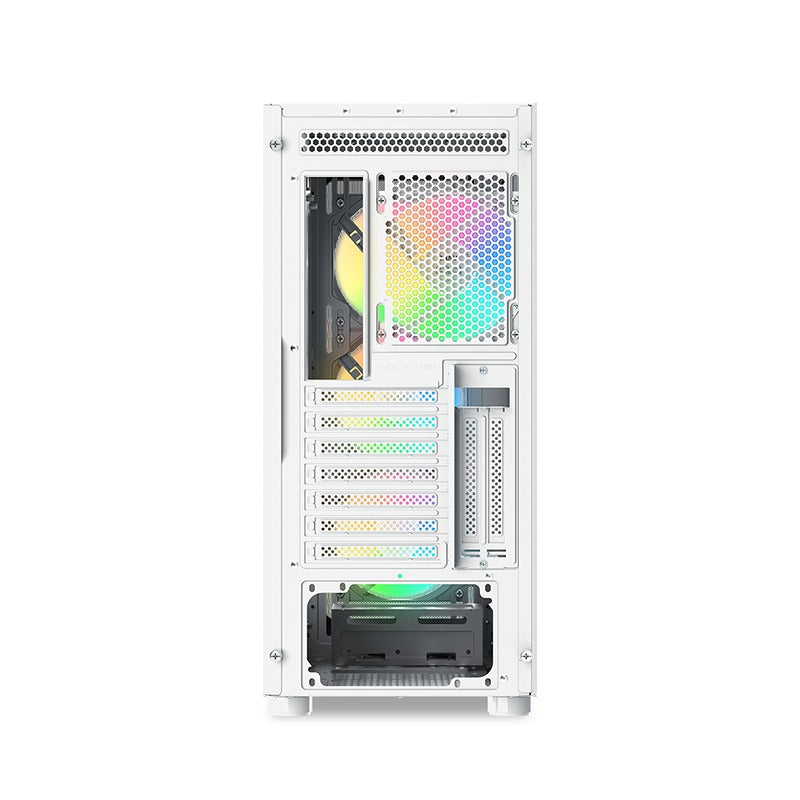

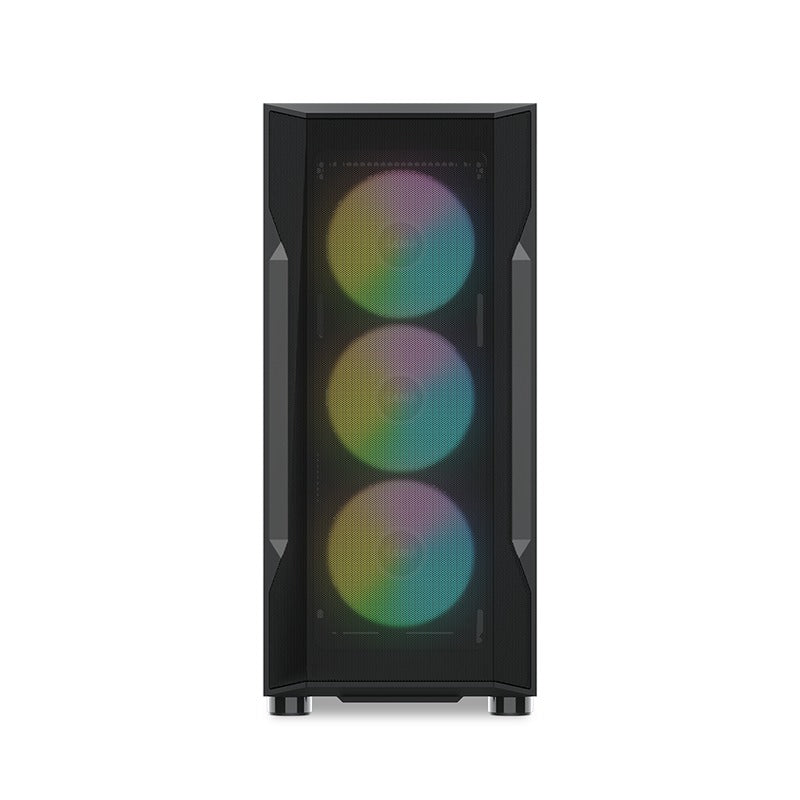

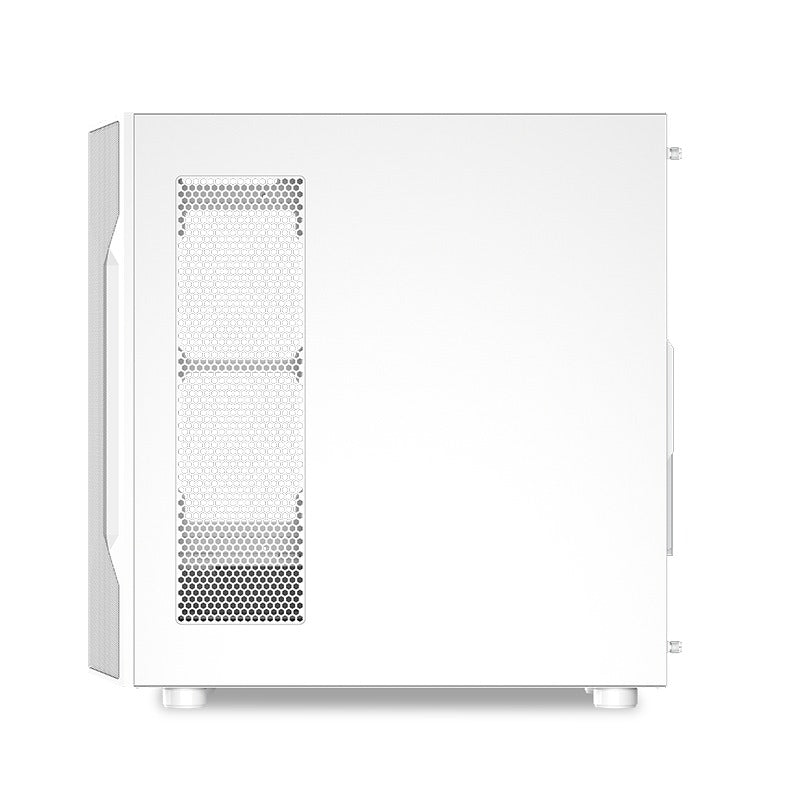

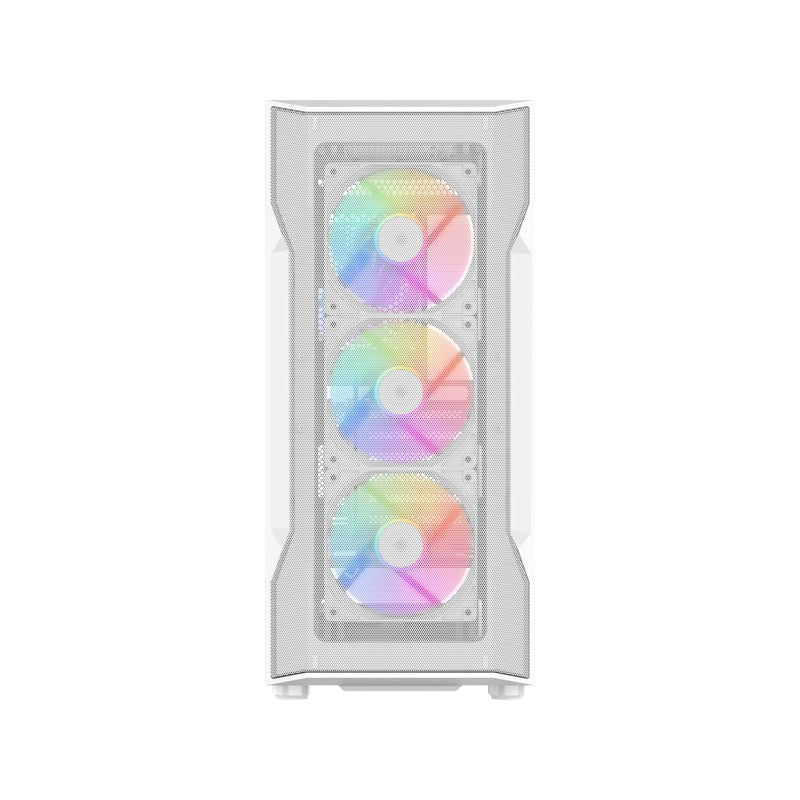

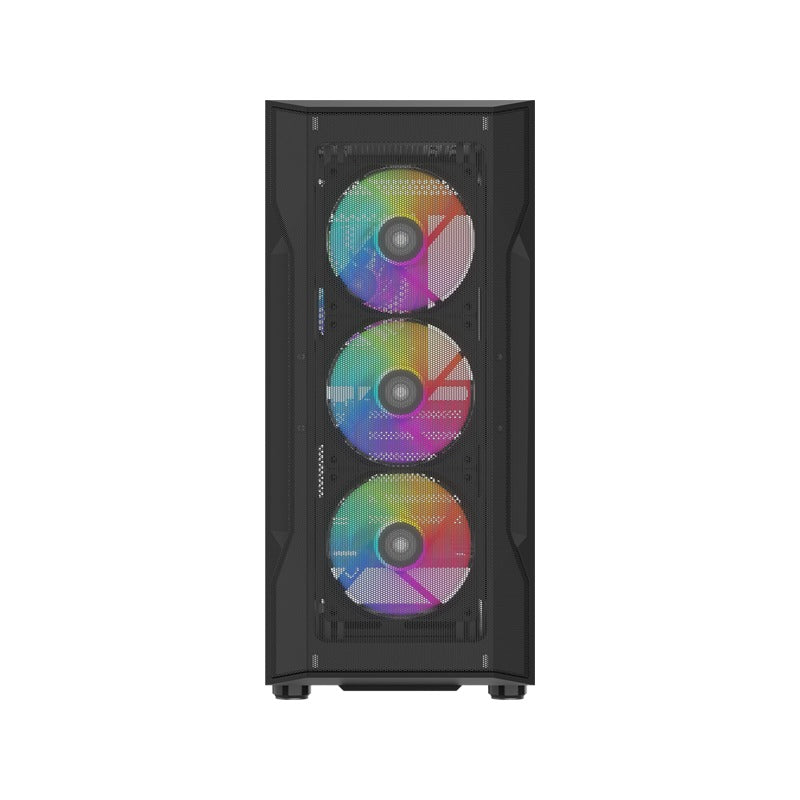

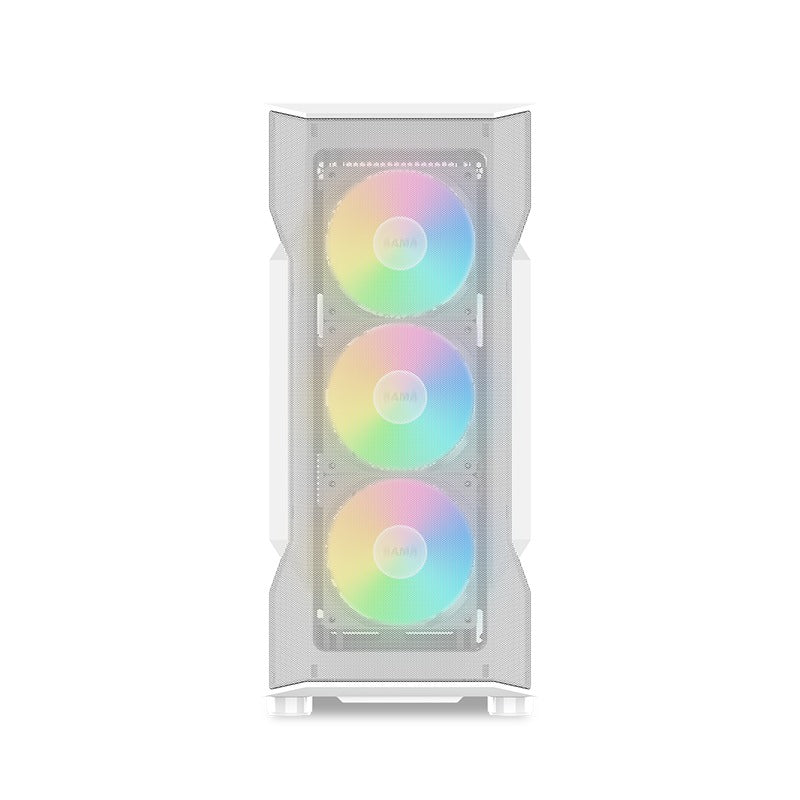

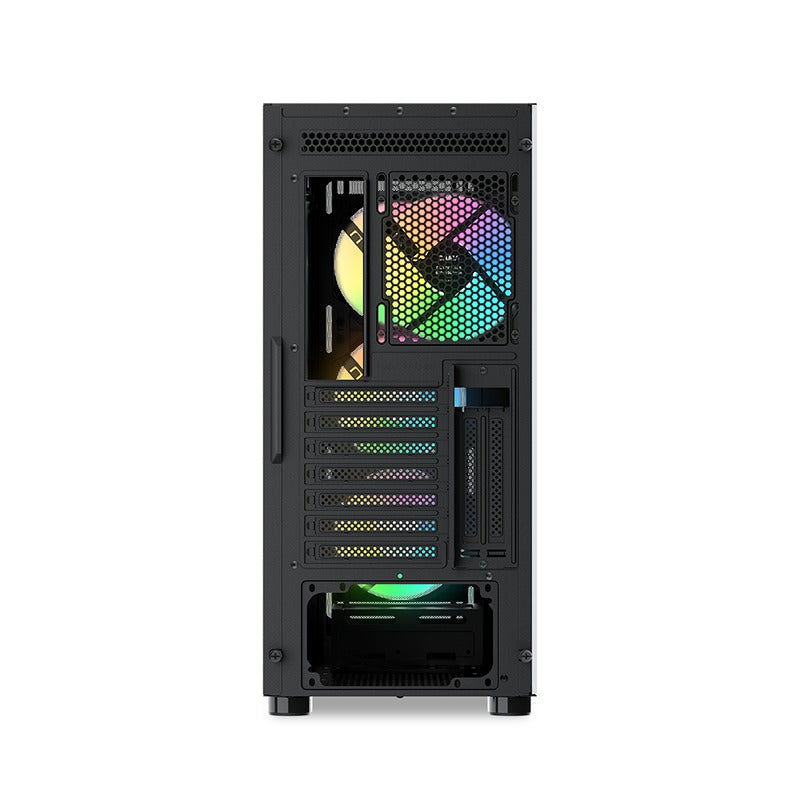

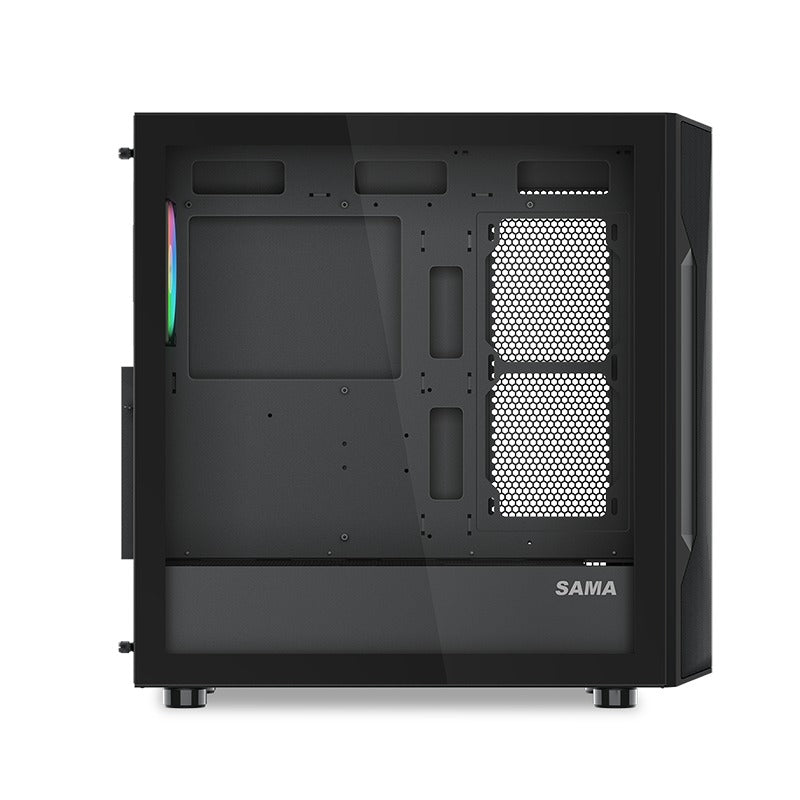

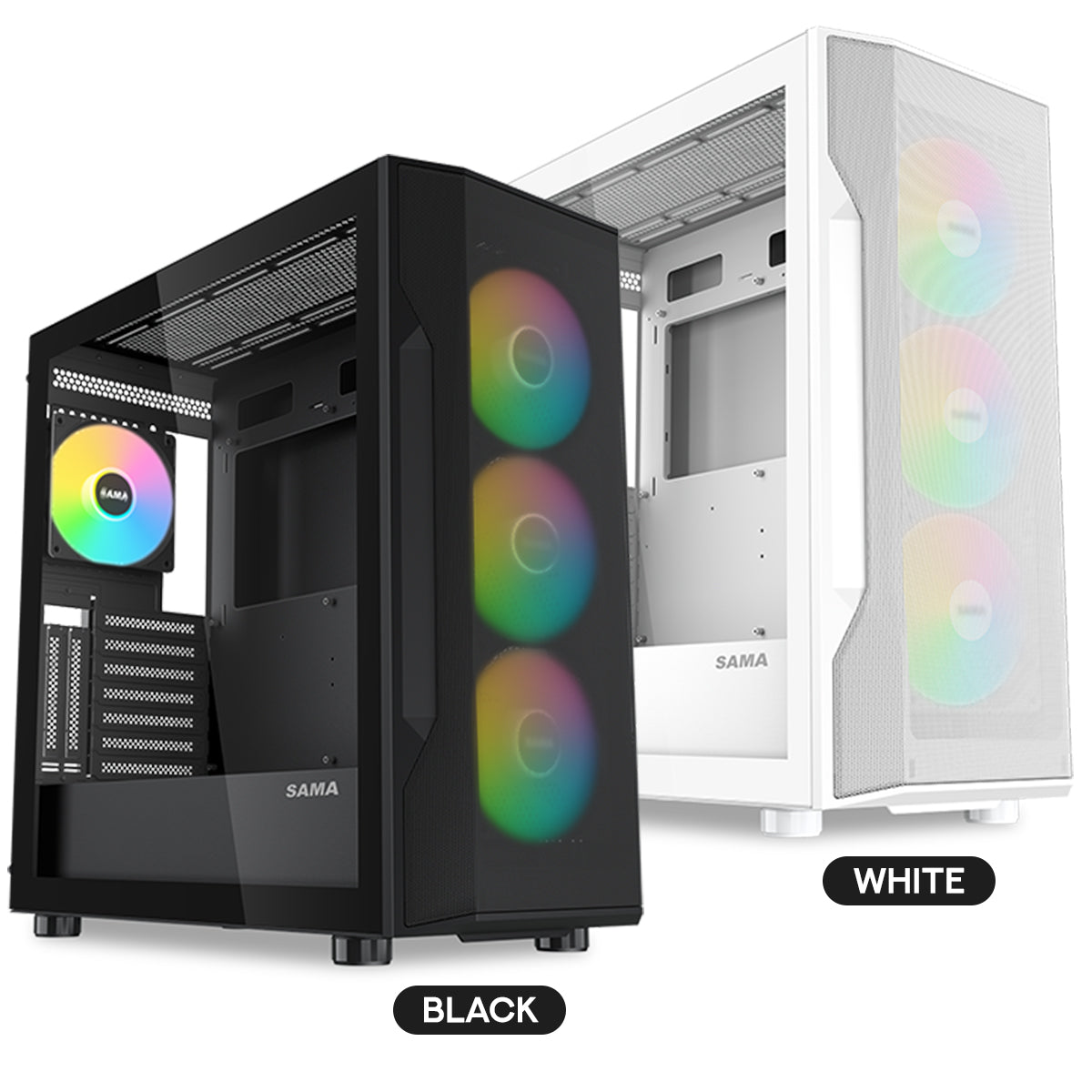

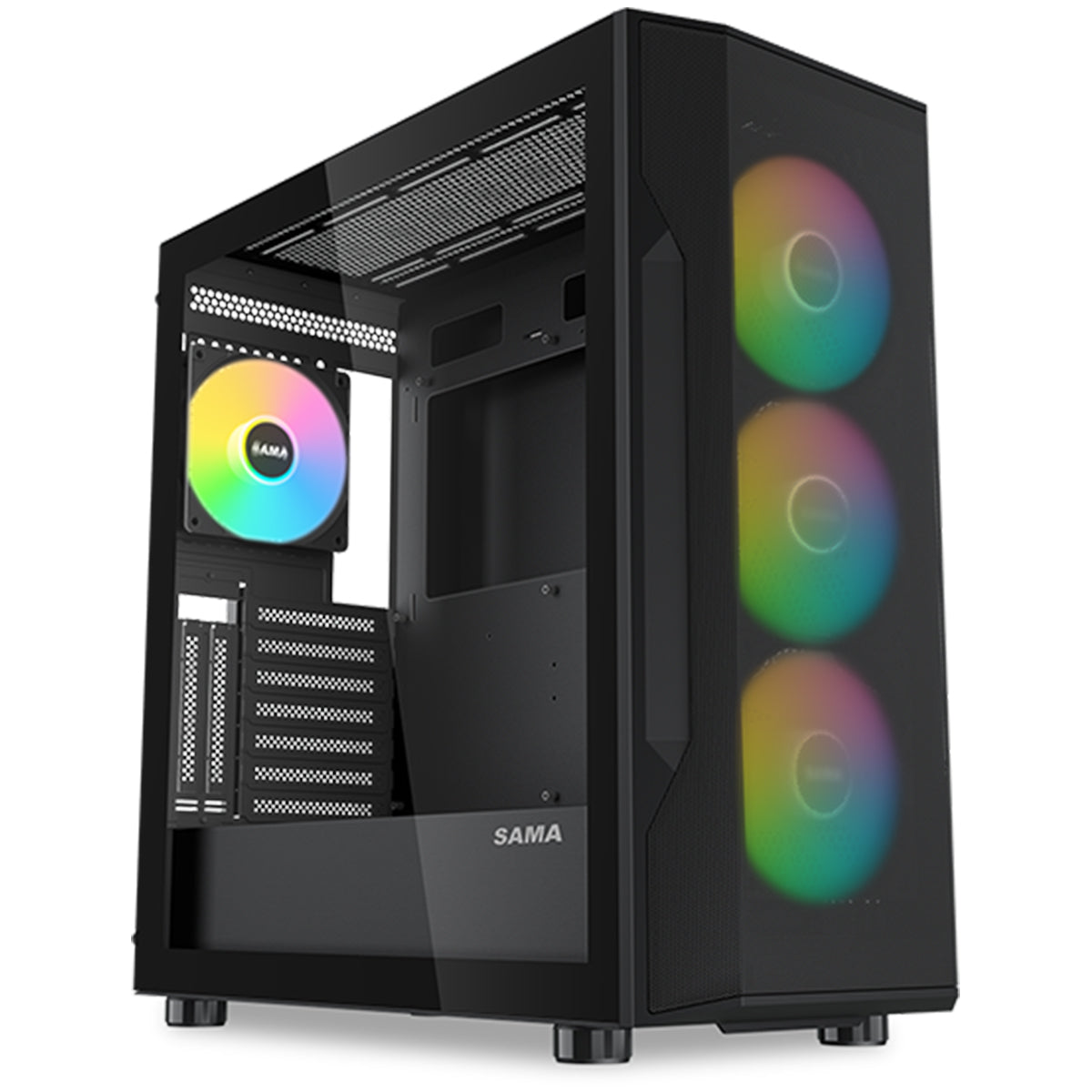

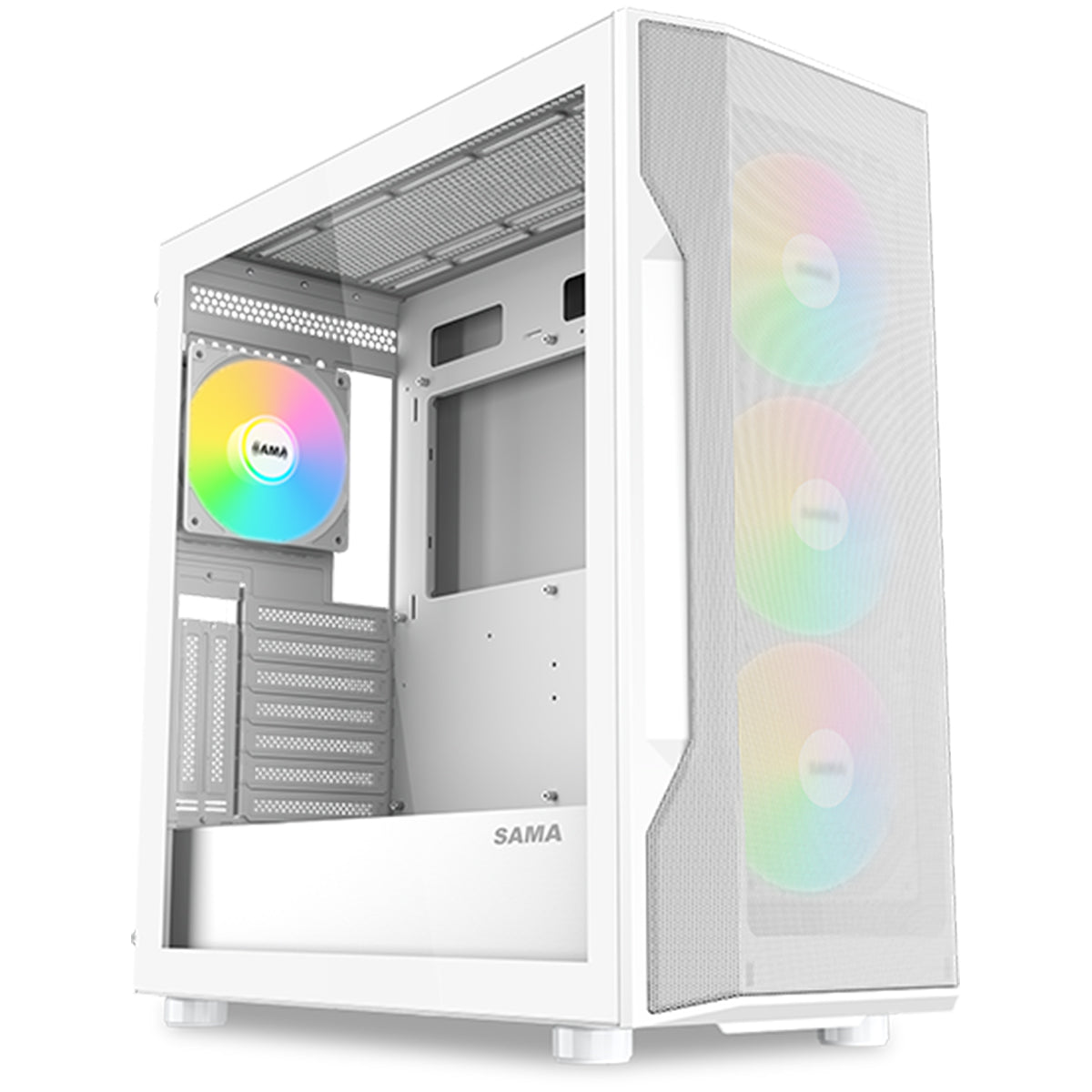

The SAMA S40 case, equipped with a large mesh front panel and four pre-installed high-performance ARGB fans, provides powerful cooling performance while displaying stunning lighting effects.
Specifications:
| Dimensions | 485×215×483mm (L×W×H) |
| Materials | SPCC, Tempered Glass, ABS |
| Motherboard Support | ATX, M-ATX, ITX |
| Expansion Slots | 7 + 2 vertical slots |
| Max CPU Cooler Height | 164mm |
| Max GPU Length | 415mm |
| Power Supply Type | ATX, 220mm |
| Fan Support | Front: 3×140mm / 3×120mm Top: 3×120mm / 2×140mm Rear: 1×120mm Bottom: 3×120mm (PSU shroud) Side: 2×120mm |
| Radiator Support | Front: 360 / 280 / 240 / 140 / 120mm Top: 360 / 280 / 240 / 140 / 120mm Rear: 120mm Bottom: N/A Side: N/A |
| Pre-Installed Fans | Front: 3×120mm ARGB PWM fans Rear: 1×120mm ARGB PWM fan Bottom: None |
| Front I/O Ports | USB 3.1 Type-C×1, USB 3.0×2, Audio/Mic×1, Power, Reset |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 0 + 4 combined with 3.5" mounts |
