Description
Z60

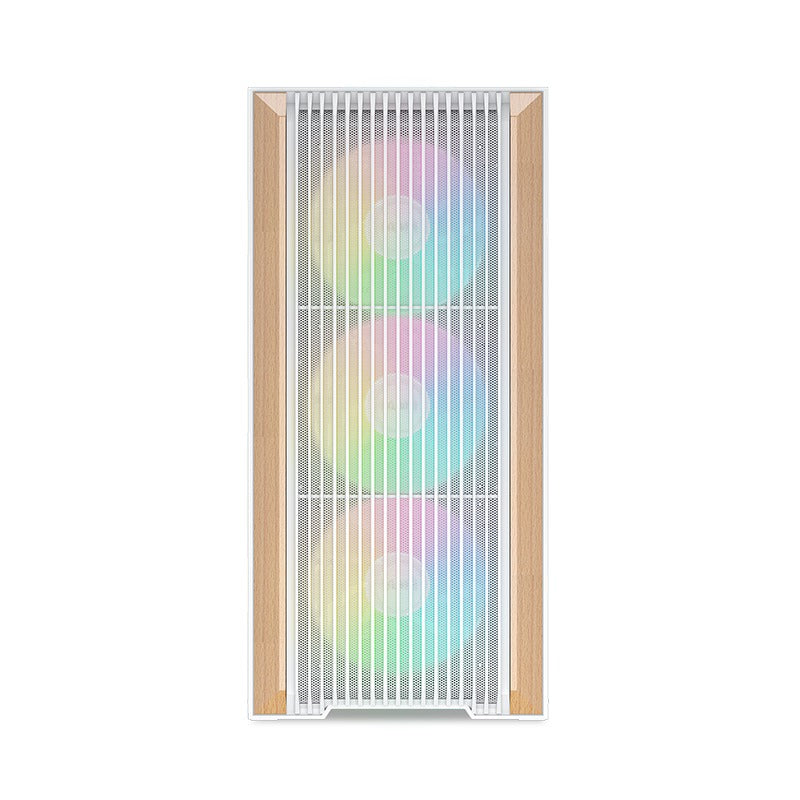

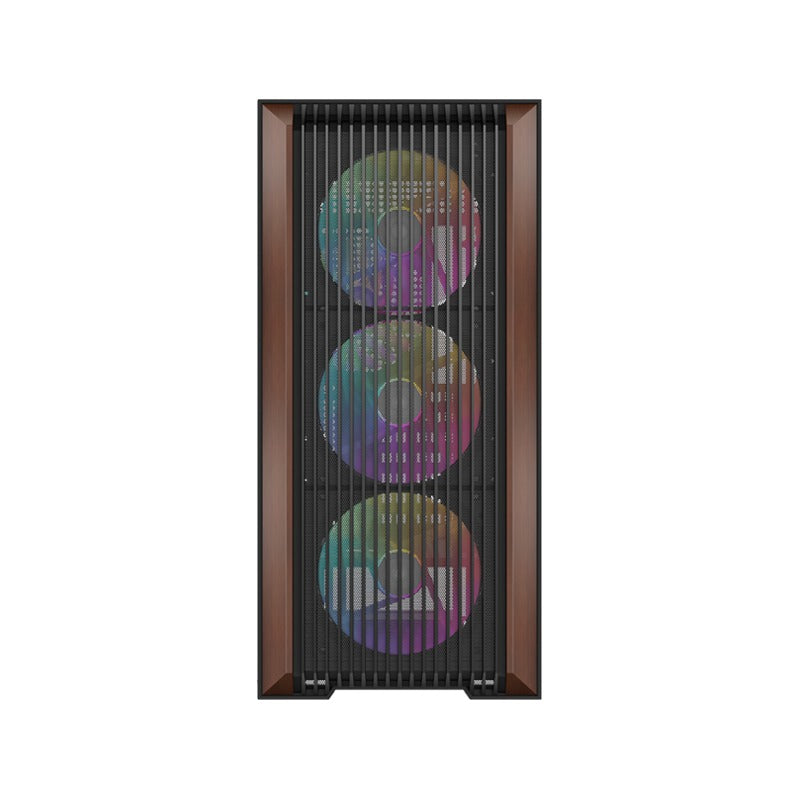

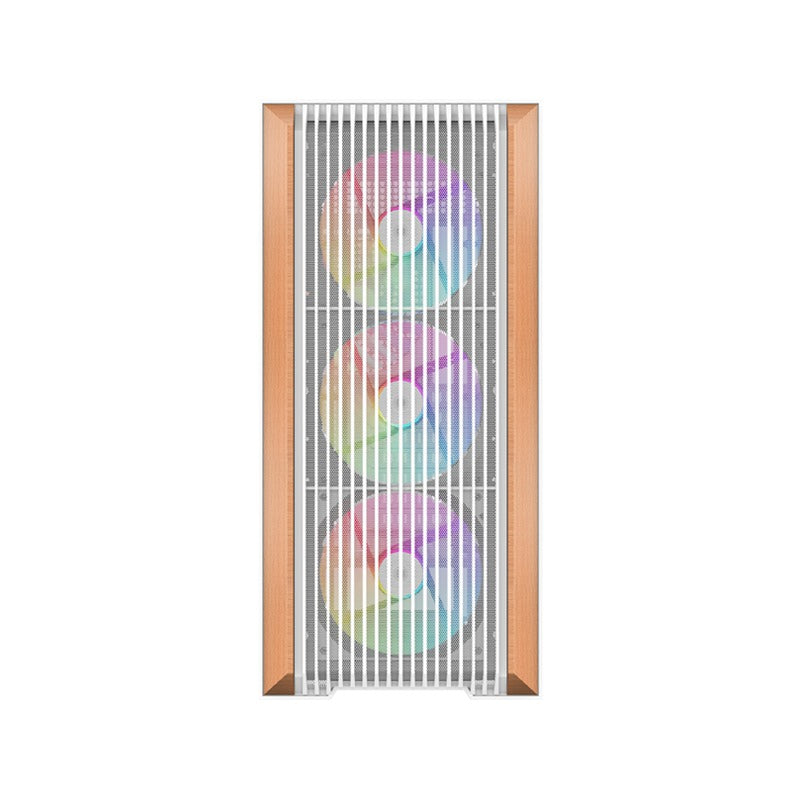

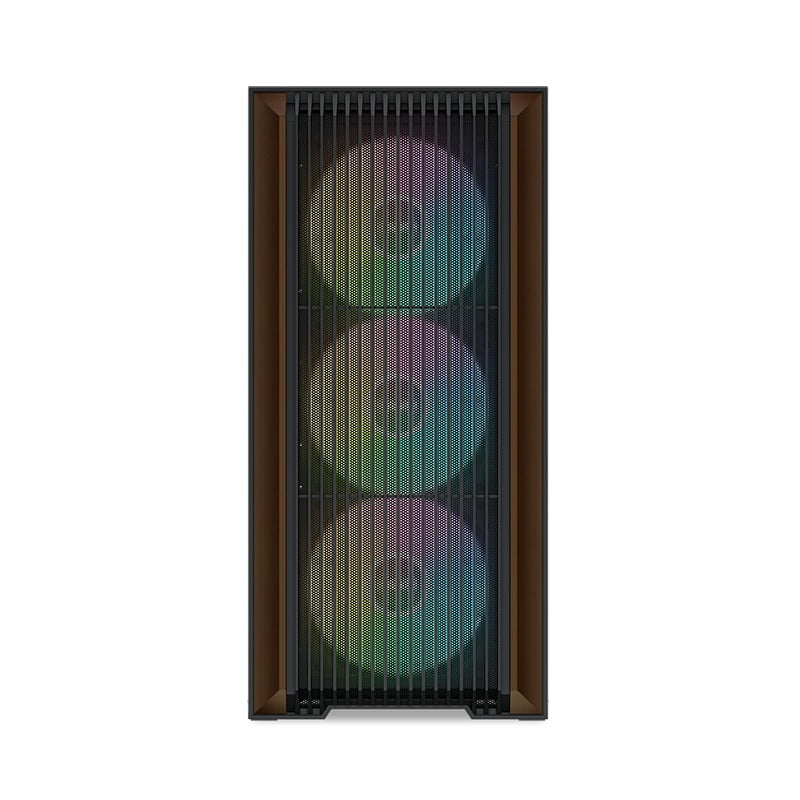

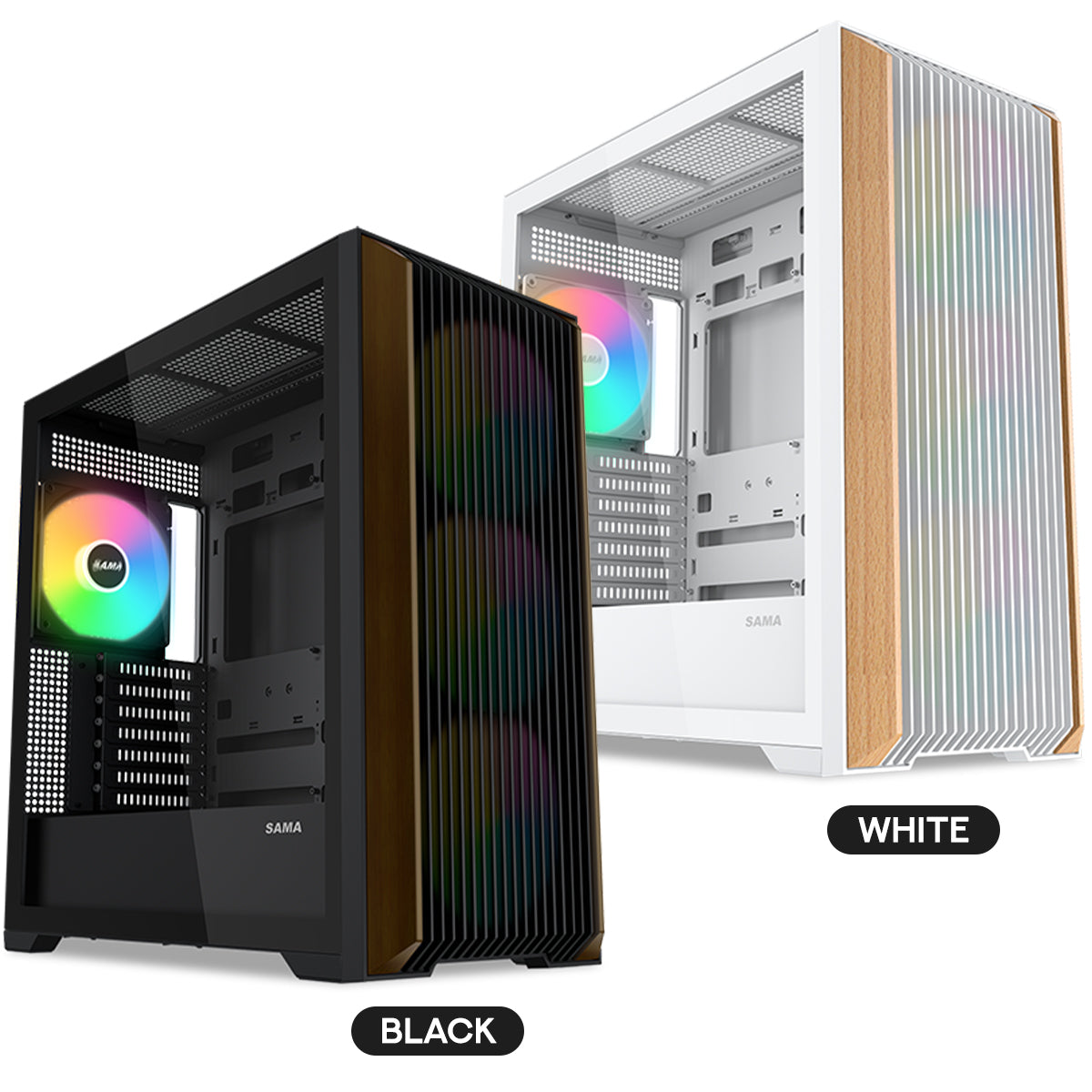

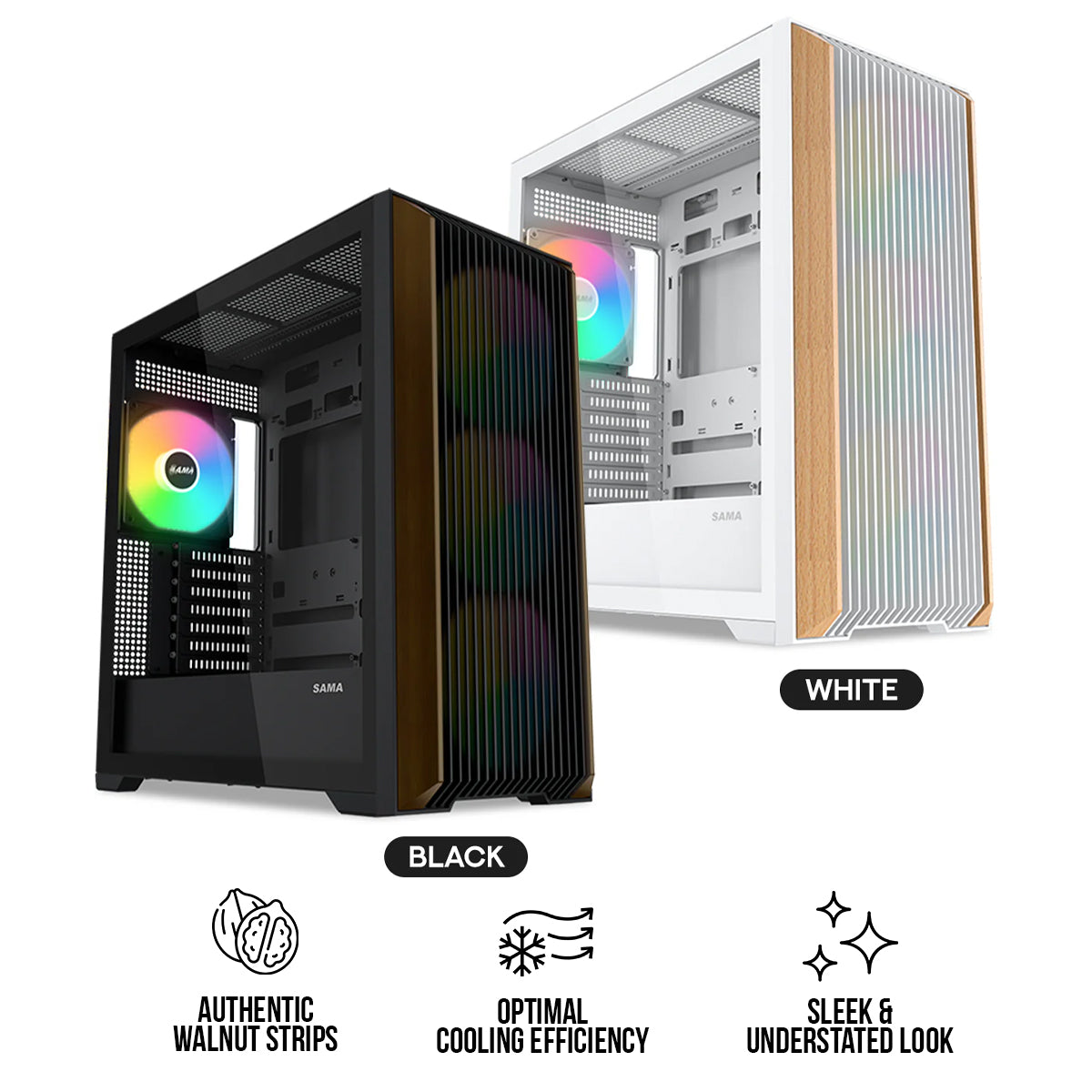

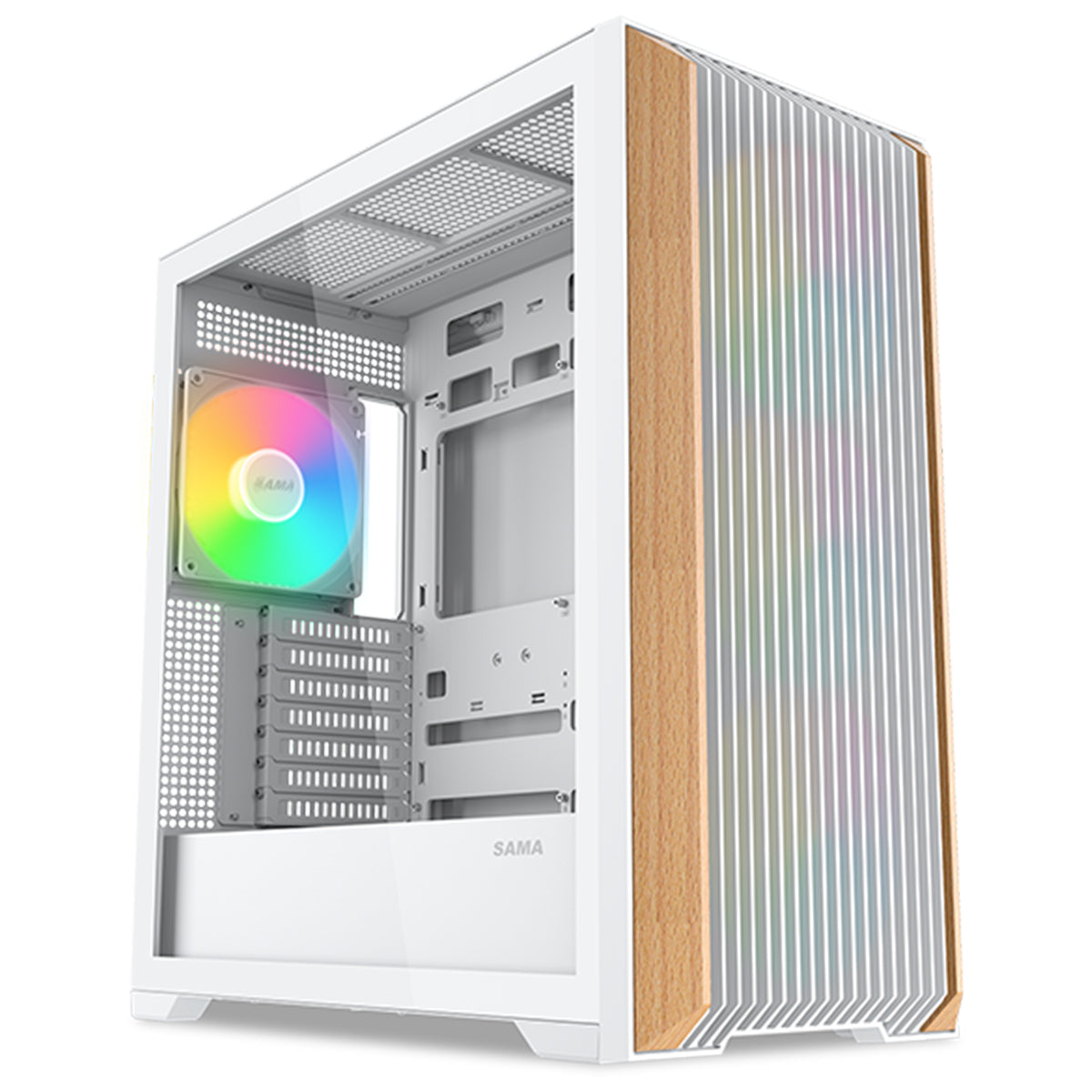

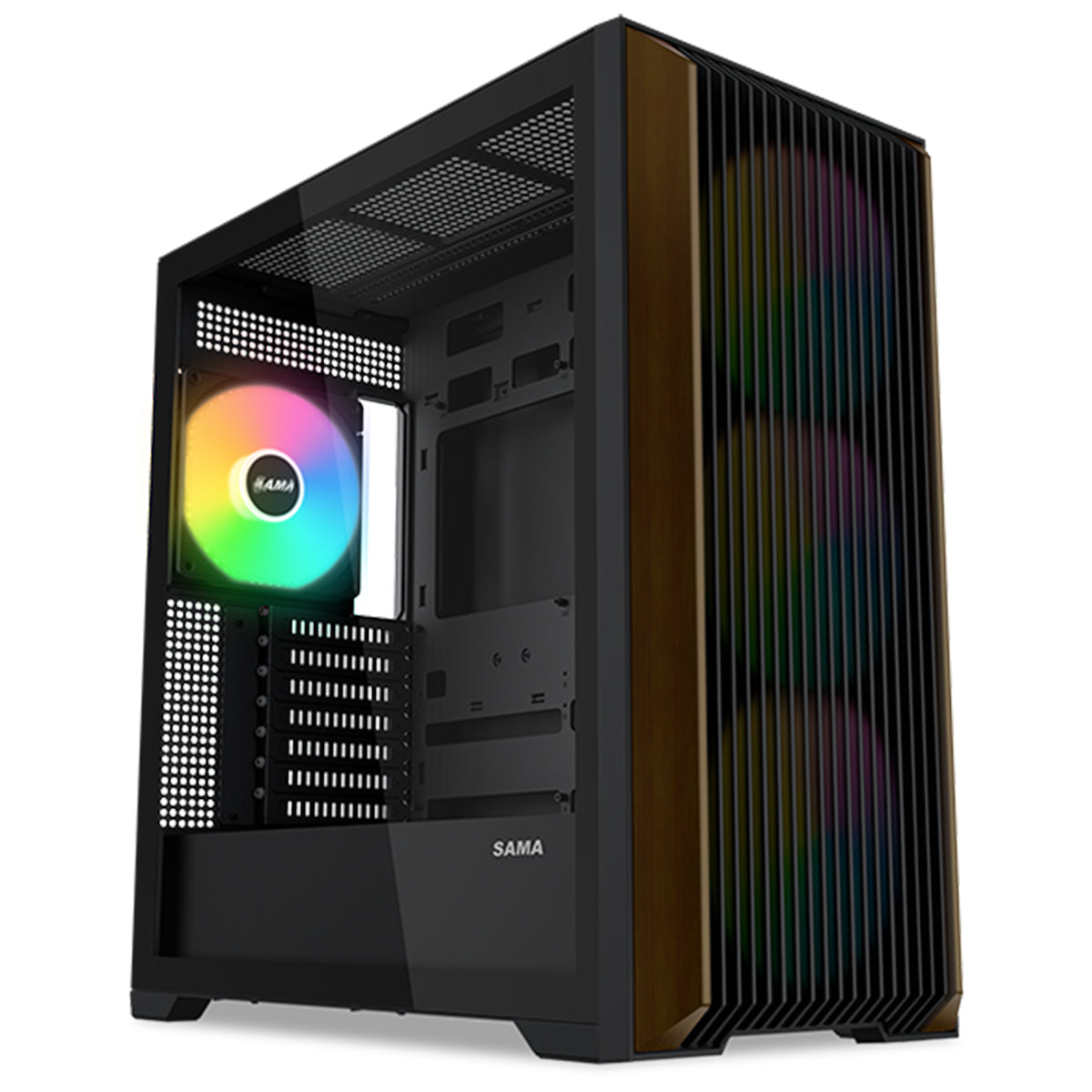

The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space.
Specifications:
| Dimensions | 480×235×496mm (L×W×H) |
|---|---|
| Materials | 0.7mm SPCC, SECC, 4mm Tempered Glass, ABS |
| Motherboard Support | EEB, E-ATX (≤277mm), ATX, M-ATX, ITX, Back-connect ATX |
| Expansion Slots | 7+2 vertical slots |
| Max CPU Cooler Height | 180mm |
| Max GPU Length | 410mm (280mm with HDD cage installed) |
| Power Supply Type | ATX (Maximum length: 250mm / 160mm with HDD cage installed) |
| Fan Support Front | 3×120mm / 2×140mm / 2×160mm |
| Fan Support Top | 3×120mm / 2×140mm |
| Fan Support Rear | 1×120mm / 1×140mm |
| Fan Support Bottom | 2×120mm (PSU shroud) + 1×120mm |
| Fan Support Side | 3×120mm |
| Radiator Support Front | 360 / 280 / 240 / 140 / 120mm |
| Radiator Support Top | 360 / 280 / 240 / 140 / 120mm (max 46 mm RAM height) |
| Radiator Support Rear | 120mm |
| Radiator Support Bottom | N/A |
| Pre-Installed Fans Front | 3×140mm ARGB PWM fans (500~1500 rpm) |
| Pre-Installed Fans Rear | 1×140mm ARGB PWM fan (500~1500 rpm) |
| Pre-Installed Fans Bottom | None |
| Front I/O Ports | USB 3.1 Type-C×1, USB 3.0×2, Audio/Mic×1, Power, Reset |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 0 + 4 combined with 3.5" mounts |
