Description
Performance ready for a new era
Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD¹ and up to an 4TB storage option,² the Samsung 9100 PRO with Heatsink SSD supercharges AI workloads, 4K video rendering, and gaming.
Specification:
| Form Factor | M.2 |

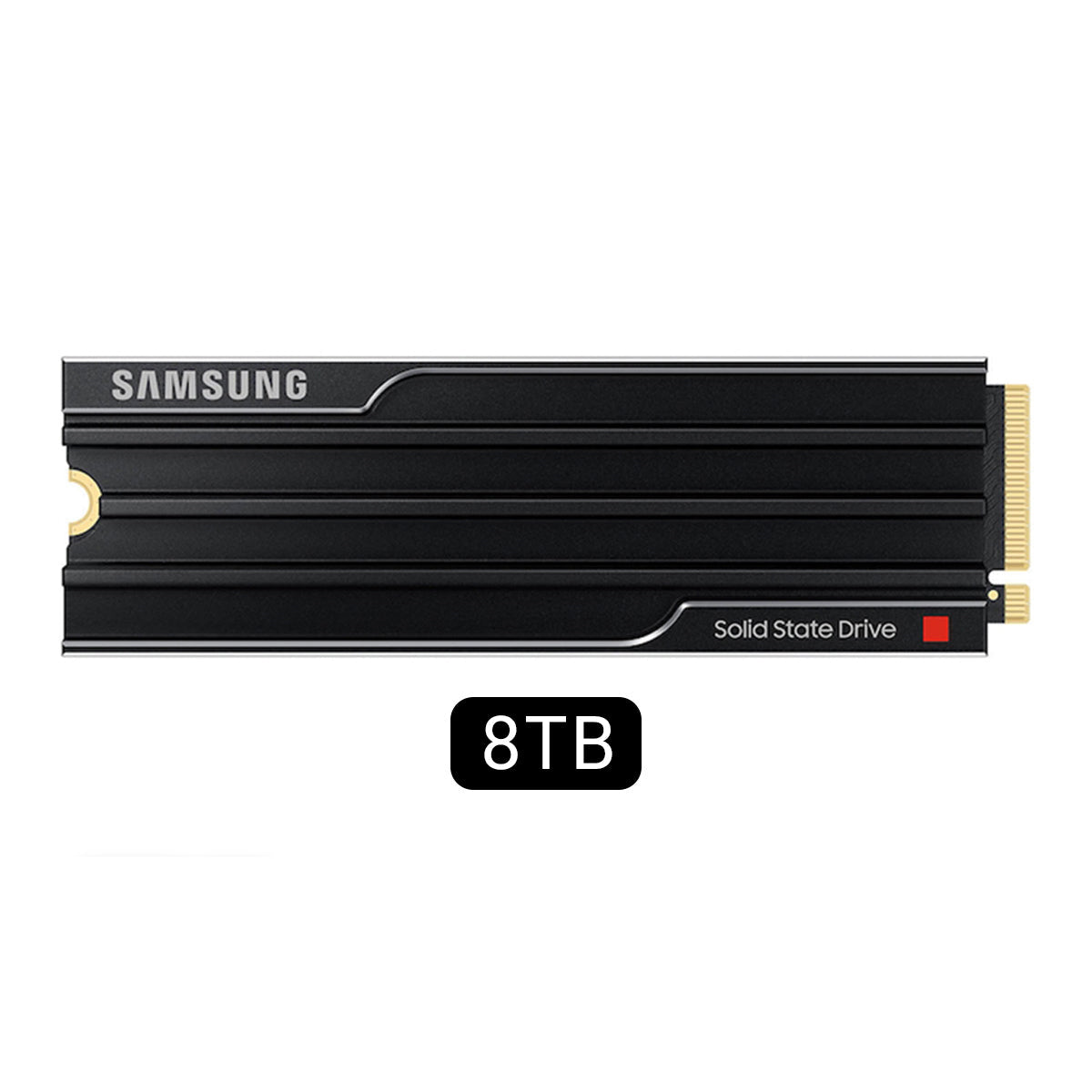

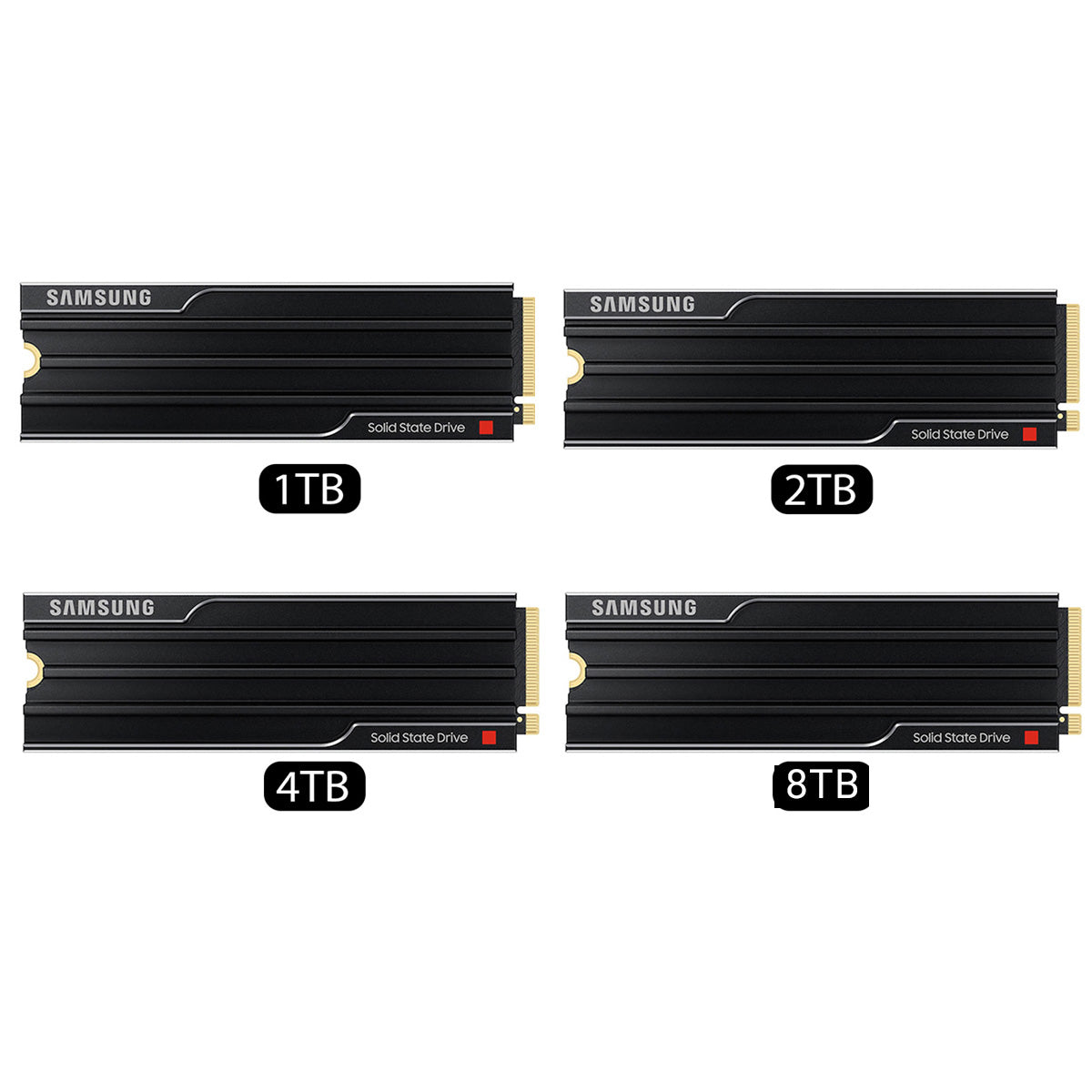

| Capacity | 1TB, 2TB, 4TB, 8TB |
| Sequential Read Speed | Up to 14,800 MB/s |
| Sequential Write Speed | Up to 13,400 MB/s |
| Model Code (Capacity) | MZ-VAP1T0CW (1TB) MZ-VAP2T0CW (2TB) MZ-VAP4T0CW (4TB) MZ-VAP8T0CW (8TB) |
| General Feature - Application | Client PCs, PlayStation®5 |
| FORM FACTOR | M.2 (2280) |
| INTERFACE | PCIe® 5.0 x4, NVMe™ 2.0 |

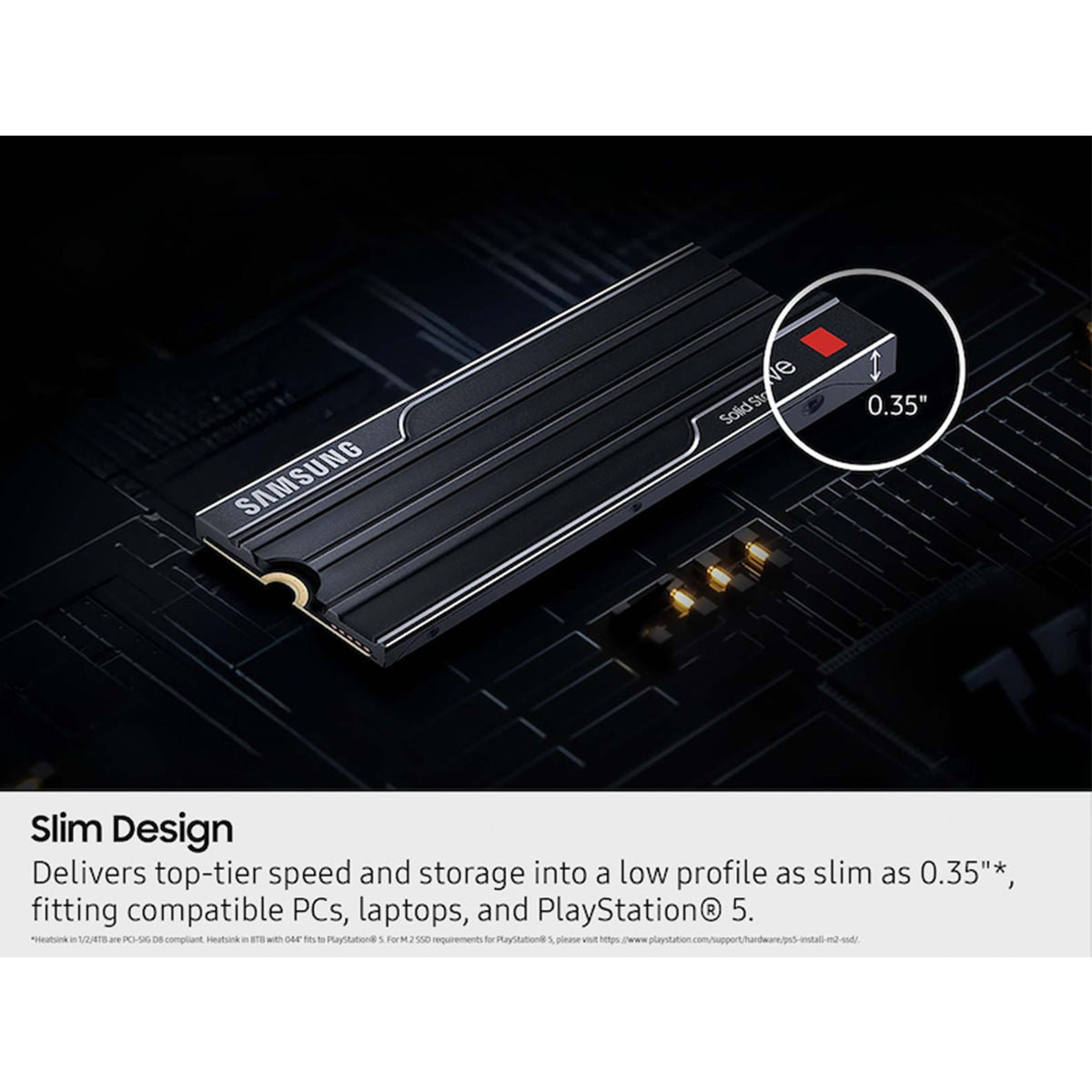

| DIMENSION (WxHxD) | 1TB/2TB/4TB : 80.15 x 25 x 8.88 mm 8TB : 80.15 x 25 x 11.25 mm |
| WEIGHT | 1TB/2TB/4TB : Max 30.0g 8TB : Max 35.0g |
| STORAGE MEMORY | Samsung V-NAND TLC |
| CONTROLLER | Samsung in-house Controller |
| CACHE MEMORY | 1TB: Samsung 1GB Low Power DDR4X SDRAM 2TB: Samsung 2GB Low Power DDR4X SDRAM 4TB: Samsung 4GB Low Power DDR4X SDRAM 8TB: Samsung 8GB Low Power DDR4X SDRAM |
| Special Feature - TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (GARBAGE COLLECTION) | Auto Garbage Collection Algorithm |
| ENCRYPTION SUPPORT | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN SUPPORT | Not supported |
| DEVICE SLEEP MODE SUPPORT | Yes |
| Performance - SEQUENTIAL READ | 1TB: Up to 14,700 MB/s 2TB: Up to 14,700 MB/s 4TB: Up to 14,800 MB/s 8TB: Up to 14,800 MB/s |
| Performance - SEQUENTIAL WRITE | 1TB: Up to 13,300 MB/s 2TB: Up to 13,400 MB/s 4TB: Up to 13,400 MB/s 8TB: Up to 13,400 MB/s |
| RANDOM READ (4KB, QD32) | 1TB: Up to 1,850,000 IOPS 2TB: Up to 1,850,000 IOPS 4TB: Up to 2,200,000 IOPS 8TB: Up to 2,200,000 IOPS |
| RANDOM WRITE (4KB, QD32) | 1TB: Up to 2,600,000 IOPS 2TB: Up to 2,600,000 IOPS 4TB: Up to 2,600,000 IOPS 8TB: Up to 2,600,000 IOPS |
| Environment - AVERAGE POWER CONSUMPTION (System Level) | 1TB: Average 7.6 W (Maximum 7.2 W burst mode) 2TB: Average 8.1 W (Maximum 7.9 W burst mode) 4TB: Average 9 W (Maximum 8.2 W burst mode) 8TB: Average 10.5 W (Maximum 8.8 W burst mode) |
| POWER CONSUMPTION (IDLE) | 1TB: Max. 4 mW 2TB: Max. 4.8 mW 4TB: Max. 6.5 mW 8TB: Max. 9.3 mW |
| POWER CONSUMPTION (DEVICE SLEEP) | 1TB: Max. 3.3 mW 2TB: Max. 4 mW 4TB: Max. 5.7 mW 8TB: Max. 8.6 mW |
| ALLOWABLE VOLTAGE | 3.3 V ± 5 % |
| RELIABILITY (MTBF) | 1.5 Million Hours |
| OPERATING TEMPERATURE | 0 - 70 °C |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories - INSTALLATION KIT | Not Available |
| Software - MANAGEMENT SW | Magician Software for SSD management |
