Description
Next-level SSD performance

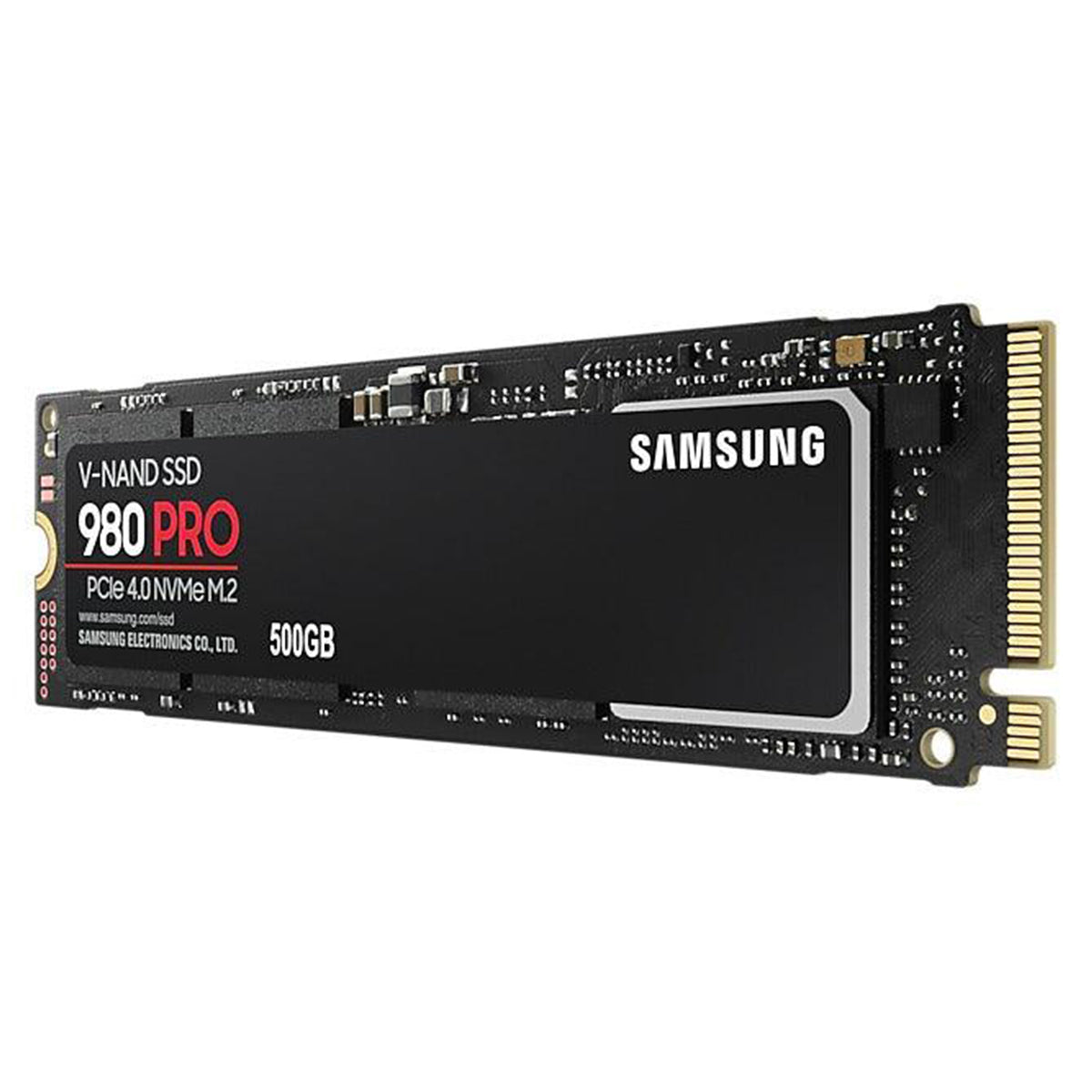

Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward compatible for PCIe 3.0 for added versatility.
Maximum speed
Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimized for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves max speeds on PCIe 4.0 and may vary in other environments.
A winning combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimized power efficiency.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
Specifications :
| General Feature | Application Client PCs Capacity 500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor M.2 (2280) Interface PCIe Gen 4.0 x4, NVMe 1.3c Dimension (W x H x D) 80.15 x 22.15 x 2.38 (mm) Weight Max 9.0 g Weight Storage Memory Samsung V-NAND 3-bit MLC Controller Samsung Elpis Controller Cache Memory Samsung 512MB Low Power DDR4 SDRAM |
| Special Feature | TRIM Support Supported S.M.A.R.T Support Supported GC (Garbage Collection) Auto Garbage Collection Algorithm Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support Not supported Device Sleep Mode Support Yes |
| Performance | Sequential Read Up to 6,900 MB/s * Performance may vary based on system hardware & configuration Sequential Write Up to 5,000 MB/s * Performance may vary based on system hardware & configuration Random Read (4 KB, QD32) Up to 800,000 IOPS* Performance may vary based on system hardware & configuration Random Write (4 KB, QD32) Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration Random Read (4 KB, QD1) Up to 22,000 IOPS * Performance may vary based on system hardware & configuration Random Write (4 KB, QD1) Up to 60,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | Average Power Consumption (System Level) *Average: 5.9 W *Maximum: 7.4 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration Power consumption (Idle) Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage 3.3 V ± 5 % Allowable voltage Reliability (MTBF) 1.5 Million Hours Reliability (MTBF) Operating Temperature 0 - 70 ℃ Operating Temperature Shock 1,500 G & 0.5 ms (Half sine) |
| Software | Management SW Magician Software for SSD management |
