Description
| Interface | PCIe® 4.0 x4, NVMe™ 2.0 |
|---|---|

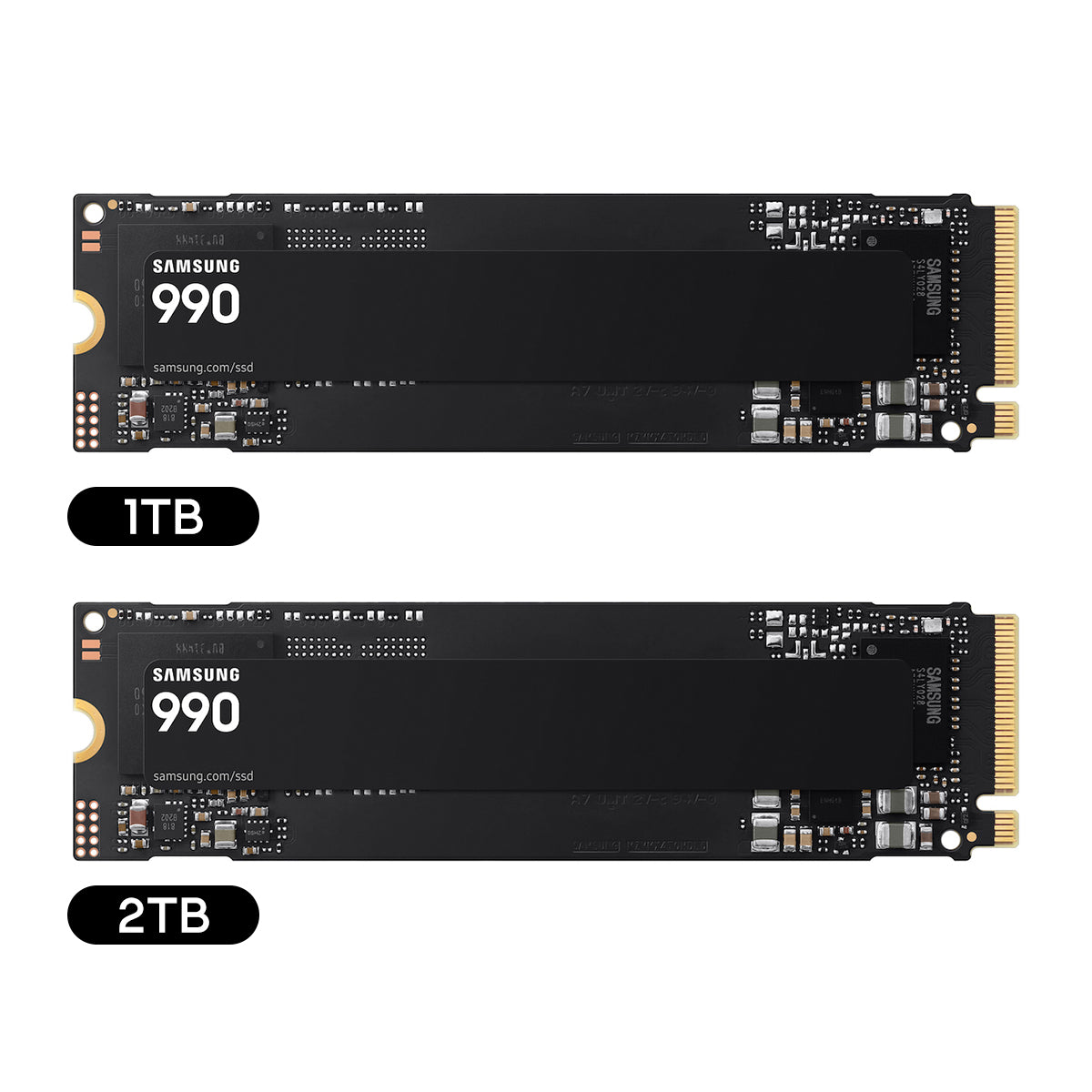

| Form Factor | M.2 (2280) |
| Application | Client PCs |
| Rated Capacity | 2,000GB (1GB = 1 Billion bytes by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Dimensions | Max 80.15 × Max 22.15 × Max 2.38 mm |
| Weight | Max 9.0g |
| Storage Memory | Samsung V-NAND |
| Controller | Samsung in-house Controller |
| Cache Memory | HMB (Host Memory Buffer) |
| Sequential Read | 7,250MB/s |
| Sequential Write | 6,450MB/s |
| Random Read | 850K IOPS |
| Random Write | 1,200K IOPS |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection (GC) | Supported |
| Encryption Support | AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667) |
| WWN Support | Not supported |
| Device Sleep Mode | Yes |
| Average Power Consumption | Average: Read 4.3W / Write 3.8W * Actual power consumption may vary depending on system hardware & configuration. |
| Idle Power Consumption | Typical 55mW * Actual power consumption may vary depending on system hardware & configuration. |
| Device Sleep Power Consumption | Typical 3mW * Actual power consumption may vary depending on system hardware & configuration. |
| Allowable Voltage | 3.3V ± 5% |
| Reliability (MTBF) | 1.5 million hours |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance | 1,500G (Gravity), duration: 0.5ms, 3 axis |
