Description

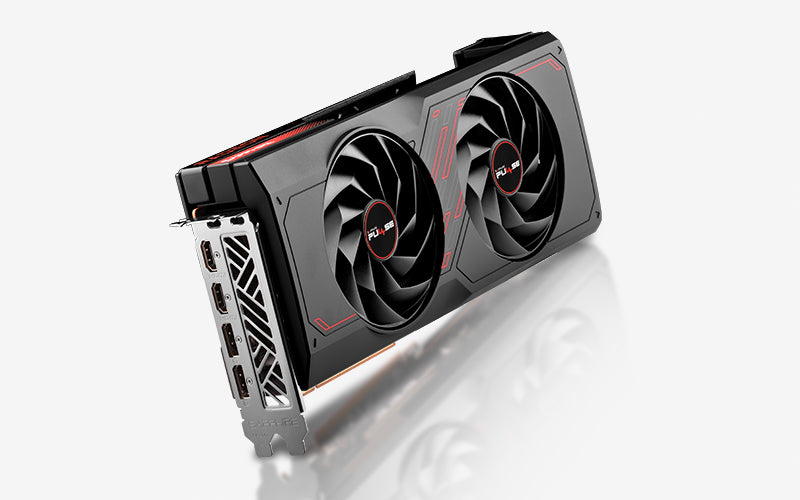

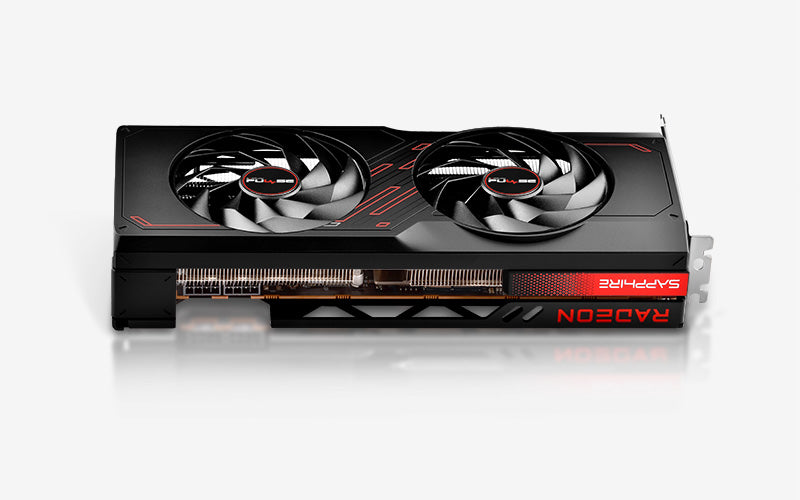

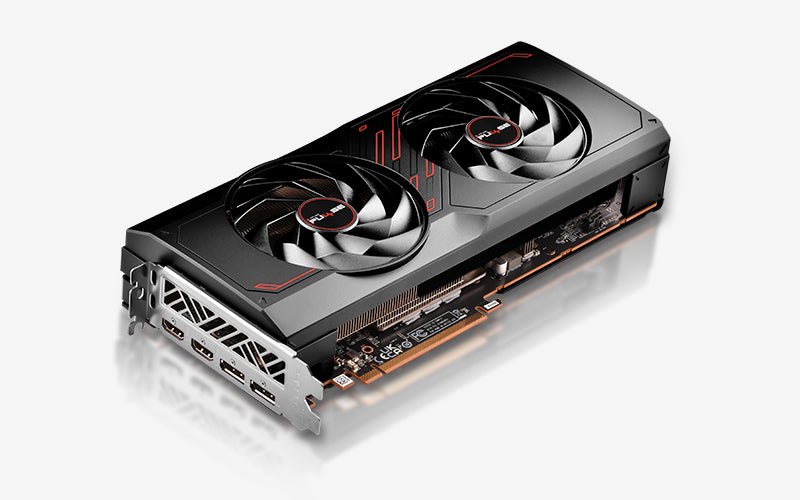

PULSE AMD Radeon™ RX 7800 XT 16GB
- GPU: Boost Clock: Up to 2430 MHz
- GPU: Game Clock: Up to 2124 MHz
- Memory: 16GB/256 bit DDR6. 19.5Gbps Effective
- Stream Processors: 3840
- RDNA™ 3 Architecture
- Ray Accelerator: 60
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitor
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
AMD RDNA™ 3
Specifications
| GPU | AMD Radeon™ RX 7800 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture |
| Engine Clock |
Boost Clock: Up to 2430 MHz Game Clock: Up to 2124 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 3840 |
| Compute Units | 60 CU (with RT+AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 60 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 19.5 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
| Interface | PCI-Express 4.0 x16 |
| Output | 2x HDMI 2x DisplayPort |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Angular Velocity Fan Blade Dual-Ball Bearing Fans TriXX Supported TriXX Boost |
| AMD Features | AMD RDNA™ 3 Architecture 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 48MB AMD Infinity Cache™ Technology DisplayPort™ 2.1Support AMD Radiance Display™ Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ technology |
| Cooling | 2 Fans |
| Form Factor | 2.5 slot, ATX Dimension: 280(L)X 128.75(W)X 52.57 (H)mm |
| Power Consumption | 266W Total Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 700 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
