Description

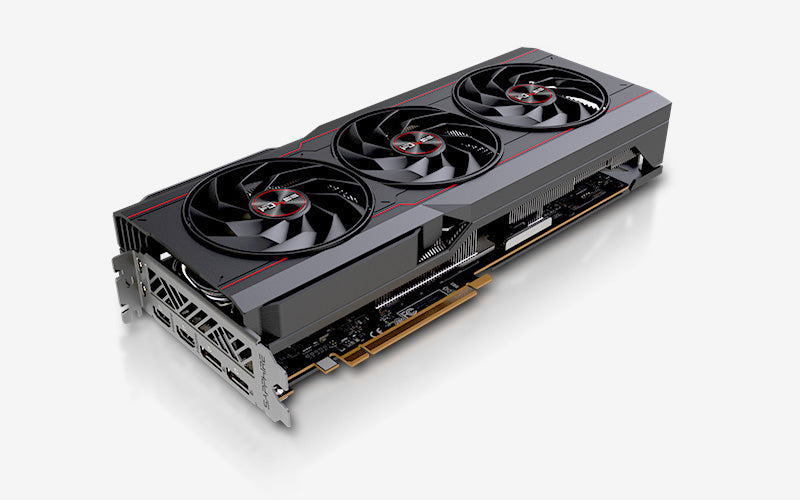

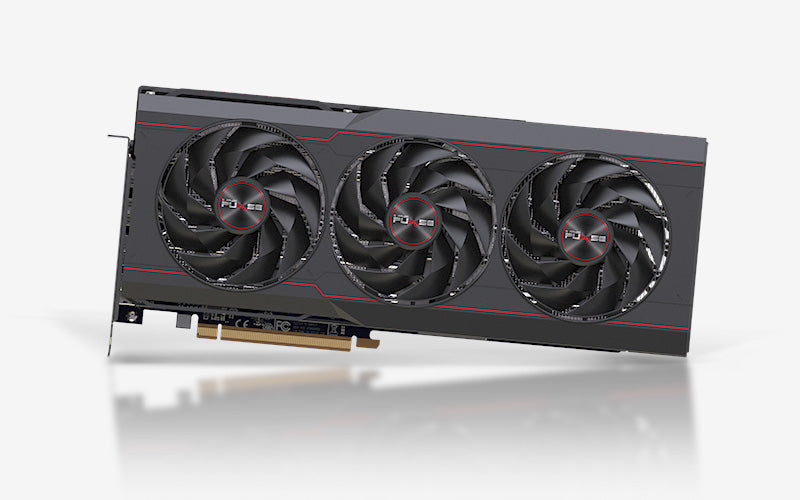

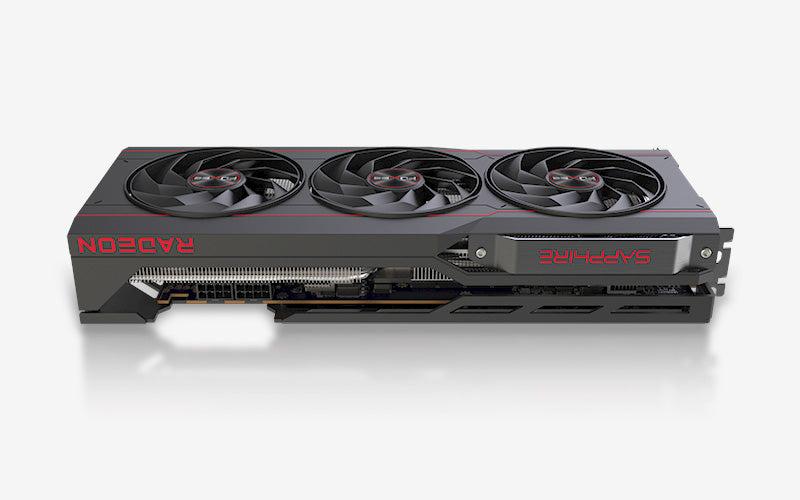

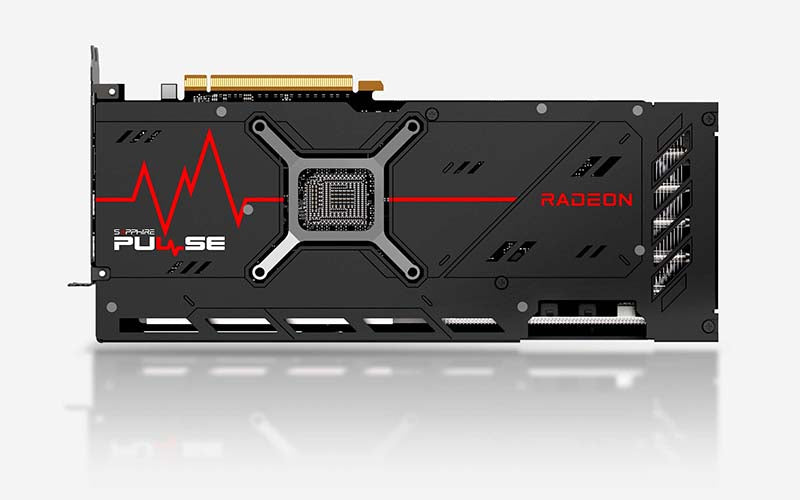

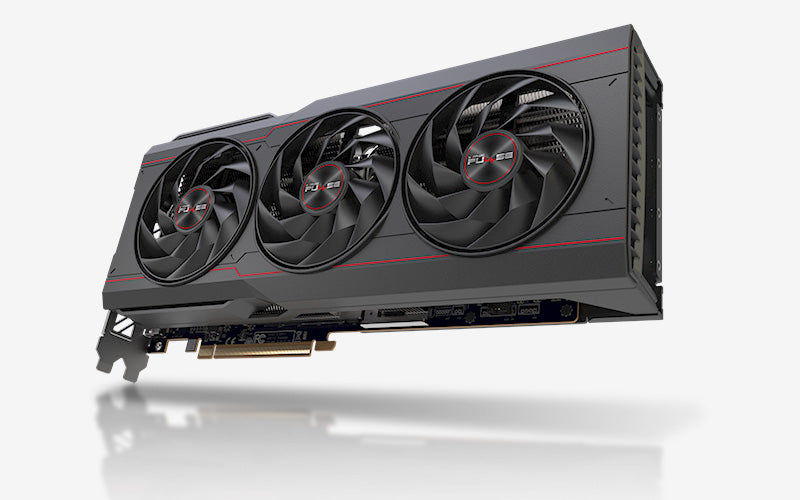

PULSE AMD Radeon™ RX 7900 XT
- GPU: Boost Clock: Up to 2450 MHz
- GPU: Game Clock: Up to 2075 MHz
- Memory: 20GB/320 bit DDR6. 20 Gbps Effective
- Stream Processors: 5376
- RDNA™ 3 Architecture
- Ray Accelerator: 84
FULL SPECIFICATIONS:
| GPU | AMD Radeon™ RX 7900 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture |
| Engine Clock | Boost Clock: Up to 2450 MHz Game Clock: Up to 2075 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 5376 |
| Compute Units | 84 CU (with RT+AI Accelerators) |
| Infinity Cache | 80MB |
| Ray Accelerators | 84 |
| Memory Size/Bus | 20GB/320 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
| Interface | PCI-Express 4.0 x16 |
| Output | 2x HDMI 2x DisplayPort |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Tri-X Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Angular Velocity Fan Blade TriXX Supported TriXX Boost Graphics Card Supporter |
| AMD Features | AMD RDNA™ 3 Gaming Architecture 84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 80MB AMD Infinity Cache™ technology DisplayPort™ 2.1 AMD Radiance Display™ Engine AMD Radeon™ Boost technology* AMD Radeon™ Anti-Lag* technology* 20GB GDDR6 on 320-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ technologies* AMD FidelityFX™ Super Resolution technology* Microsoft® DirectX® 12 Ultimate Microsoft® DirectStorage Vulkan® Optimized AMD smart technologies* AMD Software: Adrenalin Edition™ application AMD Noise Suppression* AMD Privacy View* AMD Radeon™ Super Resolution technology* AMD Link* AMD Freesync™ technology |
| Cooling | 3 Fans |
| Form Factor | 2.7 slot, ATX Dimension: 313(L)X 133.75(W)X 52.67 (H)mm |
| Power Consumption | 331W Total Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 750 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
