Description
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A NEED FOR SPEED!
Optimized for the PCIe Gen4 interface, SPATIUM M470 SSD reaches read/write speeds up to 5000/4400 MB/s, allowing for rapid data transfer and shortened game load times.
SMALL SIZE, MORE STORAGE
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
DON'T STOP GAMING
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.

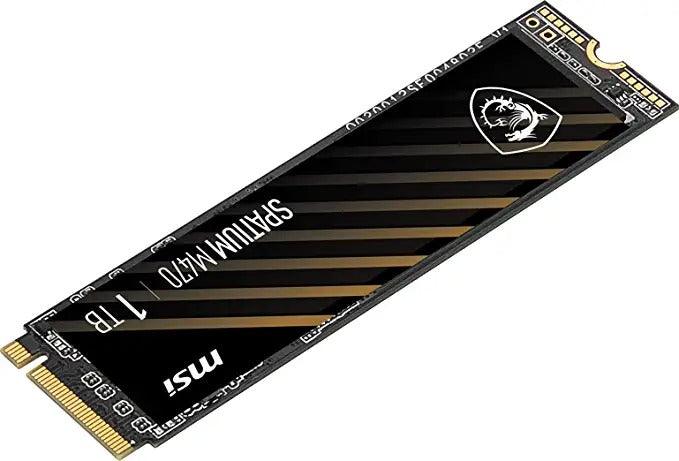

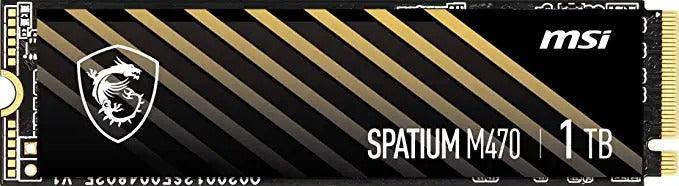

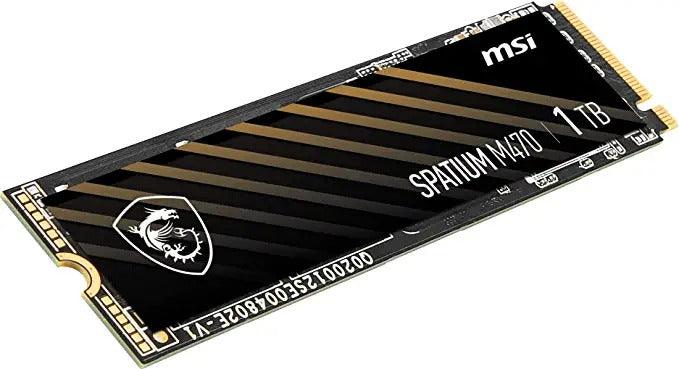

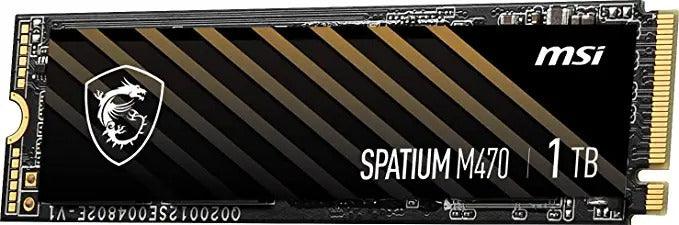

SPATIUM M470 PCIe 4.0 NVMe M.2
- PCIe Gen4x4 interface and complies with the NVMe 1.3 standard
- Sequential Read speeds up to 5000MB/s and Write speeds up to 4400MB/s
- Up to 3300 TBW
- Built-in data security and error-correction capabilities
- 1TB to 2TB capacities in M.2 2280 form factor
- Suitable for both desktop and notebook
Specifications :
| MODEL NAME | SPATIUM M470 PCIe 4.0 NVMe M.2 |
| CAPACITY | 1TB |
| CONTROLLER | PHISON E16 |
| FLASH MEMORY | 3D NAND |
| DRAM CACHE | 1GB DDR4 |
| FORM FACTOR | M.2 2280 |
| INTERFACE | PCIe Gen4x4, NVMe 1.3 |
| COMPATIBILITY | PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| DIMENSIONS | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| SEQUENTIAL READ UP TO (MB/S) | 5000 |
| SEQUENTIAL WRITE UP TO (MB/S) | 4400 |
| RANDOM READ 4KB UP TO (IOPS) | 600,000 |
| RANDOM WRITE 4KB UP TO (IOPS) | 600,000 |
| MAXIMUM OPERATING POWER (W) | 6.3 |
| IDLE POWER PS3 (MW) | 20 |
| LOW POWER L1.2 (MW) | 2 |
| OPERATING TEMPERATURES | 0°C – 70°C |
| STORAGE TEMPERATURES | -40°C – 85°C |
| TERABYTES WRITTEN (TBW) | 1600 |
| MEAN TIME BETWEEN FAILURE (MTBF) | Up to 1,700,000 Hours |
| ADVANCED FEATURES | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security) |
