Description
| System Specifications | |
|---|---|
| Controls and Input | |
| Gamepad controls | A B X Y buttons D-pad L & R analog triggers L & R bumpers View & Menu buttons Steam & QAM buttons 4x assignable grip buttons |
| Thumbsticks | 2x full-size magnetic thumbsticks (TMR) with capacitive touch |
| Haptics | 4x haptic motors 2x LRA haptic motors in trackpads for HD tactile feedback 2x High output LRA haptic motors in grips for HD game haptics including rumble |
| Trackpads | 2x 34.5mm square trackpads with haptic feedback Pressure-sensitive for configurable click strength |
| Gyro | 6-axis IMU |
| Grip Sense | 2x capacitive areas along back of Steam Controller handles |
| Connectivity | |

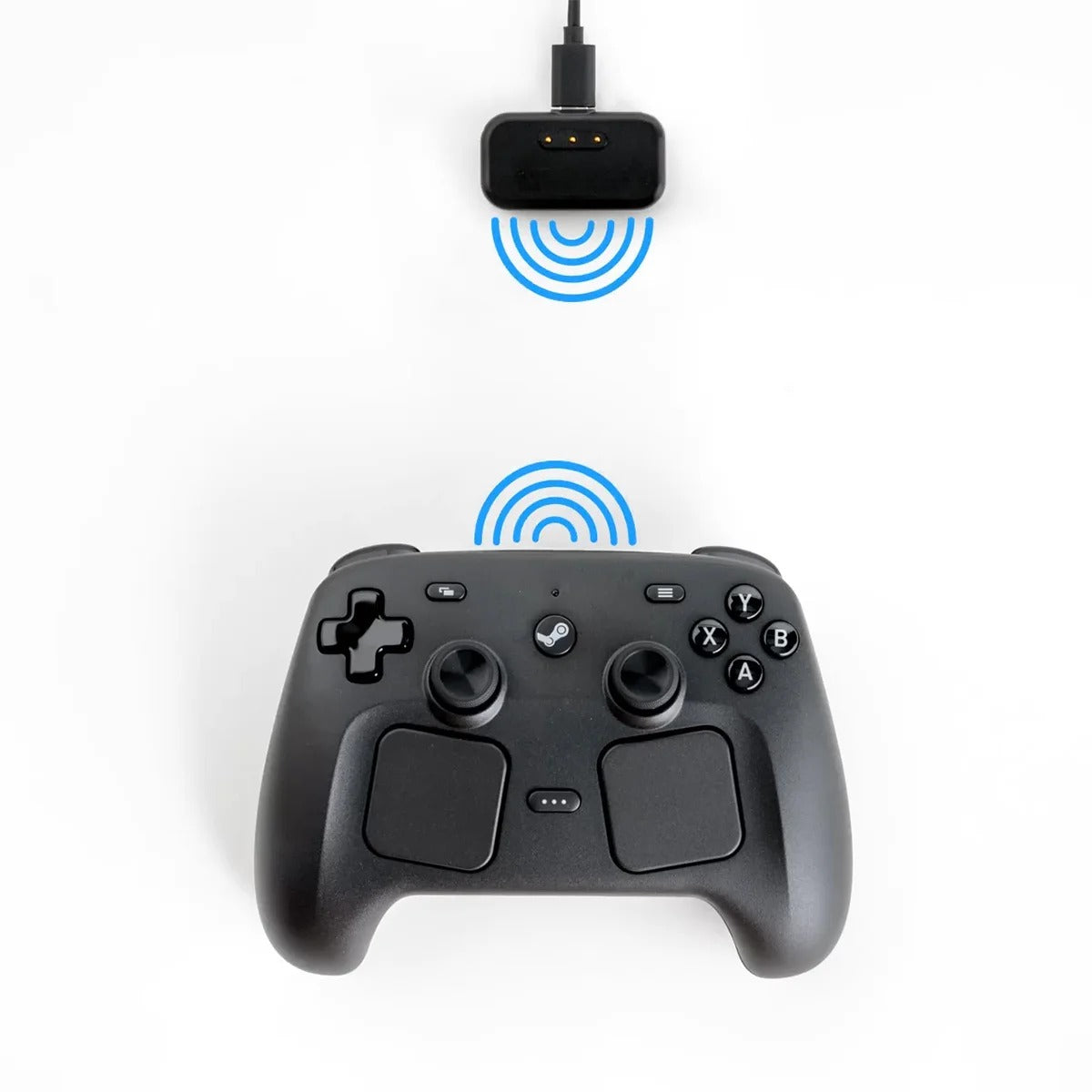

| Steam Controller Puck | 2.4GHz Wireless connection ~8ms full end-to-end, 4ms polling rate (measured at 5m) Up to 4 Steam Controllers per Steam Controller Puck Steam Controller Puck connects to PC via USB-C |
| Bluetooth | Bluetooth 4.2 minimum, 5.0 or higher recommended |

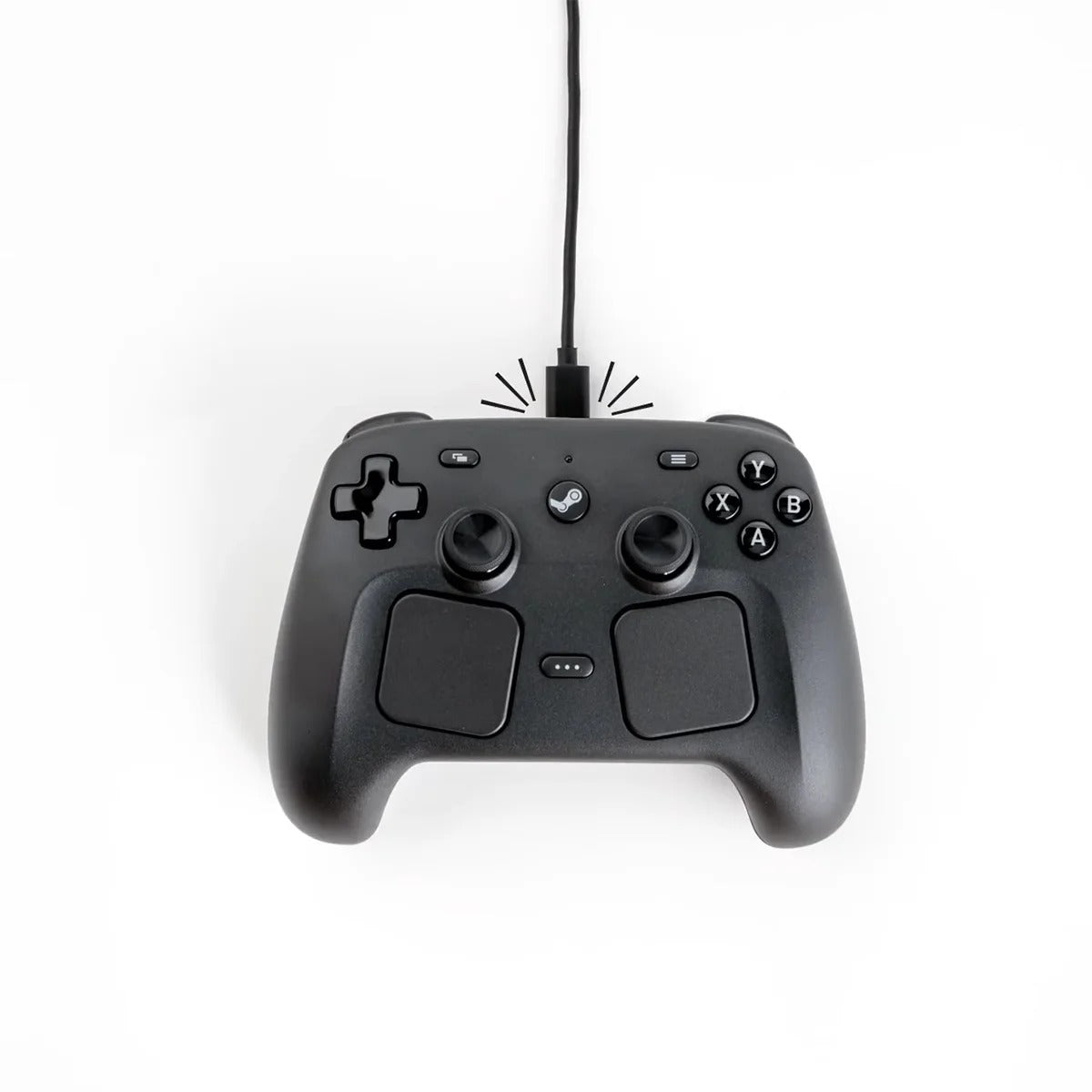

| USB | USB-C tethered play |
| Power | |
| Charging | Steam Controller Puck charging interface USB-C connector |
| Battery | 8.39 Wh Li-ion battery 35+ hours of gameplay* Battery life for tracked gameplay with Steam Frame is reduced |
| Size and Weight | |
| Size | Steam Controller: 111mm x 159mm x 57mm Steam Controller Puck: 50mm x 28mm x 9mm |
| Weight | Steam Controller: 292 g Steam Controller Puck: 16 g |
