Description

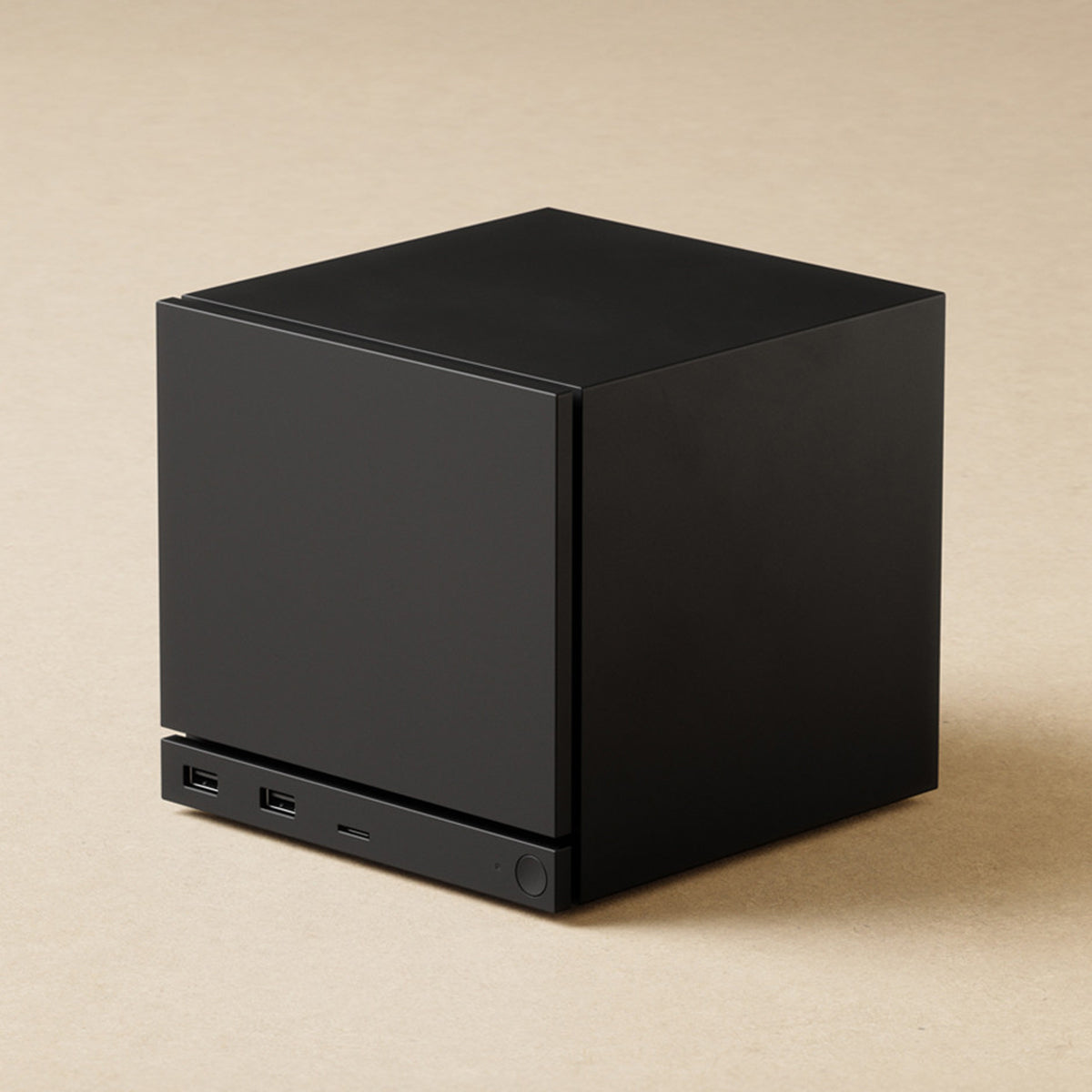

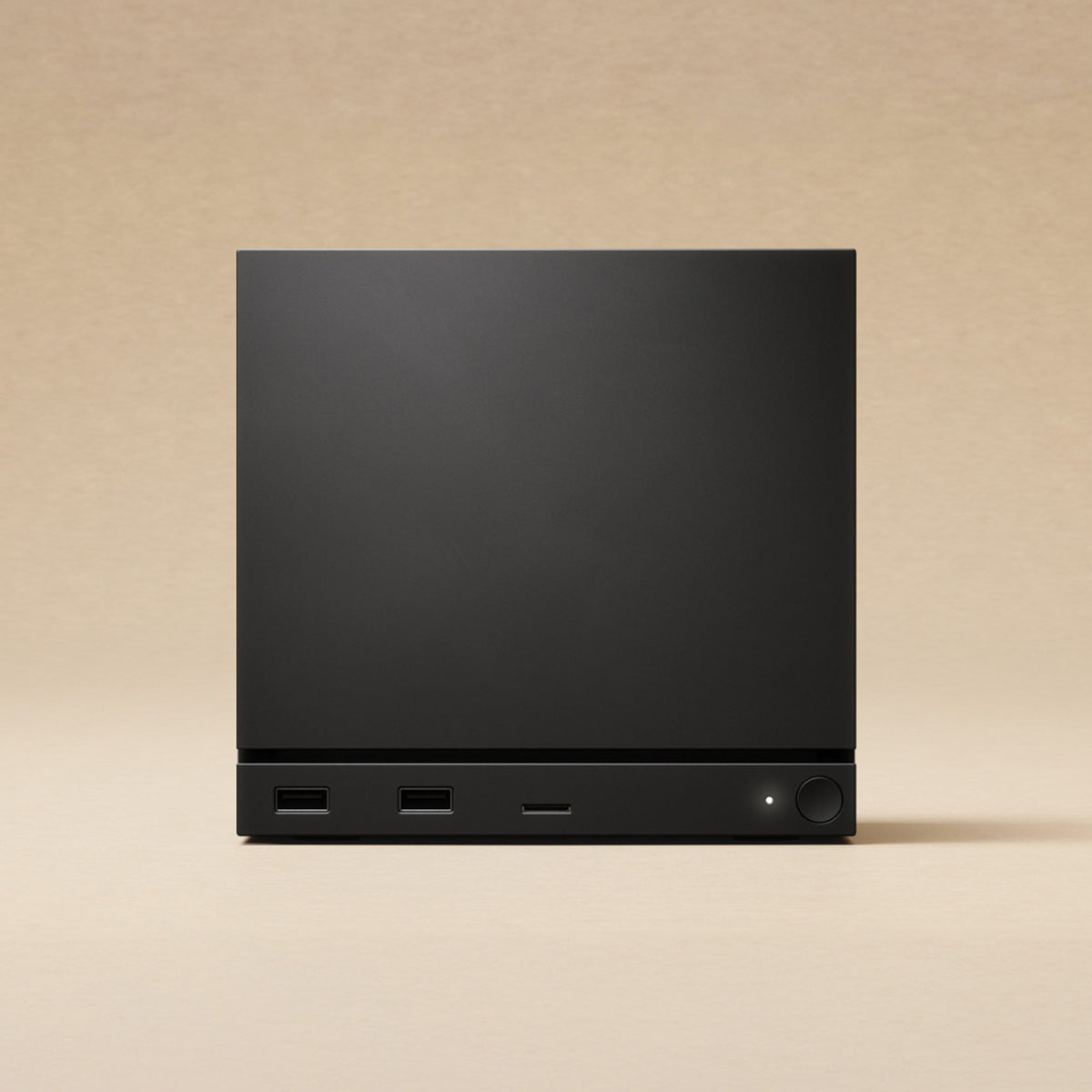

Your games on the big screen
Powerful PC gaming made easy, in a small and mighty package
There's an LED strip, y'all!
Keep tabs on system status like download progress, even when your screen is off. Customize it with different colors and animations. Or turn it off!
Steam Machine plays well, wherever Steam is
|
Made for Steam Controller Steam Machine comes with a built-in wireless adapter, just for pairing with Steam Controller. (Up to four with a single adapter!) This means you can pair your Steam Controller without its puck, and you can wake your Steam Machine without leaving your couch. |
Great for Streaming With enough horsepower to take on the most demanding games, Steam Machine is the perfect host PC for streaming to other devices. Easily stream to your Steam Deck, Steam Frame, or any other device running Steam or Steam Link. |
Your games at your fingertips
All the inputs to play all the games on Steam, wherever Steam is

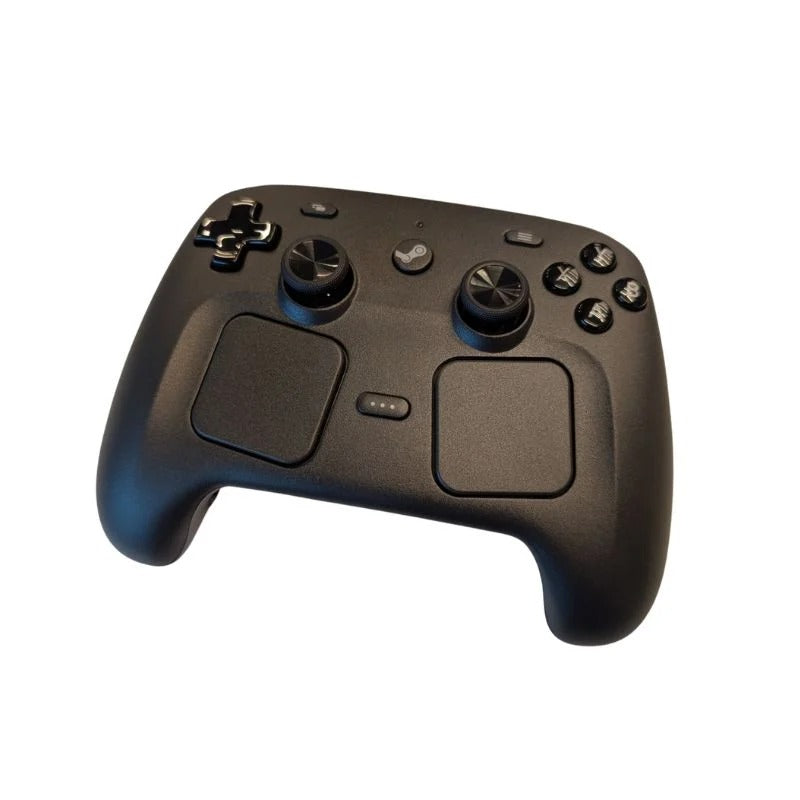

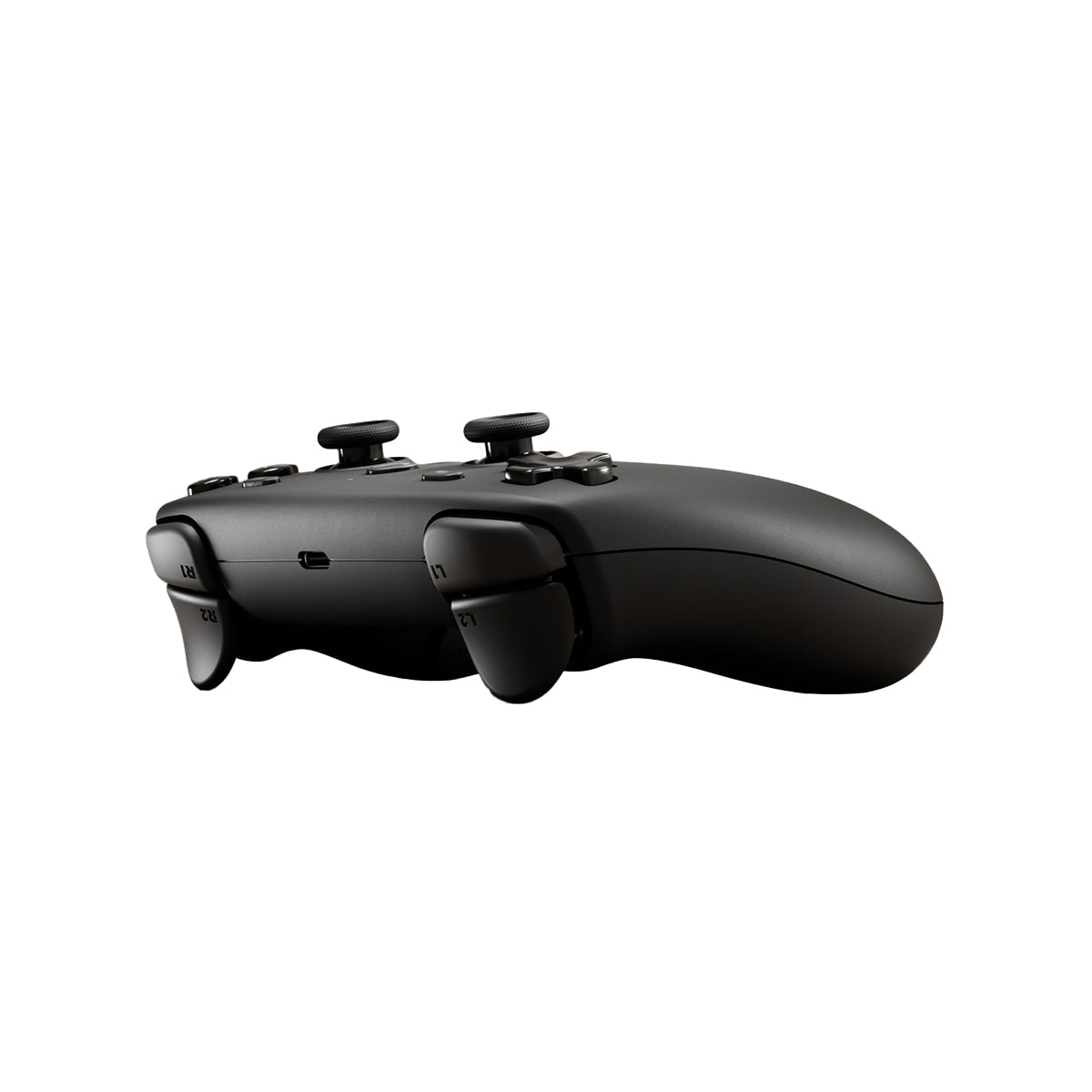

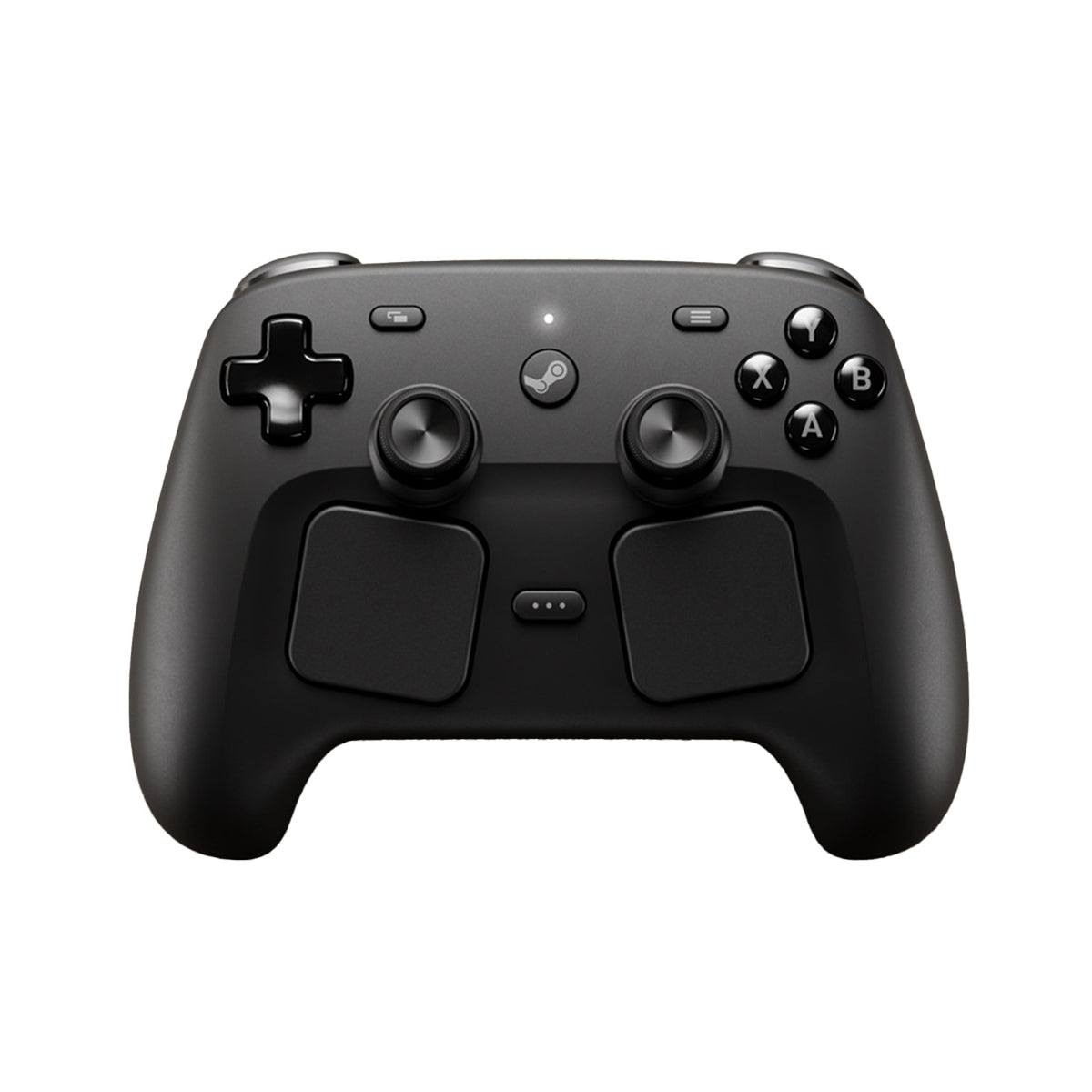

Defining features of Steam Controller
|
Plug and play with the Steam Controller Puck One puck, two jobs: It’s a wireless transmitter that provides a fast, stable connection for your Steam Controller. It's also a charging station, connecting to your Controller magnetically with a satisfying click. Prefer using Bluetooth or USB? Steam Controller supports those too. |
|
Next-generation magnetic thumbsticks Steam Controller comes with magnetic thumbsticks using TMR technology, designed for improved feel, responsiveness and long-term reliability. They also support capacitive touch to enable motion controls. |
High definition rumble Steam Controller's powerful motors are capable of handling complex waveforms for immersive, accurate haptics.
|
Grip-enabled gyro We're calling it Grip Sense, and it's a new input for Steam Controller that enables gyro with capacitive touch. Hold and release to enable and disable gyro aiming. You can also map it like any other button. |
Steam Controller plays well, wherever Steam is
|
With anything running Steam Steam Controller works with any PC or device running Steam or the Steam Link app*. This includes Windows PCs, Linux PCs, tablets and smart phones. |
|
|
Steam Deck Whether your Steam Deck is docked or on the go, Steam Controller is a great companion, with all the same familiar inputs. |
|
|
Steam Machine Steam Controller pairs easily to Steam Machine without its puck. Wake your Steam Machine without leaving your couch. |
|
|
Steam Frame Infrared LEDs make Steam Controller trackable by Steam Frame’s cameras when you’re immersed in VR. Perfect for playing all of your non-VR games on a giant virtual screen. |
*On MacOS, Steam Controller is not compatible with some Steam titles because they rely on Apple’s Game Controller framework.
We are in touch with Apple about this issue, but do not have a timeline for when this may get resolved.
Specification:
| Tech Specs for Steam Machine | |
| General | |

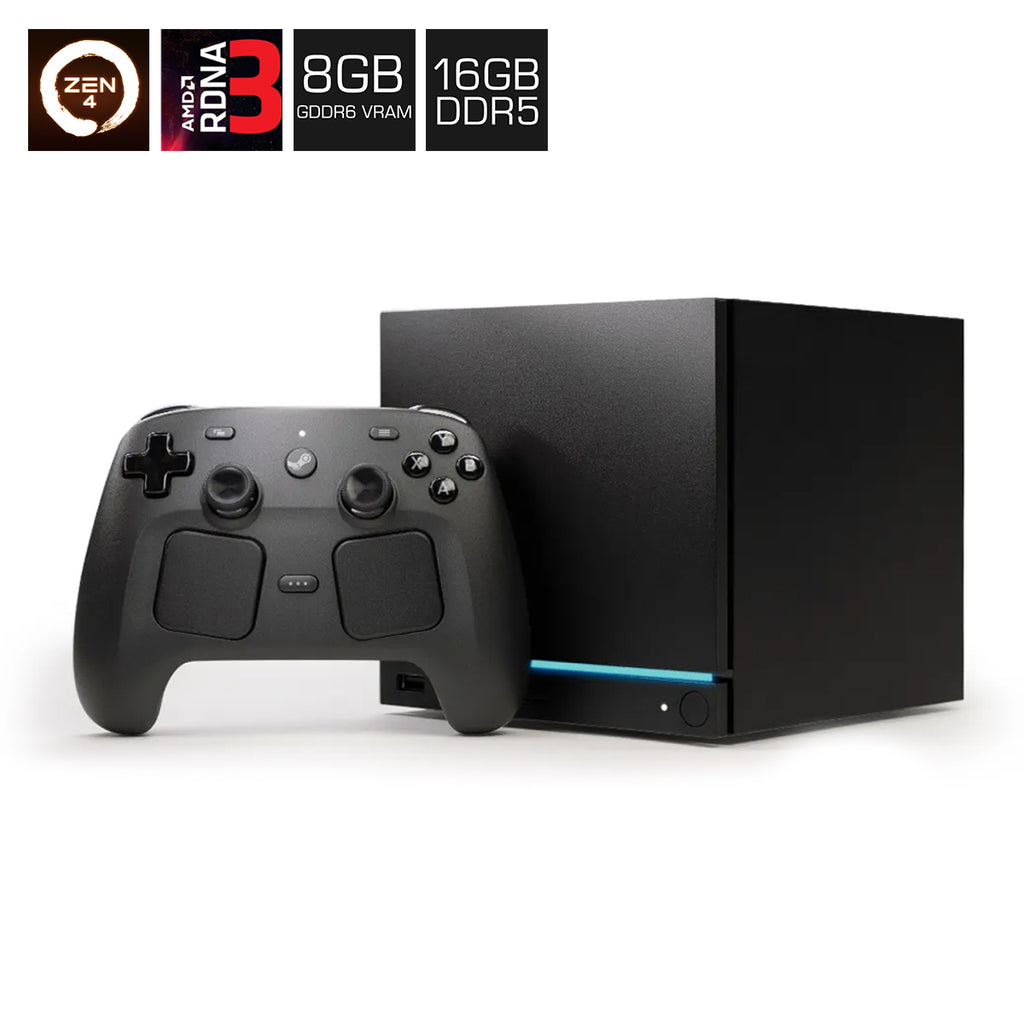

| CPU | Semi-custom AMD Zen 4 6C / 12T up to 4.8 GHz, 30W TDP |
|---|---|
| GPU | Semi-Custom AMD RDNA3 28CUs 2.45GHz max sustained clock, 110W TDP |
| RAM | 16GB DDR5 + 8GB GDDR6 VRAM |
| Power | Internal power supply, AC power 110-240V |
| Storage | 512GB NVMe SSD |
| Connectivity | |
| Wi-Fi | 2x2 Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 dedicated antenna |
| Steam Controller | Integrated 2.4 GHz Steam Controller wireless adapter |

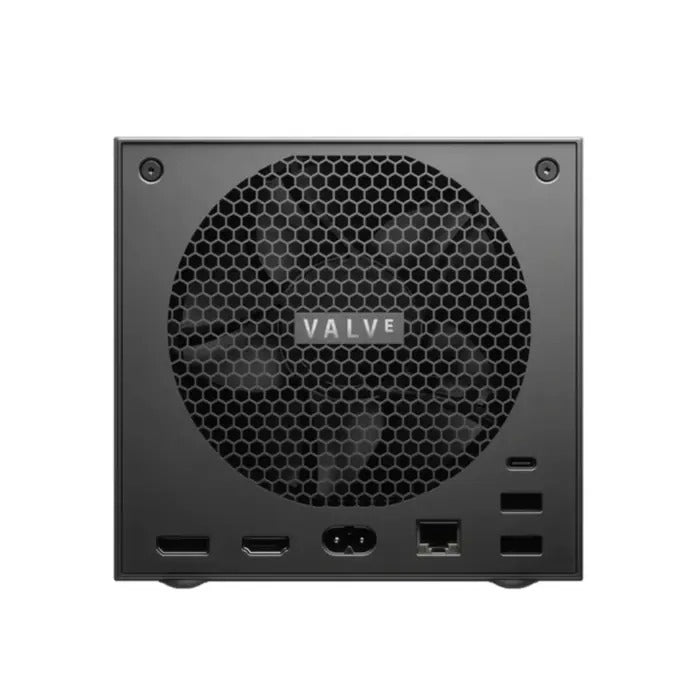

| I/O | |
| Displays | DisplayPort 1.4 Up to 4K @ 240Hz or 8K@60Hz Supports HDR, FreeSync, and daisy-chaining HDMI 2.0 Up to 4K @ 120Hz Supports HDR, FreeSync, and CEC |
| USB | Two USB-A 3.2 Gen 1 ports in the front Two USB-A 2.0 High speed ports in the back One USB-C 3.2 Gen 2 port in the back |
| Networking | Gigabit ethernet |
| LED Strip | 17 individually addressable RGB LEDs for system status and customizability |
| Size and Weight | |
| Size | 152 mm tall (148 mm without feet), 162.4 mm deep, 156 mm wide |
| Weight | 2.6 kg |
| Software | |
| Operating System | SteamOS 3 (Arch-based) |
| Desktop | KDE Plasma |
| Tech Specs for Steam Controller | |
| Controls and Input | |

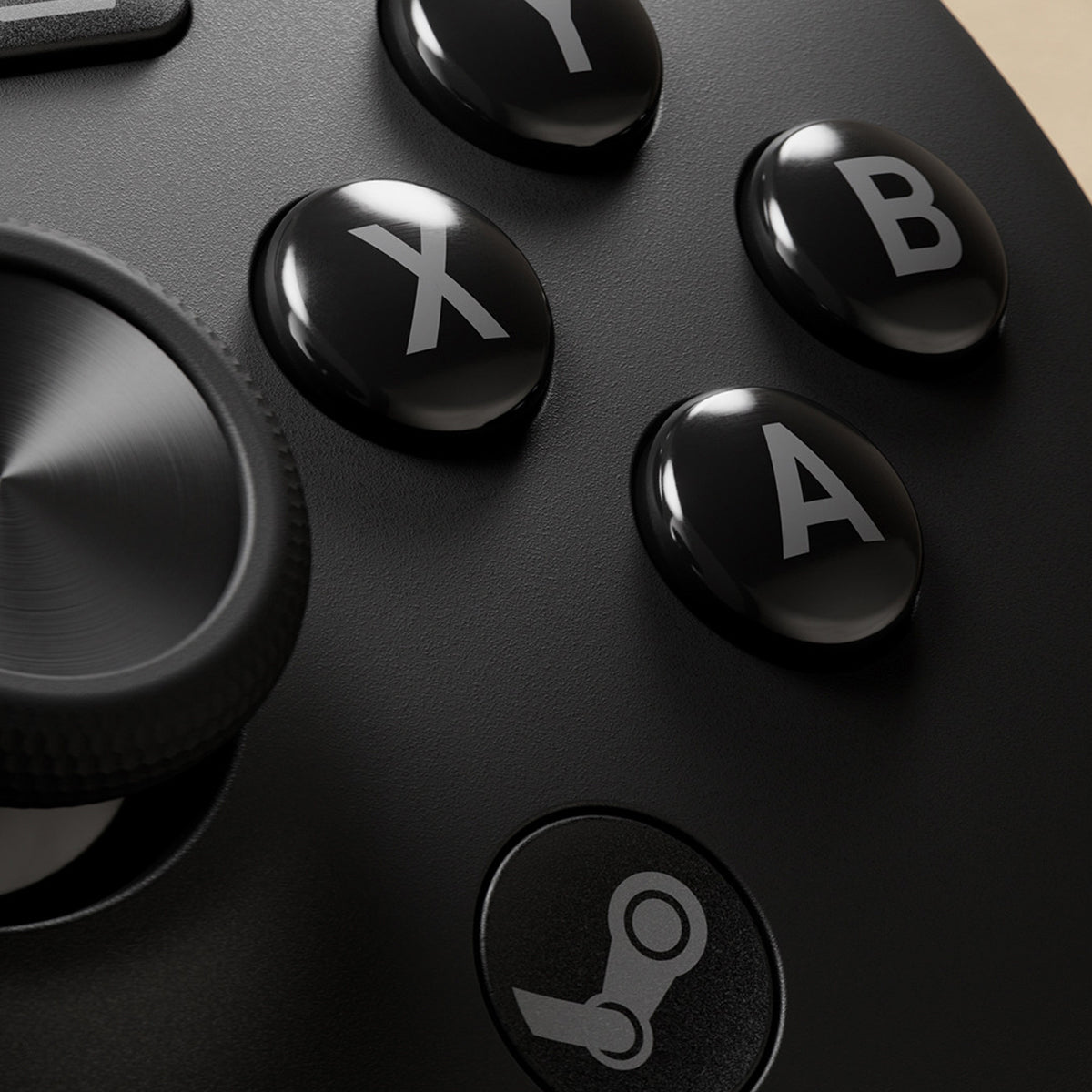

| Gamepad controls | A B X Y buttons D-pad L & R analog triggers L & R bumpers View & Menu buttons Steam & QAM buttons 4x assignable grip buttons |
|---|---|
| Thumbsticks | 2x full-size magnetic thumbsticks (TMR) with capacitive touch |
| Haptics | 4x haptic motors 2x LRA haptic motors in trackpads for HD tactile feedback 2x High output LRA haptic motors in grips for HD game haptics including rumble |
| Trackpads | 2x 34.5mm square trackpads with haptic feedback Pressure-sensitive for configurable click strength |
| Gyro | 6-axis IMU |
| Grip Sense | 2x capacitive areas along back of Steam Controller handles |
| Connectivity | |
| Steam Controller Puck | 2.4GHz Wireless connection ~8ms full end-to-end, 4ms polling rate (measured at 5m) Up to 4 Steam Controllers per Steam Controller Puck Steam Controller Puck connects to PC via USB-C |
| Bluetooth | Bluetooth 4.2 minimum, 5.0 or higher recommended |
| USB | USB-C tethered play |
| Power | |
| Charging | Steam Controller Puck charging interface USB-C connector |
| Battery | 8.39 Wh Li-ion battery 35+ hours of gameplay* Battery life for tracked gameplay with Steam Frame is reduced |
| Size and Weight | |
| Size | Steam Controller: 111mm x 159mm x 57mm Steam Controller Puck: 50mm x 28mm x 9mm |
| Weight | Steam Controller: 292 g Steam Controller Puck: 16 g |
| Notes | *some specifications subject to change ahead of availability |
