Description

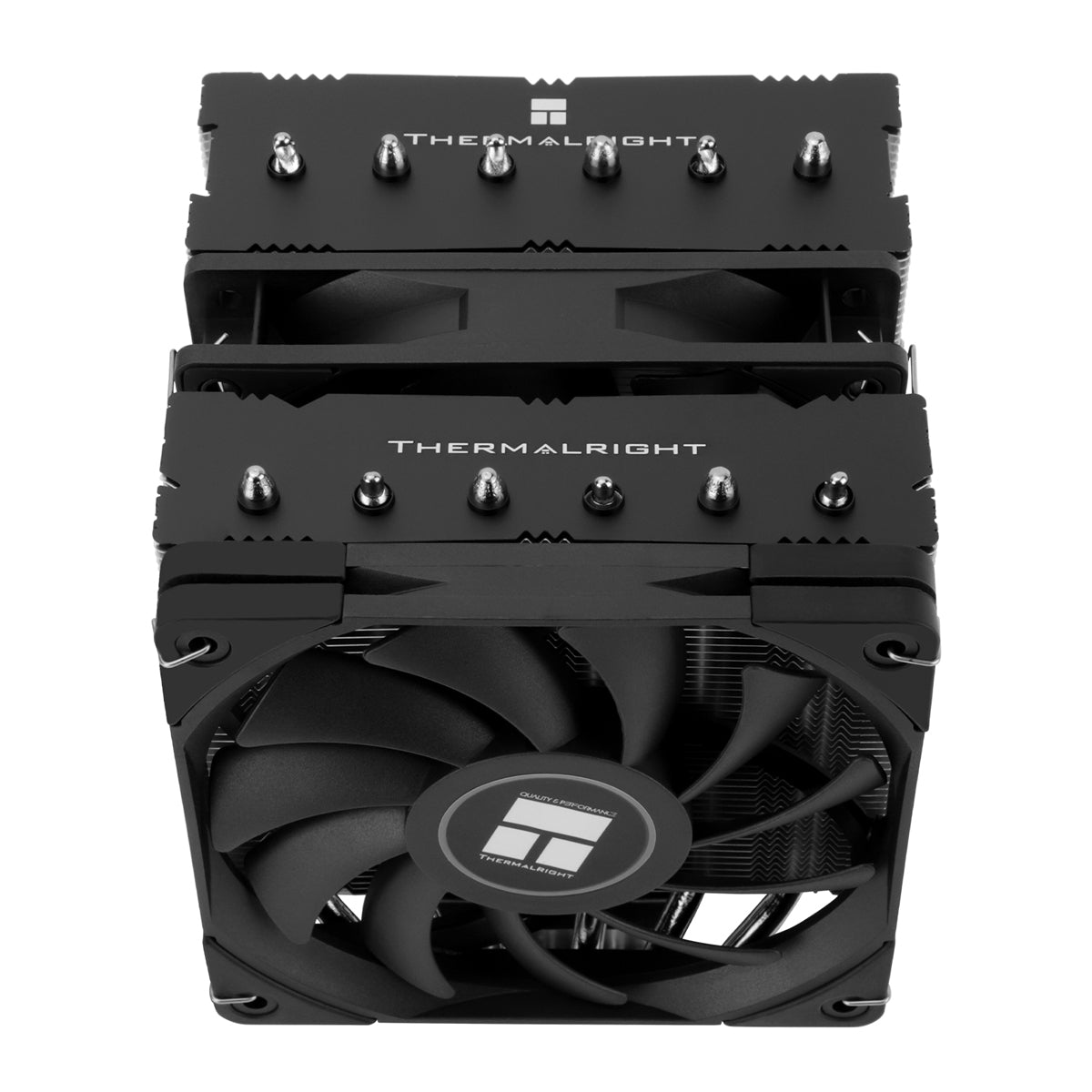

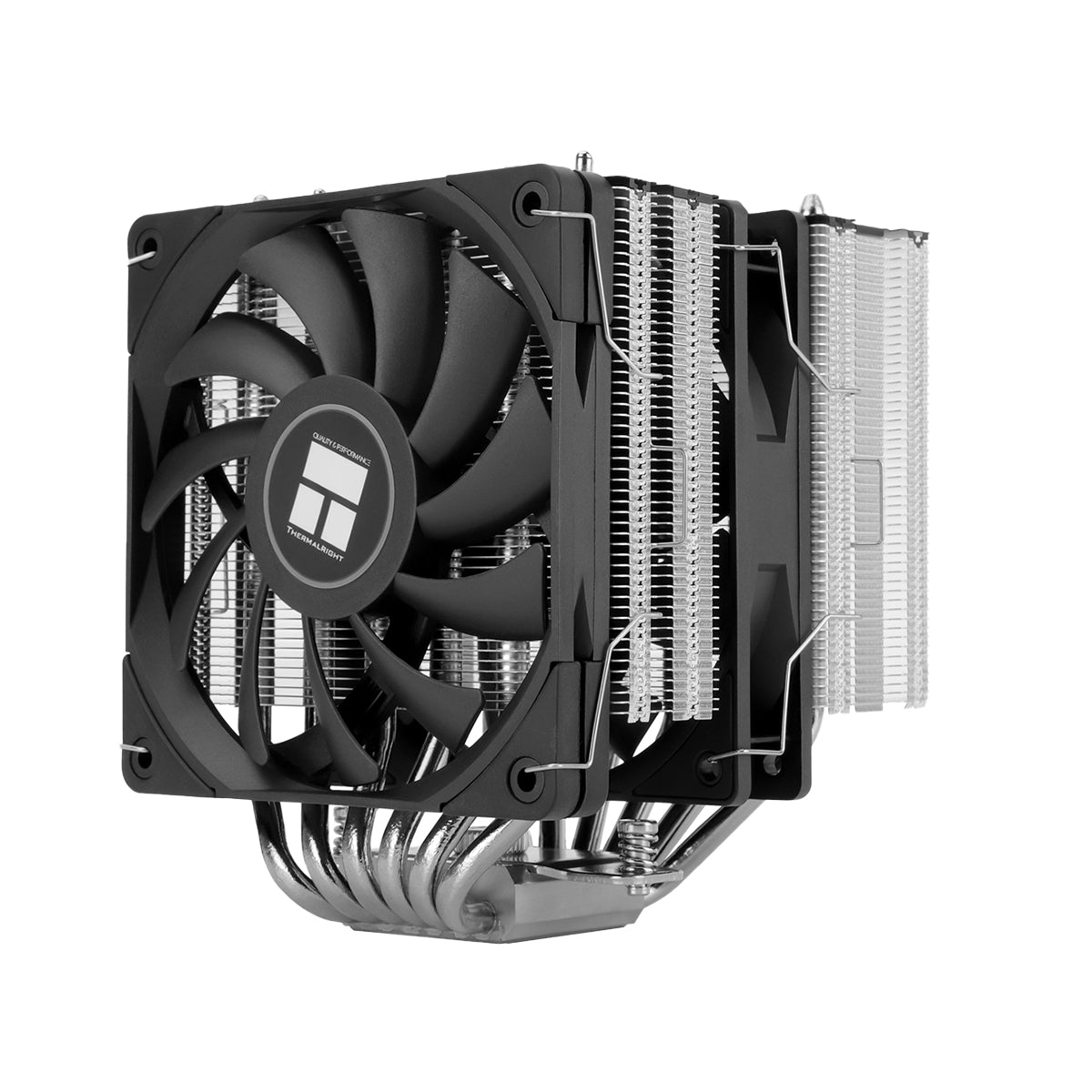

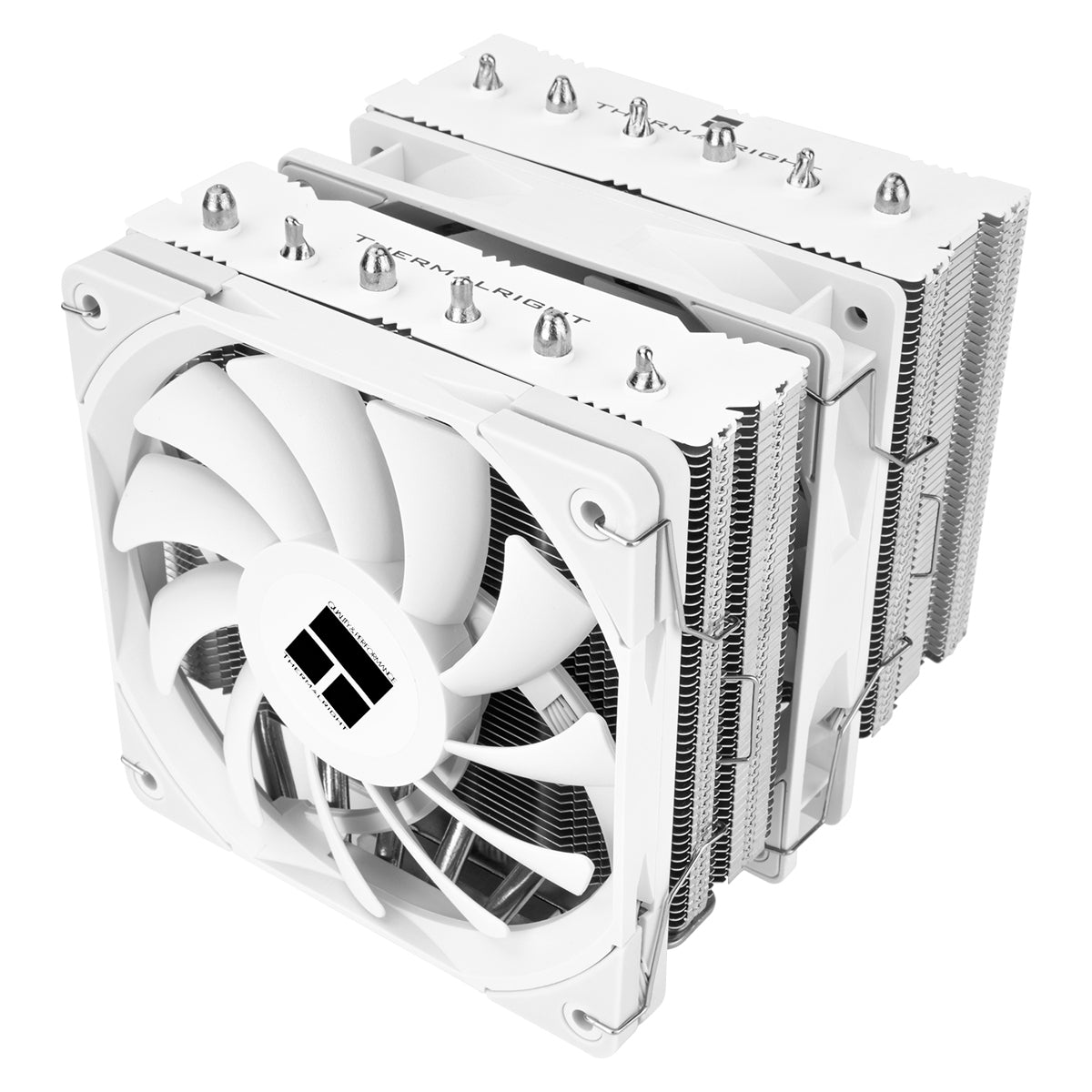

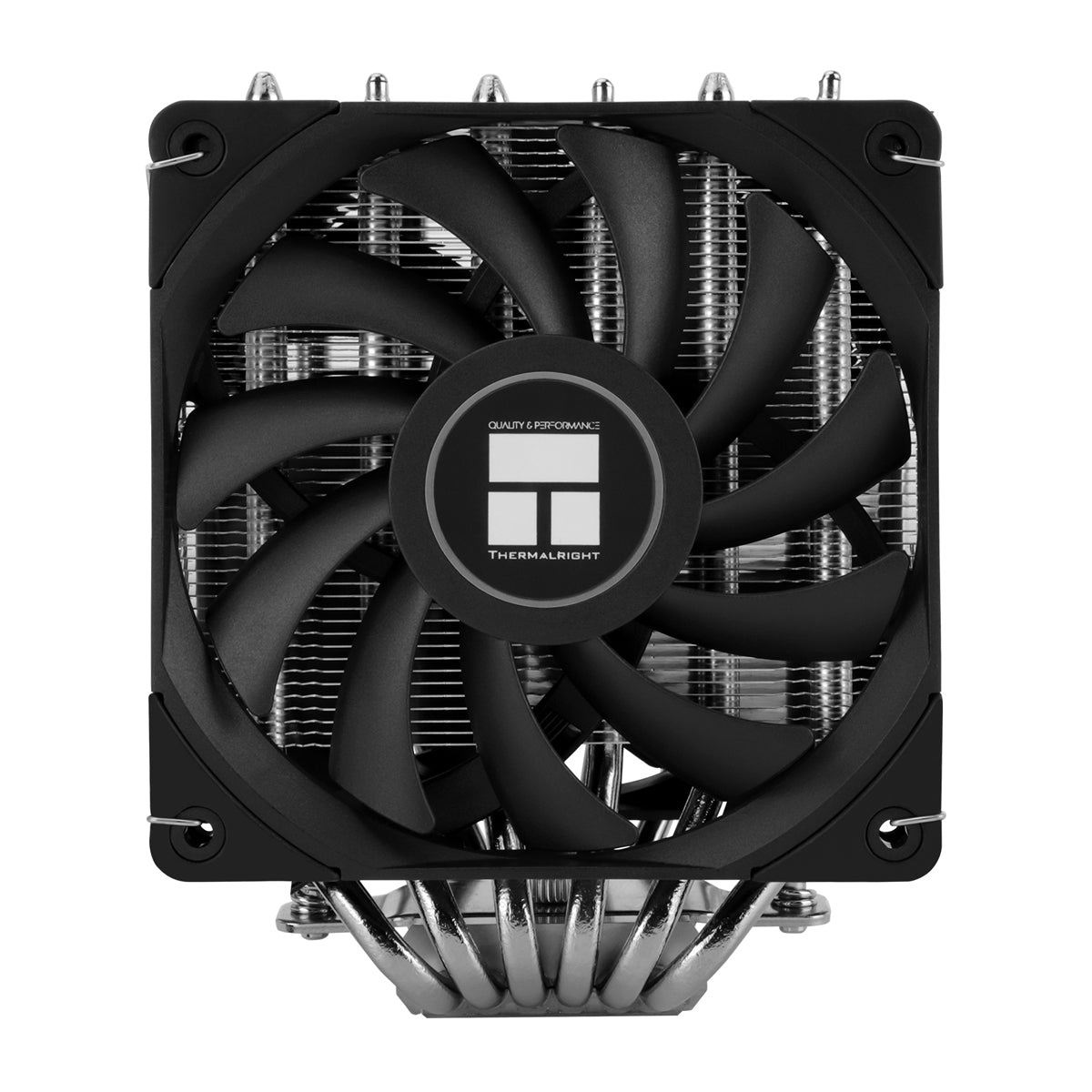

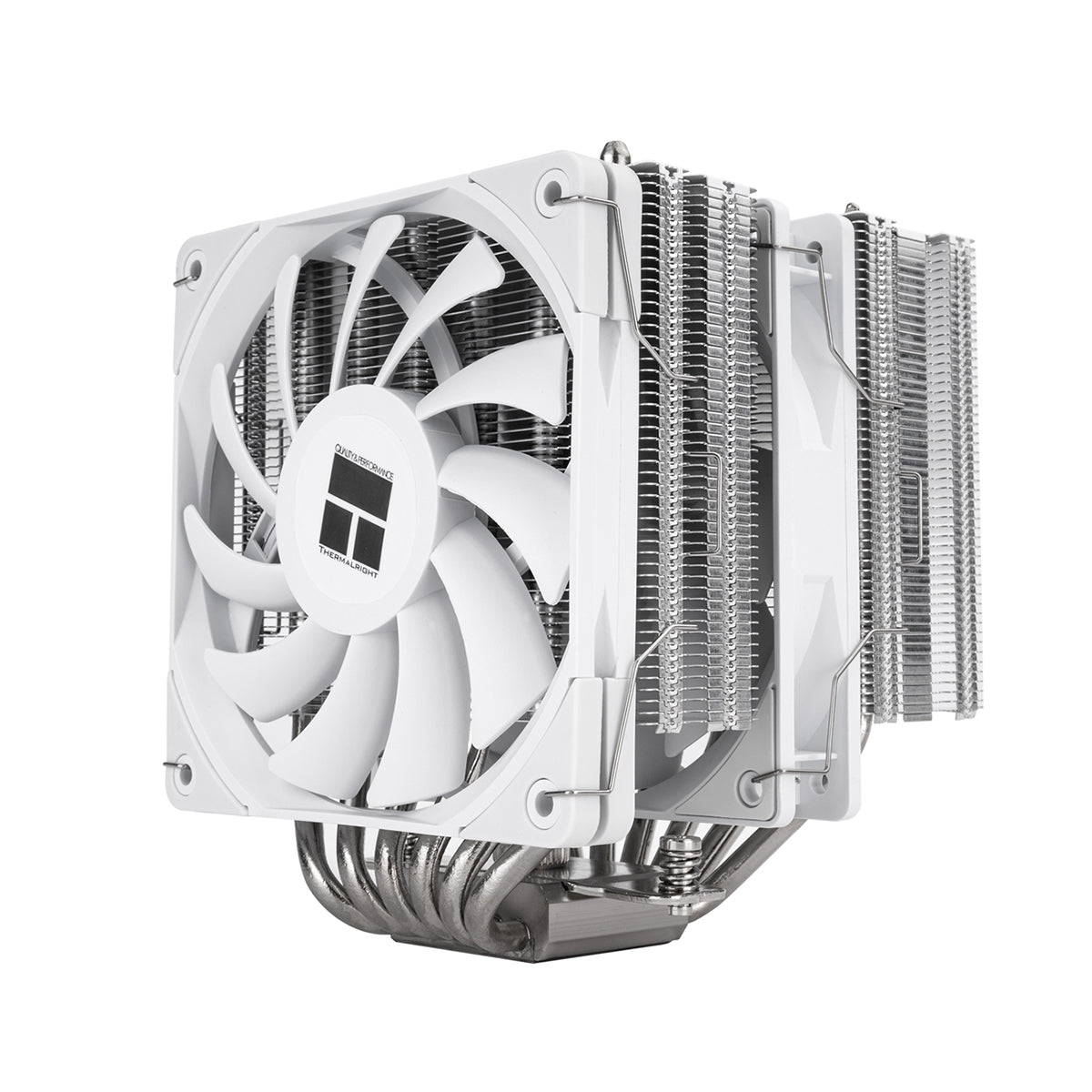

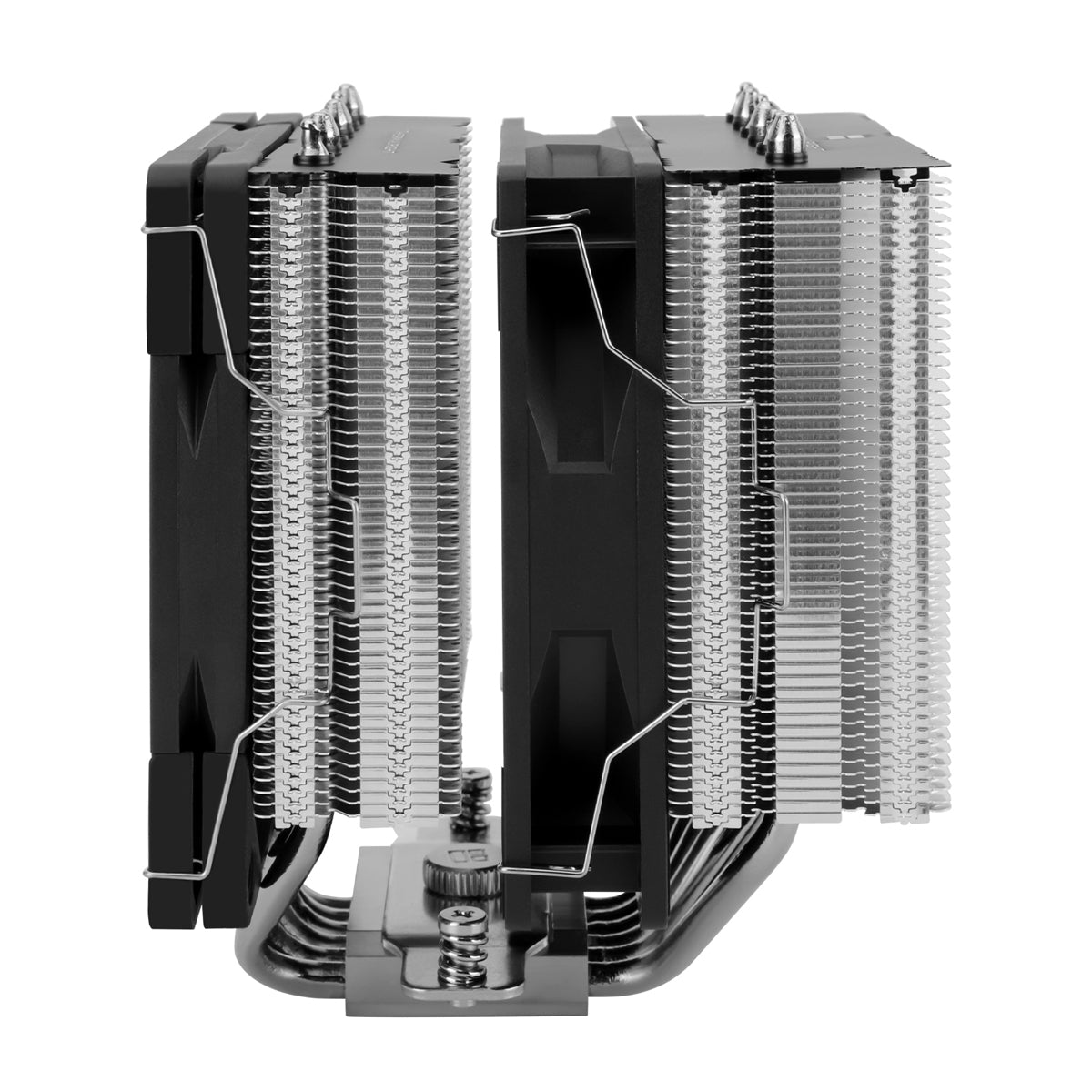

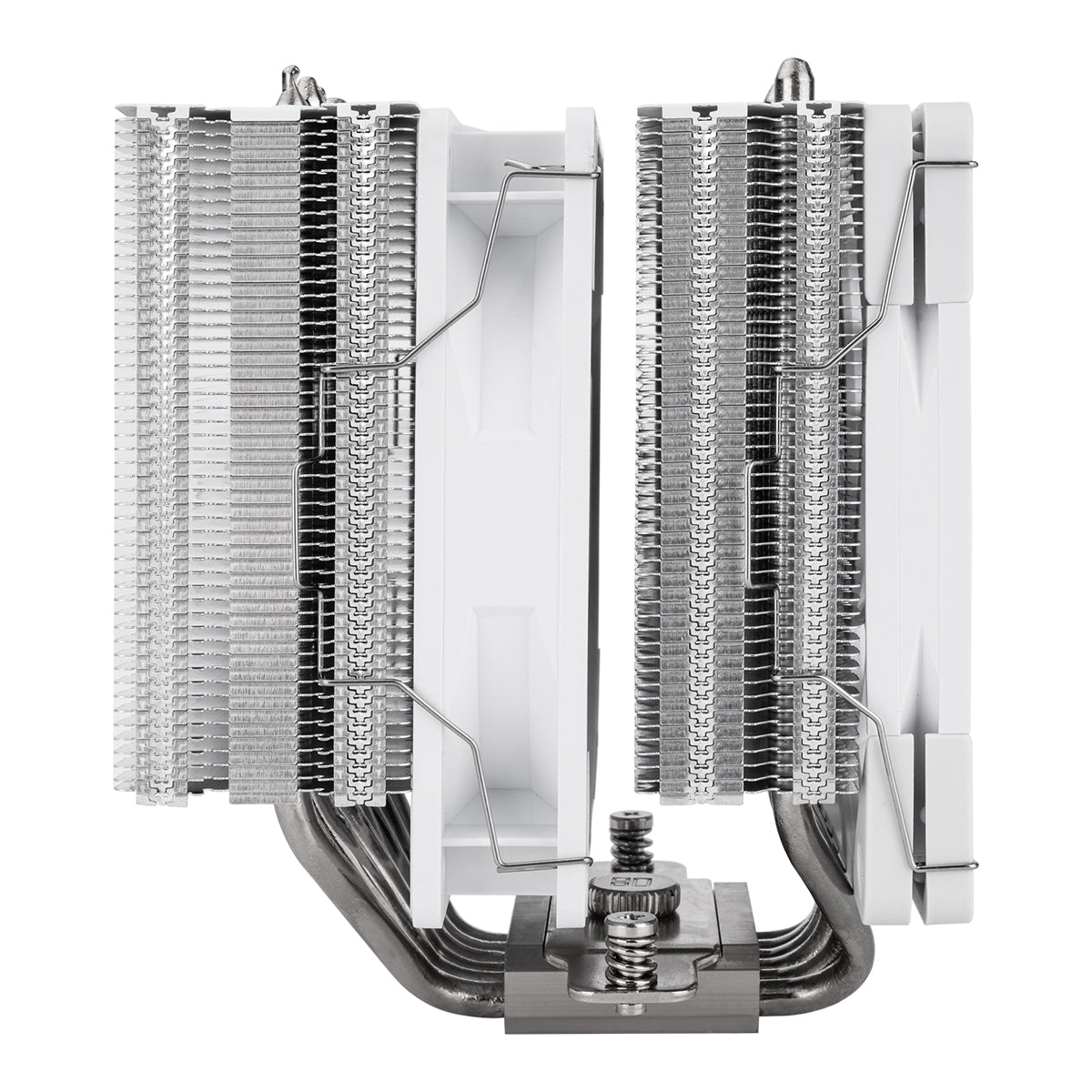

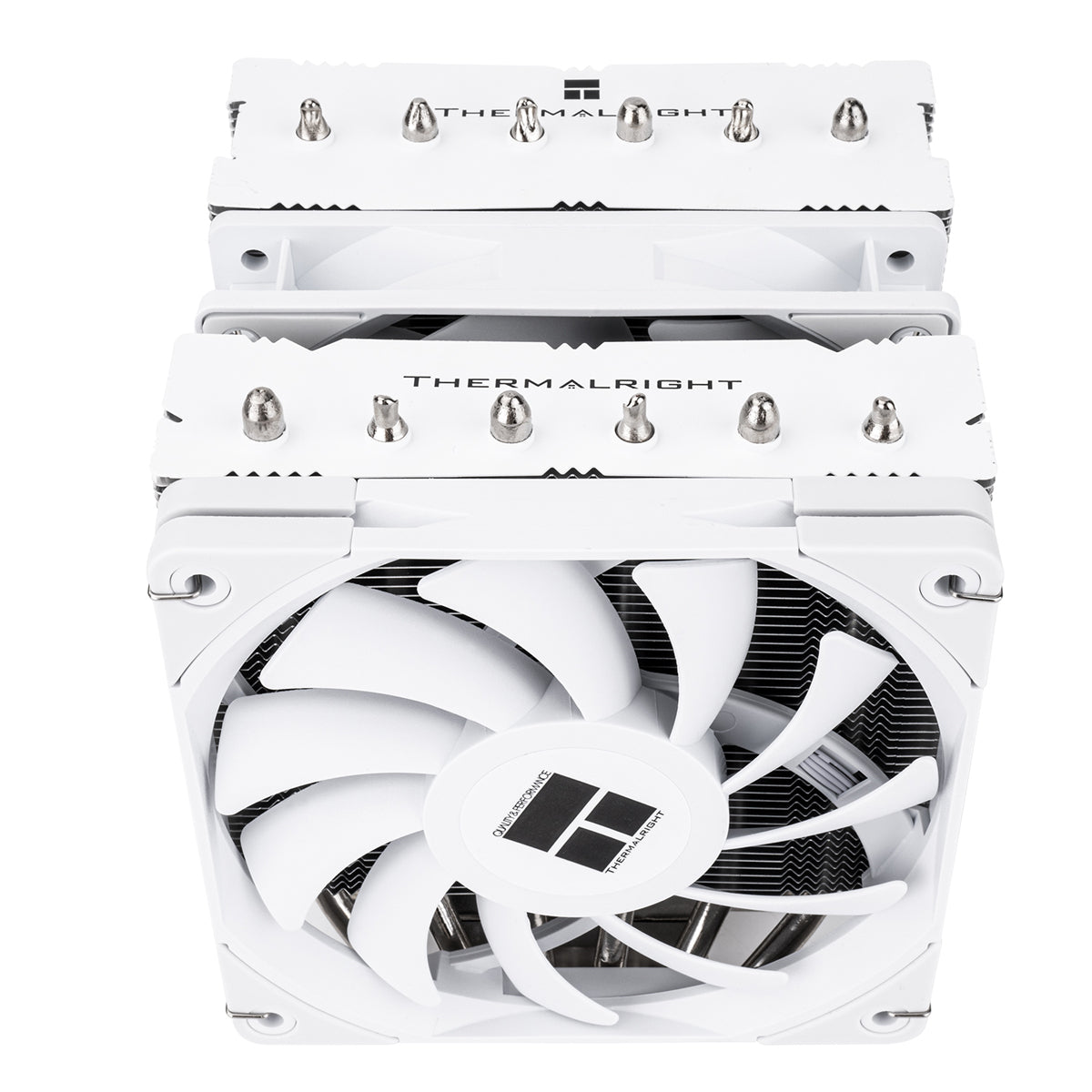

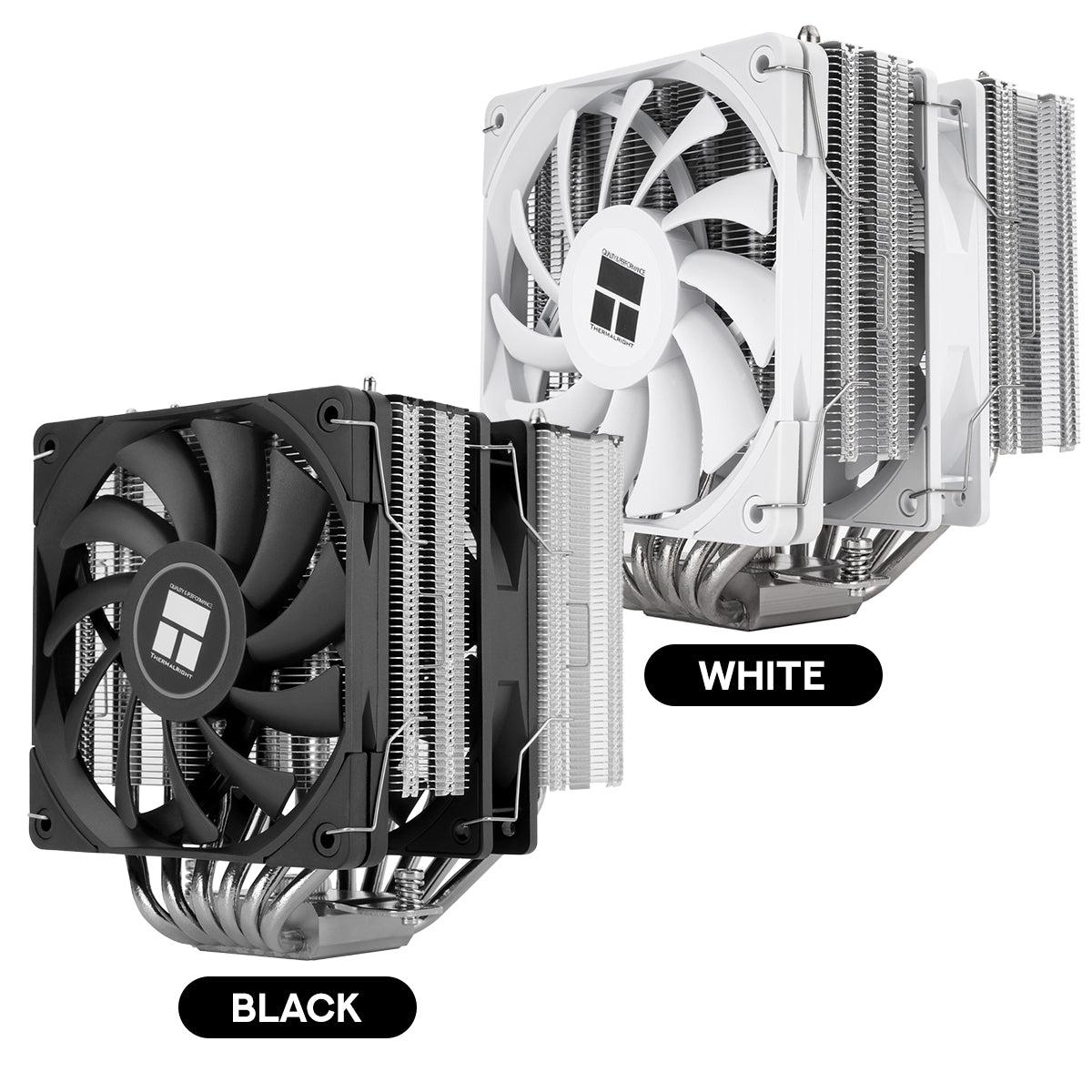

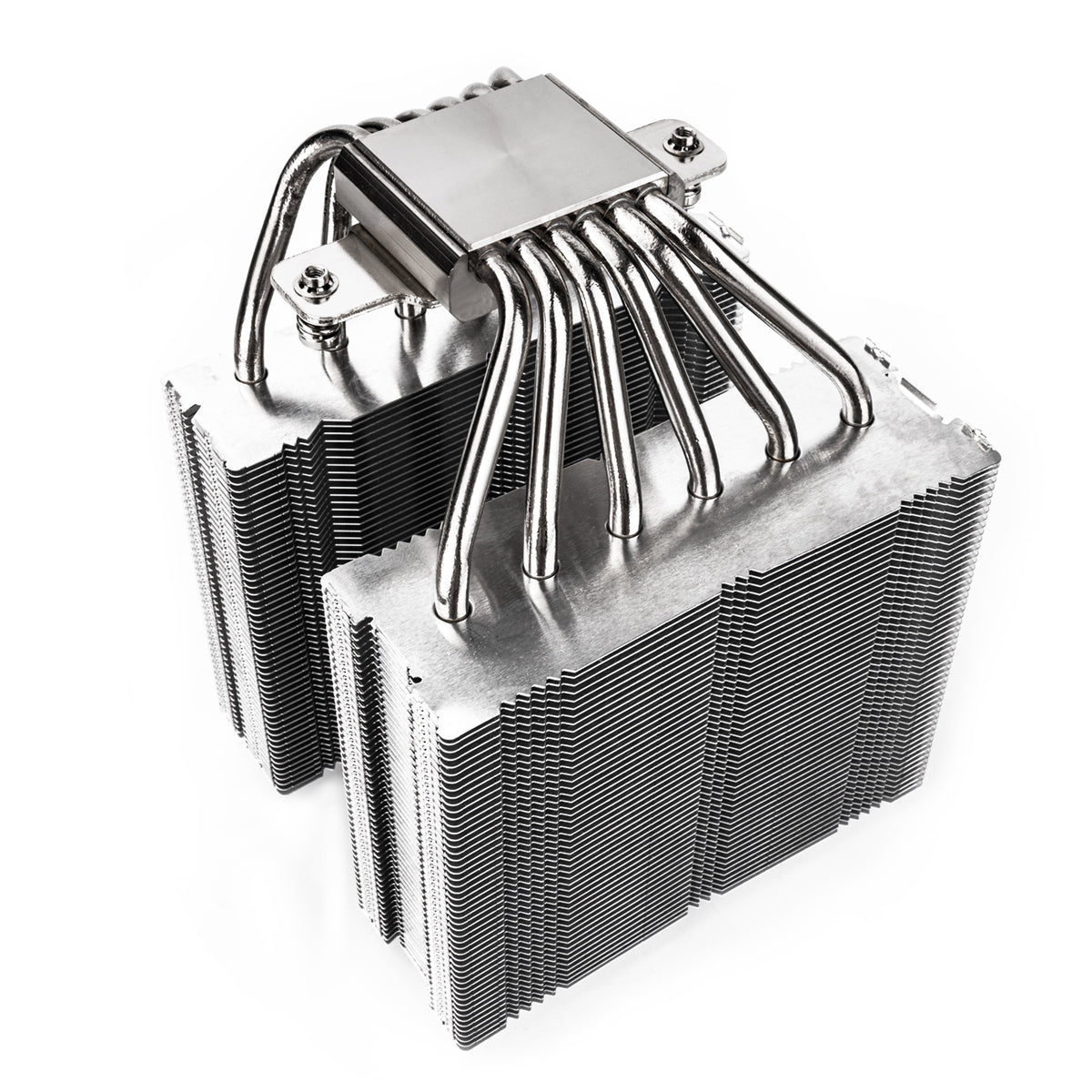

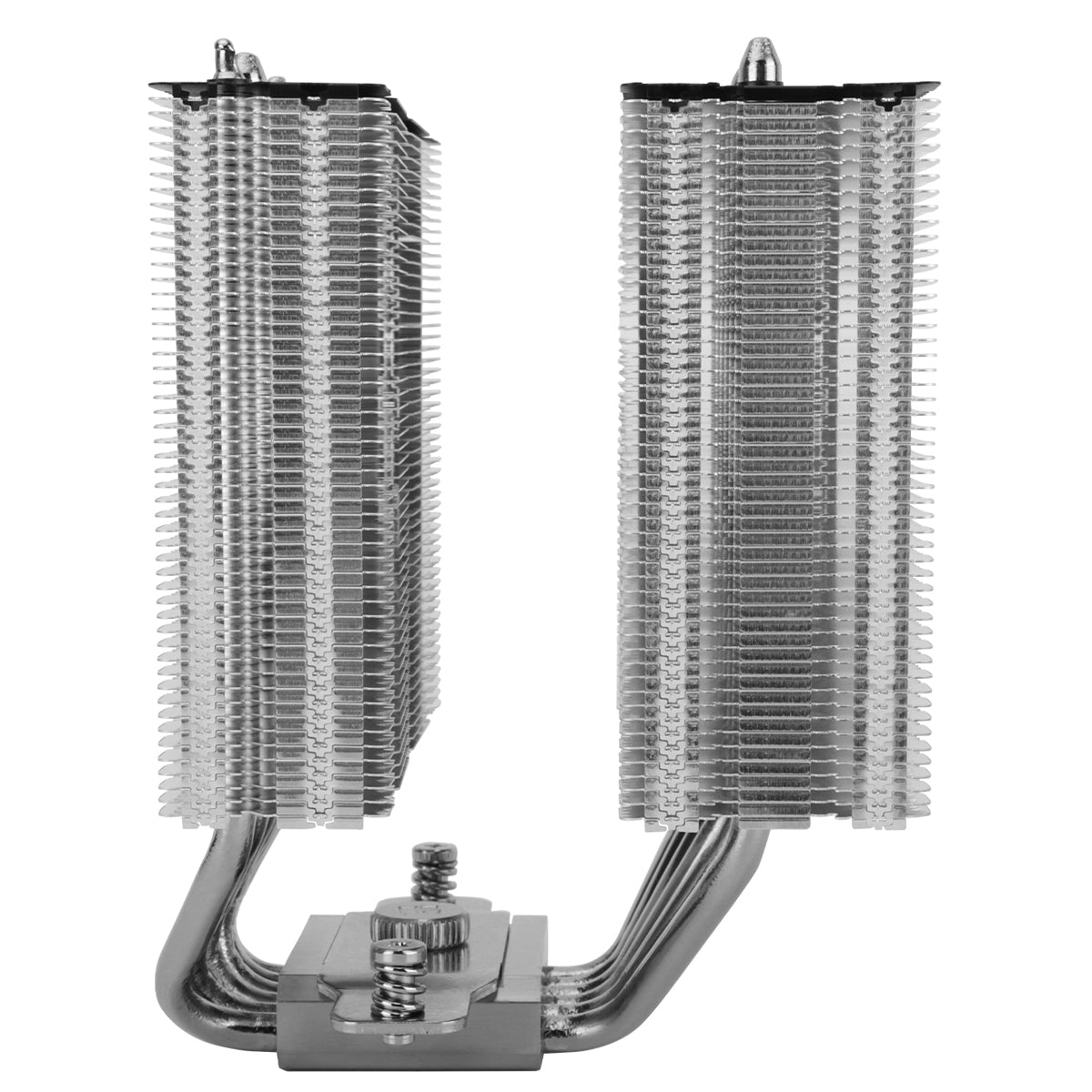

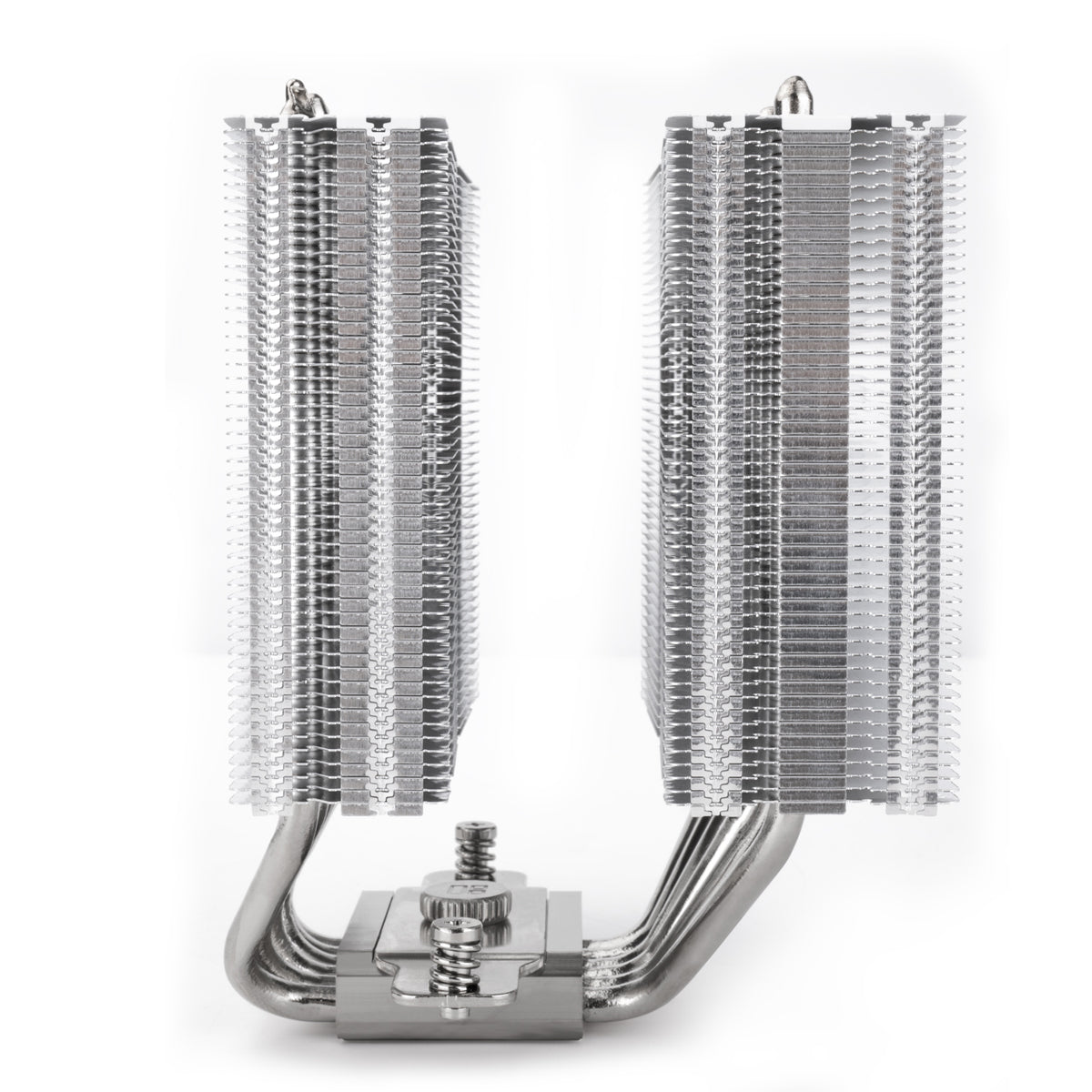

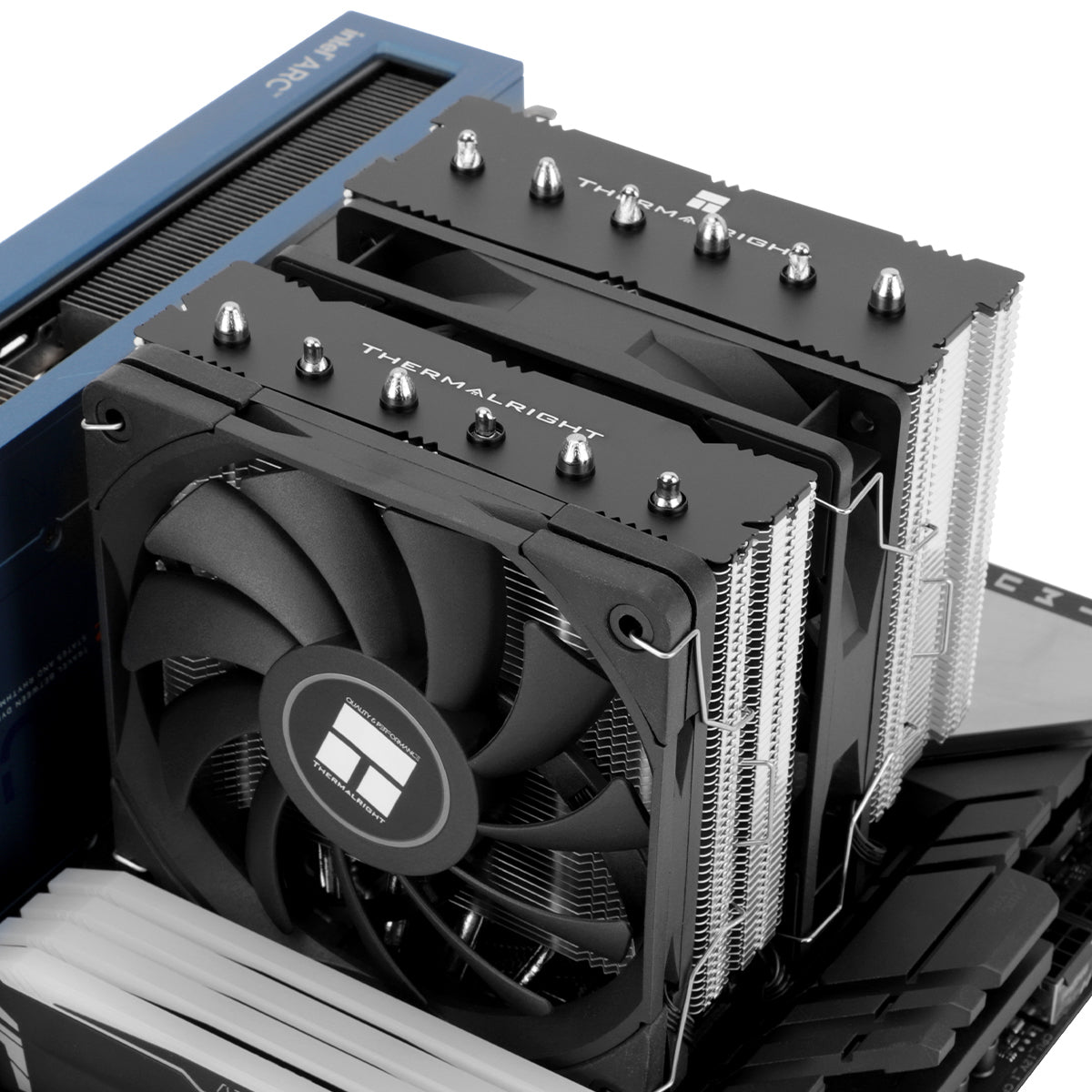

This high-performance CPU air cooler is engineered for efficient heat dissipation and stable system performance, making it ideal for gaming PCs and high-demand workloads. The heatsink measures 122 mm × 114 mm × 155 mm and features six 6mm heat pipes that rapidly transfer heat away from the processor. Its C1100 pure copper base with nickel plating ensures excellent thermal conductivity while providing corrosion resistance and long-term durability.

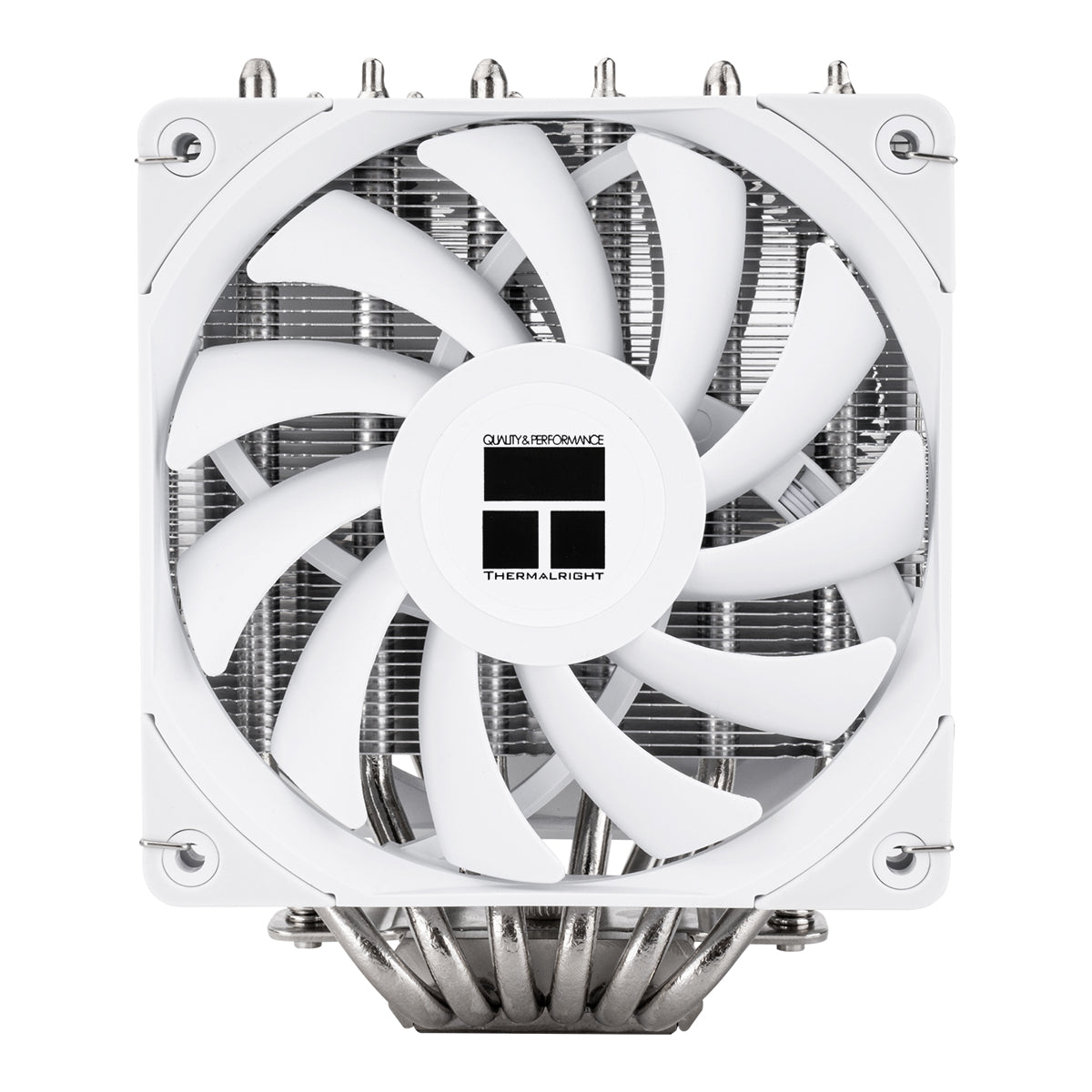

The cooler is equipped with two optimized cooling fans for powerful airflow and efficient heat removal. The TL-C12B V2 120mm fan delivers up to 1500 RPM with a maximum airflow of 66.17 CFM, maintaining strong cooling performance while keeping noise levels low at 25.6 dBA. It uses a 4-pin PWM connector for intelligent speed control and an S-FDB bearing for smooth, reliable operation.
Complementing the main fan is the TL-C12015B slim 120mm fan, designed to provide additional airflow in tighter spaces. Operating at up to 1800 RPM, it produces 59 CFM airflow with a maximum noise level of 26.1 dBA. This fan also features a 4-pin PWM connector and an S-FDB V2 bearing, ensuring efficient cooling and long service life.
With its advanced heat pipe design, premium copper base, and dual-fan configuration, this CPU cooler provides excellent thermal performance while maintaining quiet operation, making it a reliable solution for modern desktop systems.
Specifications:
| Heatsink Dimension | L122 mm x W114 mm x H155 mm |
| Heat pipes | 6mm heatpipe x 6 units |
| Copper Base | C1100 Pure copper nickel plated |
| TL-C12B V2 Fan Dimension | L120 mm x W120 mm x H25 mm |
| TL-C12B V2 Fan Weight | 135g |
| TL-C12B V2 Rated Speed | 1500 RPM±10% (MAX) |
| TL-C12B V2 Noise Level | 25.6 dBA |
| TL-C12B V2 Air Flow | 66.17 CFM (MAX) |
| TL-C12B V2 Air Pressure | 1.53 mm H2O (MAX) |
| TL-C12B V2 Ampere | 0.20 A |
| TL-C12B V2 Connector | 4 Pin (PWM Fan connector) |
| TL-C12B V2 Bearing Type | S-FDB Bearing |
| TL-C12015B Fan Dimension | L120 mm x W120 mm x H15 mm |
| TL-C12015B Fan Weight | 115g |
| TL-C12015B Rated Speed | 1800 RPM±10% (MAX) |
| TL-C12015B Noise Level | 26.1 dBA |
| TL-C12015B Air Flow | 59 CFM (MAX) |
| TL-C12015B Air Pressure | 1.24 mm H2O (MAX) |
| TL-C12015B Ampere | 0.18 A |
| TL-C12015B Connector | 4 Pin (PWM Fan connector) |
| TL-C12015B Bearing Type | S-FDB V2 Bearing |
