Description

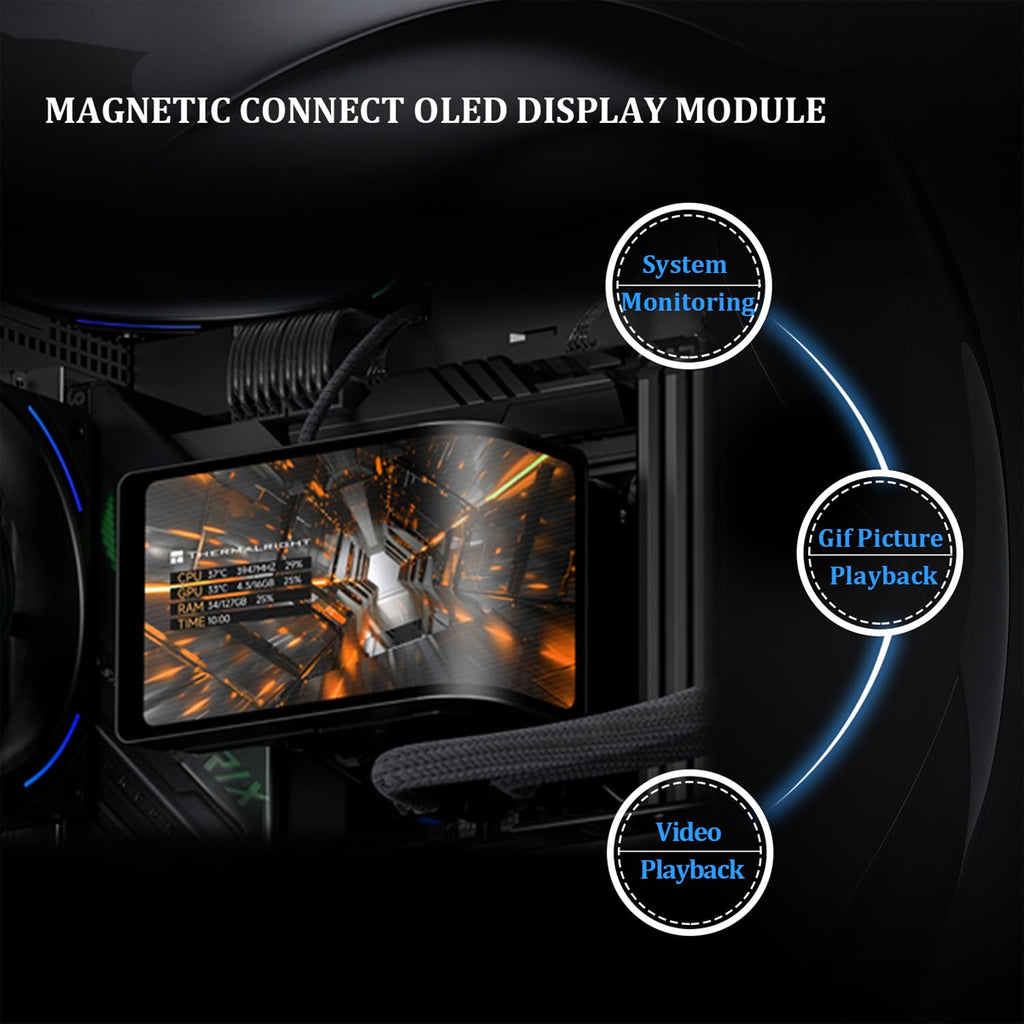

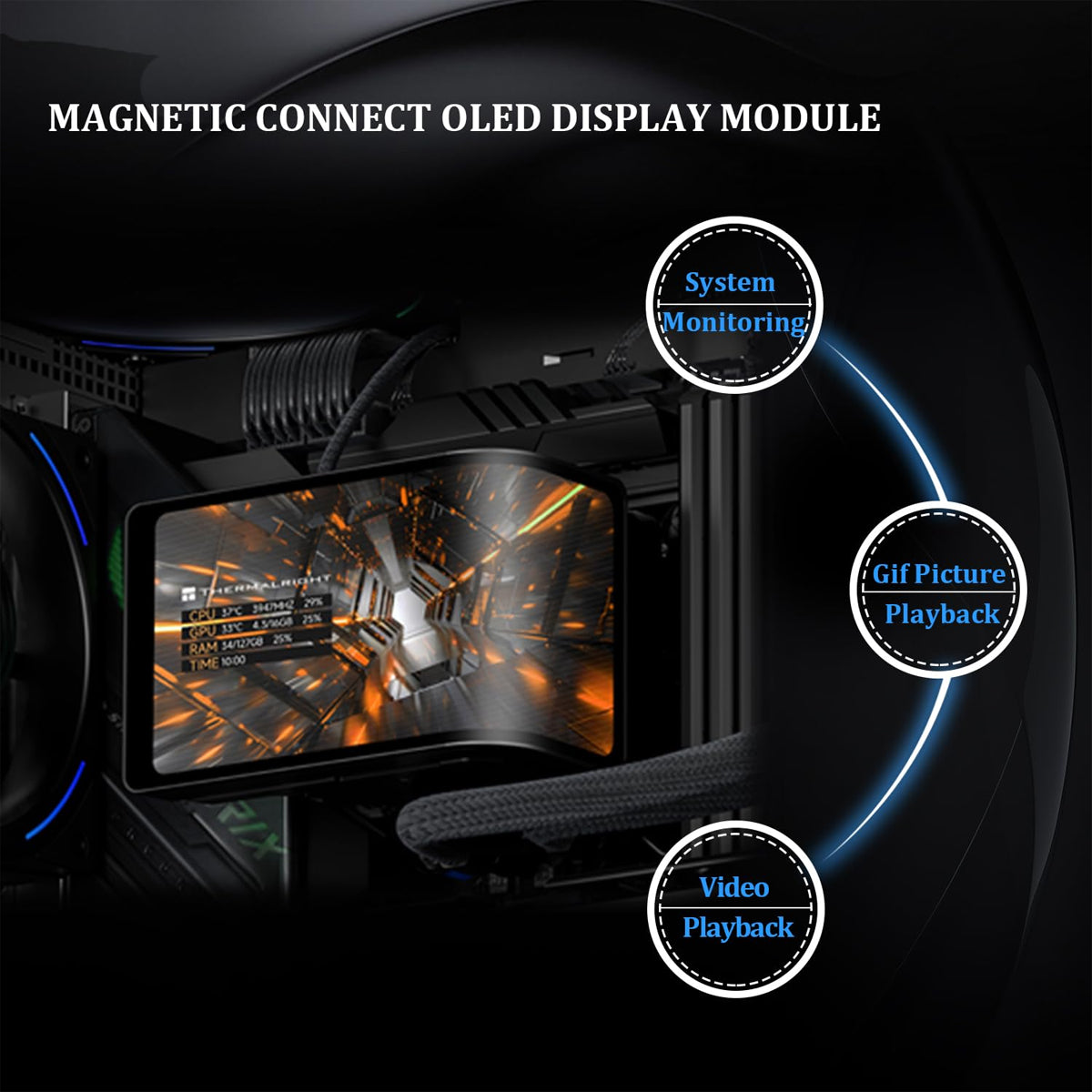

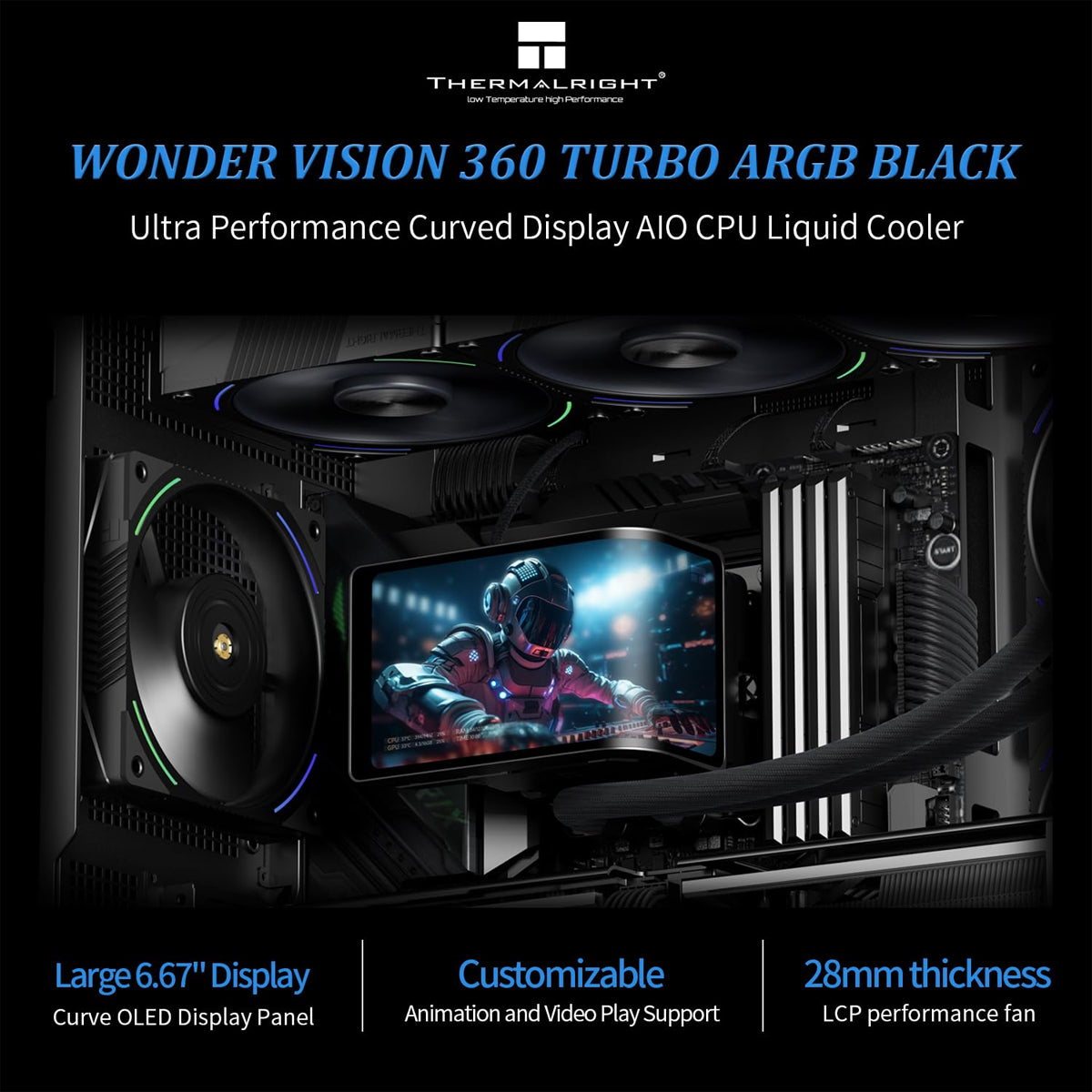

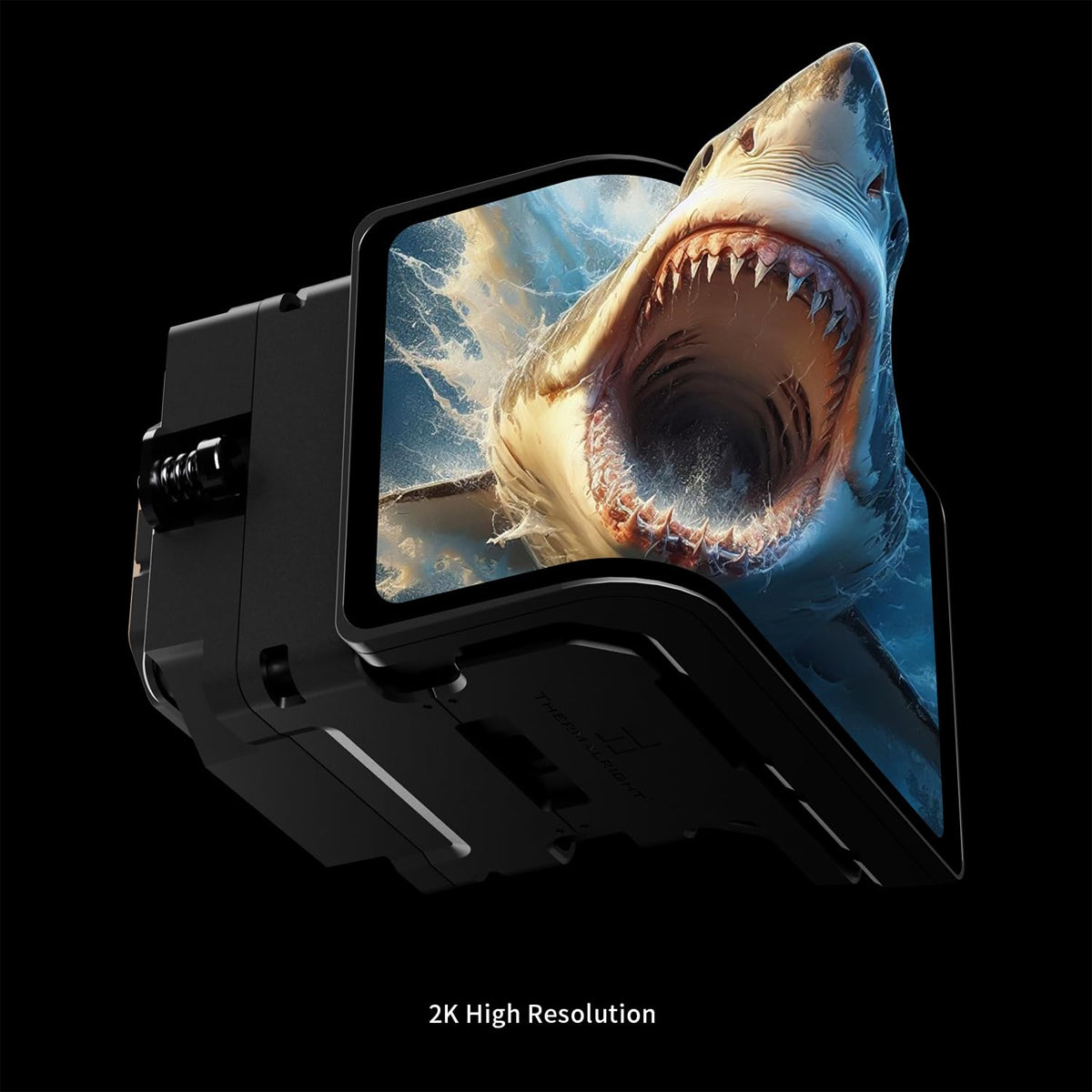

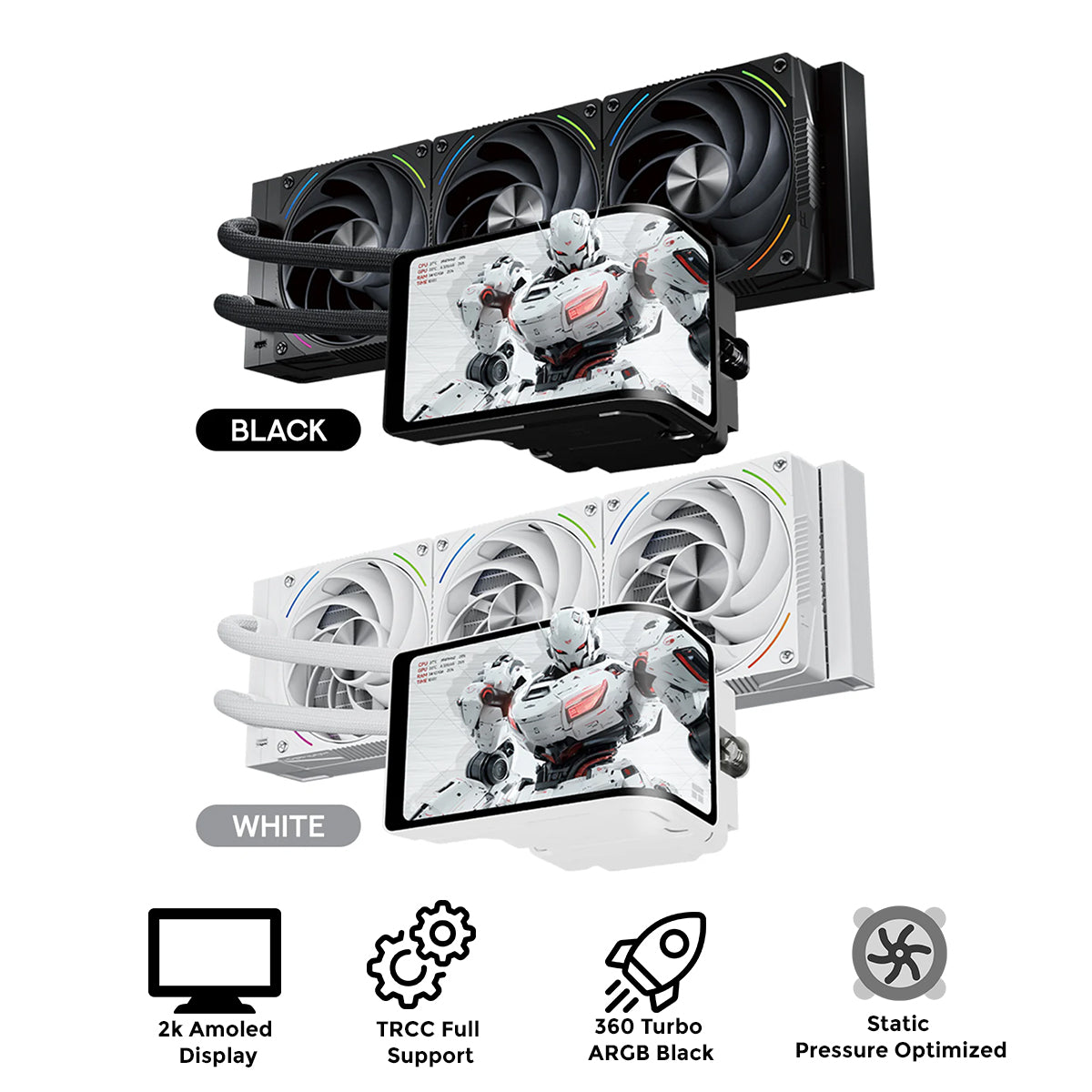

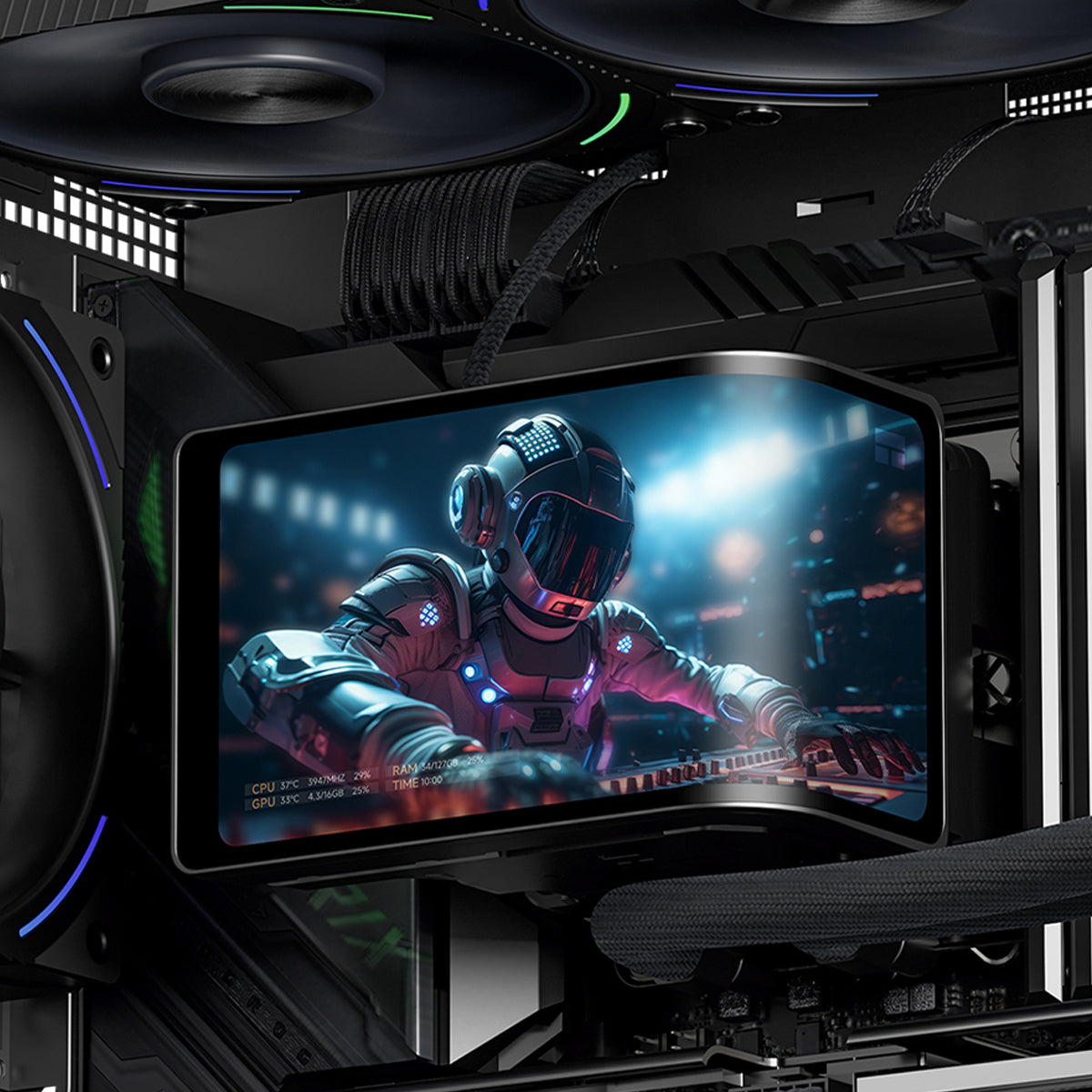

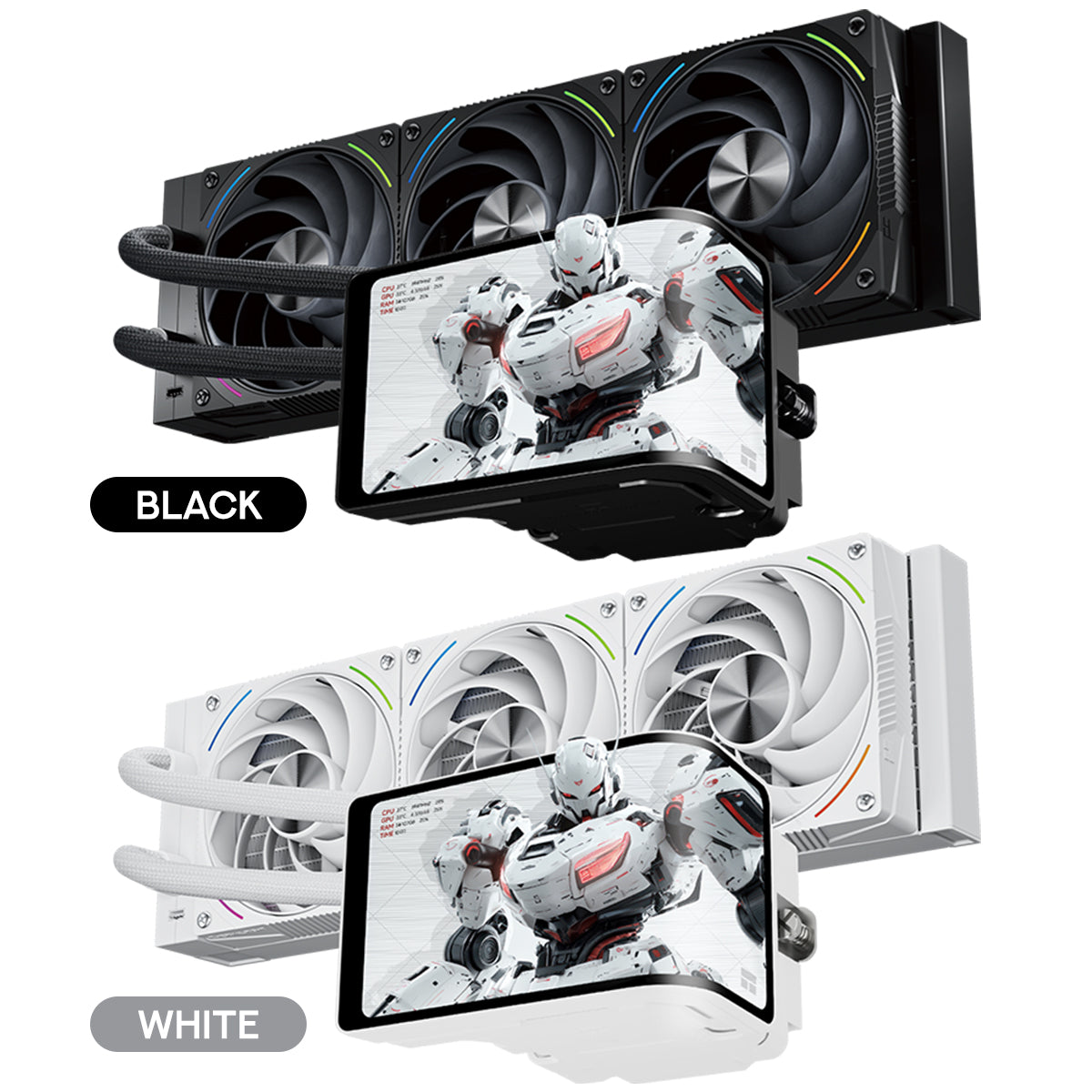

This liquid cooling system features a high-performance pump with dimensions of 120.1 × 80 × 107 mm and a rated speed of up to 6400 RPM (±10%). It includes a 6.67-inch display with a 2400 × 1080 resolution, operates at 12V DC, and connects via a 4-pin PWM connector. The radiator is constructed from aluminum, measures 403 × 120 × 27 mm, and is backed by a 6-year warranty.

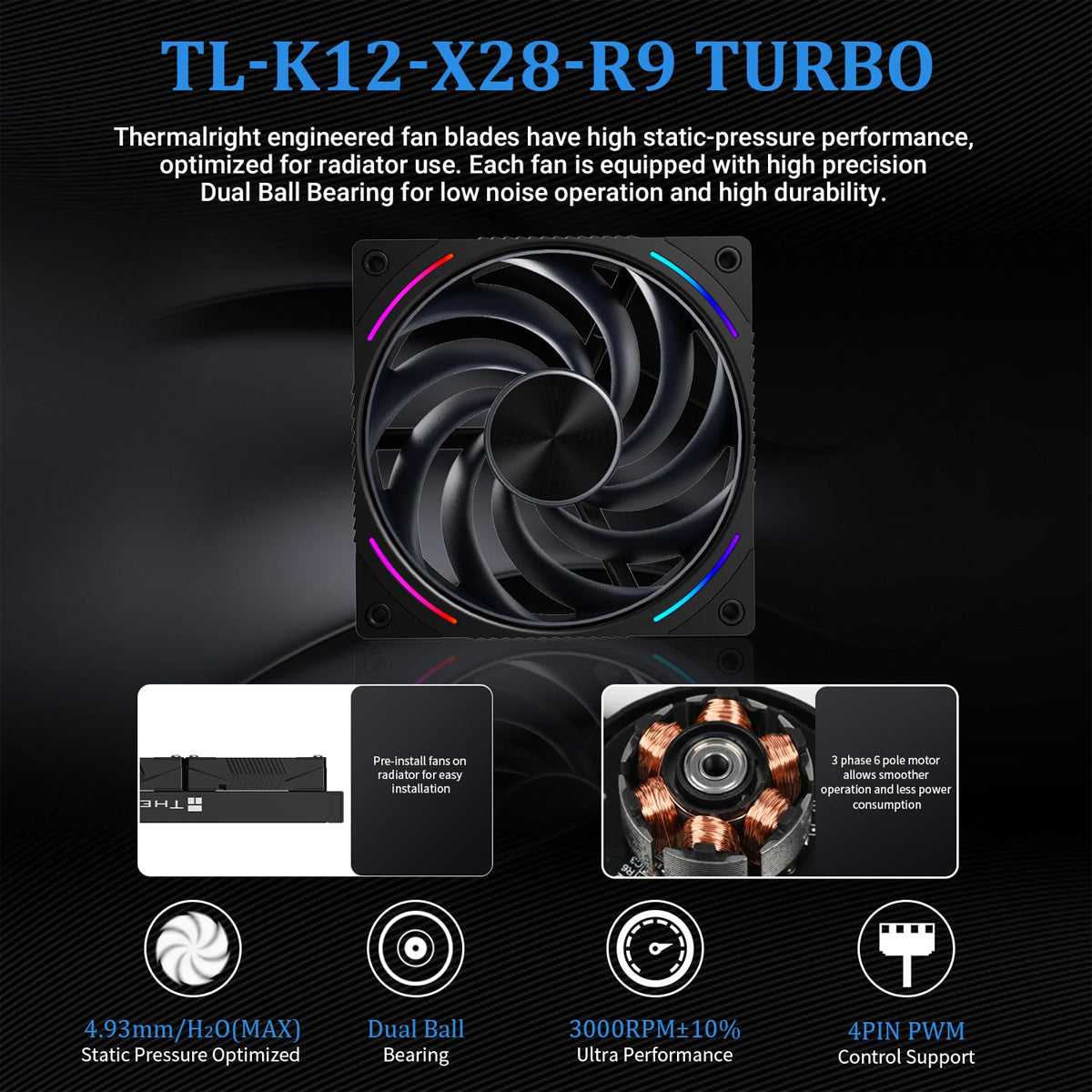

The included TL-K12-X28-R9 Turbo fan measures 120 × 120 × 28 mm and delivers a maximum speed of 3000 RPM (±10%). It produces up to 120.38 CFM of airflow with 4.93 mm H₂O of static pressure, while maintaining a maximum noise level of 44.7 dBA. The fan uses a 4-pin PWM connector, a 3-pin 5V ARGB connector, and a durable dual ball bearing design for long-term reliability.
Specifications:
| Pump Dimensions | L120.1 mm x W80 mm x H107 mm |
| Radiator Dimensions | L403 mm x W120 mm x H27 mm |
| Pump Rated Speed | 6400 RPM±10% (MAX) |

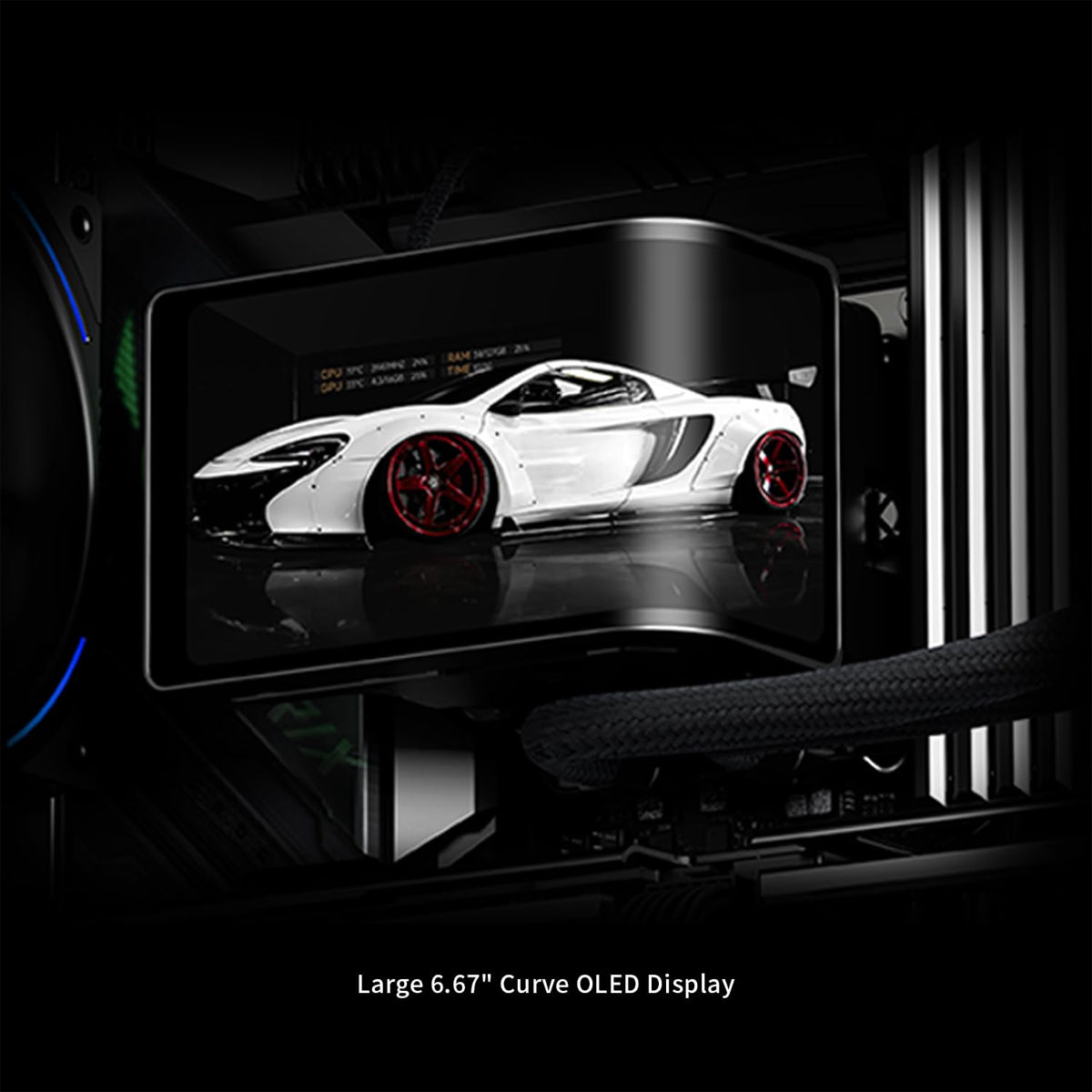

| Screen Size | 6.67-Inch |
| Screen Resolution | 2400×1080 |
| Pump Rated Voltage | 12V DC |
| Connector | 4 PIN PWM |
| Radiator Material | Aluminum |
| Warranty | 6 Years |
| Fan Model | TL-K12-X28-R9 Turbo |
| Fan Dimensions | L120 mm x W120 mm x H28 mm |
| Fan Speed | 3000 RPM±10% (MAX) |
| Fan Noise Level | 44.7 dBA (MAX) |
| Fan Air Flow | 120.38 CFM (MAX) |
| Fan Air Pressure | 4.93 mm H2O (MAX) |
| Fan Connectors | 4 PIN PWM / 3 PIN 5V ARGB |
| Fan Bearing Type | Dual Ball Bearing |
