Description
DockPower FI redefines PC power with a docking architecture that provides installation flexibility, simplifies cable management, and offers possibilities for future upgrades.

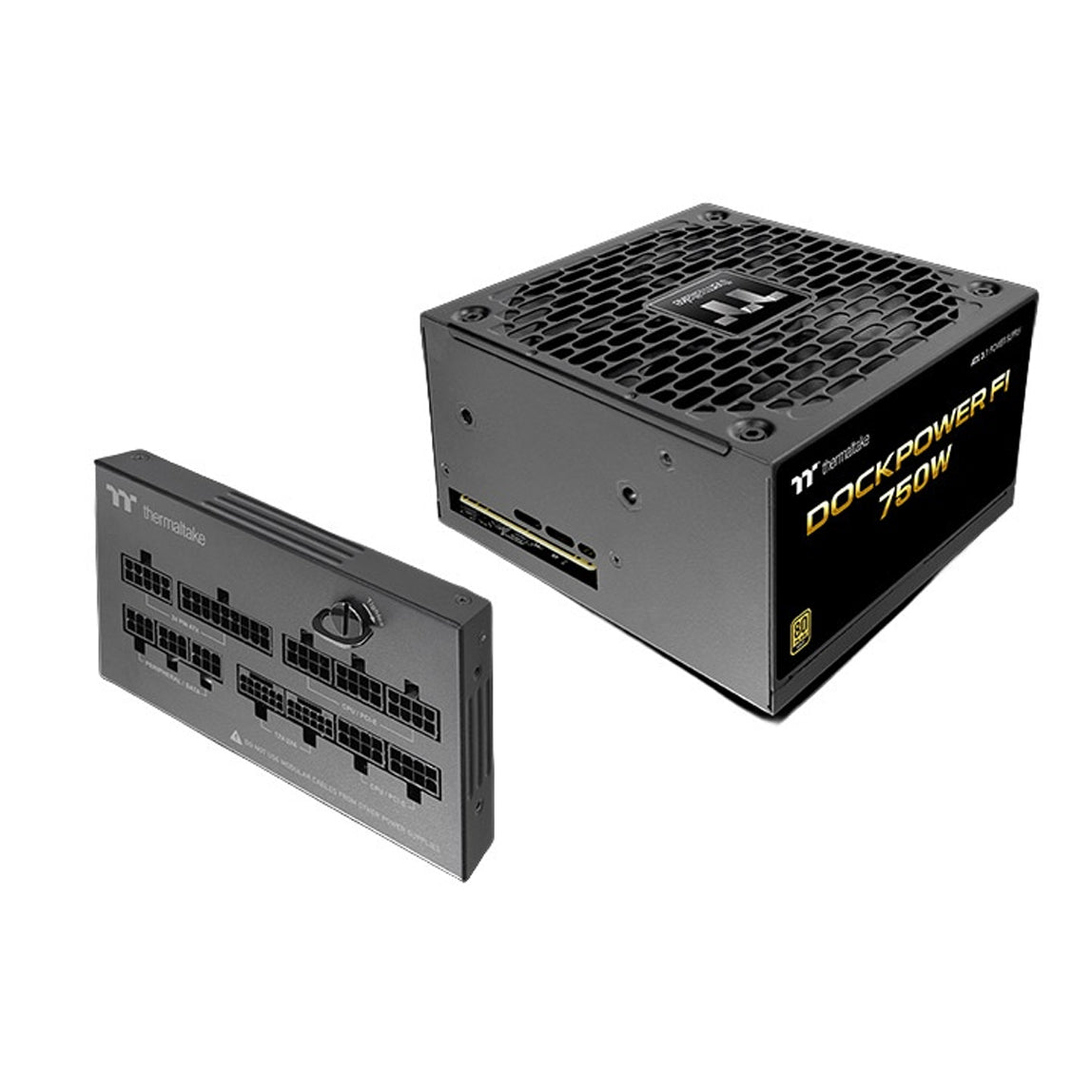

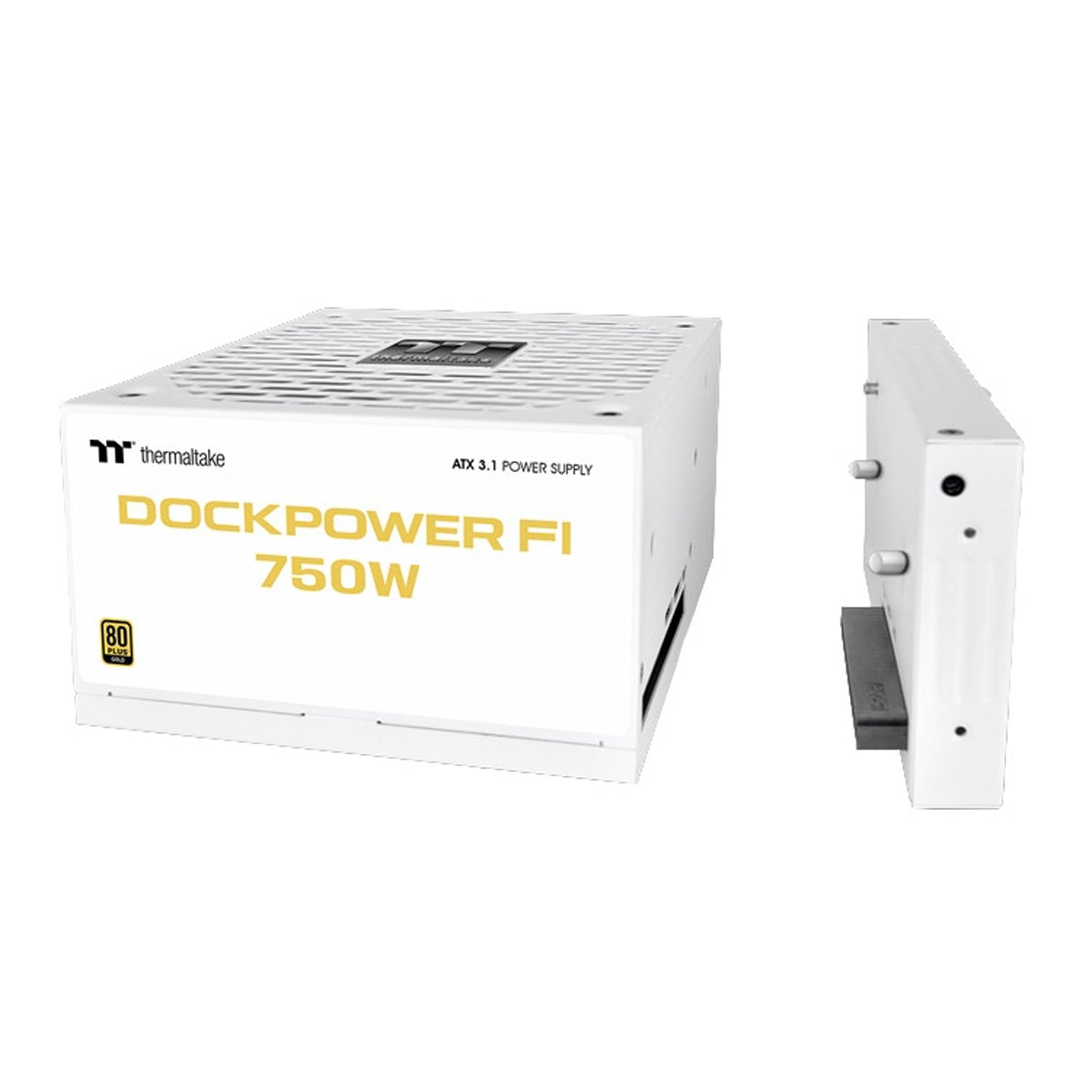

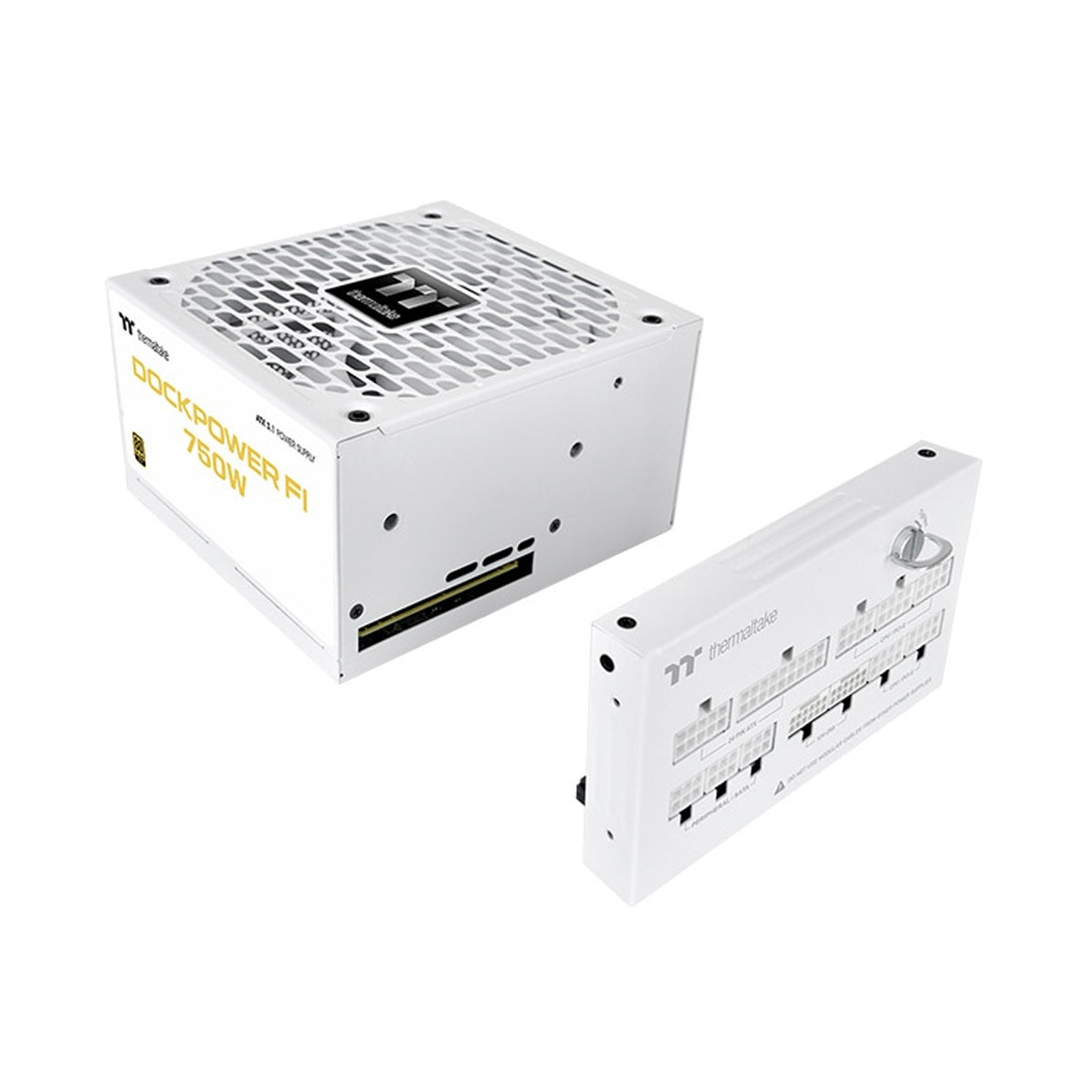

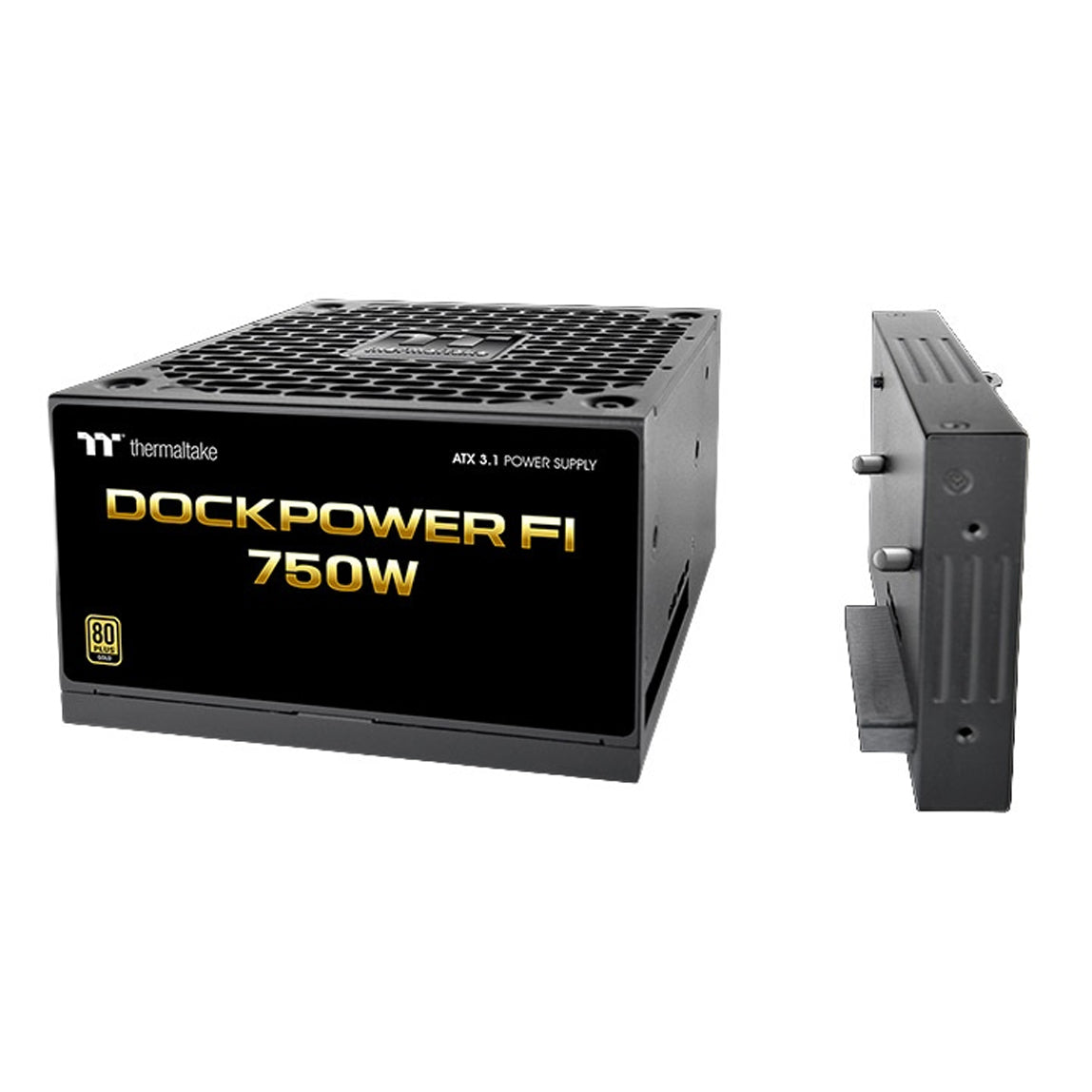

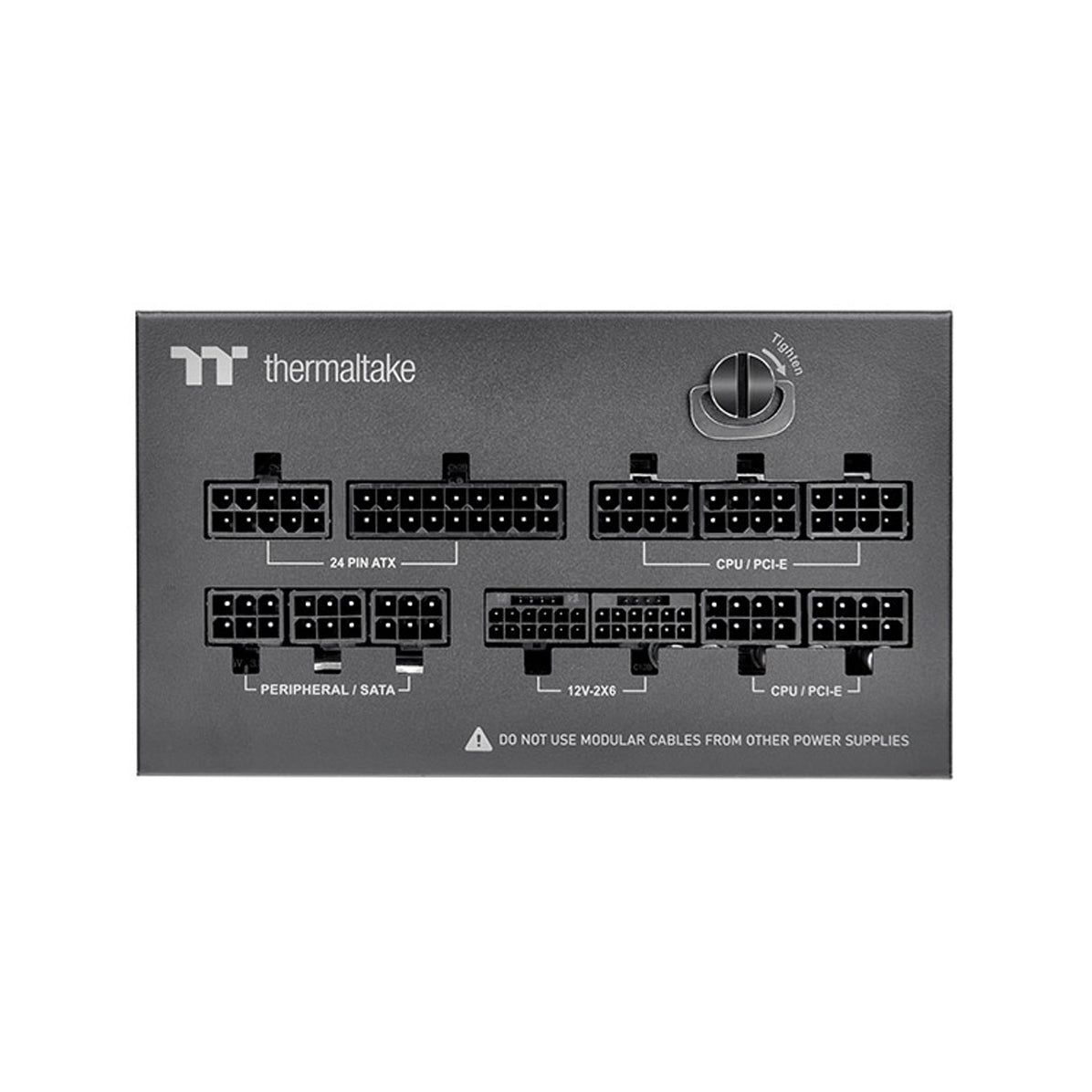

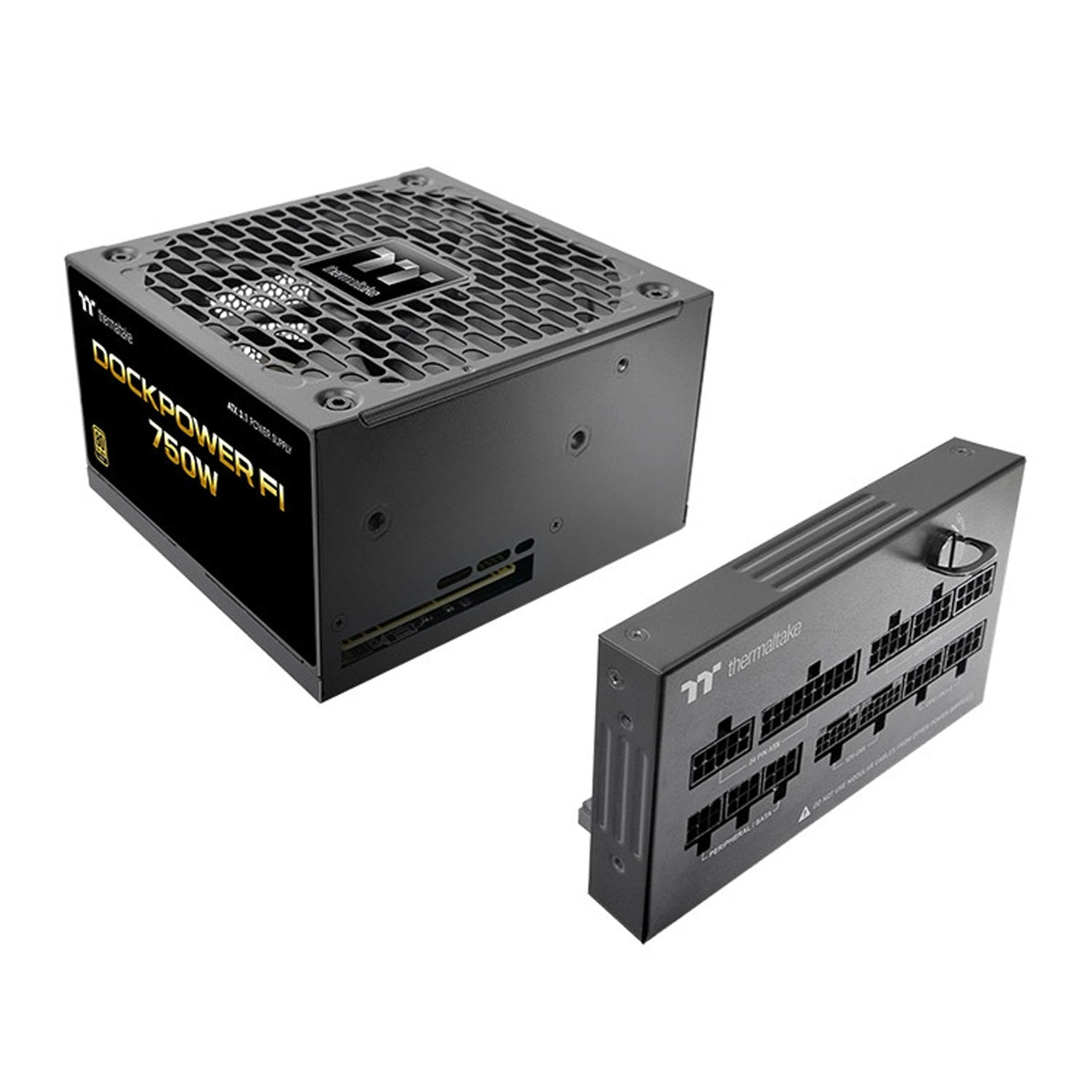

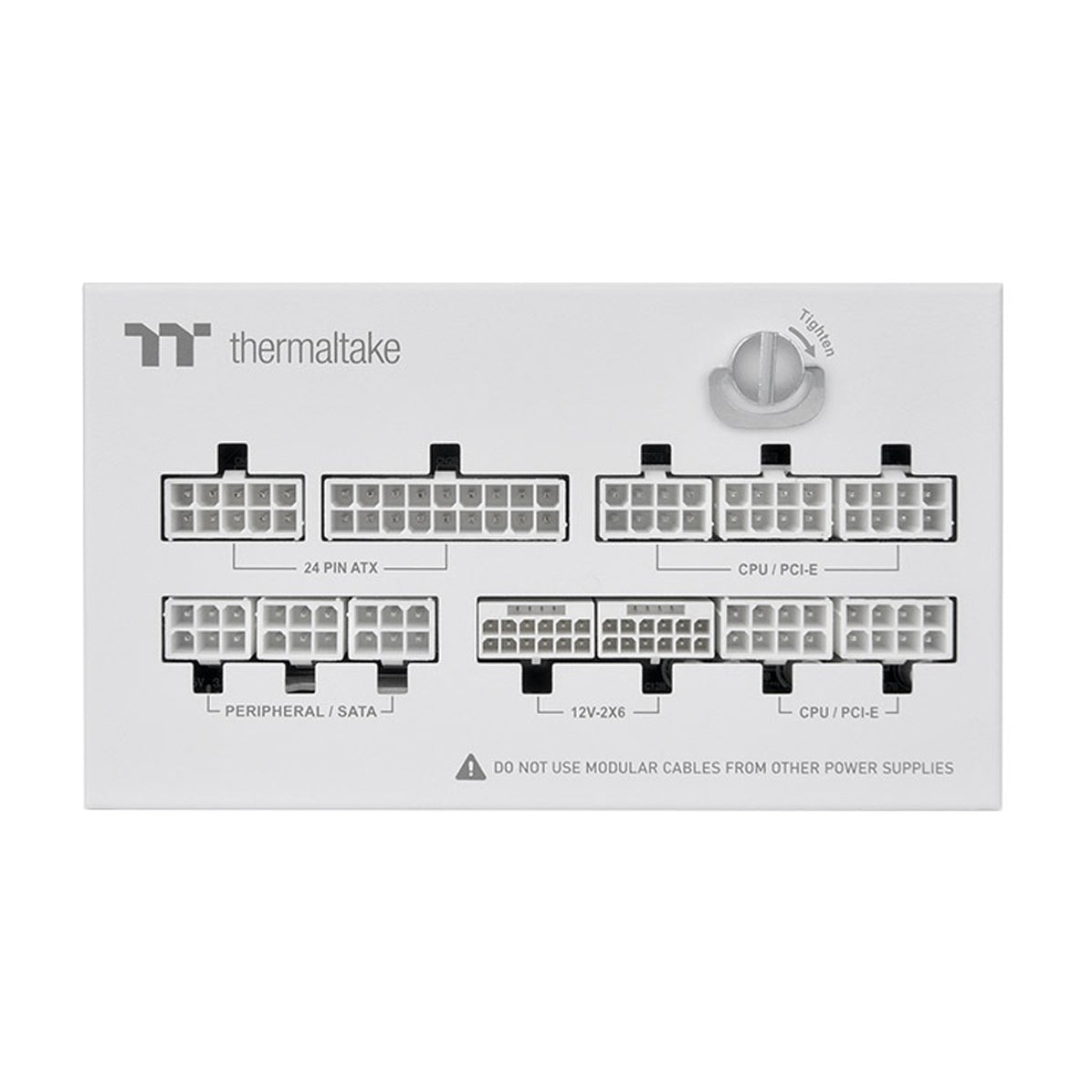

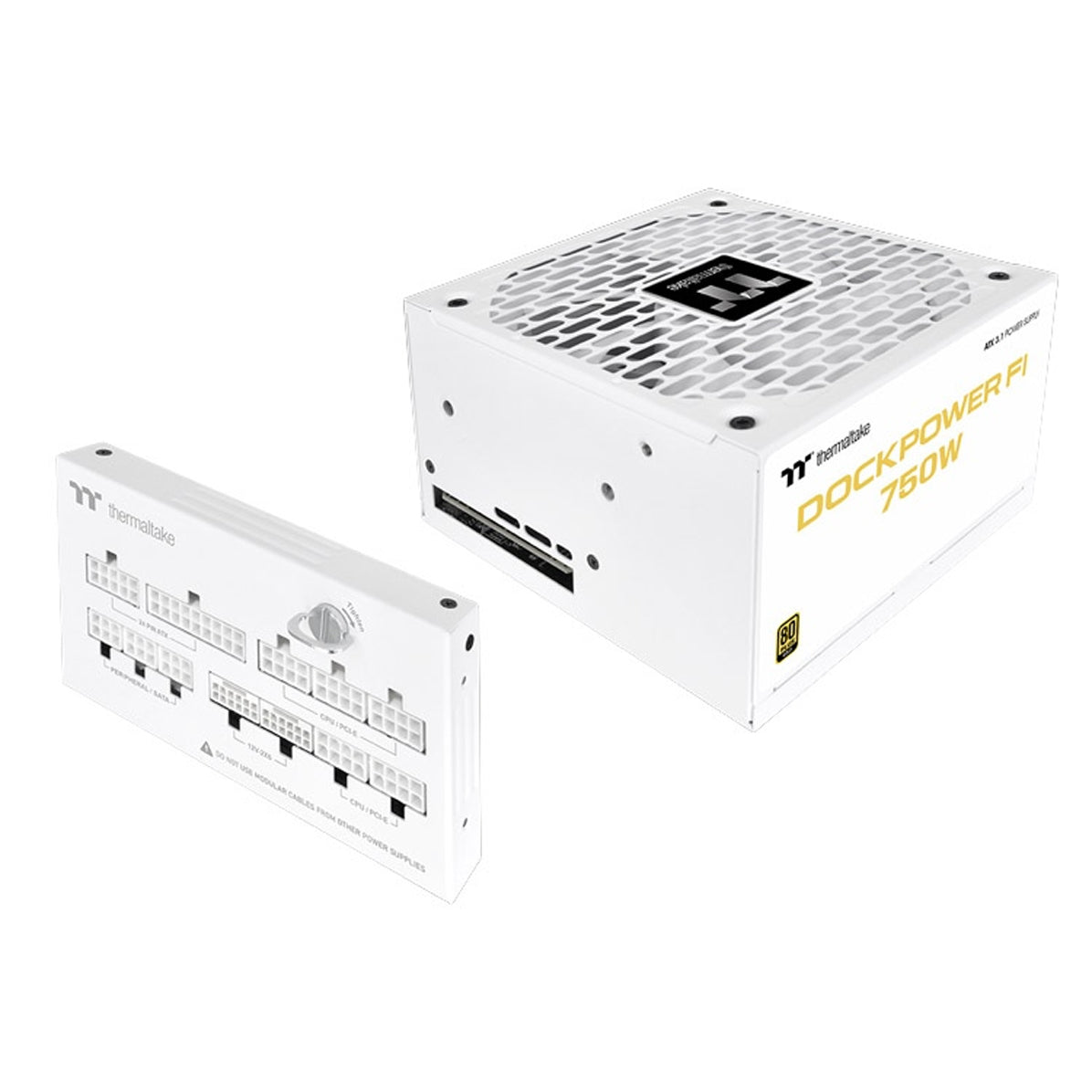

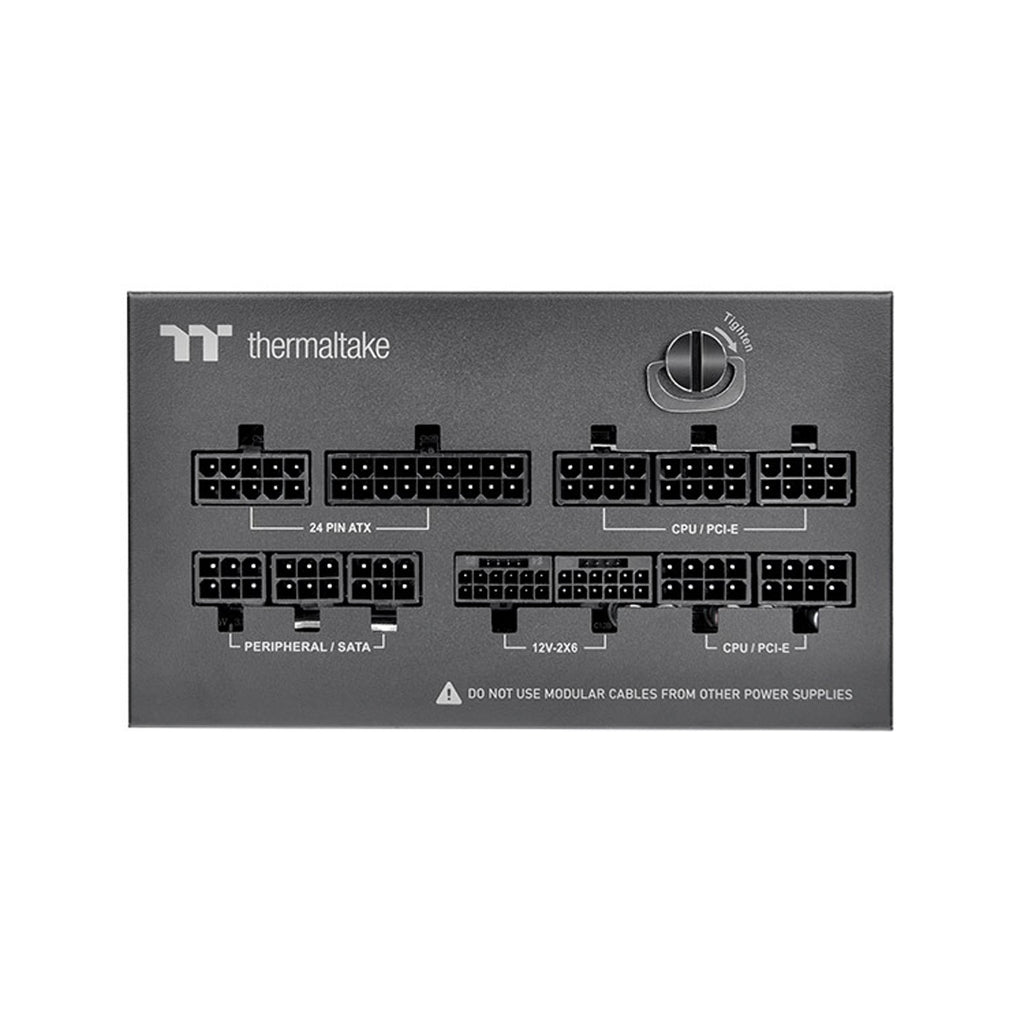

• Docking Power Architecture – Separate the PSU main unit from the Dock Module for easier access in tight spaces.
• Pre-Route, Then Dock – Install and manage cables first, then dock and lock the power unit into place.
• Upgrade Without Rewiring – Keep the Dock Module and cables installed when replacing the power unit.
• 30μ Gold-Plated Dock Connection – Durable high-current contacts paired with a secure D-ring locking mechanism.
• Builder-Friendly Cabling – Native 12V-2x6 with a colored H++ connector crown and low-profile modular cables for easier routing.
Specifications:
| watts | 750W |
| Model | TDP-0750AH3FXG |
| Max. Output Capacity | 750W |

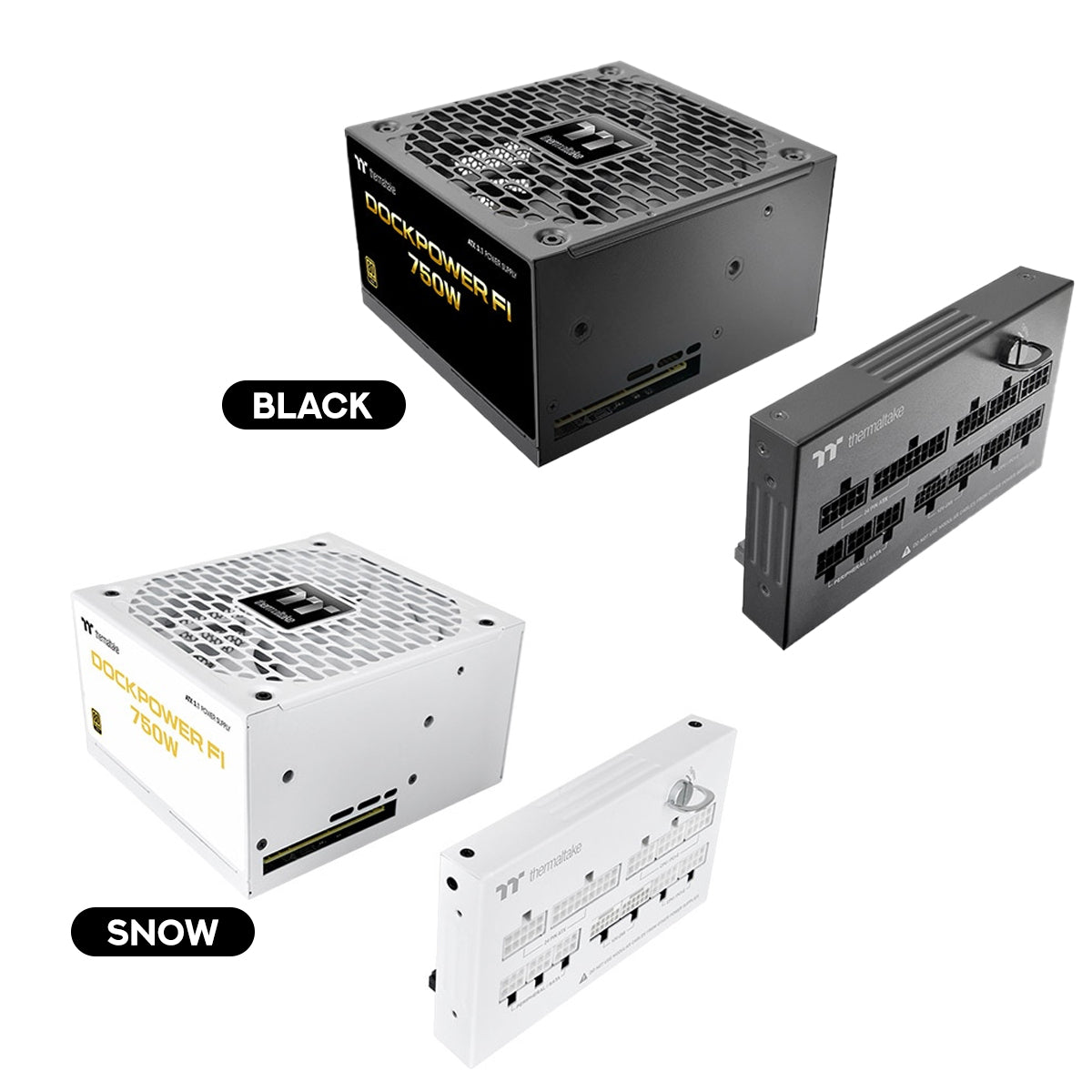

| Color | Snow |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLING SYSTEM | 135mm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1(600W) |
