Description

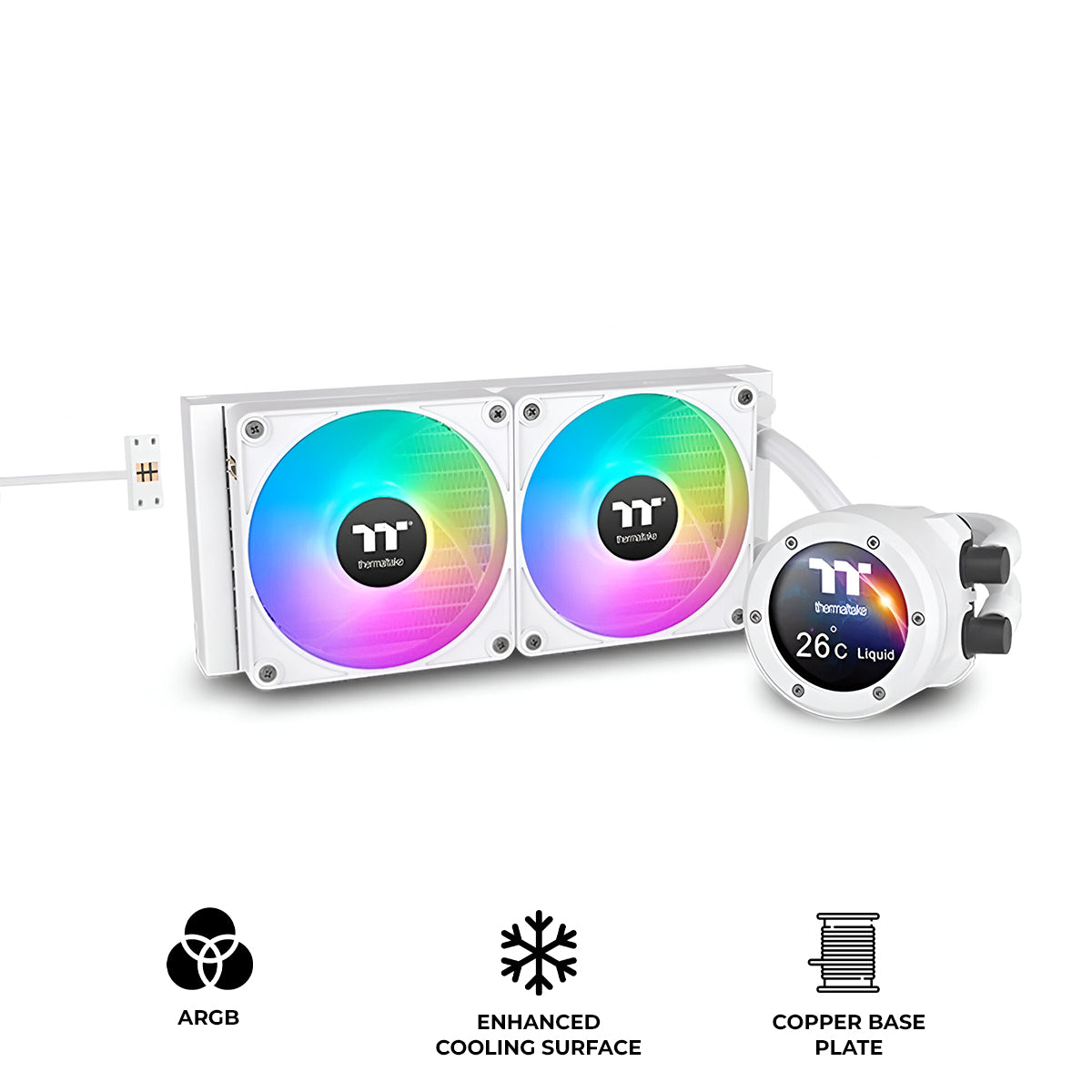

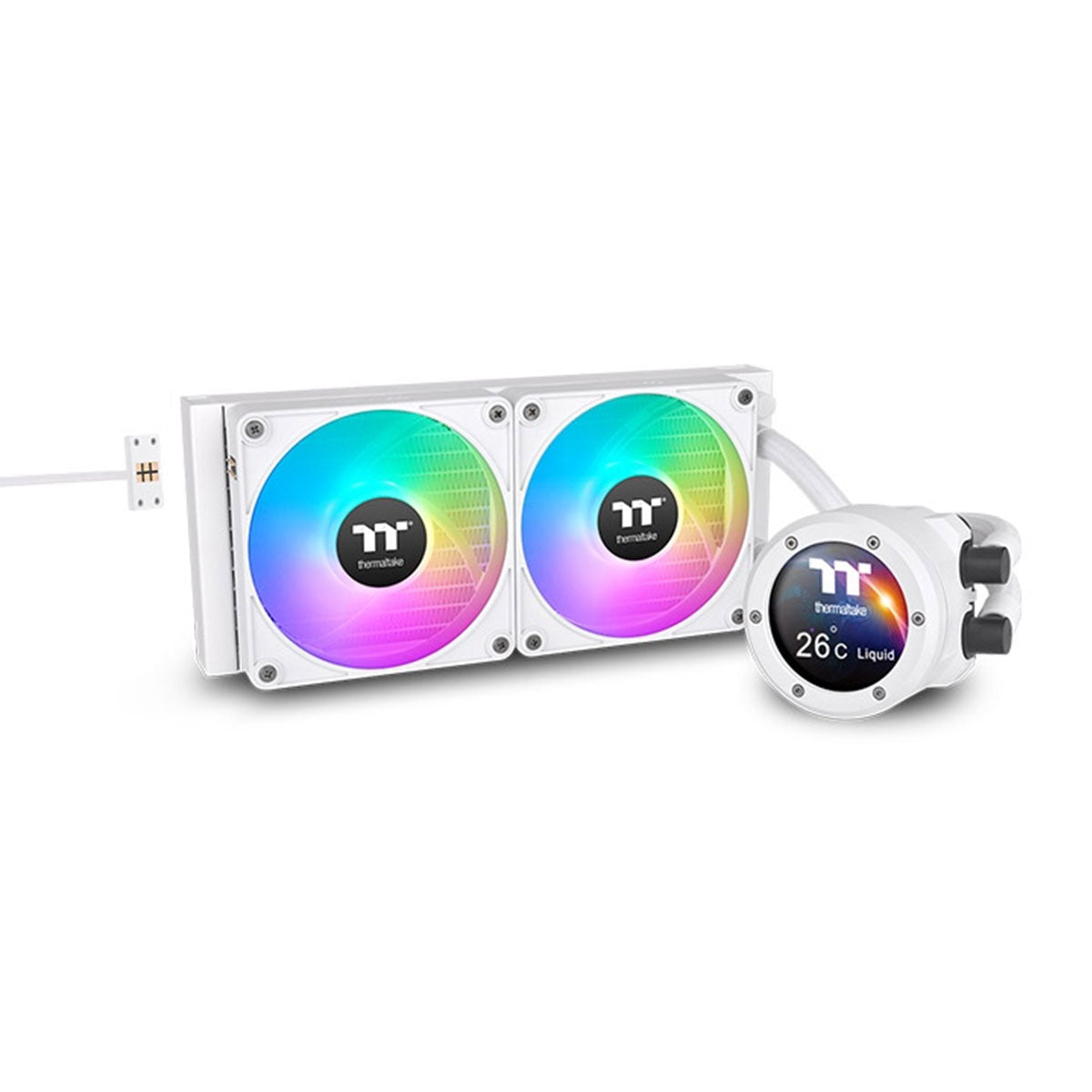

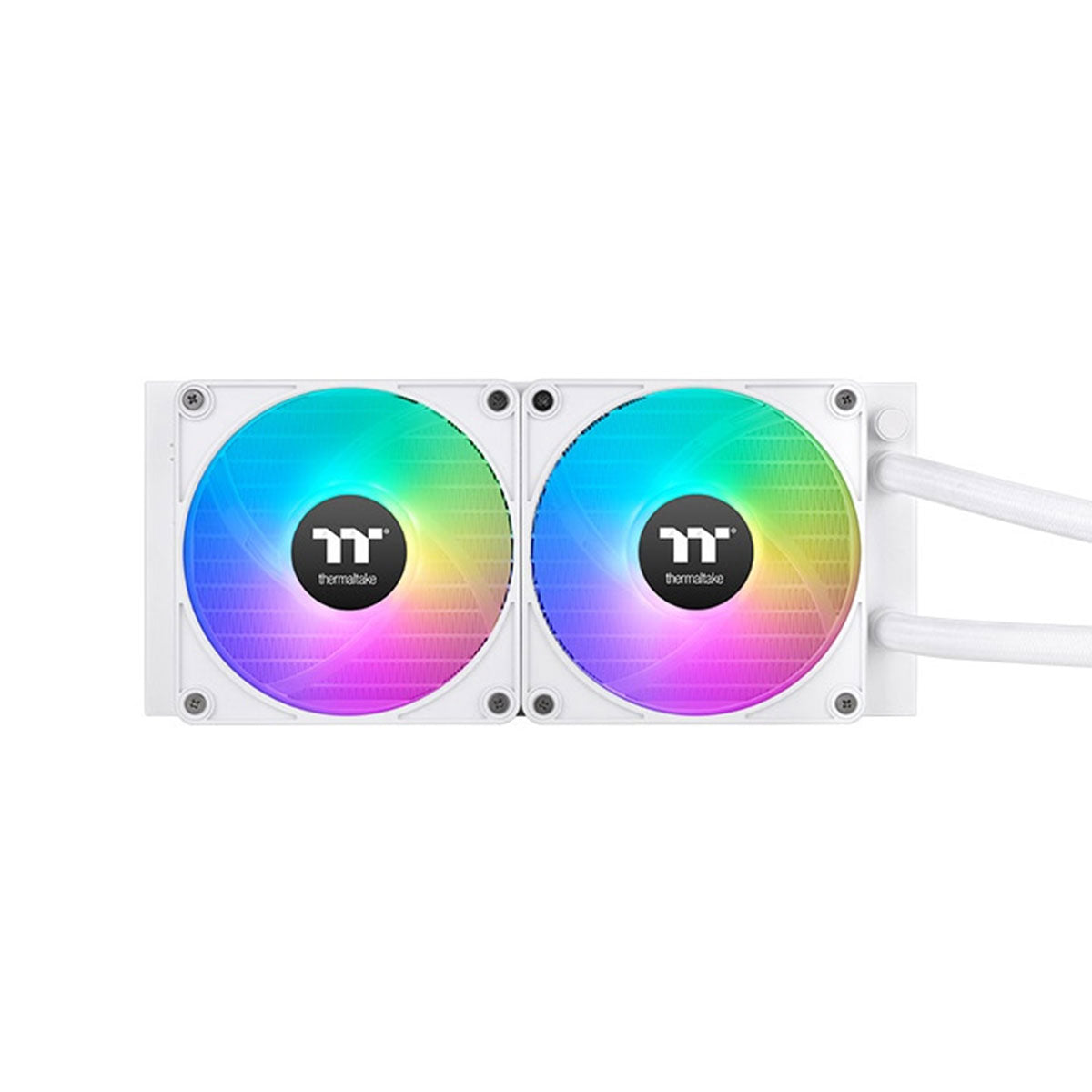

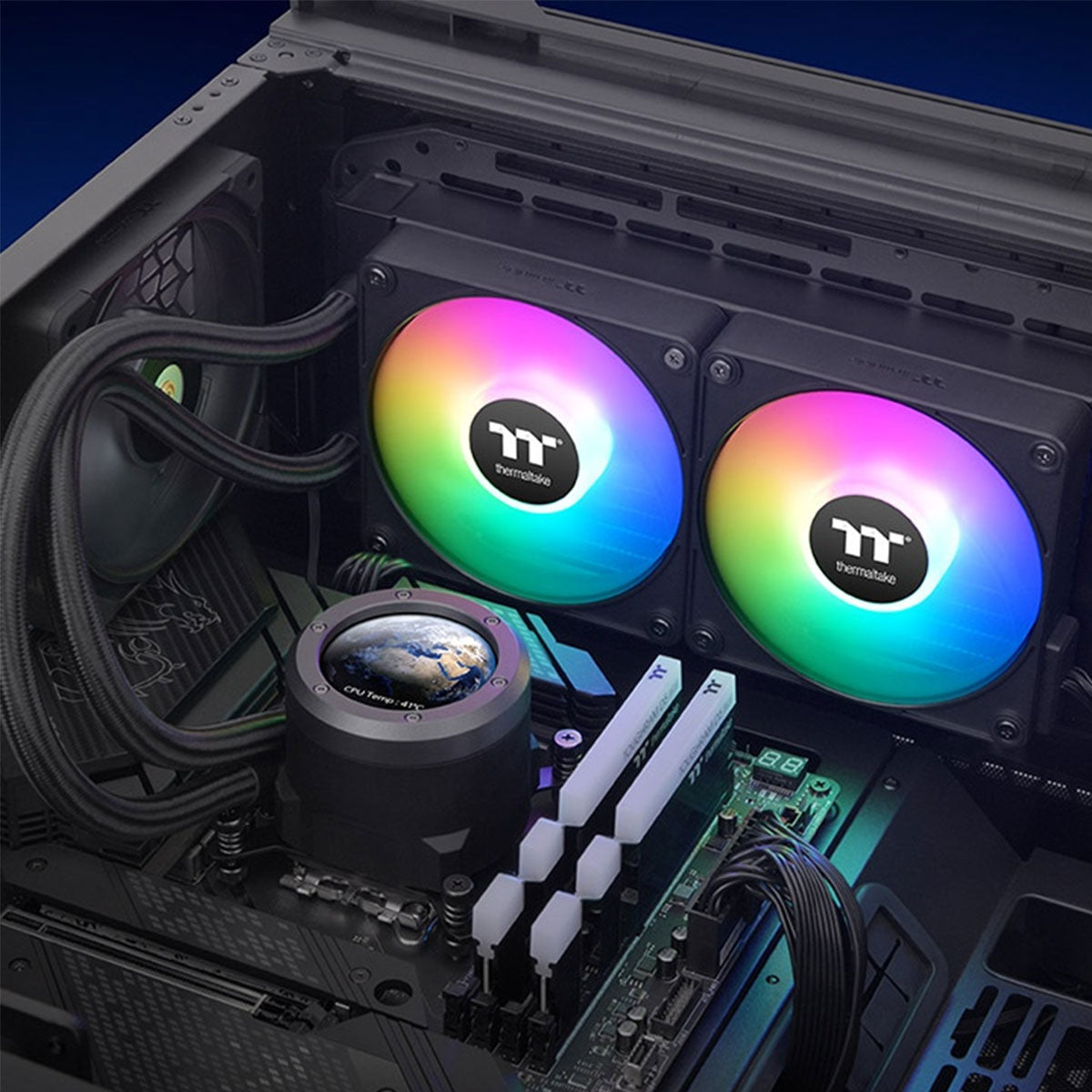

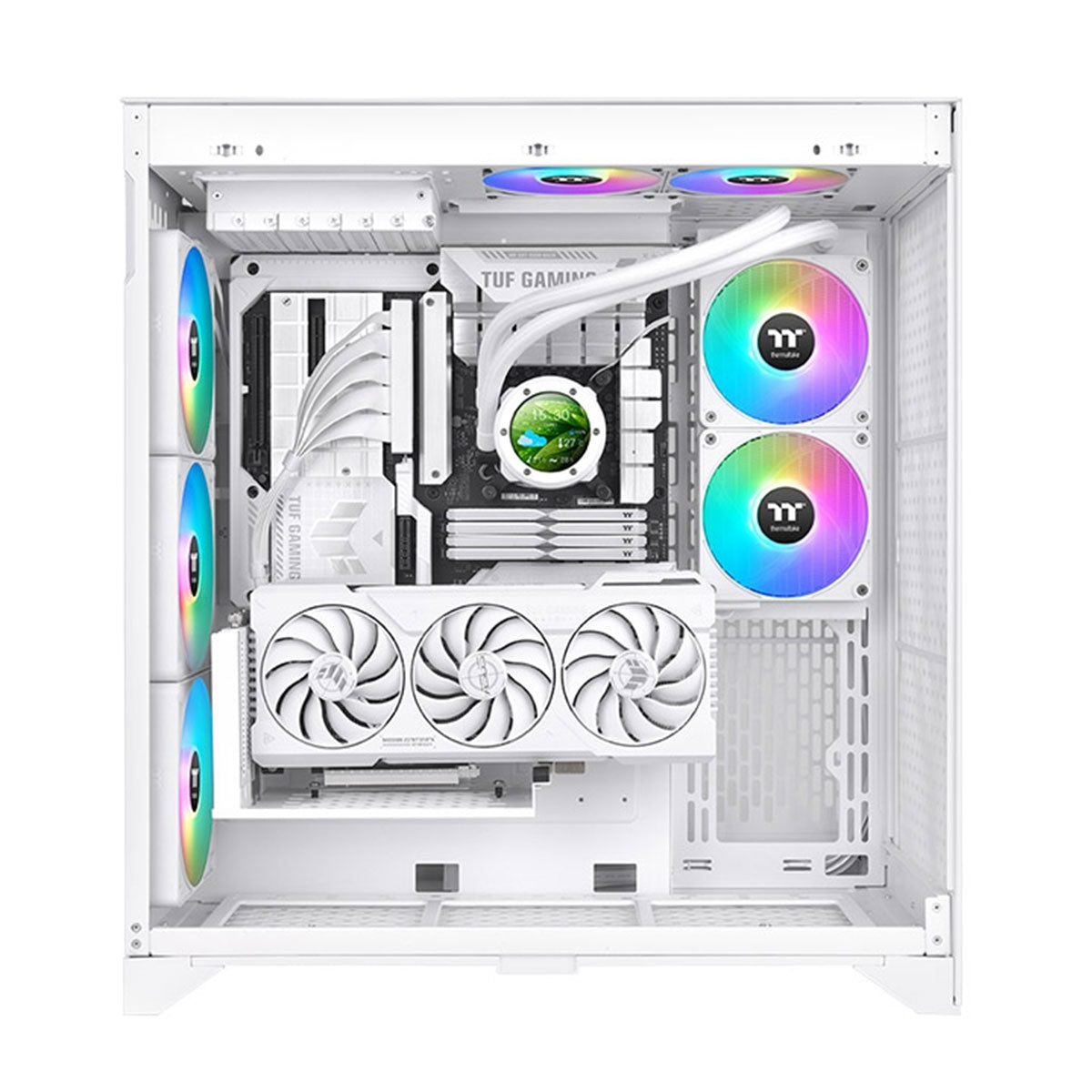

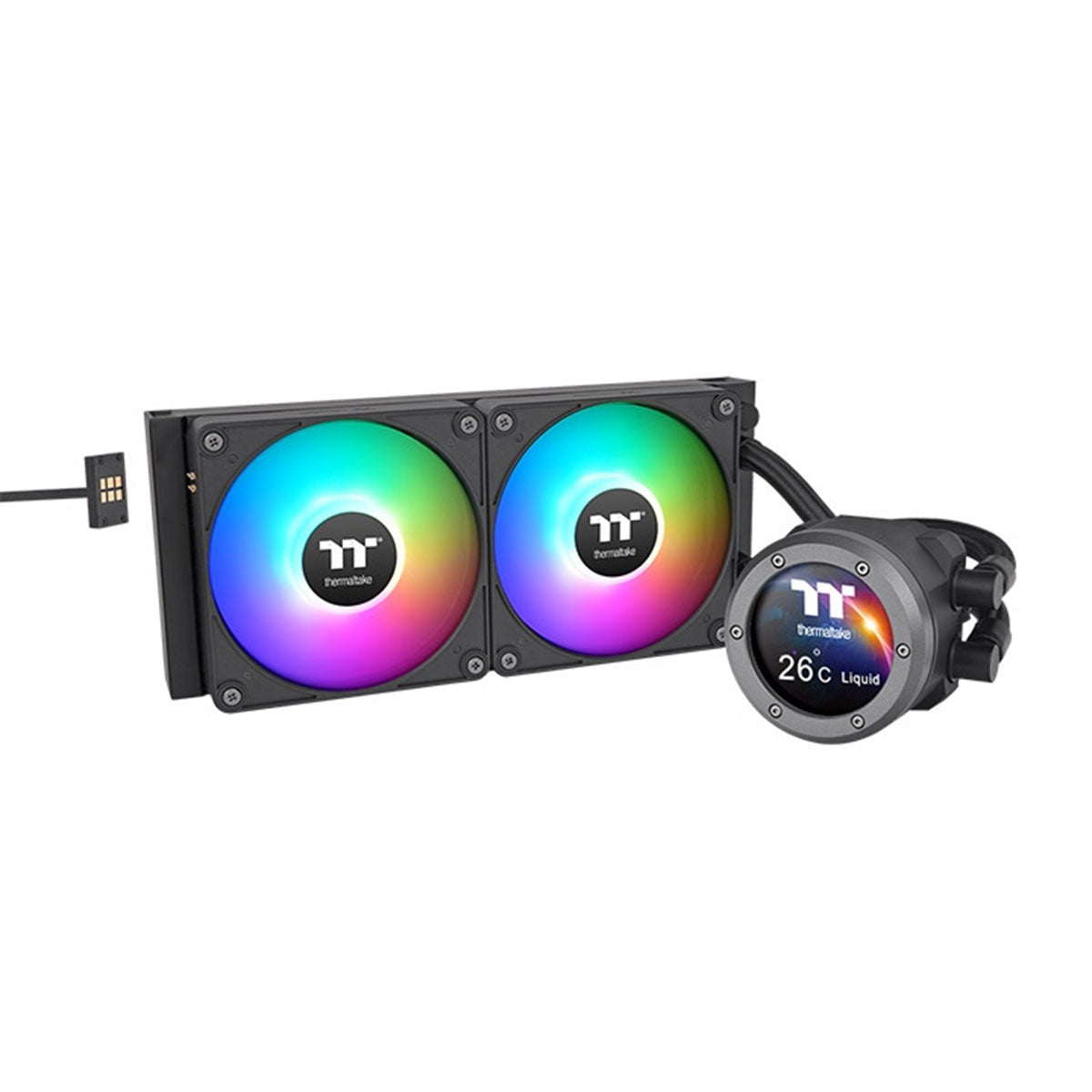

TH240 V2 Ultra EX ARGB Sync All-In-One Liquid Cooler
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
SPECIFICATION
PUMP | Motor Speed : PWM 1500~3300 RPM |
Rated Voltage : 12V | |
Rated Current : 0.43A | |
Power Input : 5.16W | |

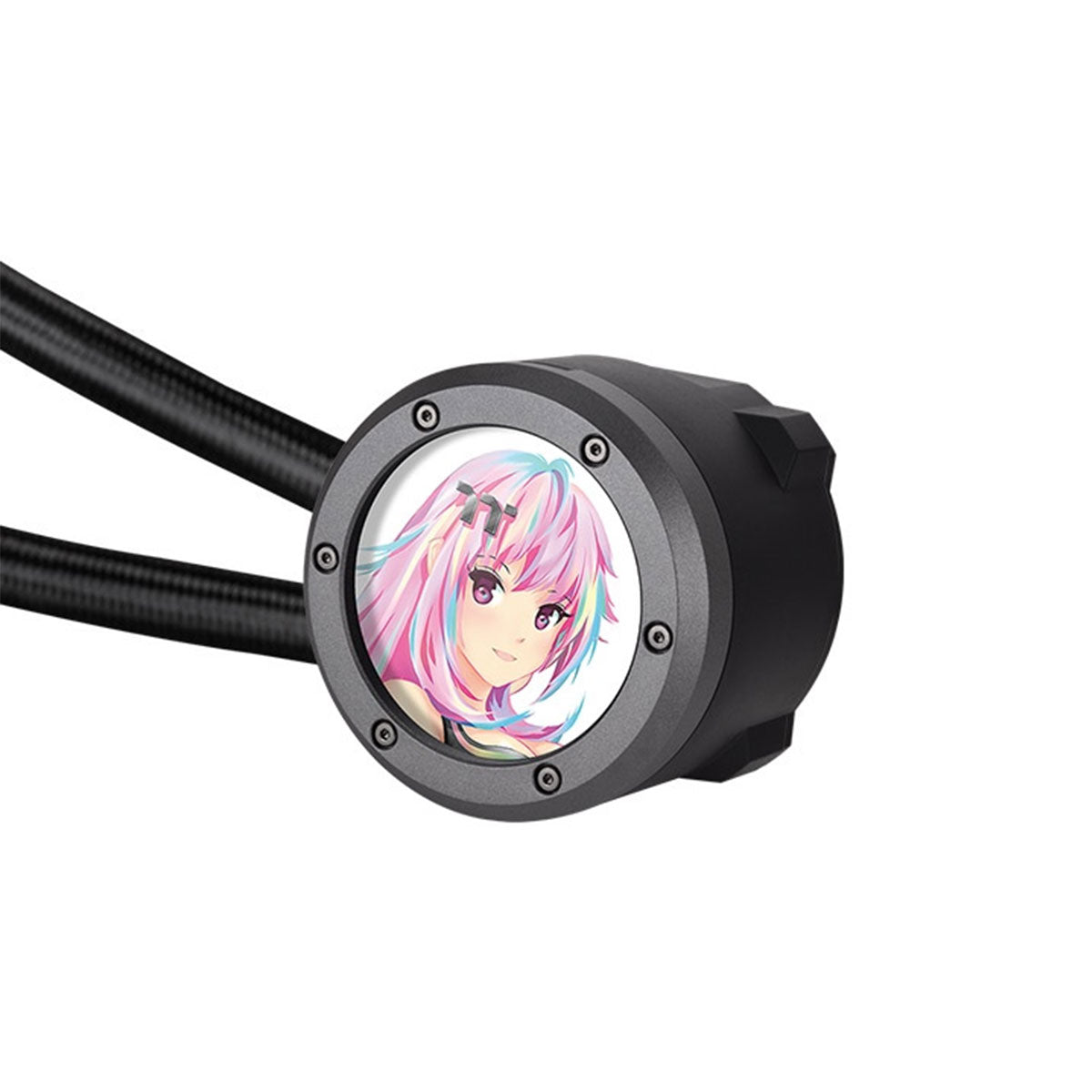

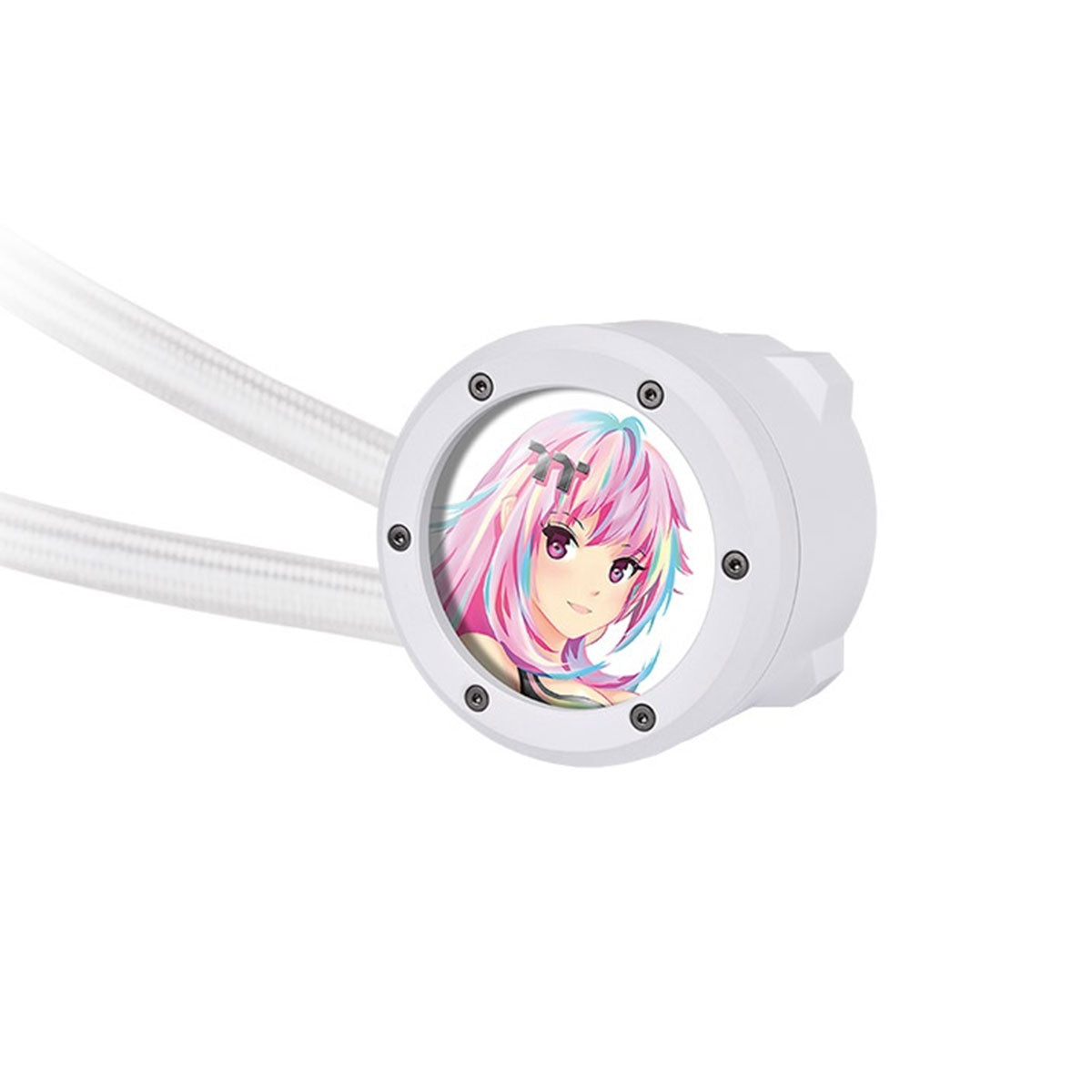

CPU Display | Rated Voltage : 5V |
Power Input : 1.15W | |
Display Type : 2.1”TFT-LCD | |
Display Resolution : 480x480 (RGB) px | |
Display Support | Interface : Micro USB to USB (9PIN) |
System Compatibility : Windows 10 / 11 | |

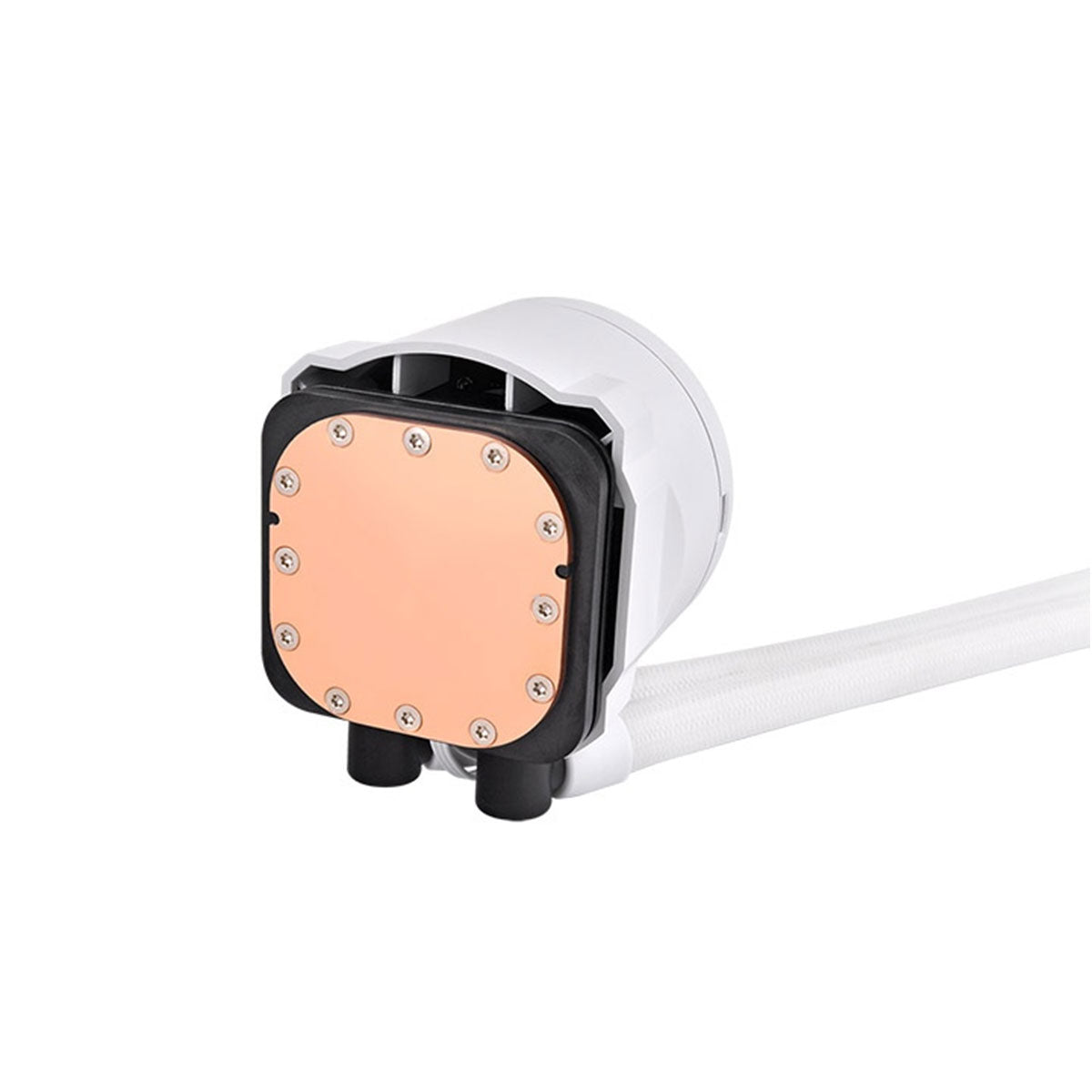

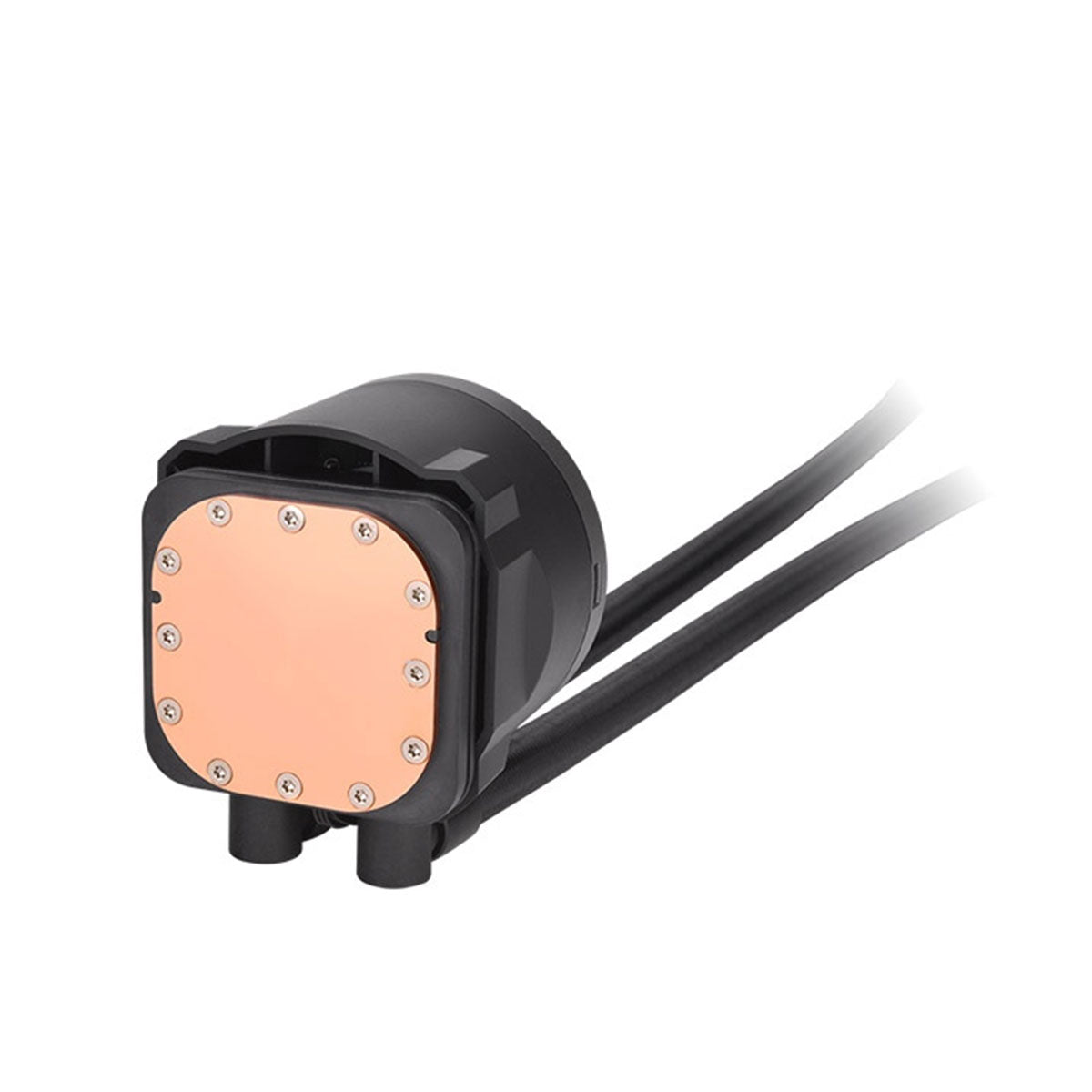

WATER BLOCK | Material : Copper |
Fan | Dimension : 120 x 120 x 25 mm |
Speed : PWM 500~2000 R.P.M | |
Rated Voltage : 12V/5V | |
Rated Current : 0.19A & 0.32A (one fan) | |
Power Input : 2.28W & 1.6W (one fan) | |
Air Flow. : 68 CFM (one fan) | |
Static Pressure. : 2.95 mm-H2O (one fan) | |
Noise Level. : 28.5 dB-A | |
Tube | Length : 460mm |
Material : Rubber | |

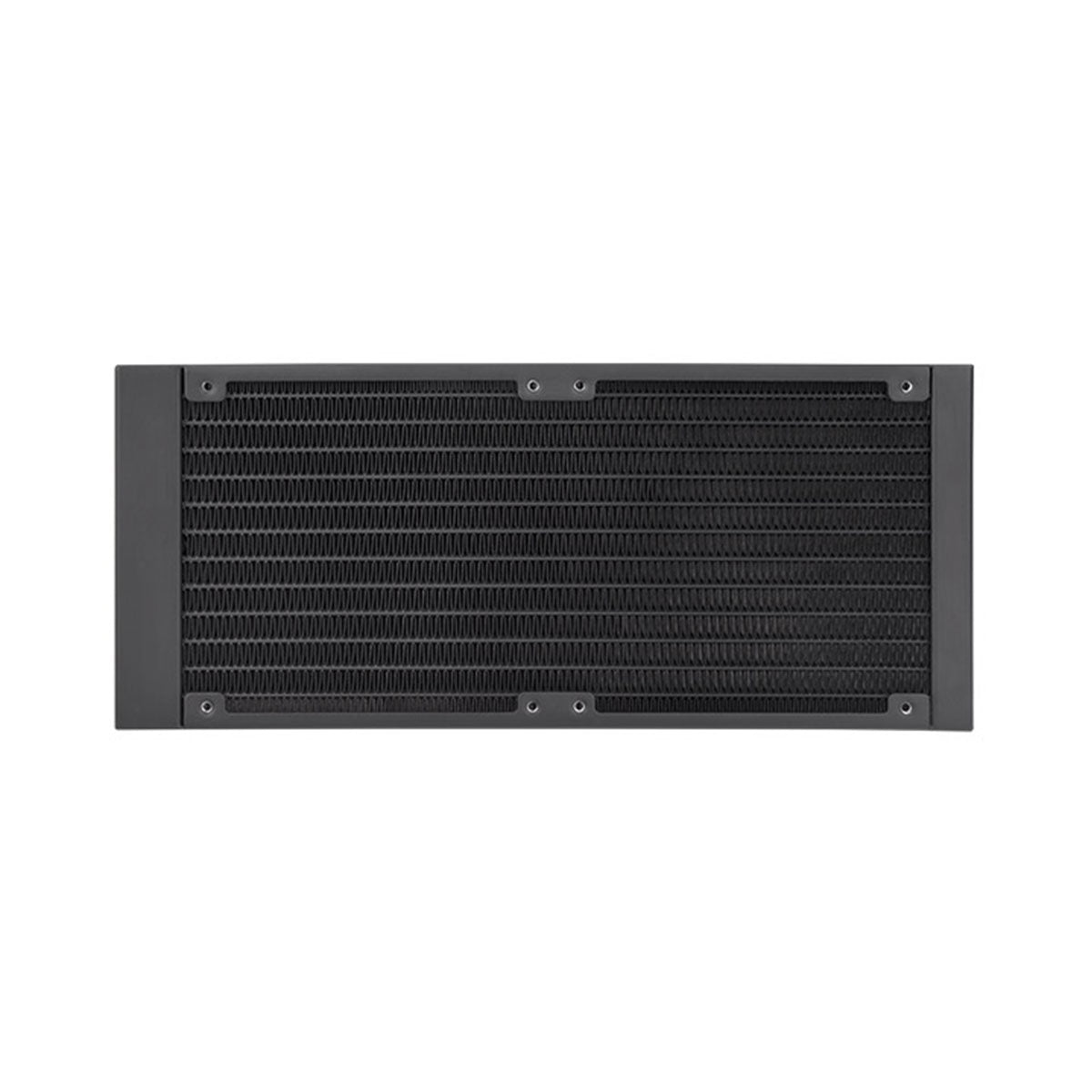

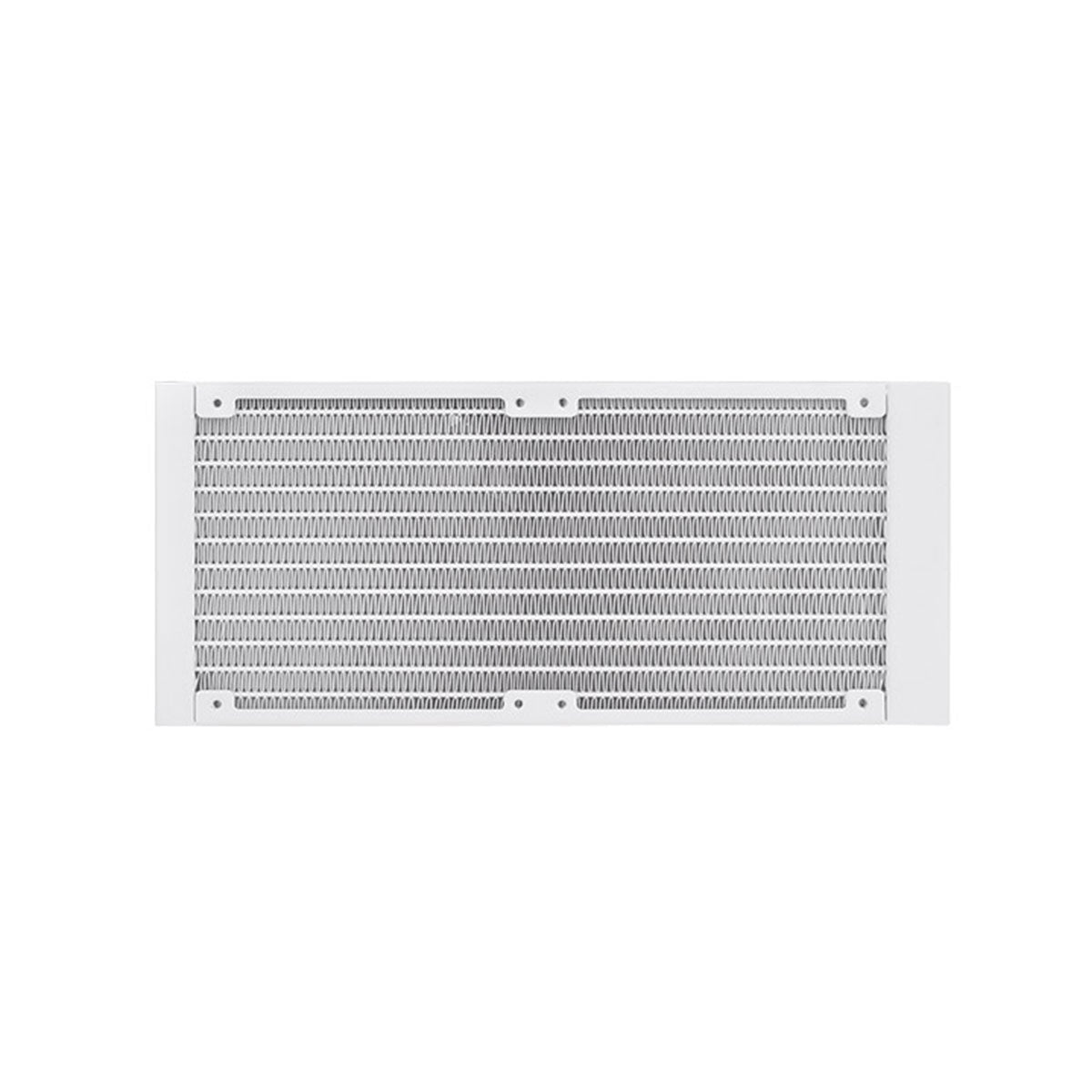

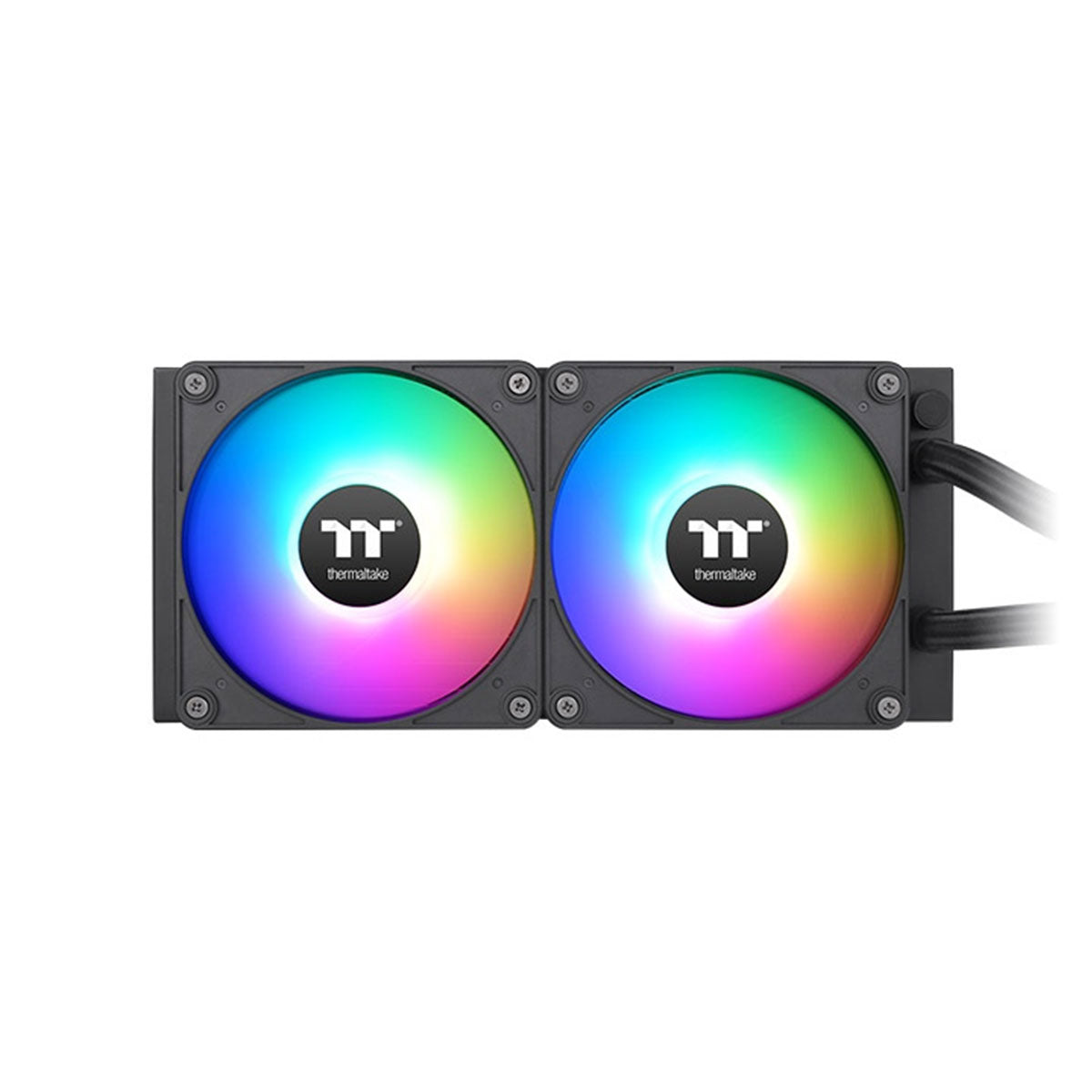

Radiator | Dimension : 276 x 120 x 27 mm |
Material : Aluminum | |
COMPATIBILITY | Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 |
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
