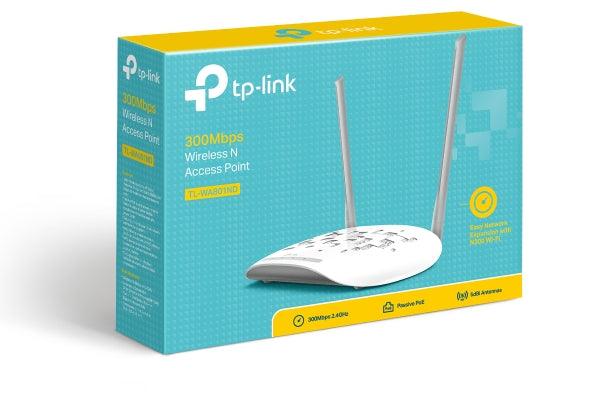

300Mbps Wireless N Access Point TL-WA801ND
- 300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming*
- Supports multiple operation modes: Access Point, Multi-SSID, Client, Universal/WDS Repeater, Bridge with AP
- Easily setup a WPA encrypted secure connection at a push of the WPS button
- Flexible deployment with included Passive Power over Ethernet Injector
The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.
Wireless N - Speed & Range
- Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Multiple Operating Modes - Easy to Build WLAN
- Supports multiple operation modes (Access Point, Multi-SSID, Client, Universal/ WDS Repeater, Bridge with AP) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone.
Passive PoE Supported - More Flexible Deployment
The TL-WA801ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
*All above information apply to TL-WA801ND version 2.0 ONLY.
|Interface||One 10/100M Ethernet Port(RJ45)
Support Passive PoE
|Button||Power On/Off Button
|External Power Supply||9VDC / 0.6A|
|Wireless Standards||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b|
|Dimensions ( W x D x H )||7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)|
|Antenna Type||2*5dBi Detachable Omni Directional (RP-SMA)|
|Signal Rate||11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
|Reception Sensitivity||270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|Wireless Modes||AP Mode
Repeater Mode (WDS/Universal)
Bridge with AP Mode
|Wireless Functions||Enable/Disable Wireless Radio
MAC Address Filter
|Wireless Security||64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK|
|Quality of Service||WMM|
|Advanced Functions||Up to 30 meters Passive PoE is supported|
