Description
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
- TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
- Supports TP-Link OneMesh – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- Easy setup and management all by Tether app
Boost Your 4G+ Speed
- Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.
Wi-Fi Where You Need It
- Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Reliable Network with MU-MIMO: More Data Streams, More Speeds for Devices
- MU-MIMO technology has multiple devices connect to the Internet at the same time, reducing waiting time, increasing WiFi throughput for every device and boosting the efficiency of each data stream. With MU-MIMO supported, Archer MR600 provides users with faster network, less interference and lower latency.
Support TP-Link OneMesh
- Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Fully Gigabit Ports for Consummate Connectivity
- Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
Reliable Access for Up to 64 Devices Simultaneously
- Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
| HARDWARE FEATURES | |
|---|---|

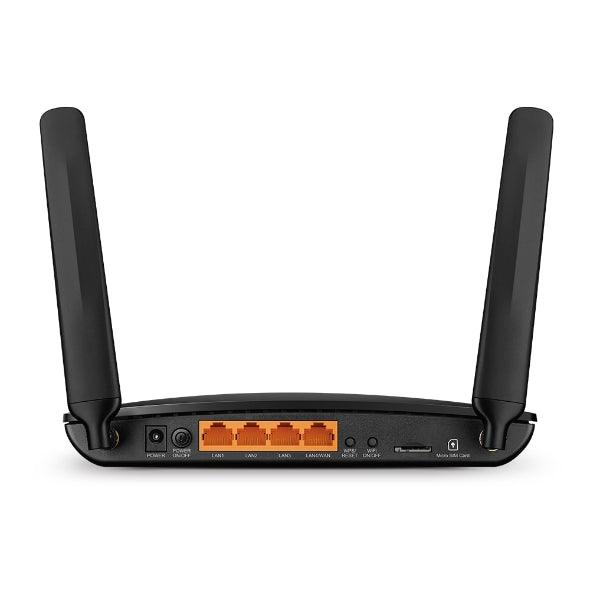

| Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 3 × 10/100/1000 Mbps LAN Ports 1 × Micro SIM Card Slot |
| Button | WPS/Reset Button, WiFi On/Off Button, Power On/Off Button |
| External Power Supply | Power Adapter: : Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 1.5A |
| Dimensions ( W x D x H ) | 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in) |
| Antenna | 2 × Detachable 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) Carrier Aggregation: B1+B3/B5/B7/B8/B20 B3+B1/B3/B5/B7/B8/B20/B28/B38/B40 B5+B1/B3/B5/B7/B40 B7+B1/B3/B5/B7/B8/B20/B28 B8+B1/B3/B7 B20+B1/B3/B7 B28+B3/B7/B40 B38+B38 B40+B40 B41+B41 |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Bandwidth Control |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
