Description

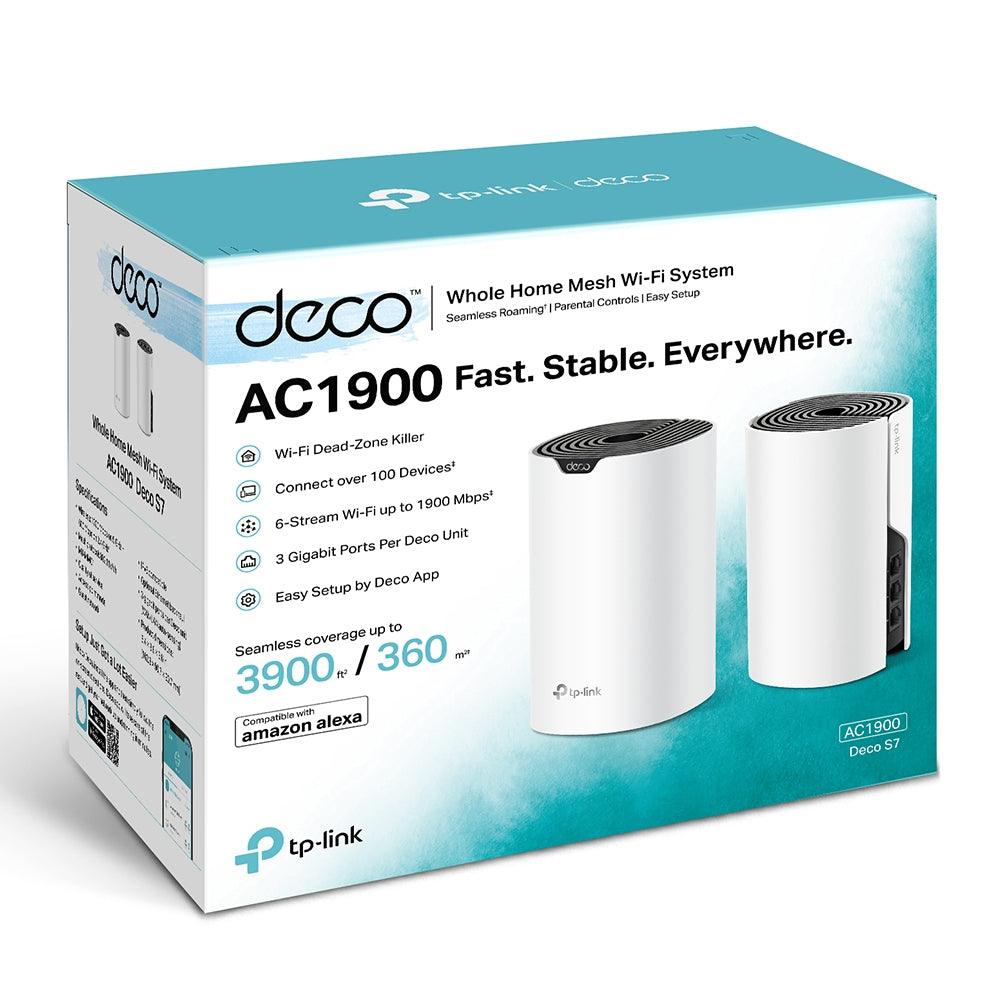

Deco S7
AC1900 Whole Home Mesh Wi-Fi System
1900 Mbps WiFi Speed – Enjoy binge watching your favorite series in 4K with combined speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz ) with 3×3 MU-MIMO technology.† ‡
Connect 100+ Devices – Deco handles traffic from even the busiest of networks, providing lag-free connections for over 100 devices.†
Boosted Seamless Coverage – With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds. §
Full Gigabit Ethernet – 3× Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.△
Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.
Two Modes in One – Works as a router or access point for a flexible home network.
Easy Setup – Setup is easier than ever with the Deco app there to walk you through every step.
WiFi Dead Zone Killer
Deco S7 offers a simple way to guarantee a strong WiFi signal in every corner of your home up to 3,900 square feet (2-pack). † Wireless connections and an optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.
Want more coverage? Simply add another Deco.
SPECIFICATIONS
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n) |
| WiFi Range |
3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul works together to link Deco units to provide seamless coverage 3× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Medium Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | 1.2 GHz CPU |
| Ethernet Ports | 3× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA-Personal WPA2-Personal |
| Network Security | SPI Firewall Access Control |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocol | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Type | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 6.4 × 3.6 × 3.6 in (162.3 × 90.7 × 90.7 mm) |
| Package Contents |
Deco S7 (3-pack) 3 Deco S7 Units 1 RJ45 Ethernet Cable 3 Power Adapters Quick Installation Guide Deco S7 (2-pack) 2 Deco S7 Units 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation Guide Deco S7 (1-pack) 1 Deco S7 Unit 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI |
| System Requirements | Android 4.4 or later iOS 9.0 or later |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
