Description

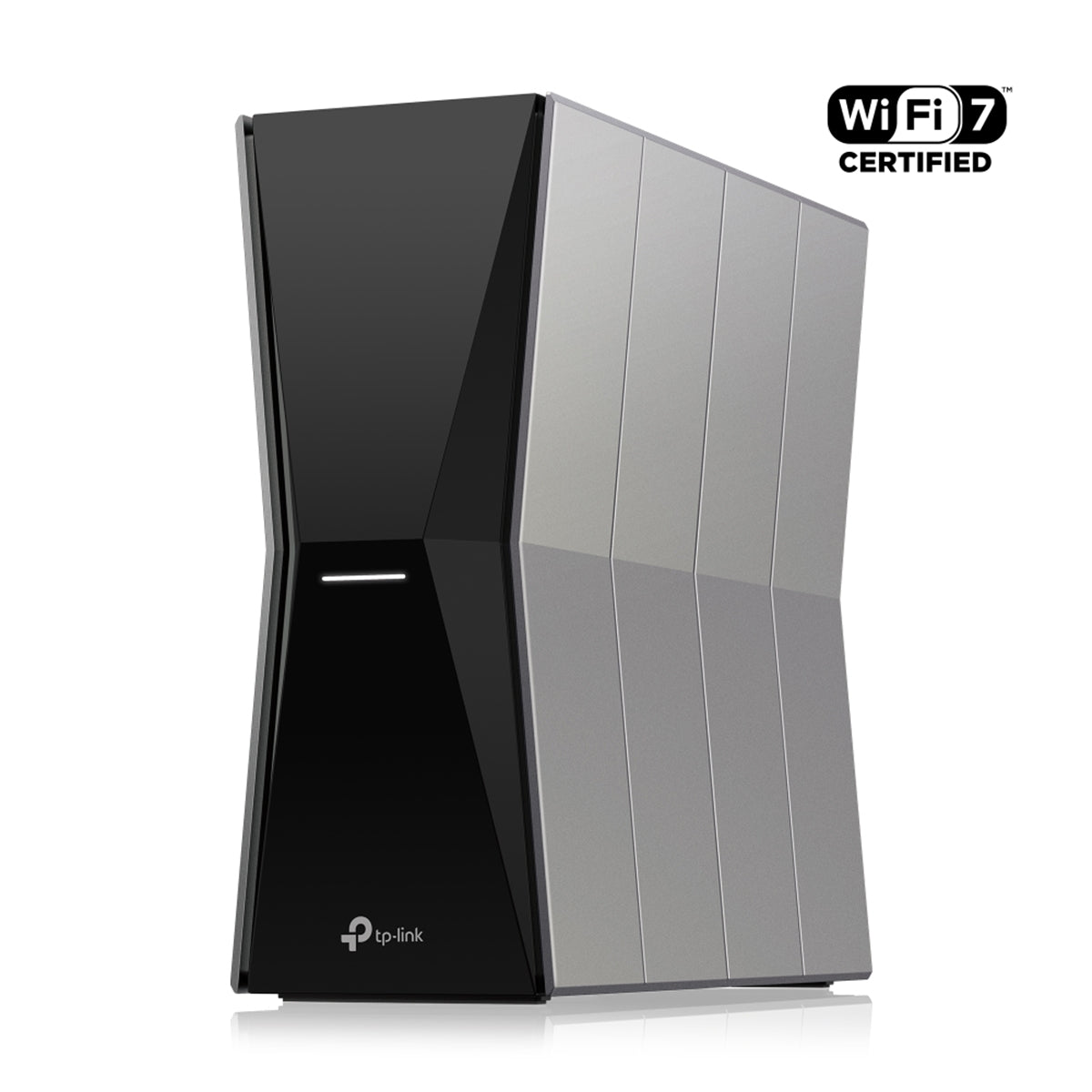

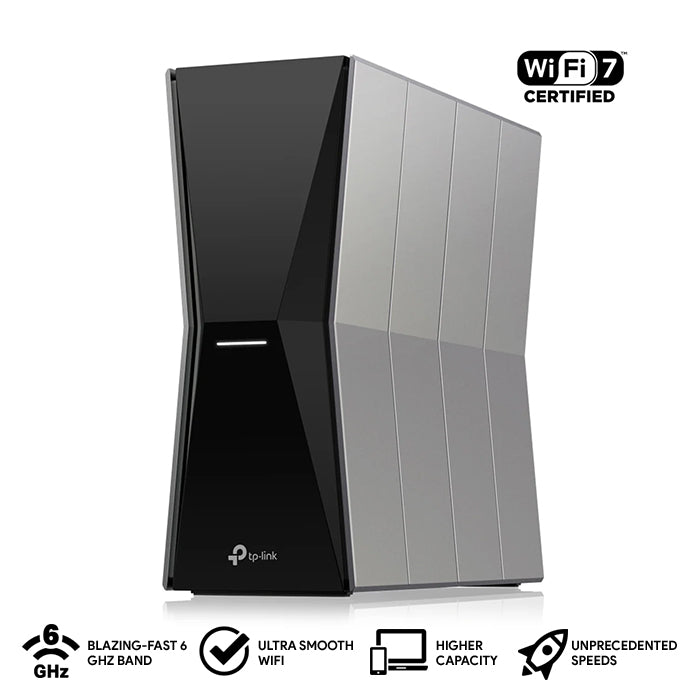

Archer BE805
BE19000 Tri-Band Wi-Fi 7 Router
- Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, and brand-new design.
- Lightning-Fast 19 Gbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads.†‡

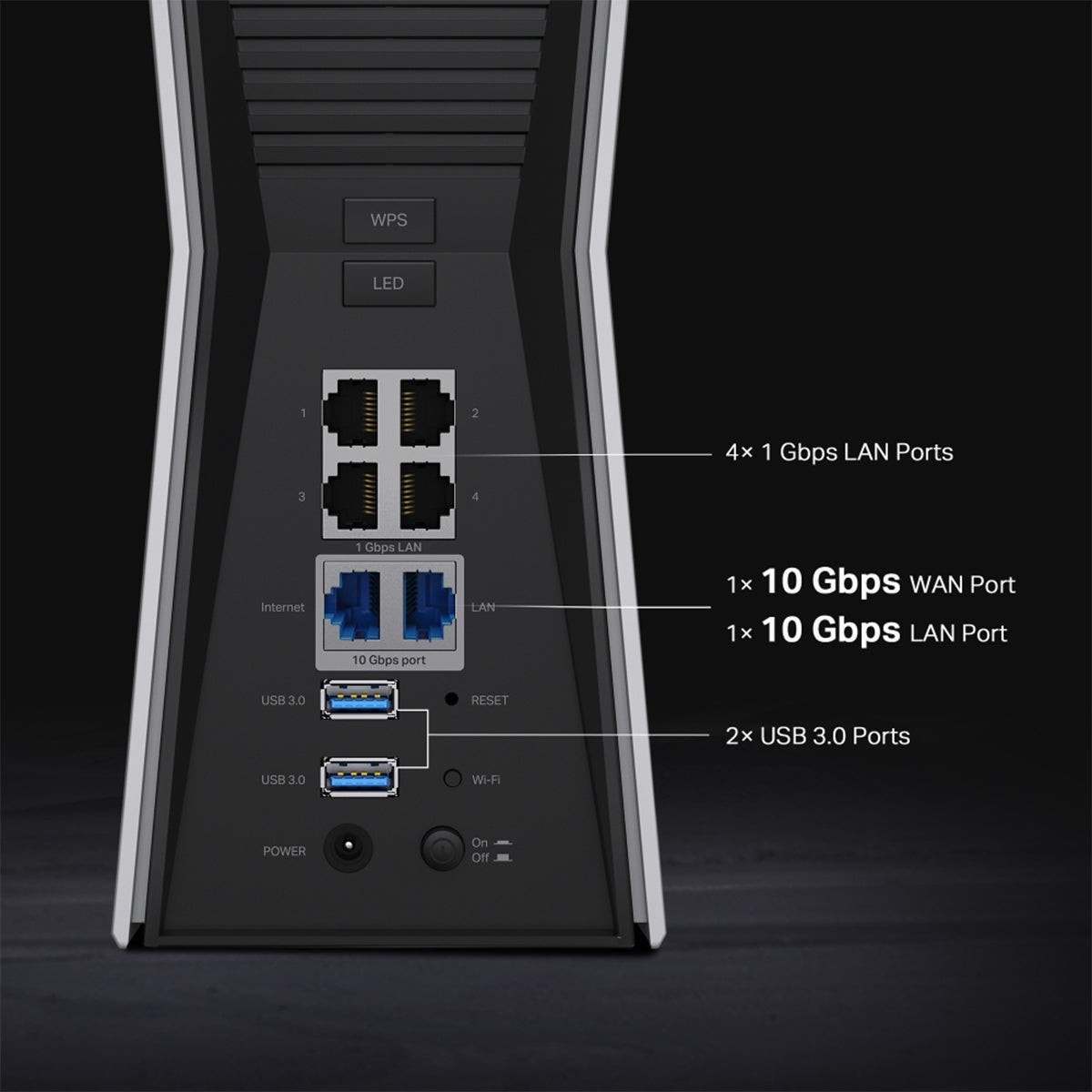

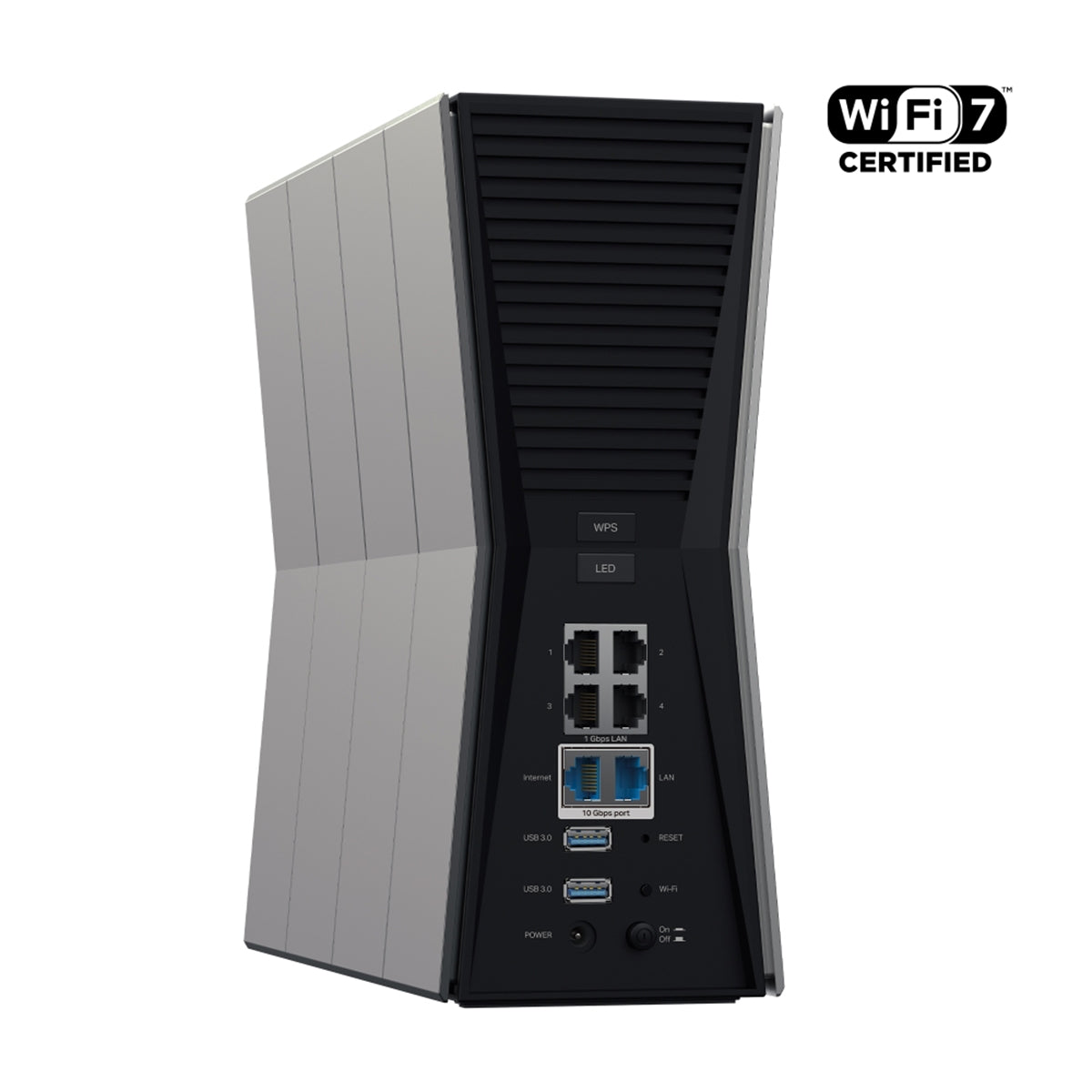

- Dual 10G Ports: 1× 10 Gbps WAN port + 1× 10 Gbps LAN port + 4× 1 Gbps LAN ports + 2× USB 3.0 ports, for faster large file transfers and downloads, seamless streaming, immersive gaming, and more.

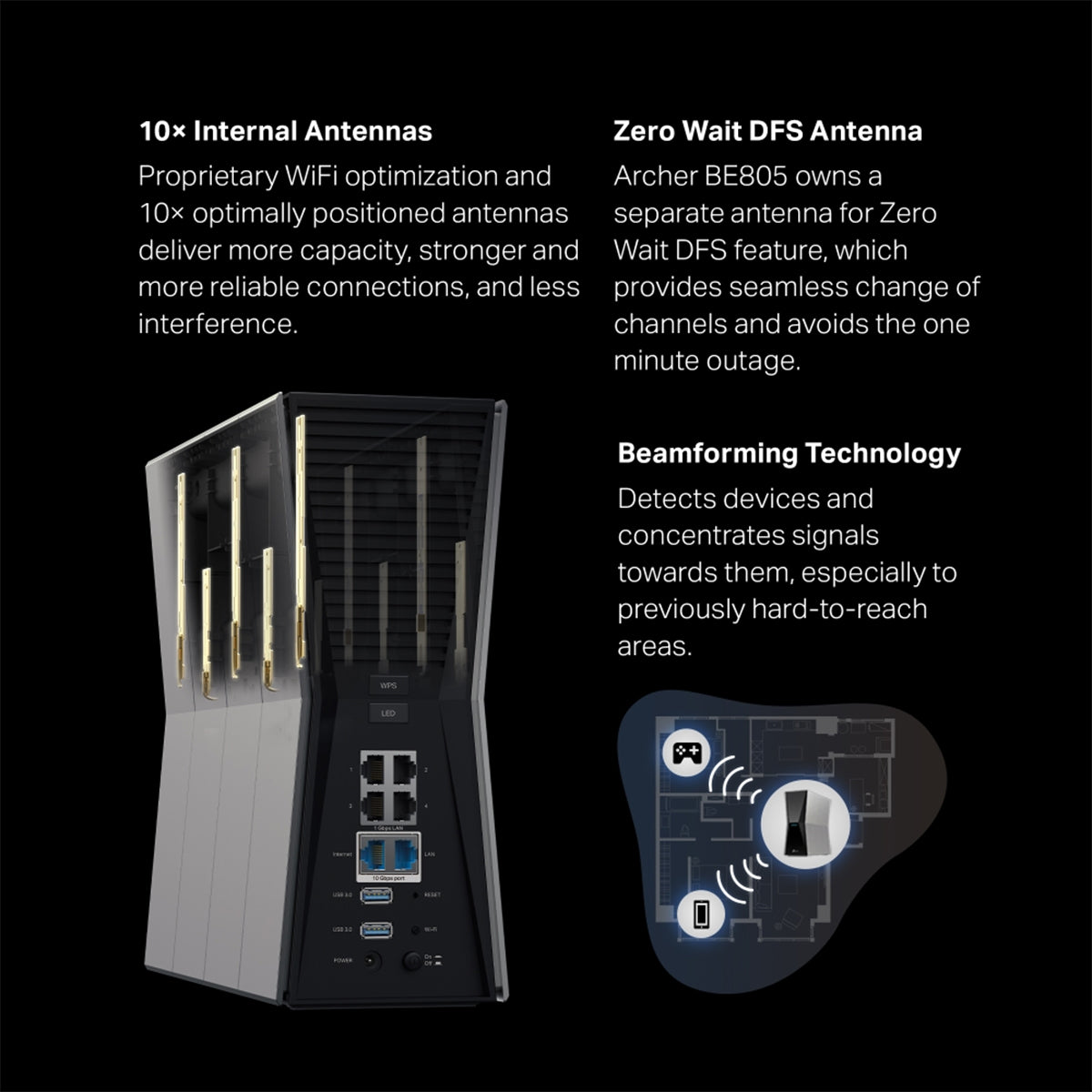

- Maximized Coverage: Proprietary WiFi optimization and 10× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
SPECIFICATION
| WIRELESS | |
| WiFi Speeds | BE19000 |
| • 6 GHz: 11520 Mbps (802.11be) | |
| • 5 GHz: 5760 Mbps (802.11be) | |
| • 2.4 GHz: 1376 Mbps (802.11be) | |
| Working Modes | • Router Mode |
| • Access Point Mode | |
| Advanced Functions | • Multi-Link Operation (MLO) |
| • 320 MHz Channel | |
| • 4K-QAM | |
| • Multi-RUs | |
| • EasyMesh-Compatible | |
| • Works with Alexa and Google Assistant | |
| • IoT Network | |
| SECURITY | |
| Network Security | • SPI Firewall |
| • Access Control | |
| • IP & MAC Binding | |
| • Application Layer Gateway | |
| • HomeShield Security | |
| Real-Time IoT Protection | |
| Malicious Site Blocker | |
| Intrusion Prevention System | |
| DDoS Attack Prevention | |
| Home Network Scanner | |
| Guest Network | • 1× 6 GHz Guest Network |
| • 1× 5 GHz Guest Network | |
| • 1× 2.4 GHz Guest Network | |
| VPN Server | • OpenVPN Server |
| • PPTP VPN Server | |
| • L2TP VPN Server | |
| VPN Client | • Open VPN Client |
| • PPTP VPN Client | |
| • L2TP VPN Client | |
| WiFi Encryption | • WPA |
| • WPA2 | |
| • WPA3 | |
| • WPA/WPA2-Enterprise (802.1x) | |
| HARDWARE | |
| Ethernet Ports | • 1× 10 Gbps WAN |
| • 1× 10 Gbps LAN | |
| • 4× 1 Gbps LAN | |
| USB Support | 2× USB 3.0 |
| • Supported Partition Formats: | |
| NTFS, exFAT, HFS+, FAT32 | |
| • Supported Functions: | |
| FTP Server | |
| Media Server | |
| Samba Server | |
| SOFTWARE | |
| Protocols | • IPv4 |
| • IPv6 | |
| Service Kit | HomeShield |
| Learn More> | |
| Parental Controls | HomeShield Parental Controls |
| Custom Profiles | |
| Professional Content Filter Library | |
| Family Time | |
| Bedtime | |
| Off Time | |
| Time Rewards | |
| Family Online Time Ranking | |
| Pause the Internet | |
| Weekly and Monthly Reports | |
| WAN Type | • Dynamic IP |
| • Static IP | |
| • PPPoE | |
| • PPTP | |
| • L2TP | |
| Cloud Service | • Auto Firmware Upgrade |
| • TP-Link ID | |
| • DDNS | |
| NAT Forwarding | • Port Forwarding |
| • Port Triggering | |
| • DMZ | |
| • UPnP | |
| IPTV | • IGMP Proxy |
| • IGMP Snooping | |
| • Bridge | |
| • Tag VLAN | |
| DHCP | • Address Reservation |
| • DHCP Client List | |
| • Server | |
| DDNS | • TP-Link |
| • NO-IP | |
| • DynDNS | |
| Management | • Tether App |
| • Webpage | |
| PHYSICAL | |
| Dimensions (W×D×H) | 4.1 × 11.7 × 10.4 in |
| (104.3 × 297 × 264.5 mm) | |
| Package Contents | Wi-Fi 7 Router Archer BE805 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
