Description
Archer NX200
5G AX1800 Wireless Dual-Band Gigabit Router
• Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
• AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
• Plug & Play - Enjoy 5G network right after inserting a SIM card.
• EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
• Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Specifications:

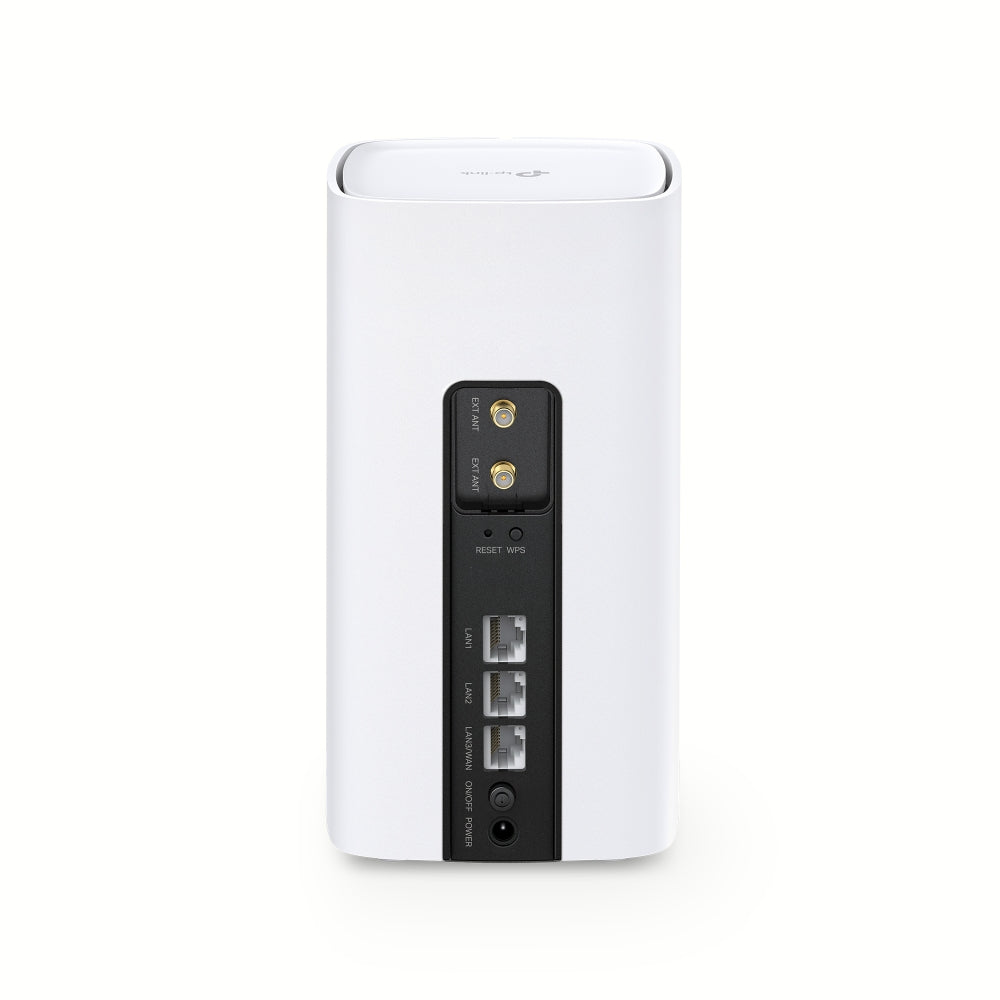

| Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × 5G/4G External Antenna Ports |
| Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
| Antenna | 8 × 5G/LTE Internal Antennas |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5GHz： 11a 54M：-80 dBm 11ax HE20：-68 dBm 11ax HE40：-65 dBm 11ax HE80：-62 dBm 11ac VHT20：-76 dBm 11ac VHT40：-72 dBm 11ac VHT80：-68 dBm 11n HT20：-79 dBm 11n HT40：-75 dBm 2.4GHz 11g 54M：-78 dBm 11ax HE20：-65 dBm 11ax HE40：-62 dBm 11ac VHT20：-73 dBm 11ac VHT40：-68 dBm 11n HT20：-75 dBm 11n HT40：-72 dBm |
| Transmit Power | <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless |
| WAN Failover | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Quality of Service | Prioritizes network traffic by device or application |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, |
| Protocols | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Guest Network | 2.4 GHz Guest Network x 1 5 GHz Guest Network x 1 |
| Certification | CE, RoHS |
| Package Contents | 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
