Description

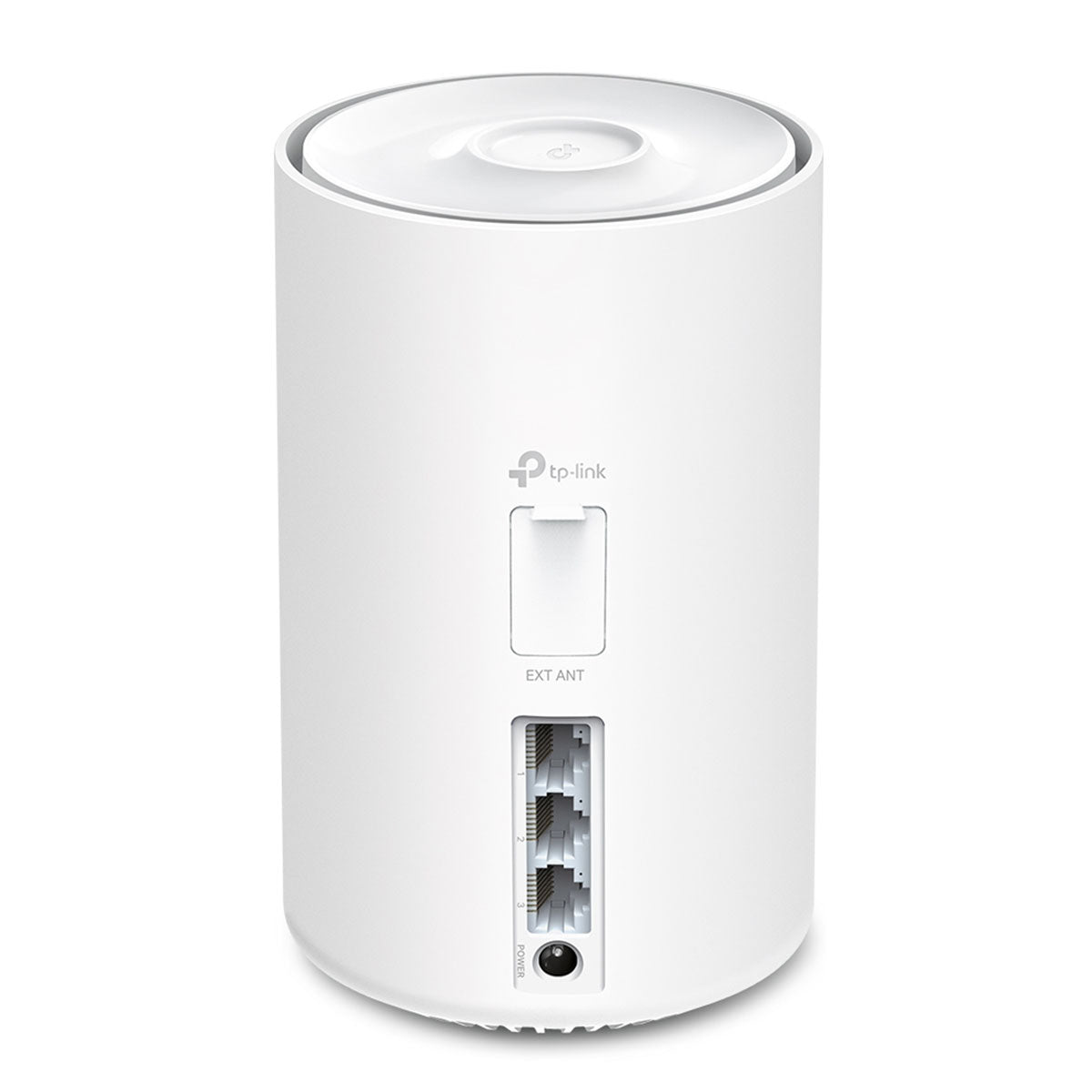

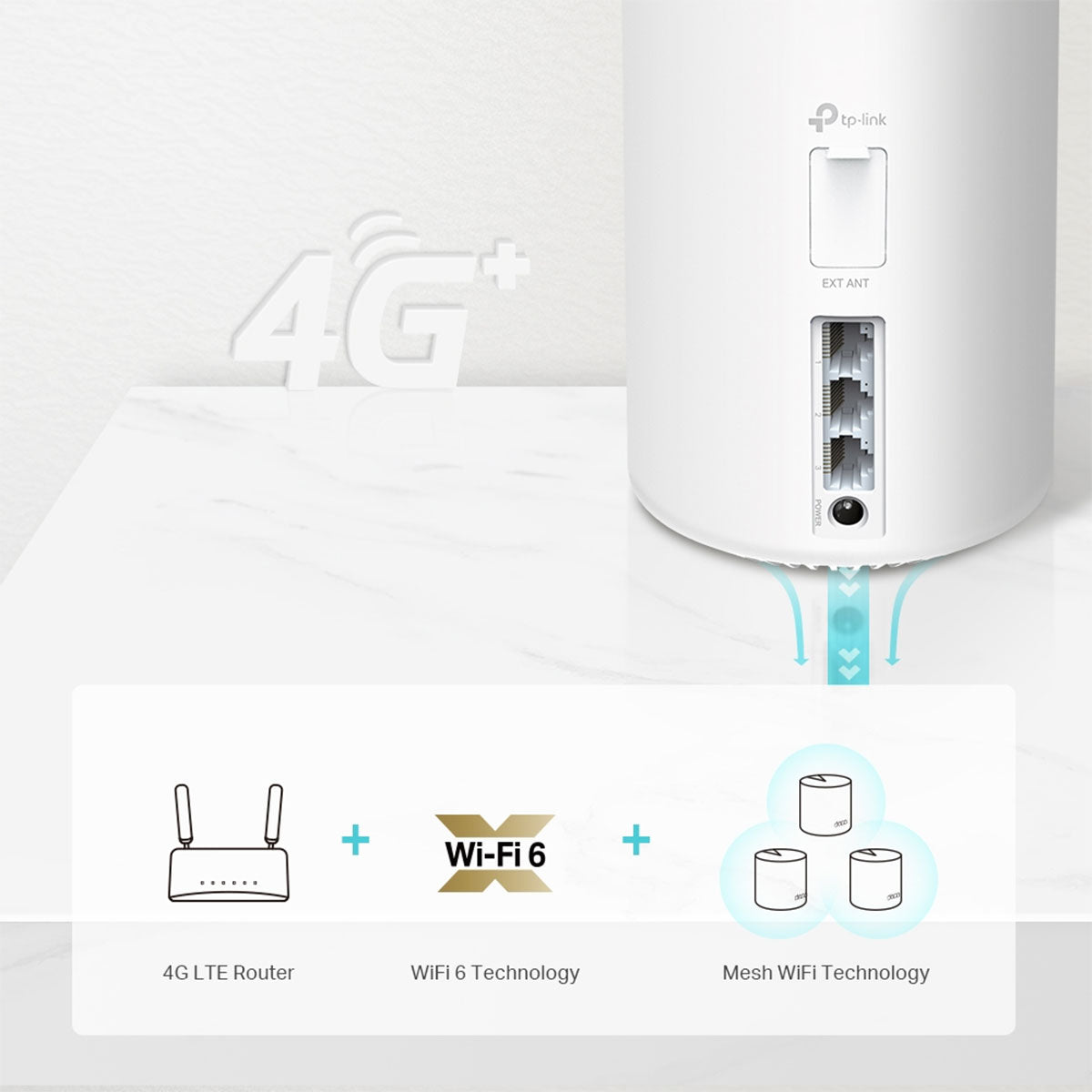

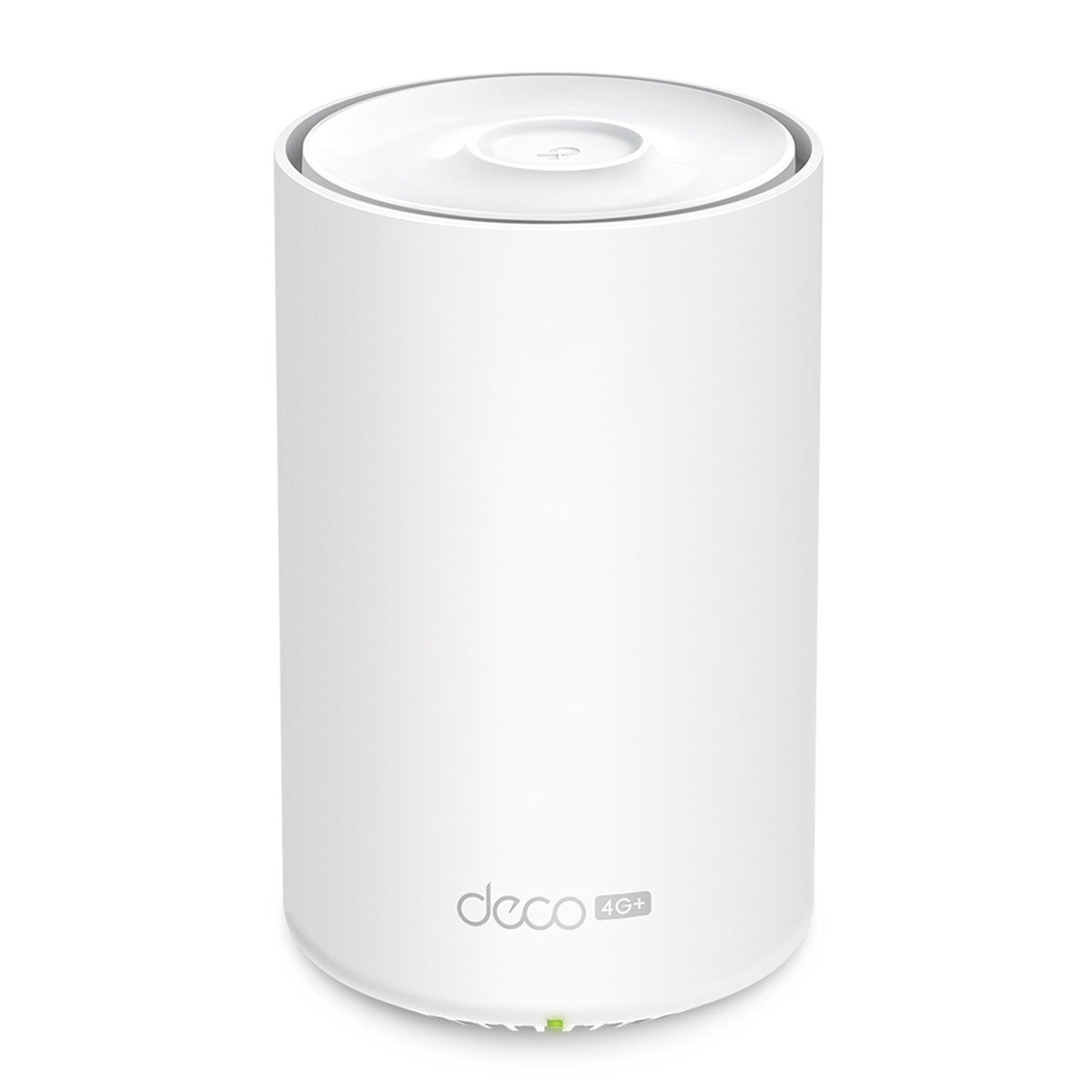

4G+ AX1800 Whole Home Mesh WiFi 6 Gateway (Availability based on region)
- Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access
- Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology†
- Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
- TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports§
- 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss
SPECIFICATION
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity |
High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
| Working Modes | 3G/4G, Router, Access Point |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| HARDWARE | |
|---|---|

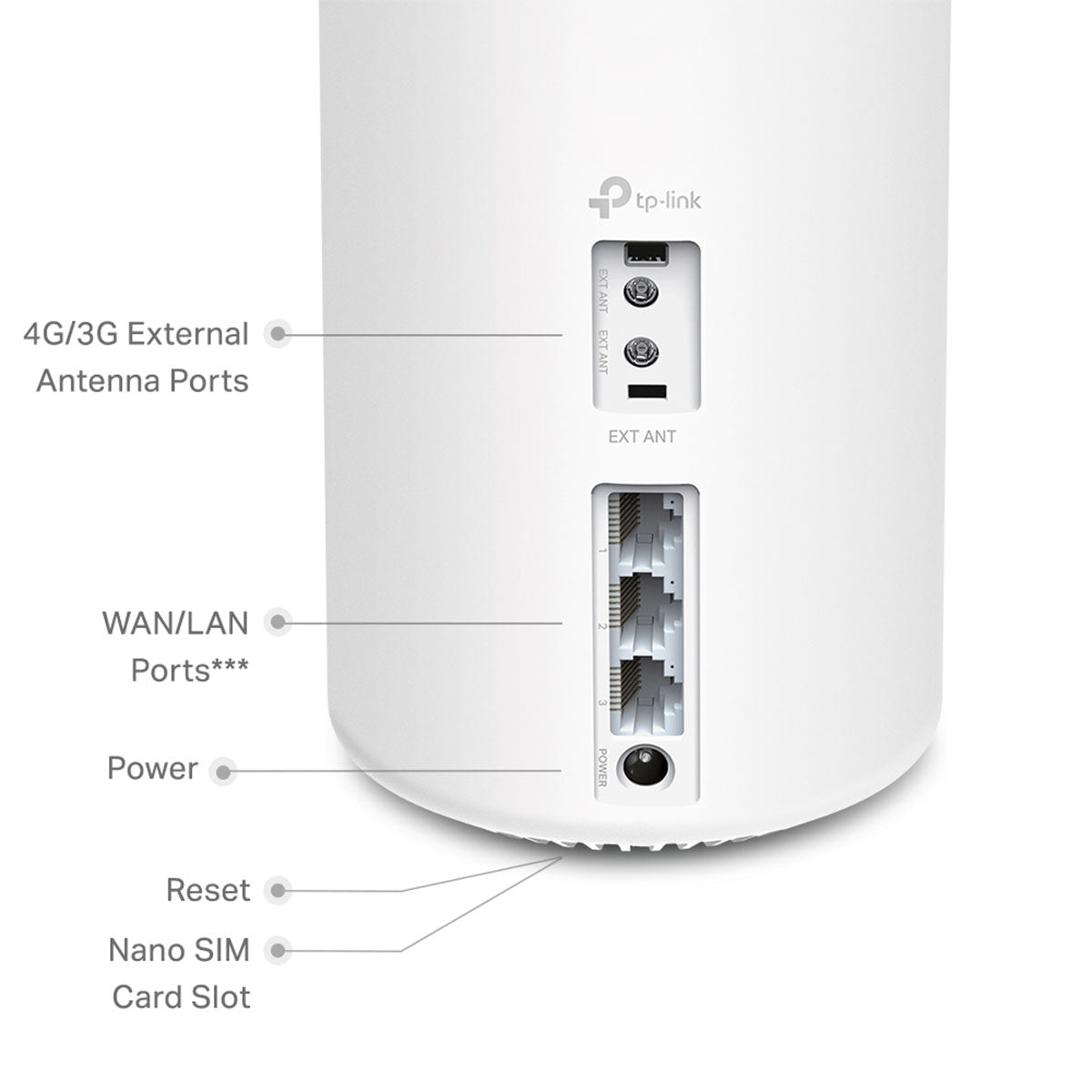

| Ethernet Ports | 3× Gigabit Ports Supports WAN/LAN auto-sensing |
| Buttons | RESET Button |
| Ports and Connections | 2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters) SIM Card Format: Nano-SIM Compatibility 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/80 0/700 MHz) TDD-LTE: B38/B40/B41(2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz) Carrier Aggregation: B1+B3/B5/B7/B8/B20 B3+B1/B3/B5/B7/B8/B20/B28/B38/B40 B5+B1/B3/B5/B7/B40 B7+B1/B3/B5/B7/B8/B20/B28 B8+B1/B3/B7 B20+B1/B3/B7 B28+B3/B7/B40 B38+B38 B40+B40 B41+B41 |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kit | HomeShield |
| WAN Types | Dynamic IP Static IP PPPoE L2TP PPTP |
| Quality of Service |
HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents |
1-pack 1 Deco X20-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide 2 SMB to SMA Adapters 2-pack 1 Deco X20-4G unit + 1 Deco X20 unit 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters 3-pack 1 Deco X20-4G units + 2 Deco X20 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH |
