Description

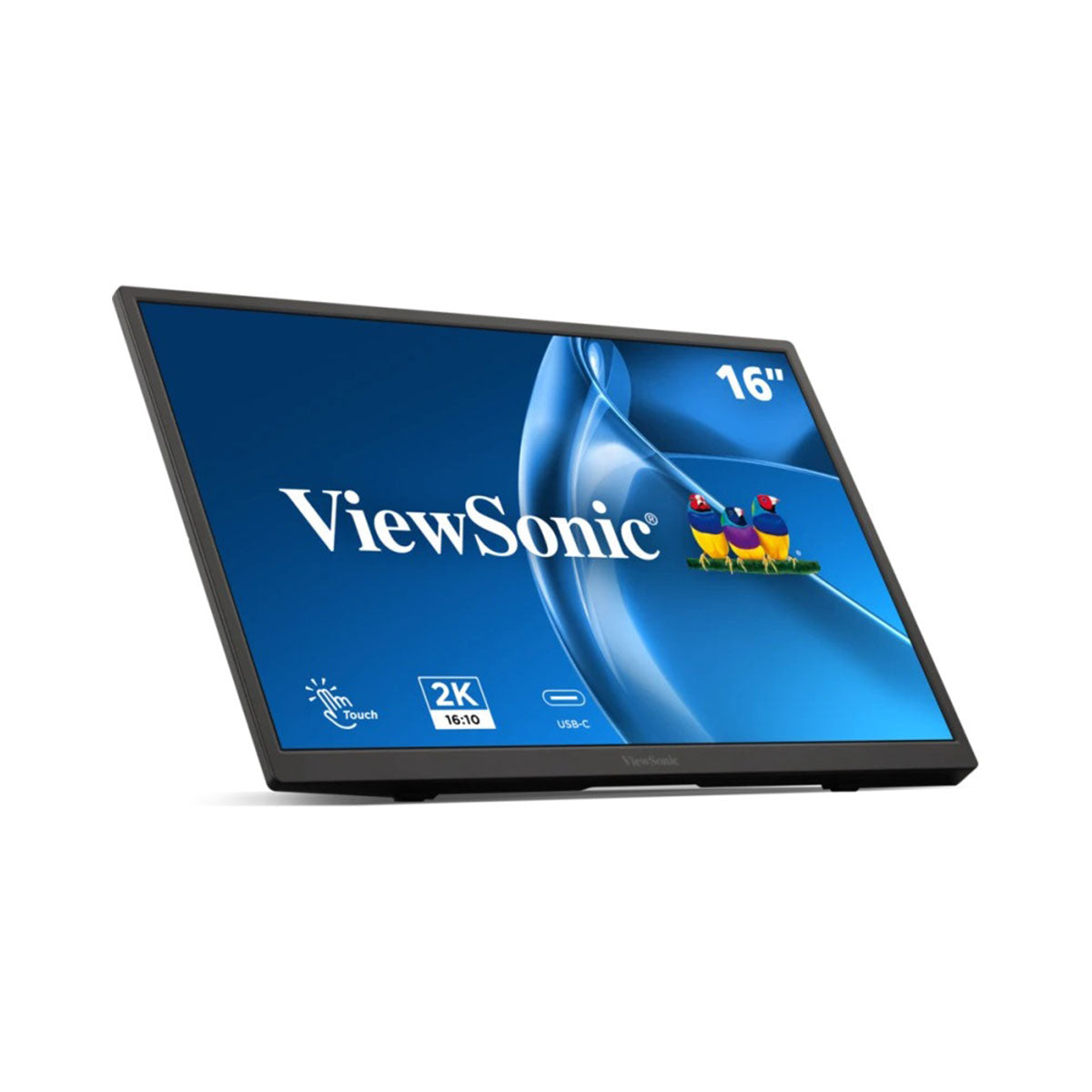

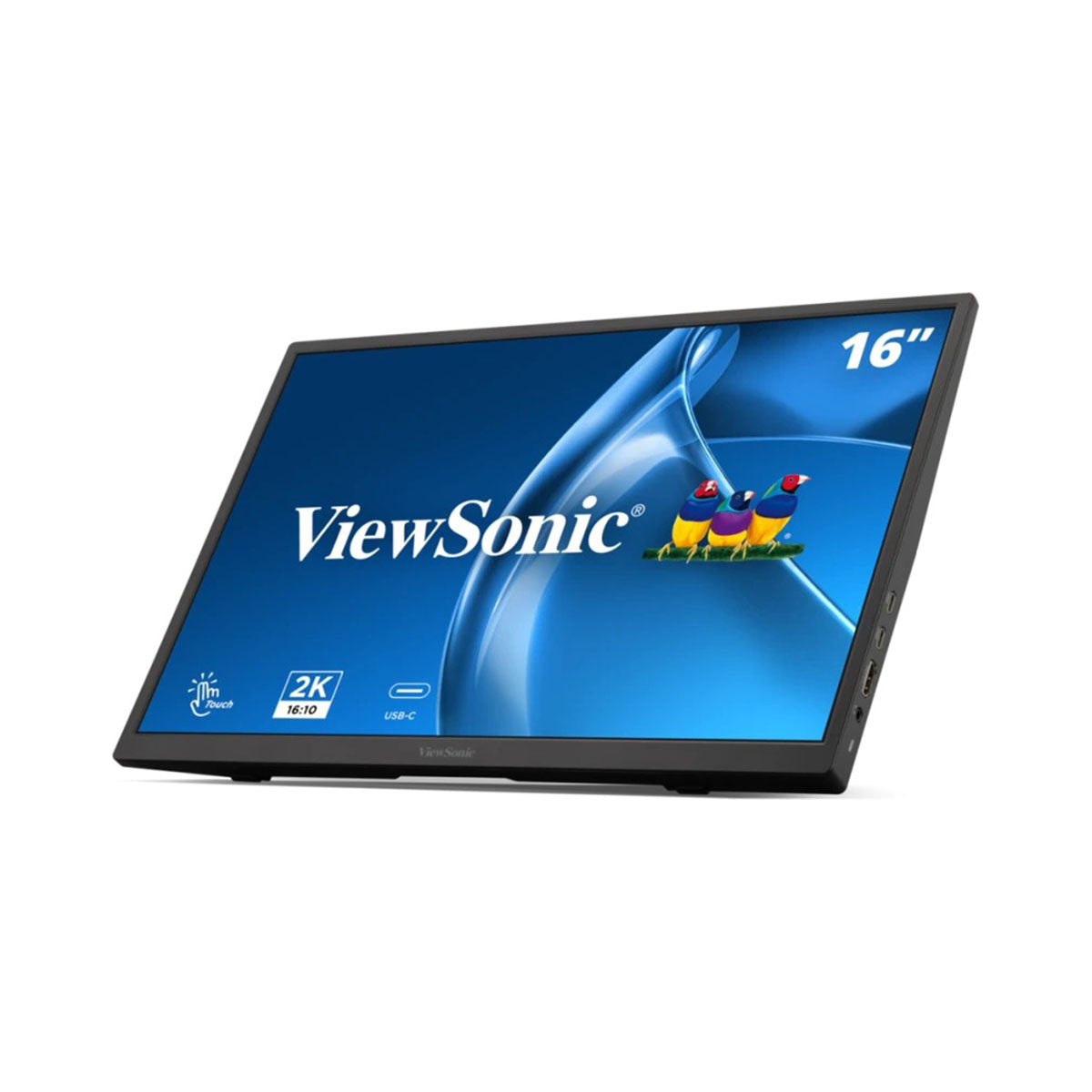

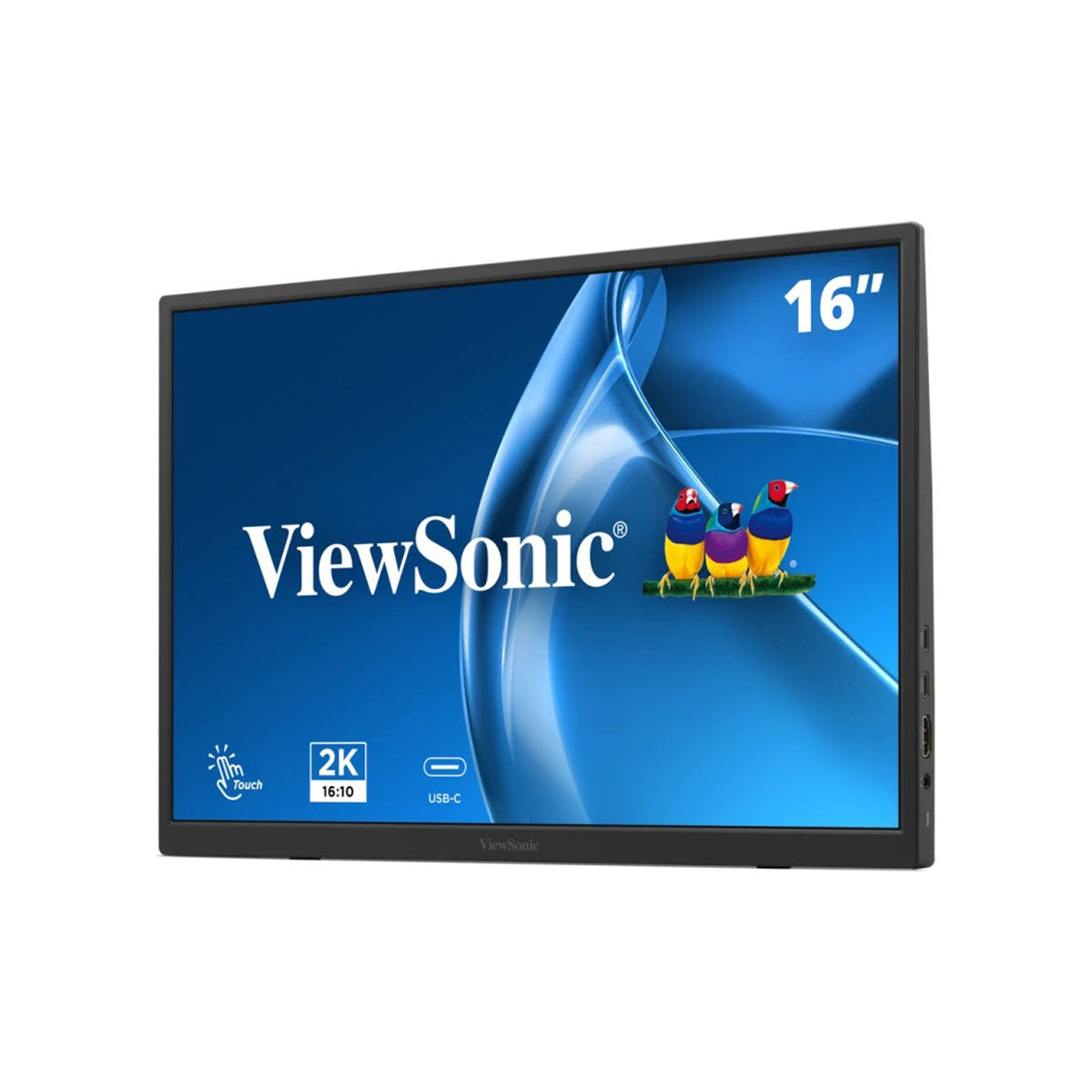

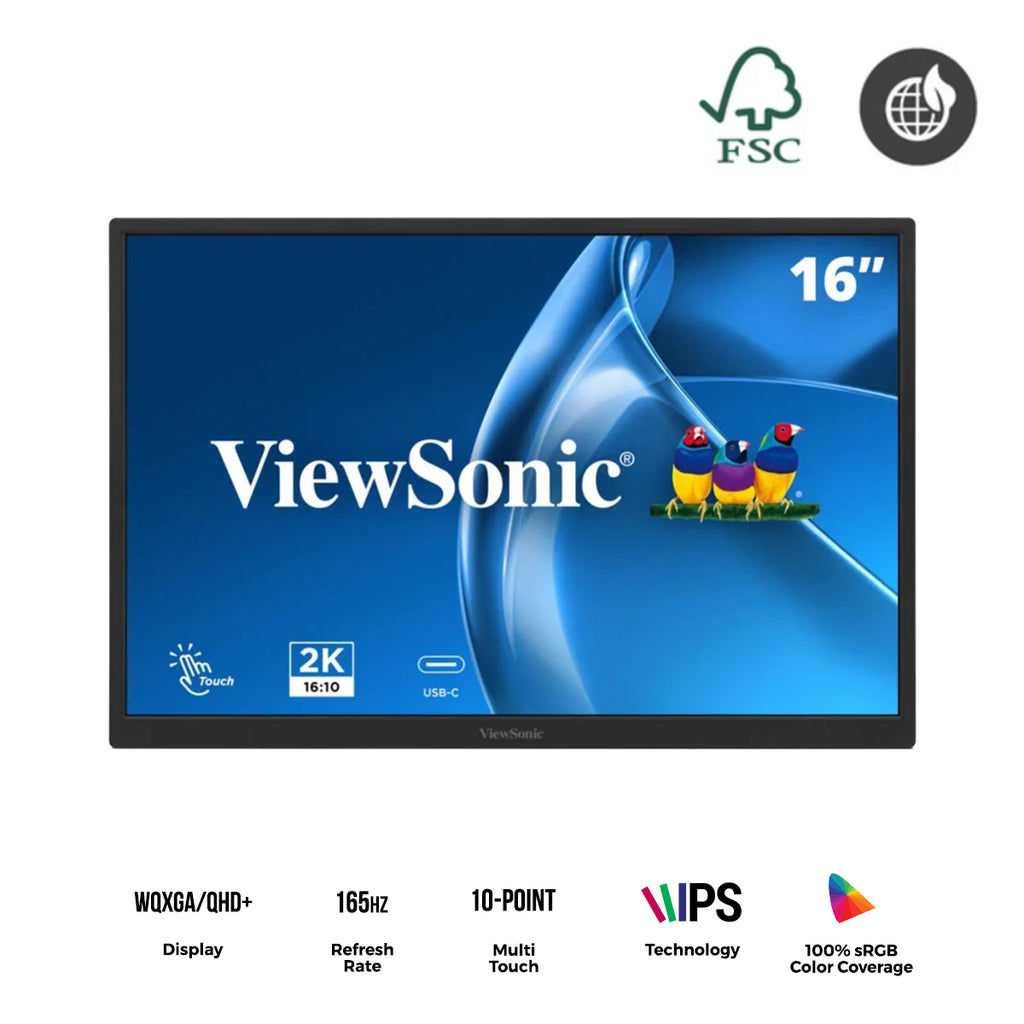

The TD1617A-2K is a 16” WQXGA (2560x1600) portable touch monitor designed for flexible work and entertainment. Its 16:10 WQXGA display offers extra vertical screen space for efficient multitasking, while 100% sRGB coverage delivers vivid, true-to-life colors. A 165Hz refresh rate provides smoother motion and improved visual clarity for dynamic content and fast-moving scenes. With 10-point multitouch support and USB-C connectivity for power, video, audio, and data, the monitor enables a clean and intuitive setup. Compact and versatile with a built-in adjustable stand, the TD1617A-2K delivers productivity and performance for professionals, creatives, and gamers.
- 16:10 WQXGA (2560x1600) with 100% sRGB coverage
- 2K WQXGA resolution enhances screen mapping for extended displays
- 10-point multitouch* technology provides intuitive screen control
- USB-C one-cable solution for multimedia transfer, touch signal transmission, and power charging

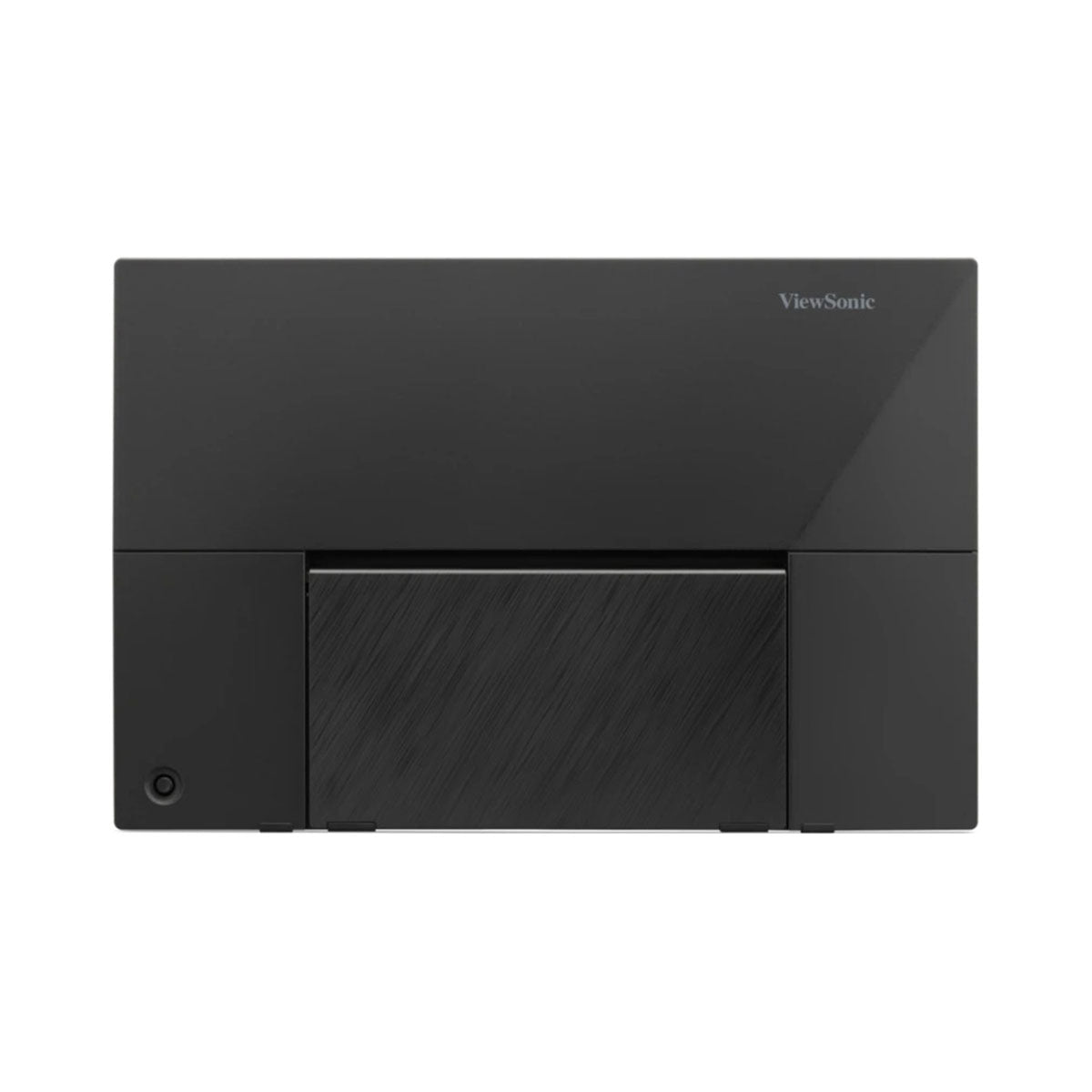

- Built-in adjustable stand for comfortable viewing
- *To enable the touch function on macOS, please download vTouch






Specification:
| Display | Specification |
|---|---|
| Display Size (in.) | 16 |
| Viewable Area (in.) | 16 |
| Panel Type | IPS Technology |
| Resolution | 2560 x 1600 |
| Resolution Type | WQXGA (Wide QXGA) |
| Static Contrast Ratio | 1,200:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 |
| Light Source | LED |
| Brightness | 300 cd/m² (typ) |
| Colors | 1064.3M |
| Color Space Support | 10 bit (8 bit + FRC) |
| Aspect Ratio | 16:10 |
| Response Time (Typical GTG) | 3ms |
| Response Time (GTG w/OD) | 2.994ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 15000 Hrs (Min) |
| Glass thickness | 0.663mm |
| Glass Hardness | ≧6H |
| Curvature | Flat |
| Refresh Rate (Hz) | 165 |
| Low Blue Light | Software solution |
| Color Gamut | NTSC: 76% size (Typ) sRGB: 107% size / 100% coverage (Typ) |
| Pixel Size | 0.135 mm (H) x 0.135 mm (V) |
| Touch Screen | Projected Capacitive, 10-point multi-touch |
| Surface Treatment | Glossy, Hard Coating (≧6H) |
| Cover Glass Thickness | 0.663mm |
| Compatibility | |
| PC Resolution (max) | 2560x1600 |
| Mac® Resolution (max) | 2560x1600 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) | 2560x1600 |

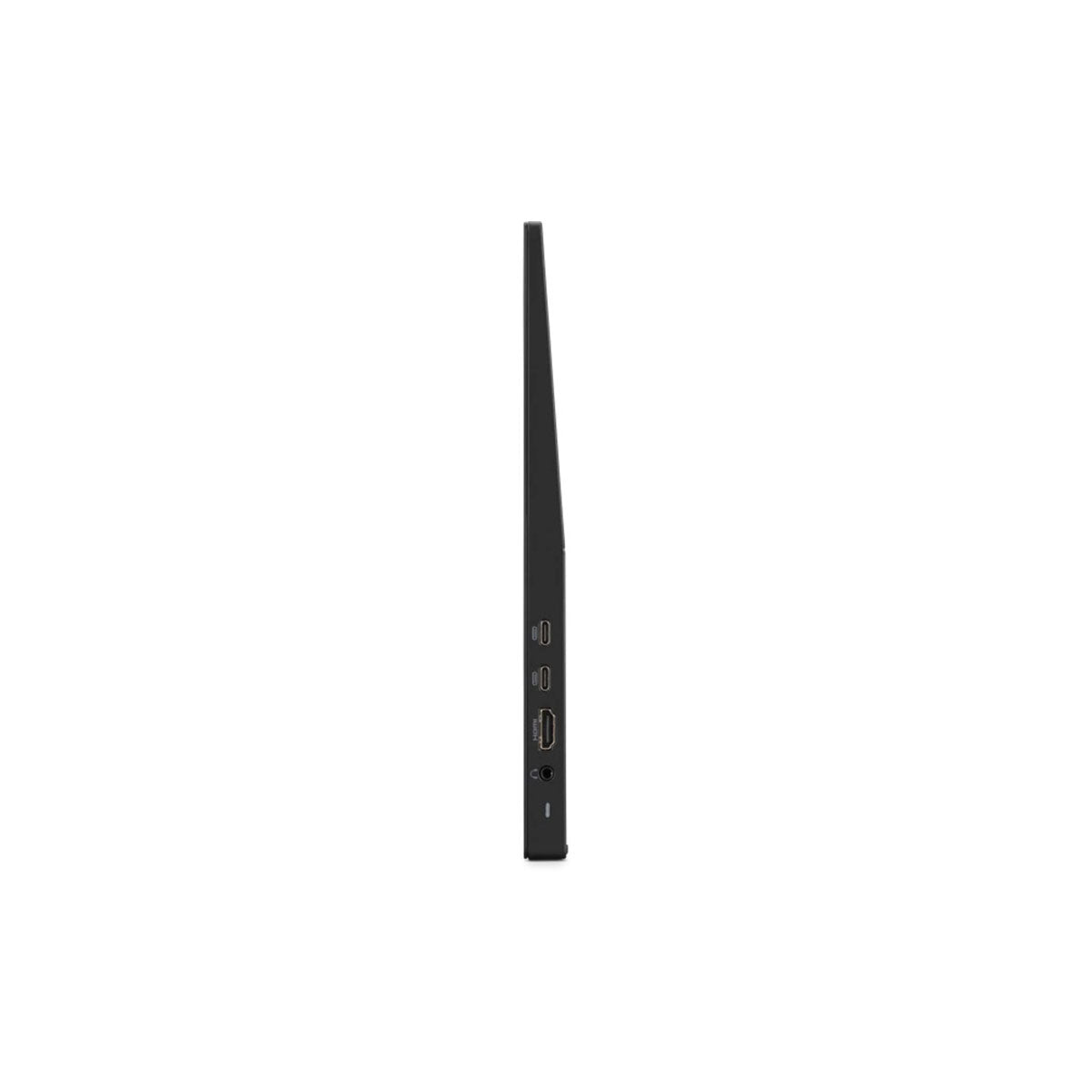

| Connector | |
| USB 3.2 Type C DisplayPort Alt mode only : | 2 (60W power charger) |
| 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| Power in | USB Type C (with video & data) |
| Audio | |
| Internal Speakers | 0.8Watts x2 |
| Power | |
| Eco Mode (Conserve) | 7.5W |
| Eco Mode (optimized) | 8.5W |
| Consumption (typical) | 9.3W |
| Consumption (max) | 10.3W |
| Voltage | DC 5V/9V/12V/15V/20V |
| Stand-by | 0.5W |
| Power Supply | External (Optional) |
| Controls | |
| Physical Controls | Up, Right, Down, Left, Power |
| On Screen Display | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Conditions | |
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) | 20% to 90% |
| Input Signal | |
| Frequency Horizontal | HDMI (v1.4): 15 \~ 200KHz, Type C: 30 \~ 510KHz |
| Frequency Vertical | HDMI (v1.4): 48 \~ 120Hz, Type C: 48 \~ 165Hz |
| Video Input | |
| Digital Sync | TMDS - HDMI (v1.4), Micro-Packet - Type C |
| Ergonomics | |
| Tilt (Forward/Back) | 20º / 60º |
| Weight (imperial) | |
| Net (lbs) | 1.8 |
| Net Without Stand (lbs) | 1.8 |
| Gross (lbs) | 3.5 |
| Weight (metric) | |
| Net (kg) | 0.8 |
| Net Without Stand (kg) | 0.8 |
| Gross (kg) | 1.6 |
| Dimensions (imperial) (wxhxd) | |
| Packaging (in.) | 17.6 x 12.1 x 2.9 |
| Physical (in.) | 14.18 x 9.41 x 0.63 |
| Physical Without Stand (in.) | 14.18 x 9.41 x 0.63 |
| Dimensions (metric) (wxhxd) | |
| Packaging (mm) | 448 x 307 x 74 |
| Physical (mm) | 360.26 x 239.09 x 16 |
| Physical Without Stand (mm) | 360.26 x 239.09 x 16 |
