Description
Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode.
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge (up to 60W) over one cable while powering from an external power bank/outlet over the other USB Type C cable.
Touch Feedback Control
Control in a large screen with touch gives more intuitive and efficient reactions. The attached magnetic touch pen allows you to draw and write notes without leaving fingerprints.
Portable Size for Work & Fun
Larger, 16” display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.
Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.

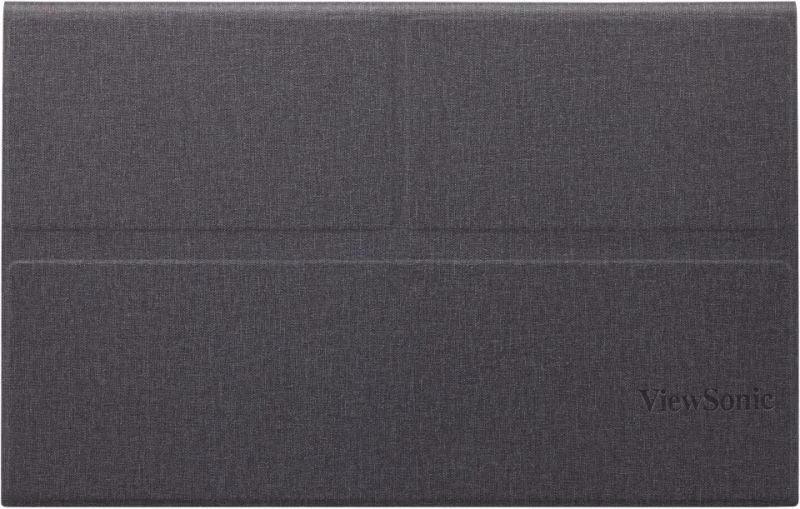

Magnetic Cover and Mat
Avoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away.
Robust One-piece Design
With the metal case and endurable hinge, the fold-able aluminum stand makes the whole monitor a one-piece design.
Anti-scratch Touch Screen
Built-in 6H hardness screen, it’s resistant to surface damage, even if accidently scratched by your keys.
- Easily extend your content from laptops and mobile devices
- One-cable solution for audiovisual, power, and touch signal transmission
- Flexible display setup – work at any angle
- Compact size, light weight, and highly portable
- Sturdy and durable design
TECH SPECIFICATIONS:
|
Display
|
Display Size (in.): 16 |
| Viewable Area (in.): 15.6 | |
| Panel Type: IPS Technology | |
| Resolution: 1920 x 1080 | |
| Resolution Type: FHD | |
| Static Contrast Ratio: 800:1 (typ) | |
| Dynamic Contrast Ratio: 50M:1 | |
| Light Source: LED | |
| Brightness: 250 cd/m² (typ) | |
| Colors: 262K | |
| Color Space Support: 6 bit true | |
| Aspect Ratio: 16:9 | |
| Response Time (Typical GTG): 6.5ms | |
| Response Time (GTG w/OD): 6.599ms | |
| Response Time (Typical Tr+Tf): 30ms | |
| Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10 | |
| Backlight Life (Hours): 15000 Hrs (Min) | |
| Curvature: Flat | |
| Refresh Rate (Hz): 60 | |
| Blue Light Filter: Yes | |
| Color Gamut: NTSC: 45% size (Typ) sRGB: 64% size (Typ) | |
| Pixel Size: 0.179 mm (H) x 0.179 mm (V) | |
| Touch Screen: Projected Capacitive, 10-point multi-touch | |
| Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H) | |
| Cover Glass Thickness: 0.8mm | |
|
Compatibility
|
PC Resolution (max): 1920x1080 |
| Mac® Resolution (max): 1920x1080 | |
| PC Operating System: Windows 10/11 certified; macOS tested | |
| Mac® Resolution (min): 1920x1080 | |
|
Connector
|
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 |
| 3.5mm Audio Out: 1 | |
| Mini HDMI: 1 | |
| Power in: USB Type C (with video & data) | |
| Audio | Internal Speakers: 0.8Watts x2 |
|
Power
|
Eco Mode (Conserve): 6W |
| Eco Mode (optimized): 6.9W | |
| Consumption (typical): 8W | |
| Consumption (max): 8.3W | |
| Voltage: AC 100-240V | |
| Stand-by: 0.5W | |
| Power Supply: External Power Adaptor | |
|
Controls
|
Physical Controls: Up, Right, Down, Left, Power |
| On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu | |
|
Operating Conditions
|
Temperature: 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): 20% to 90% | |
|
Input Signal
|
Frequency Horizontal: 15 ~ 82KHz |
| Frequency Vertical: 50 ~ 75Hz | |
| Video Input | Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C |
| Ergonomics | Tilt (Forward/Back): 20º / 60º |
|
Weight (imperial)
|
Net (lbs): 2.1 |
| Net Without Stand (lbs): 2.1 | |
| Gross (lbs): 5.1 | |
|
Weight (metric)
|
Net (kg): 0.96 |
| Net Without Stand (kg): 0.96 | |
| Gross (kg): 2.3 | |
|
Dimensions (imperial) (wxhxd)
|
Packaging (in.): 17.3 x 11.3 x 3.5 |
| Physical (in.): 14 x 8.8 x 0.6 | |
| Physical Without Stand (in.): 14 x 8.8 x 0.6 | |
|
Dimensions (metric) (wxhxd)
|
Packaging (mm): 440 x 288 x 89 |
| Physical (mm): 355 x 223 x 16 | |
| Physical Without Stand (mm): 355 x 223 x 16 |
