OVERVIEW

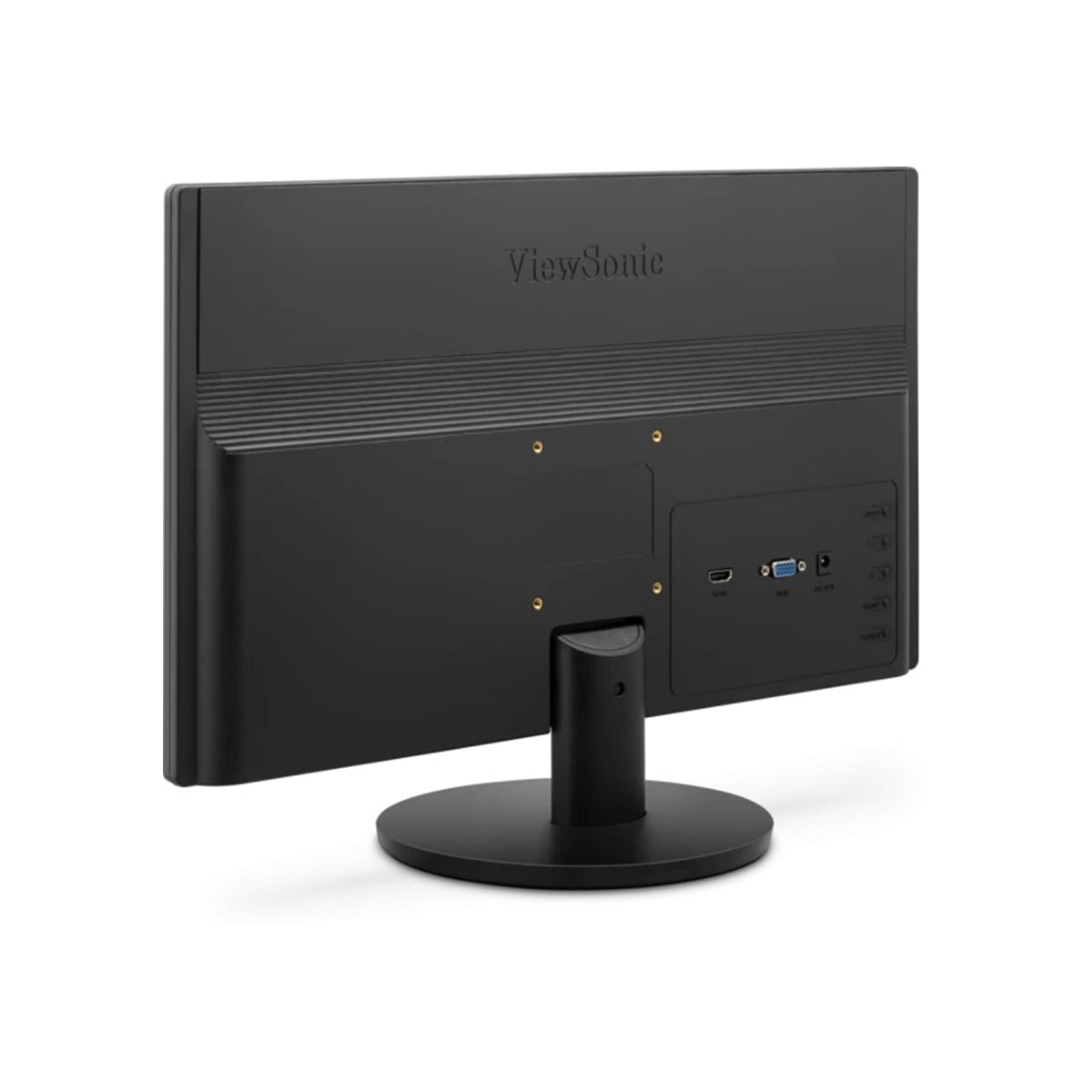

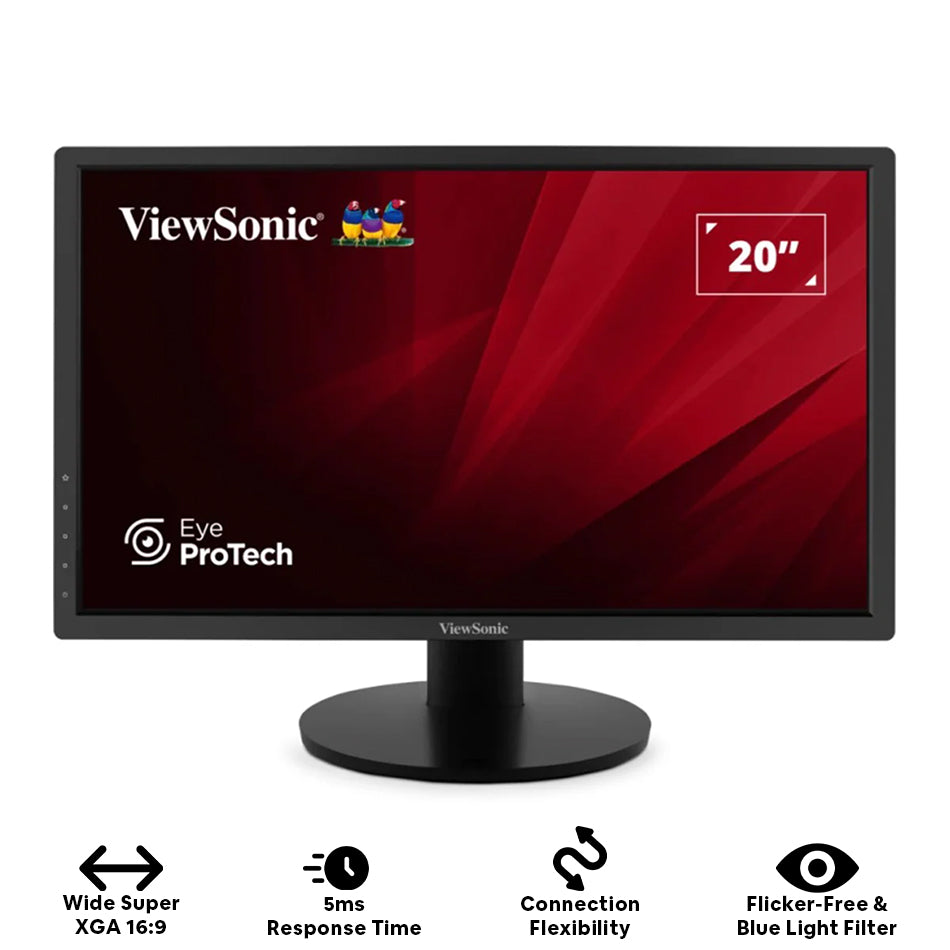

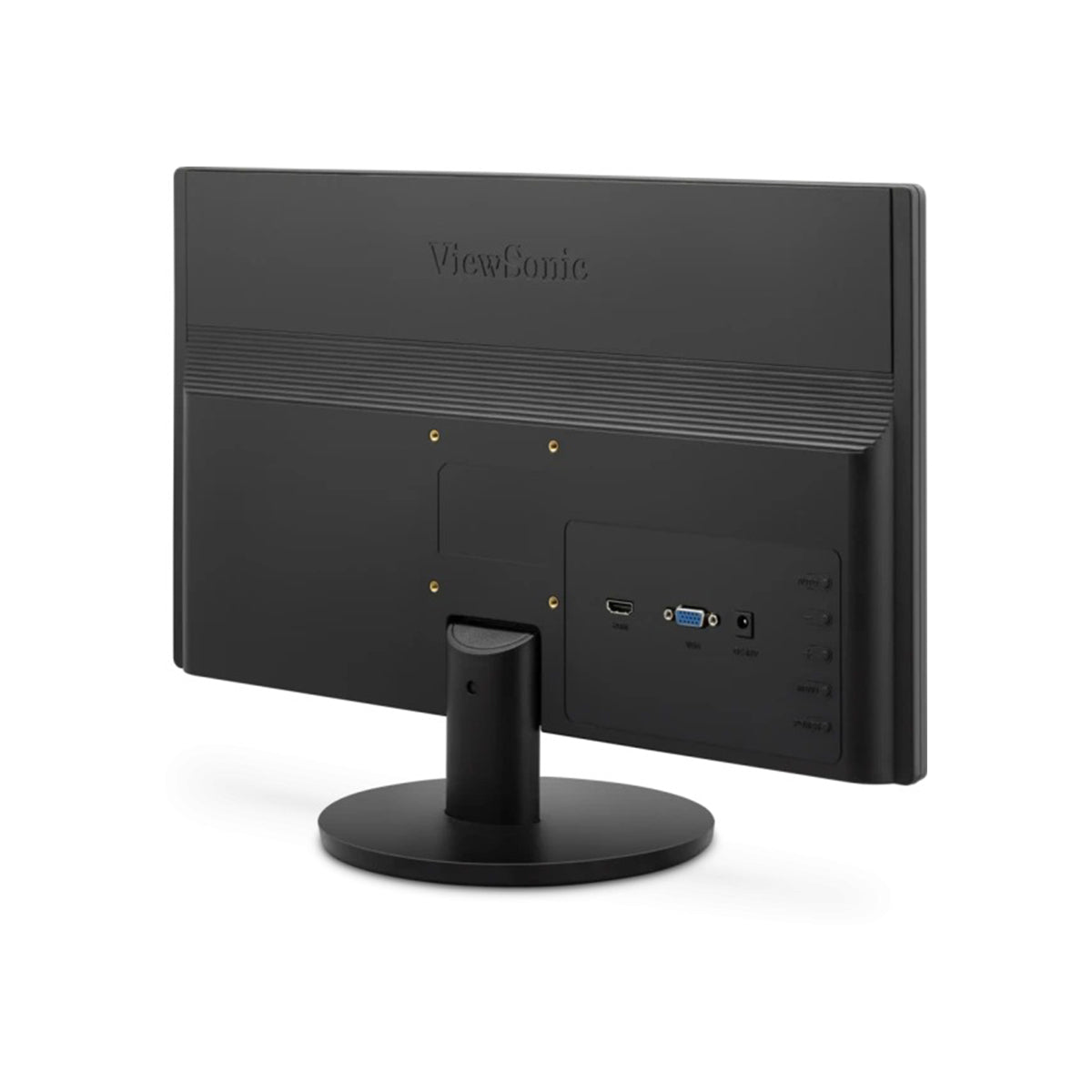

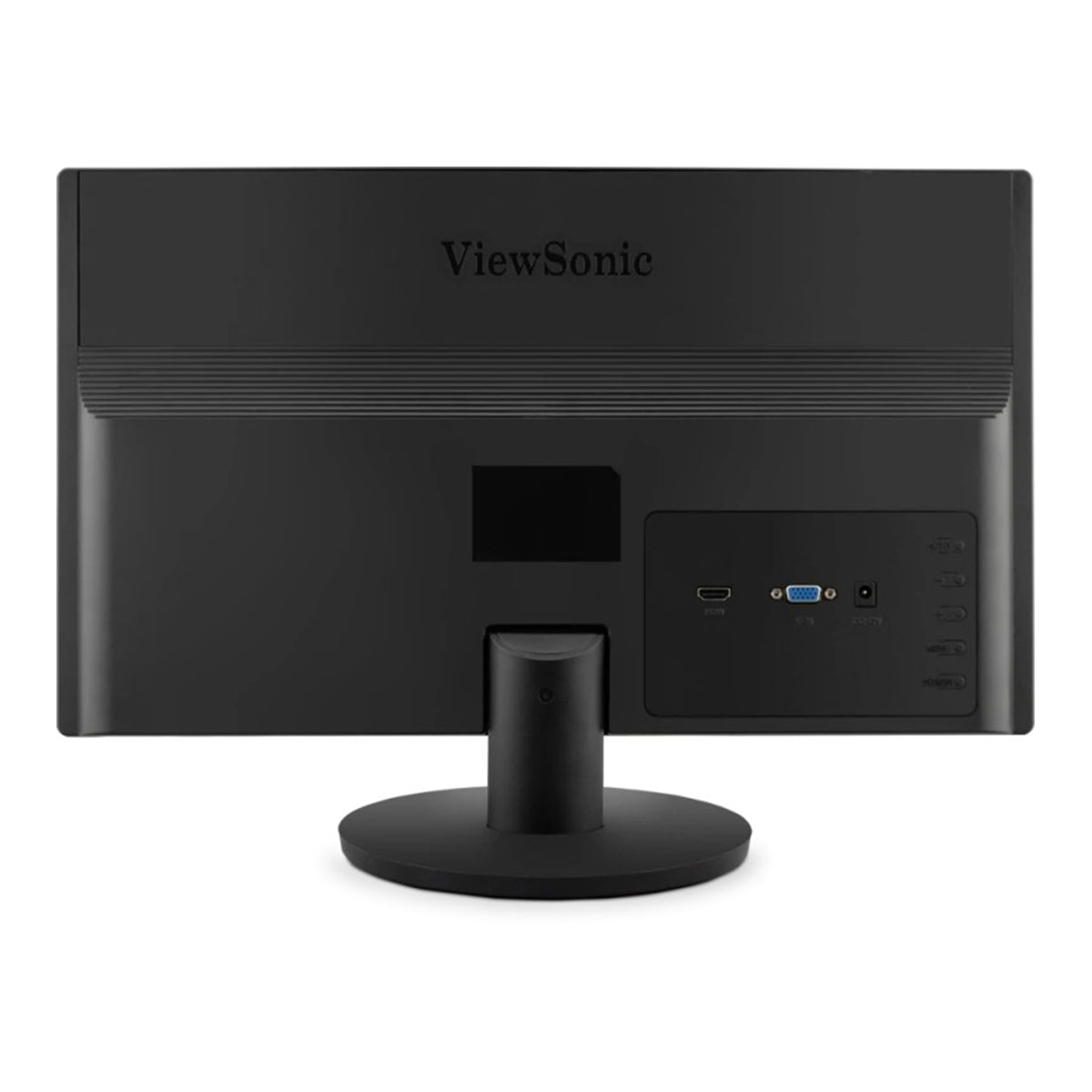

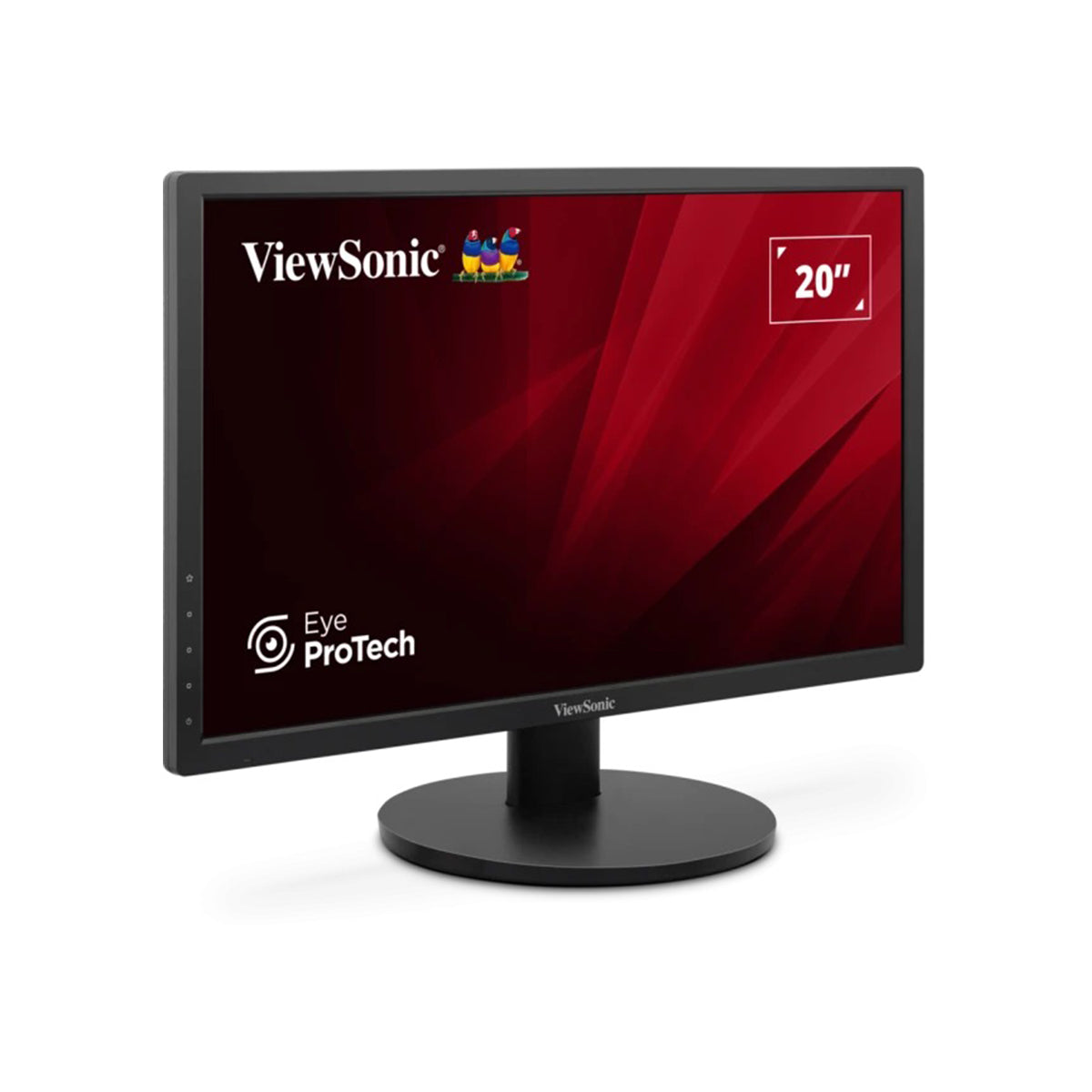

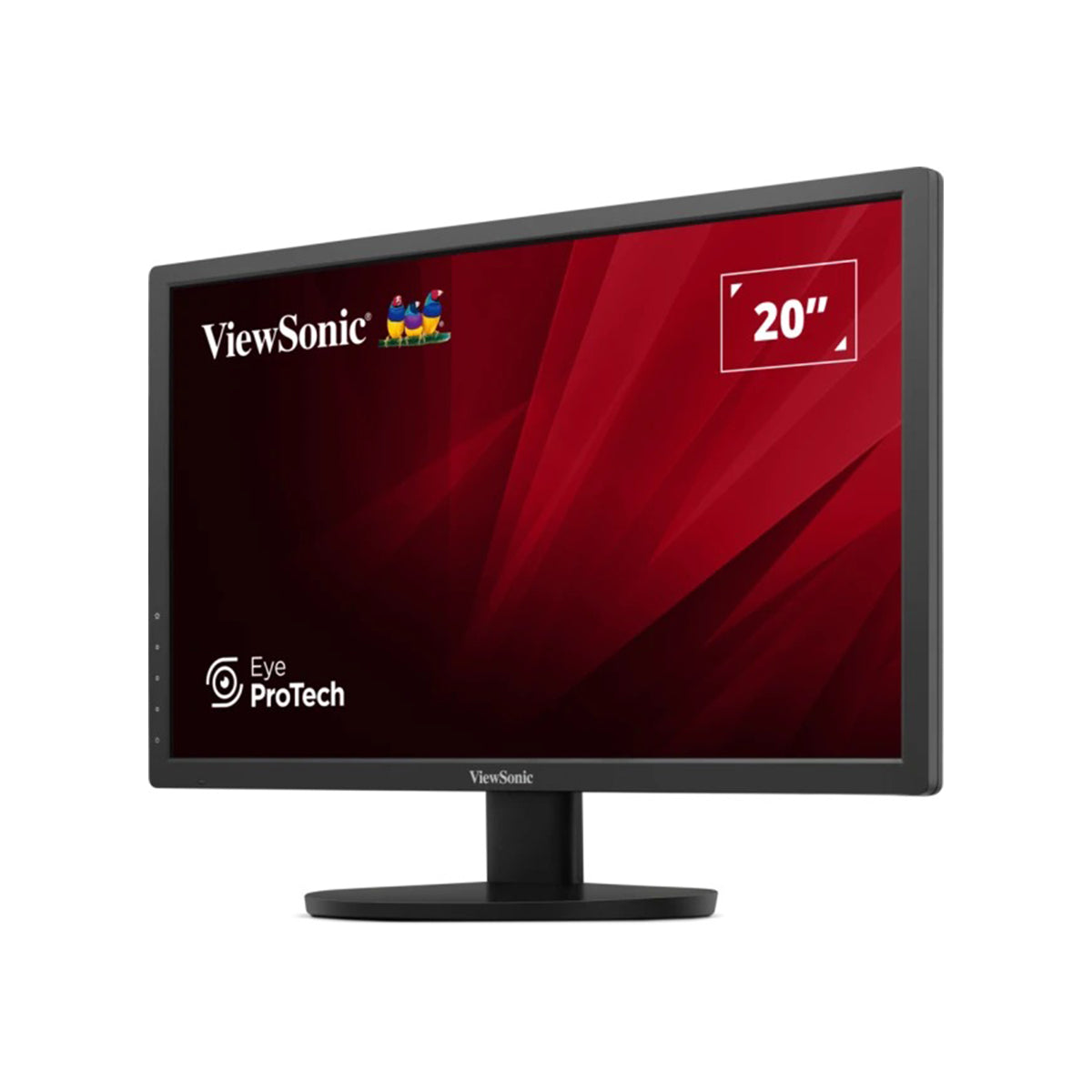

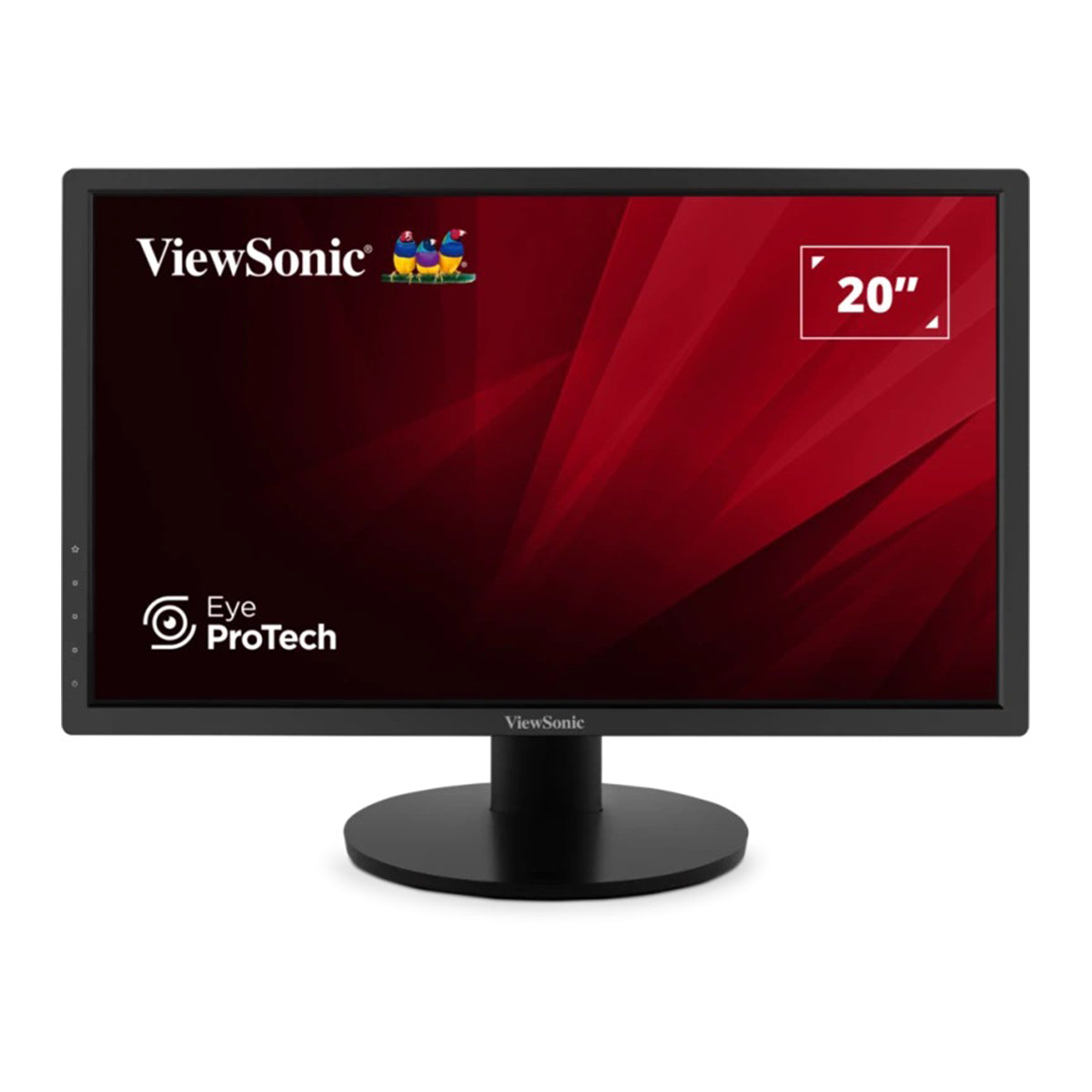

The ViewSonic VA2025-H is a 20” 1600 x 900 resolution monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing is delivered through Eye ProTech technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless visual experience on just one screen with a VESA-compatible mount at a low power consumption.
Specification:
| Display Size (in.) | 20 |
|---|---|
| Viewable Area (in.) | 19.5 |
| Panel Type | TN Technology |
| Resolution | 1600 x 900 |
| Resolution Type | WSXGA (Wide Super XGA) |
| Static Contrast Ratio | 600:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 |
| Light Source | LED |
| Brightness | 250 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8 bit (6 bit + FRC) |
| Aspect Ratio | 16:9 |
| Response Time (GTG) | 5ms |
| Viewing Angles | 90º horizontal, 65º vertical |
| Backlight Life | 30000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate | 60 Hz |
| Low Blue Light | Software solution |
| Flicker-Free | Yes |
| Color Gamut | NTSC: 72% (Typ), sRGB: 103% (Typ) |
| Pixel Size | 0.27 mm (H) x 0.266 mm (V) |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| PC Resolution (max) | 1600x900 |
| Mac® Resolution (max) | 1600x900 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) | 1600x900 |
| VGA | 1 |
| HDMI 1.4 | 1 |
| Power in | DC Socket (Center Positive) |
| Eco Mode (Conserve) | 11W |
| Eco Mode (optimized) | 14W |
| Consumption (typical) | 17W |
| Consumption (max) | 22W |
| Voltage | AC 100-240V |
| Stand-by | 0.3W |
| Power Supply | External Power Adaptor |
| Physical Controls | Key 1-5 (incl. power) |
| On Screen Display | Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 20% to 90% (non-condensing) |
| VESA Compatible | 75 x 75 mm |
| Frequency Horizontal | 24 ~ 83KHz |
| Frequency Vertical | 50 ~ 76Hz |
| Digital Sync | TMDS - HDMI (v1.4) |
| Analog Sync | Separate - RGB Analog |

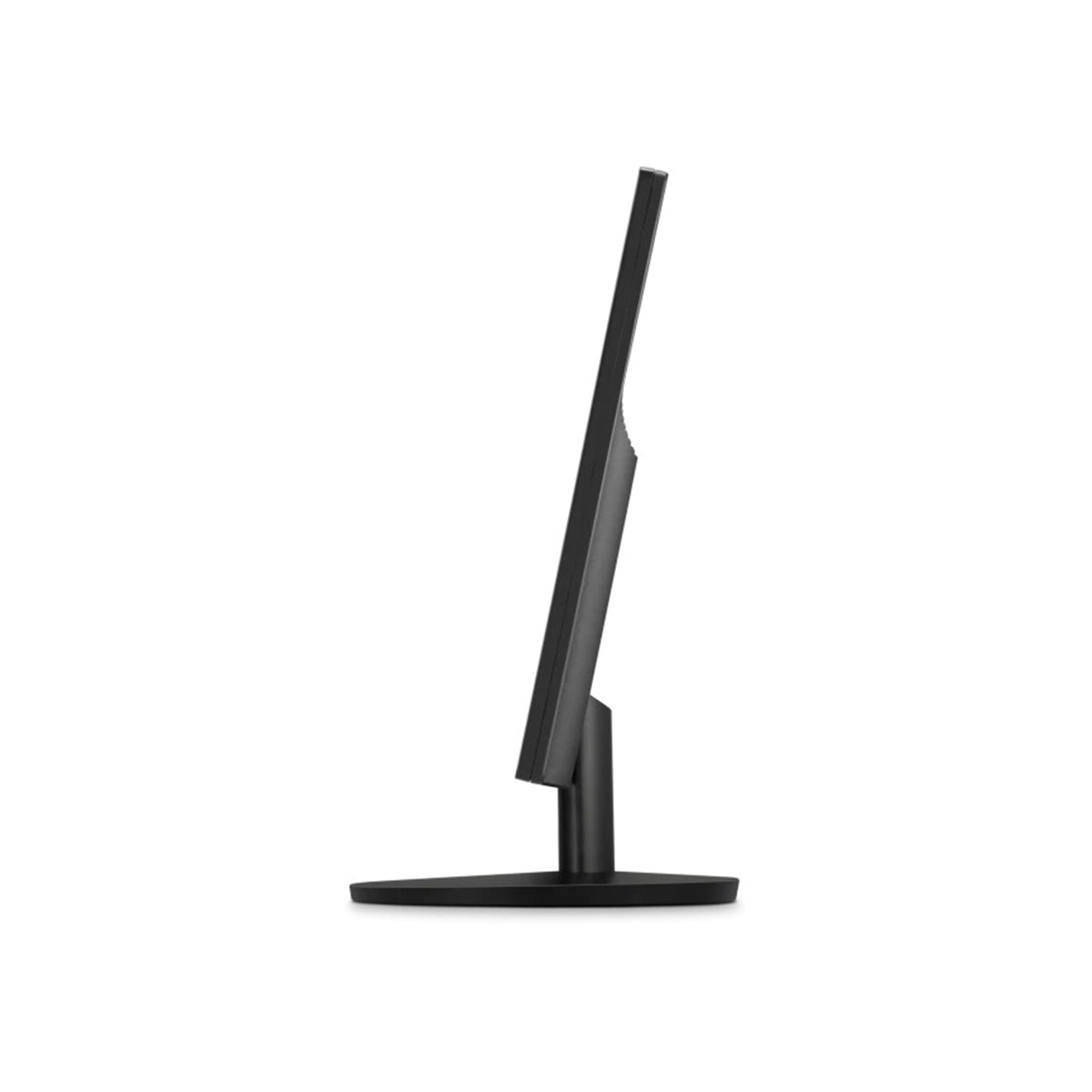

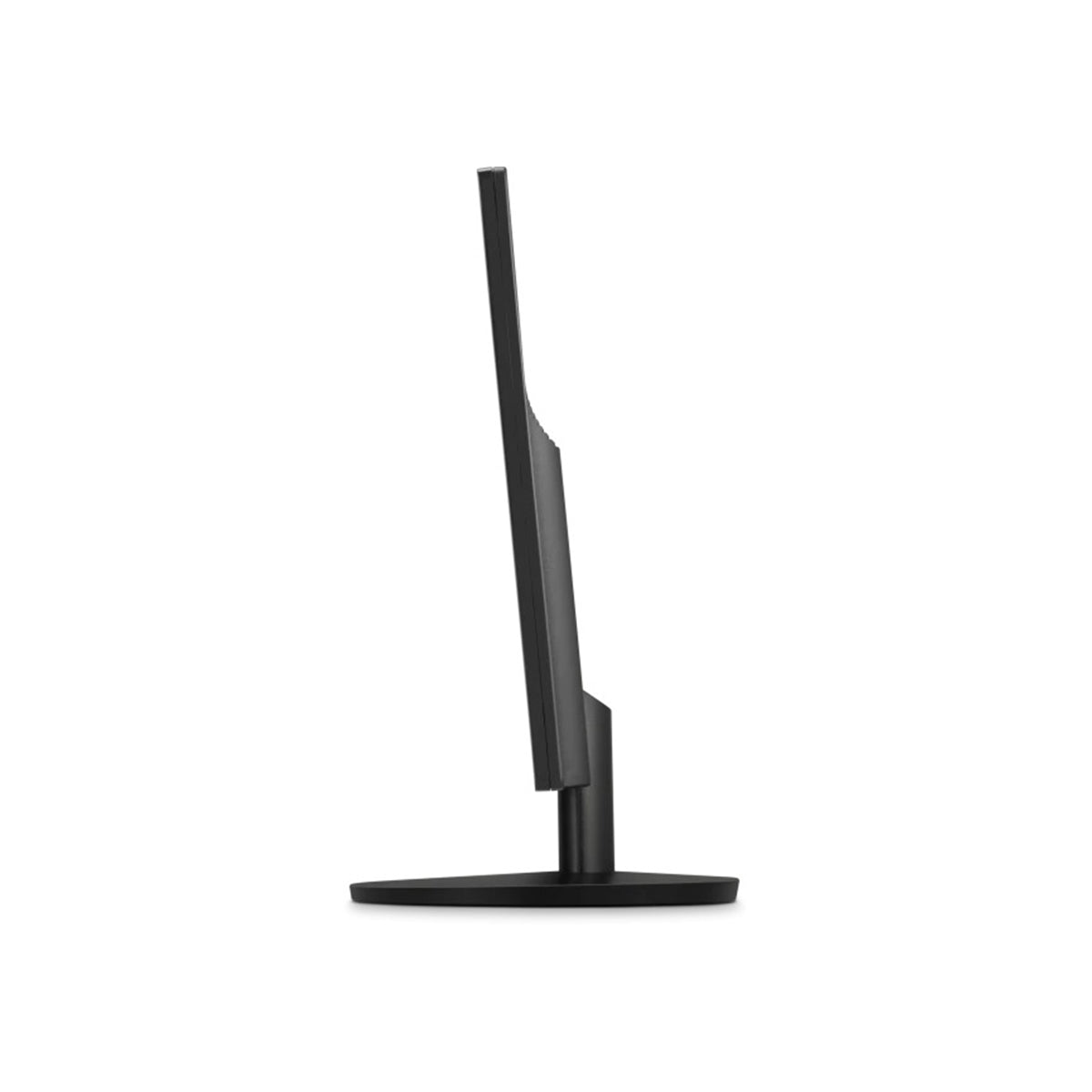

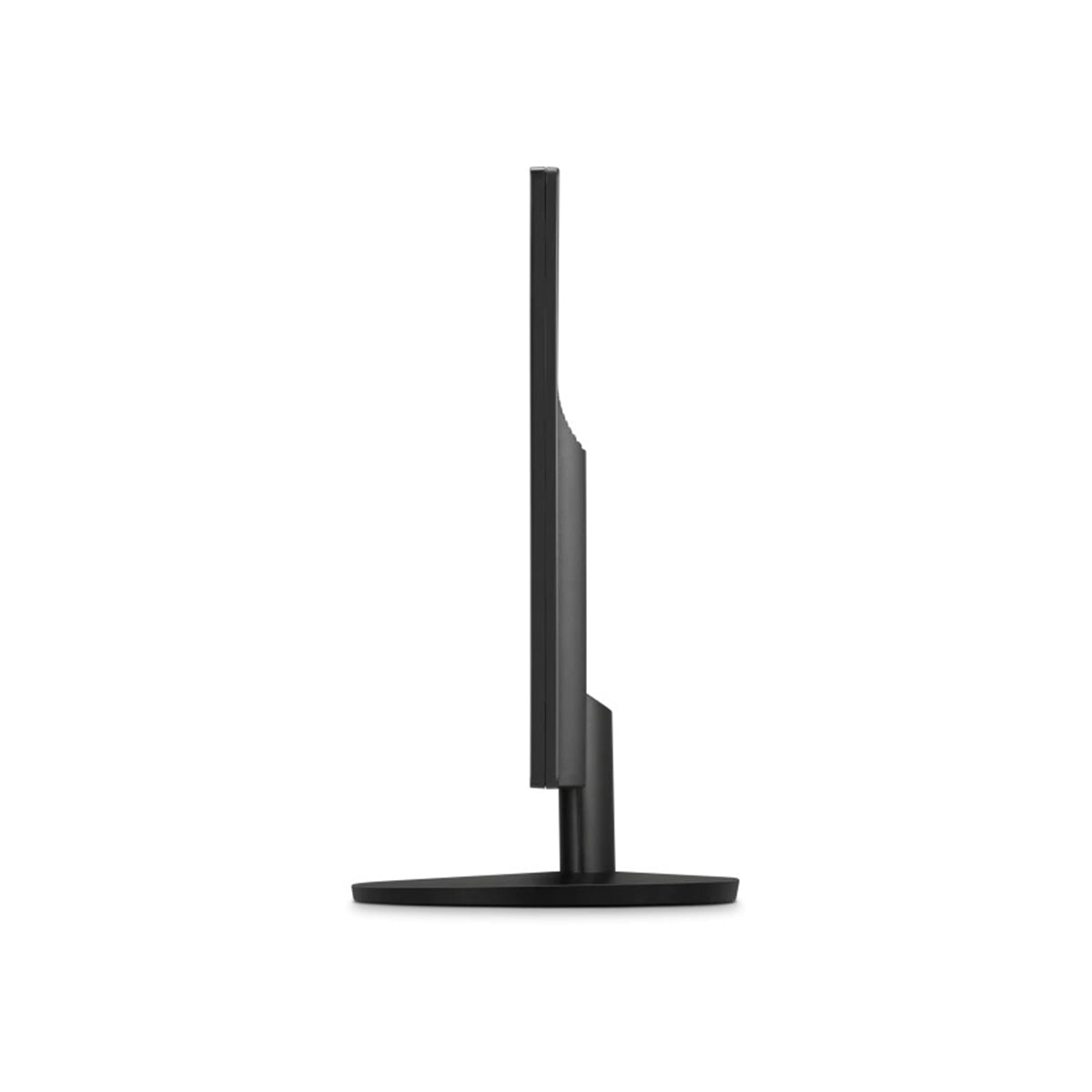

| Tilt | -4º / 14º |
| Weight (Net lbs) | 3.5 |
| Weight (Net w/o Stand lbs) | 3.1 |
| Weight (Gross lbs) | 5.3 |
| Weight (Net kg) | 1.6 |
| Weight (Net w/o Stand kg) | 1.4 |
| Weight (Gross kg) | 2.4 |
| Packaging (in.) | 20.5 x 13.2 x 3.9 |
| Physical (in.) | 18.24 x 12.93 x 7.66 |
| Physical w/o Stand (in.) | 18.24 x 10.6 x 1 |
| Packaging (mm) | 520 x 335 x 100 |
| Physical (mm) | 463.22 x 328.46 x 194.65 |
| Physical w/o Stand (mm) | 463.22 x 269.3 x 25.3 |
