Description
- SuperClear® IPS panel
- Full HD 1080p resolution
- 100Hz Variable refresh rate delivers fluid visuals
- 1ms (MPRT) response time for precision
- Eye ProTech for comfortable viewing
OVERVIEW

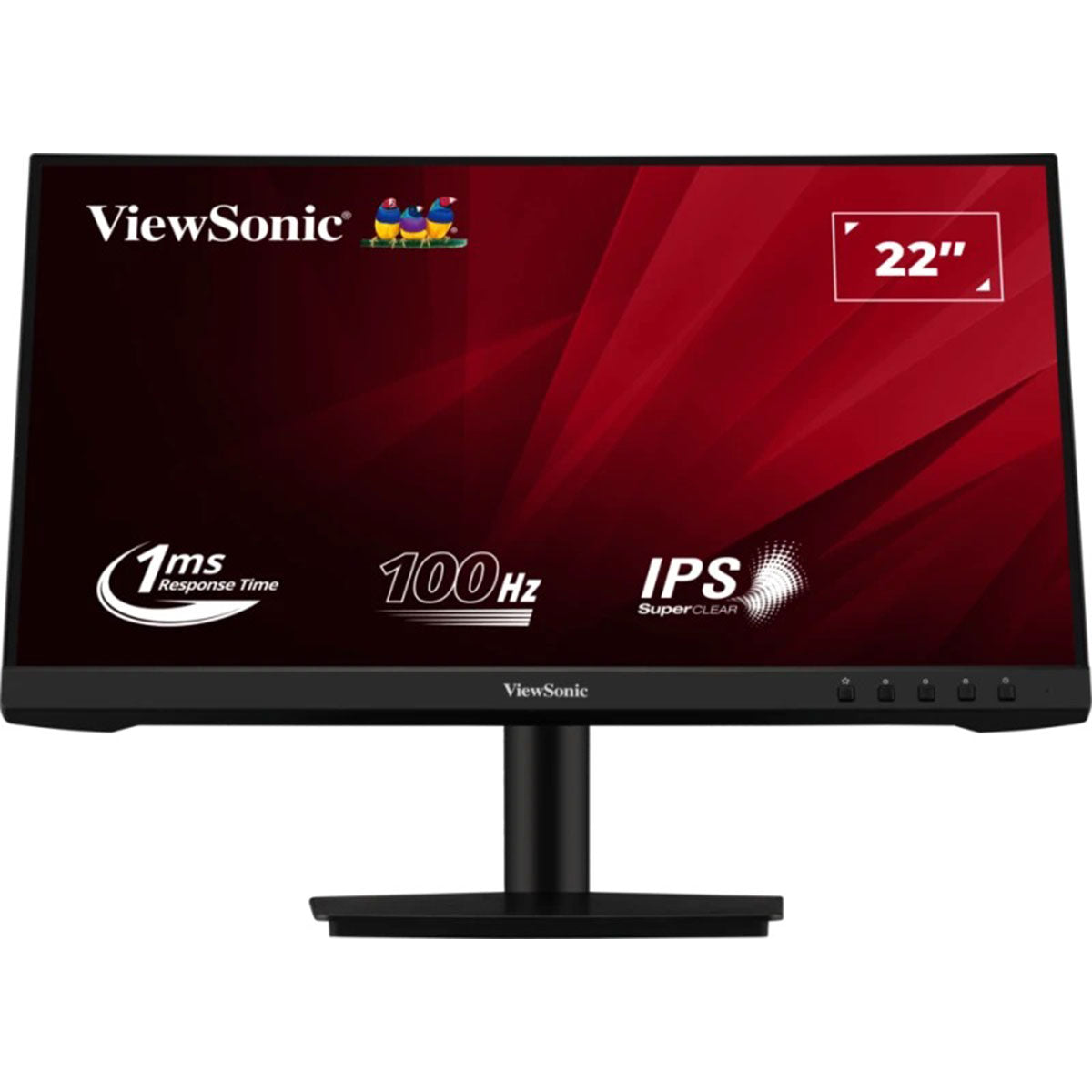

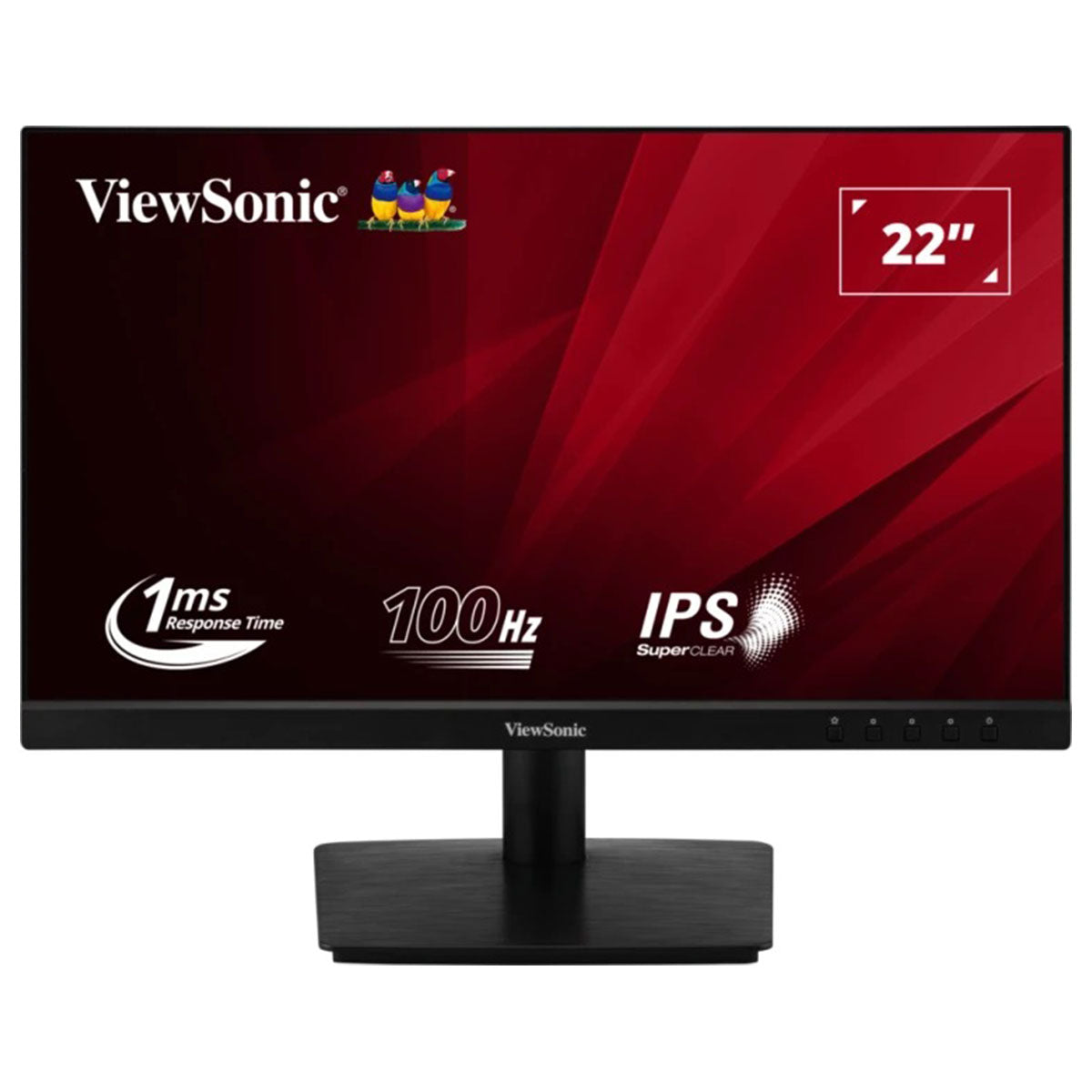

The ViewSonic VA2209-H-2 is a 22” Full HD monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing without tearing or stuttering is delivered through variable refresh rate, eye-care technology, and various ViewMode presets. Experience truly seamless multitasking on just one screen with a VESA-compatible mount at low power consumption.
SPECIFICATION
| DISPLAY | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | IPS Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 1,000:1 (typ) |
| Dynamic Contrast Ratio: | 50M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m (typ) |
| Colors: | 16.7M |
| Color Space Support: | 8 bit (6 bit + FRC) |
| Aspect Ratio: | 16:09 |
| Response Time (MPRT): | 1ms |
| Viewing Angles: | 178 horizontal, 178 vertical |
| Backlight Life (Hours): | 30000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 100 |
| Variable Refresh Rate Technology: | Yes |
| Low Blue Light: | Software solution |
| Flicker-Free: | Yes |
| Color Gamut: | NTSC: 72% size (Typ) sRGB: 104% size (Typ) |
| Pixel Size: | 0.249 mm (H) x 0.241 mm (V) |
| Surface Treatment: | Anti-Glare, Hard Coating (3H) |
| COMPATIBILITY | |
| PC Resolution (max): | 1920x1080 |
| Mac Resolution (max): | 1920x1080 |
| PC Operating System: | Windows 10/11 certified; macOS tested |
| Mac Resolution (min): | 1920x1080 |

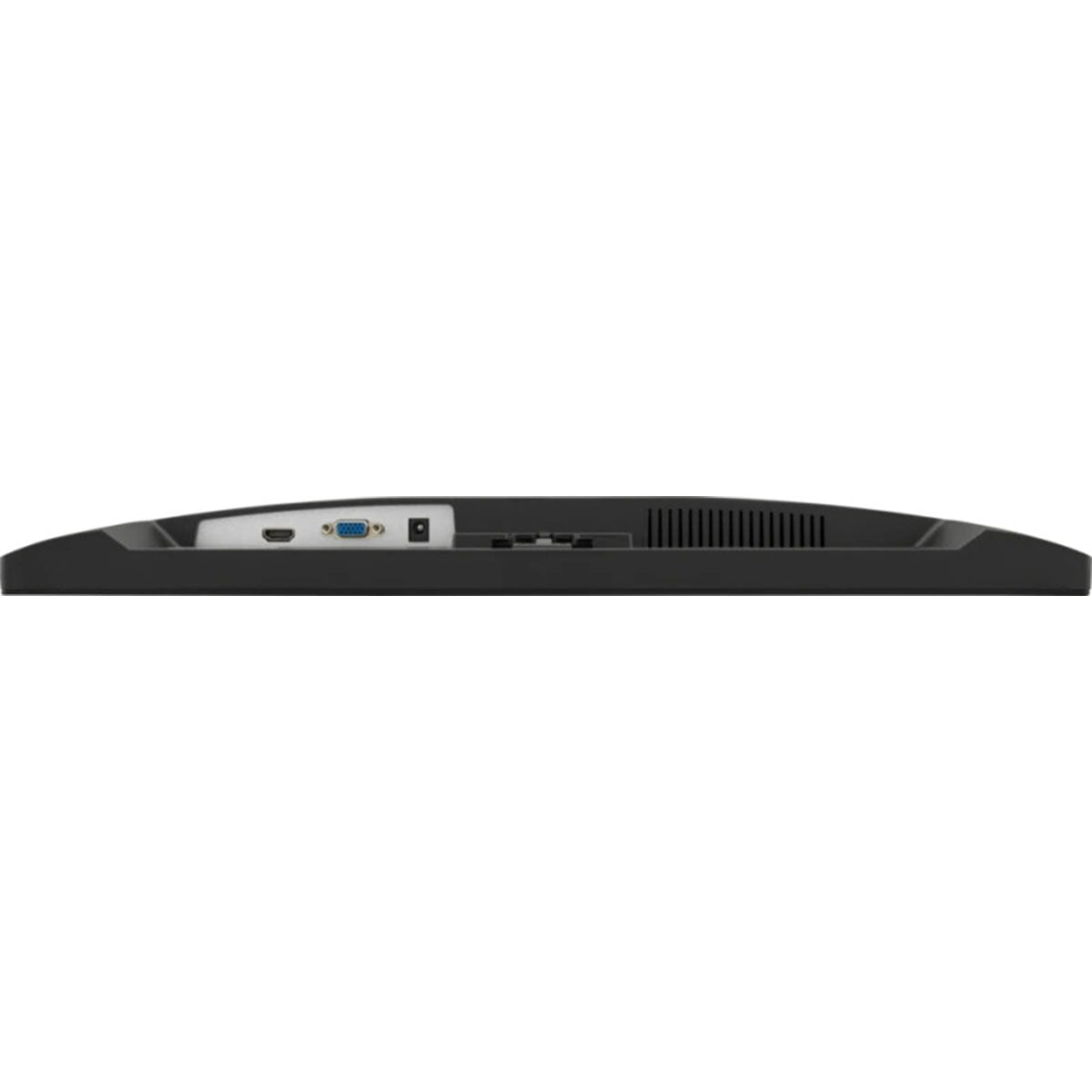

| CONNECTOR | |
| VGA: | 1 |
| HDMI 1.4: | 1 |
| Power in: | DC Socket (Center Positive) |
| POWER | |
| Eco Mode (Conserve): | 16W |
| Eco Mode (optimized): | 18W |
| Consumption (typical): | 20W |
| Consumption (max): | 22W |
| Voltage: | AC 100-240V |
| Stand-by: | 0.3W |
| Power Supply: | External Power Adaptor |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| CONTROLS | |
| Physical Controls: | Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) |
| On Screen Display: | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| OPERATING CONDITIONS | |
| Temperature: | 32F to 104F (0C to 40C) |
| Humidity (non-condensing): | 20% to 90% |
| WALL MOUNT | |
| VESA Compatible: | 100 x 100 mm |
| INPUT SIGNAL | |
| Frequency Horizontal: | RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz |
| Frequency Vertical: | RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS - HDMI (v1.4) |
| Analog Sync: | Separate - RGB Analog |

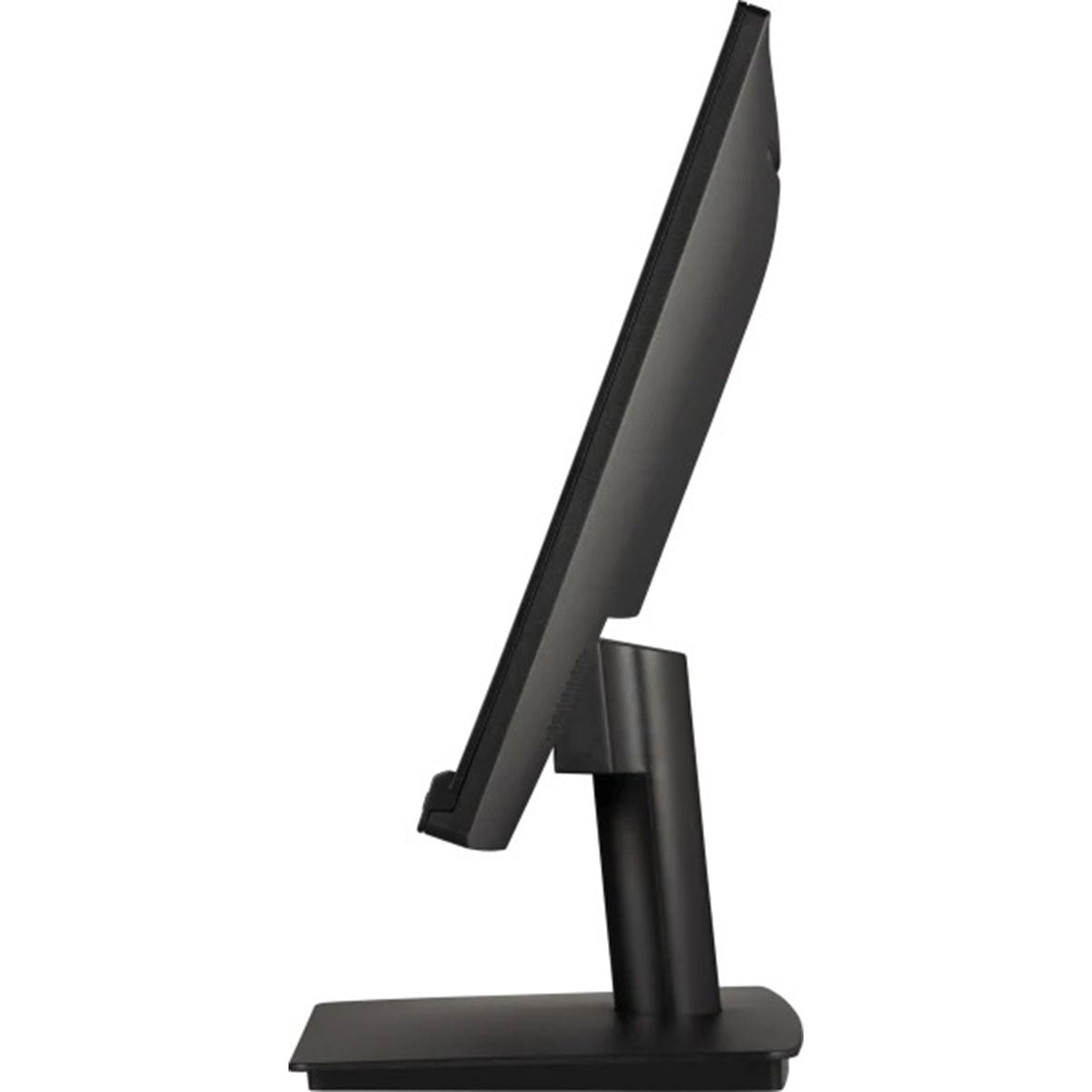

| ERGONOMICS | |
| Tilt (Forward/Back): | -0.15 |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 5.1 |
| Net Without Stand (lbs): | 4.2 |
| Gross (lbs): | 7.3 |
| WEIGHT (METRIC) | |
| Net (kg): | 2.3 |
| Net Without Stand (kg): | 1.9 |
| Gross (kg): | 3.3 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 21.5 x 15.6 x 4.7 |
| Physical (in.): | 19.34 x 15 x 7.43 |
| Physical Without Stand (in.): | 19.34 x 11.45 x 1.55 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 545 x 395 x 120 |
| Physical (mm): | 491.36 x 380.97 x 188.73 |
| Physical Without Stand (mm): | 491.36 x 290.85 x 39.37 |
| GENERAL | |
| Regulations: | RoHS, WEEE, BSMI, BIS |
| PACKAGE CONTENTS: | VA2209-H-2 x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
