Description

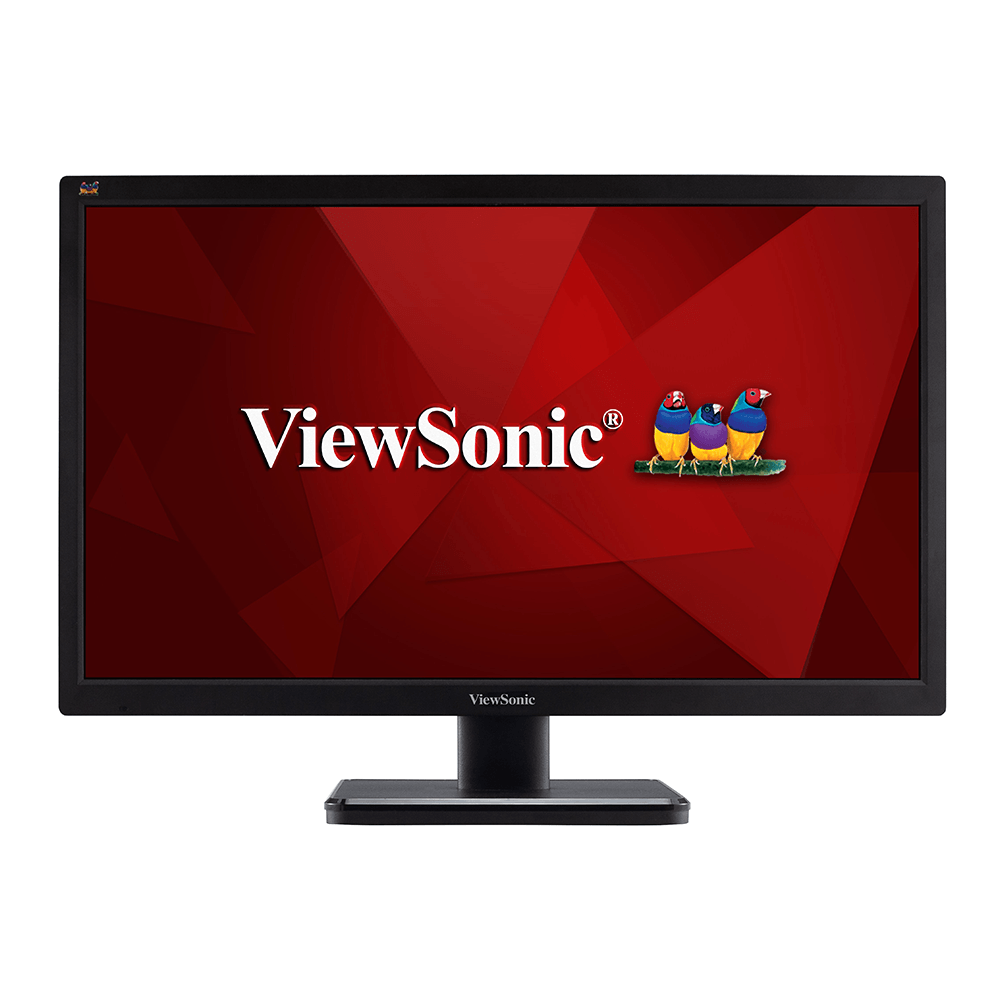

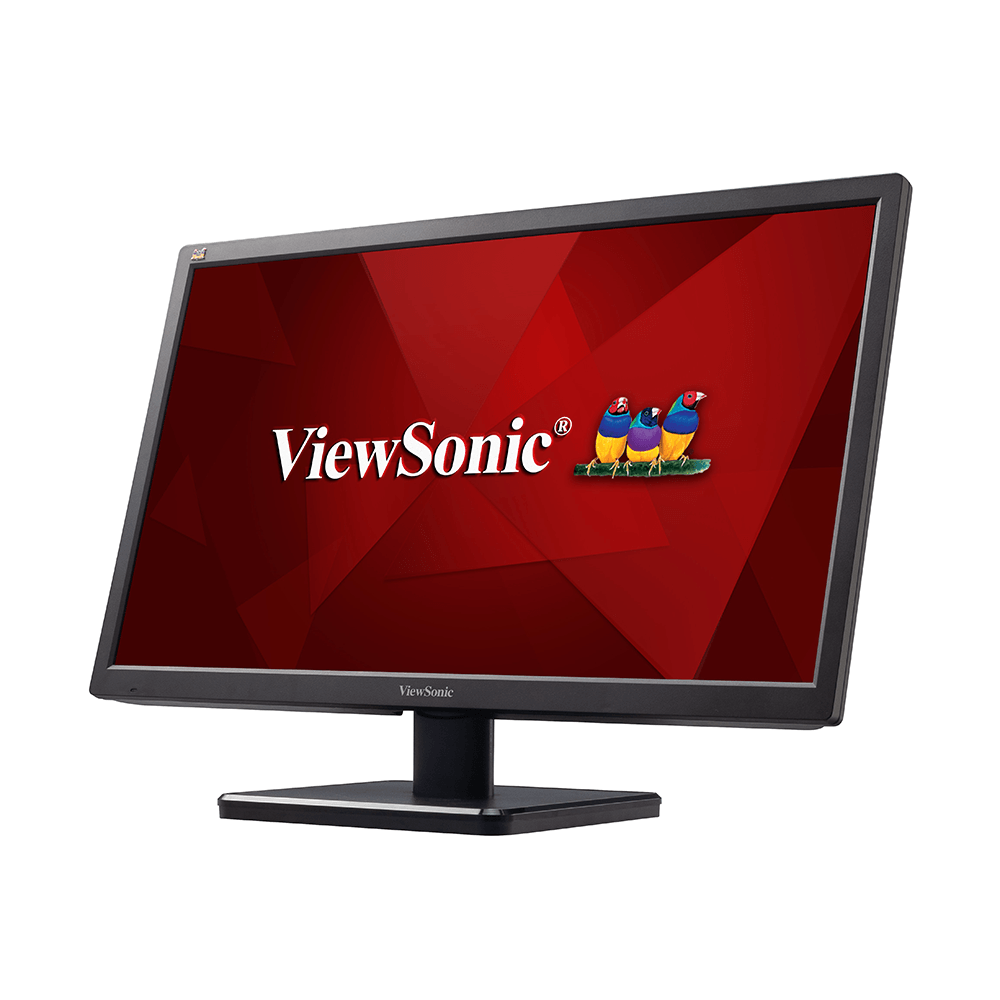

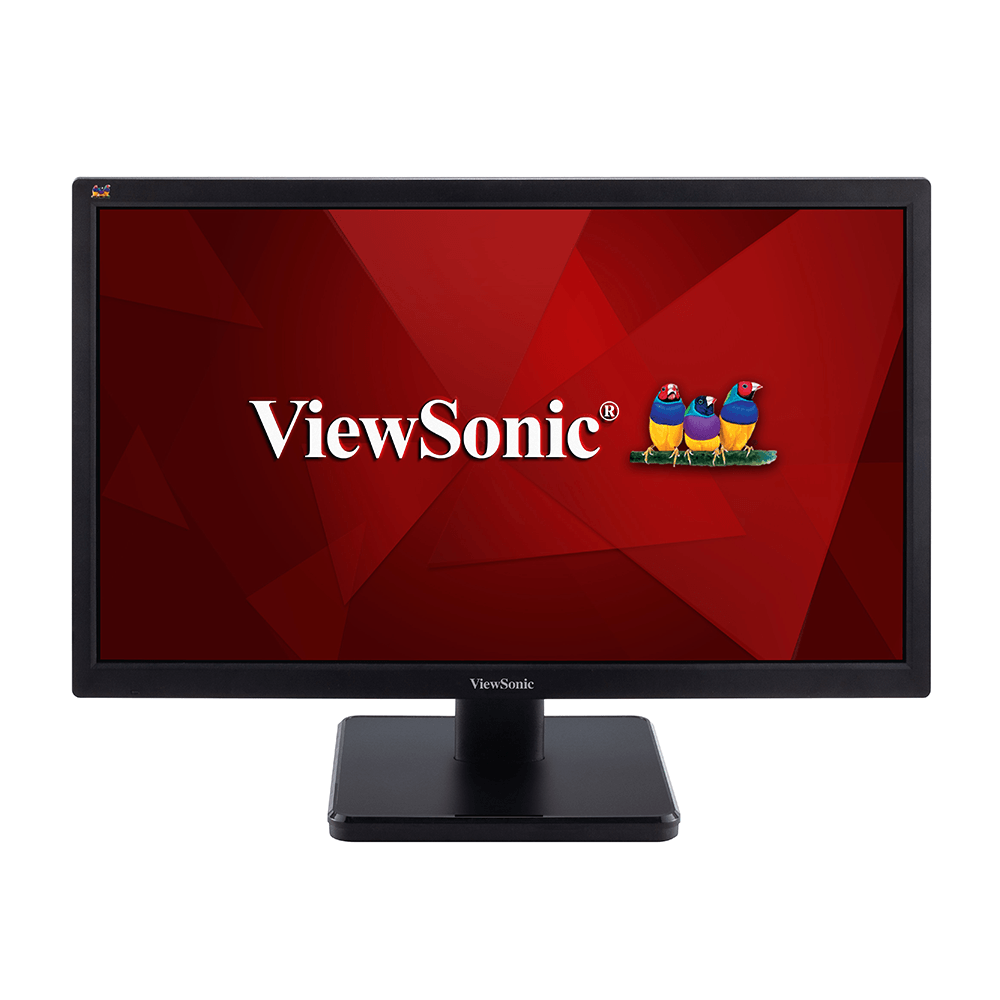

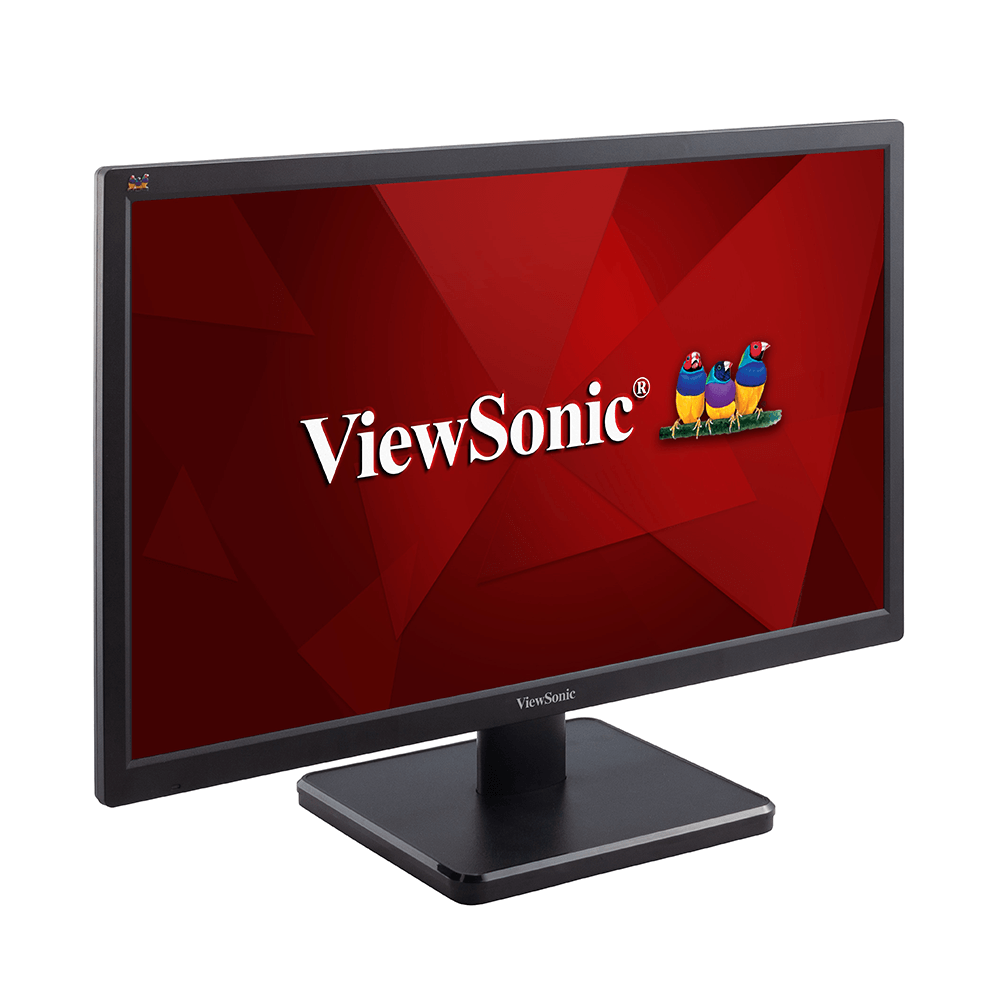

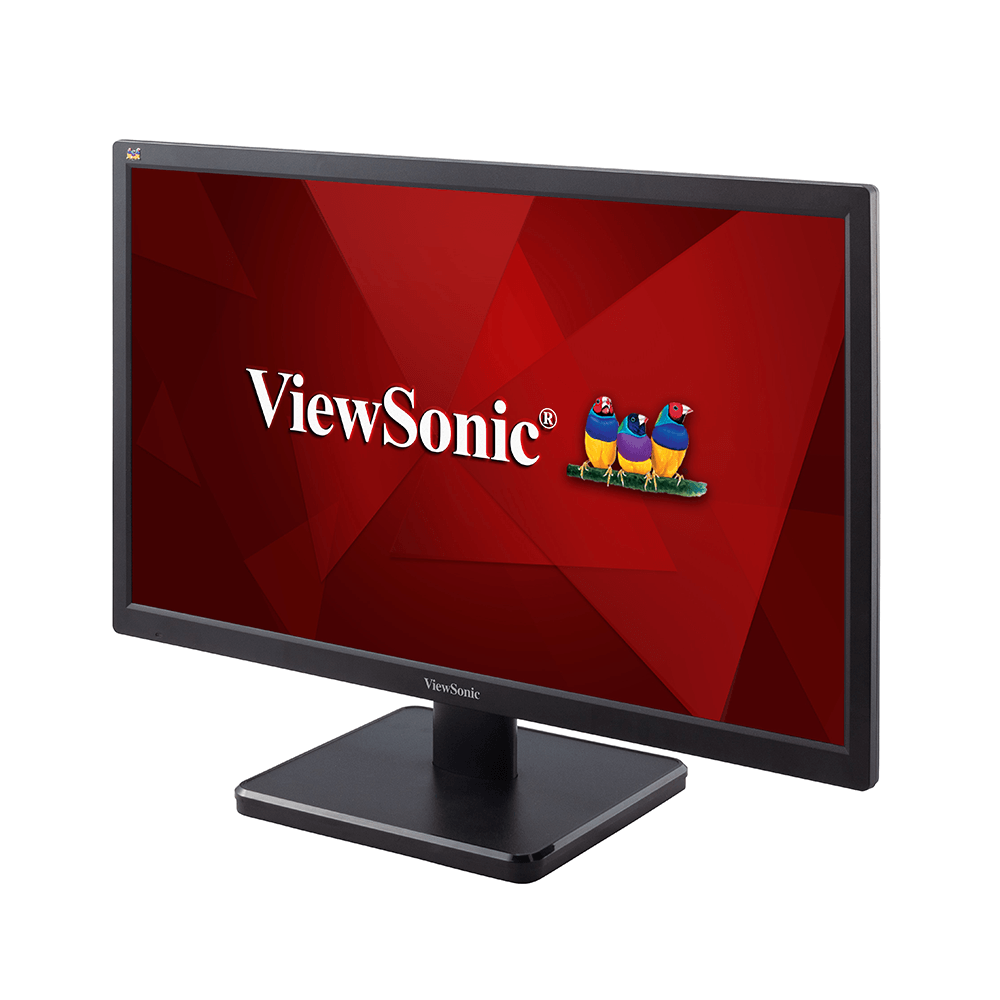

The ViewSonic VA2223-H is a cost-effective 22” Full HD monitor with HDMI and VGA input that is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. A VESA-compatible mount adapts easily to multi-monitor or wall-mount set ups.
Superior Color Rendering Options
ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Low Energy Consumption
The energy-saving Eco-mode takes energy efficiency into consideration while also offering stunning screen performance.
- HDMI and VGA input
- Flicker-Free and Blue Light Filter
- VESA mountable
- ViewMode technology
- Eco-mode
TECH SPECIFICATIONS:
|
Display
|
Display Size (in.): 22 |
| Viewable Area (in.): 21.5 | |
| Panel Type: TN Technology | |
| Resolution: 1920 x 1080 | |
| Resolution Type: FHD | |
| Static Contrast Ratio: 600:1 (typ) | |
| Dynamic Contrast Ratio: 50M:1 | |
| Light Source: LED | |
| Brightness: 250 cd/m² (typ) | |
| Colors: 16.7M | |
| Color Space Support: 8 bit (6 bit + Hi-FRC) | |
| Aspect Ratio: 16:9 | |
| Response Time (Typical Tr+Tf): 5ms | |
| Viewing Angles: 90º horizontal, 65º vertical | |
| Backlight Life (Hours): 30000 Hrs (Min) | |
| Curvature: Flat | |
| Refresh Rate (Hz): 60 | |
| Blue Light Filter: Yes | |
| Flicker-Free: Yes | |
| Color Gamut: NTSC: 72% size (Typ) | |
| sRGB: 102% size (Typ) | |
| Pixel Size: 0.248 mm (H) x 0.248 mm (V) | |
| Surface Treatment: Anti-Glare, Hard Coating (3H) | |
|
Compatibility
|
PC Resolution (max): 1920x1080 |
| Mac® Resolution (max): 1920x1080 | |
| PC Operating System: Windows 10 certified; macOS tested | |
| Mac® Resolution (min): 1920x1080 | |
|

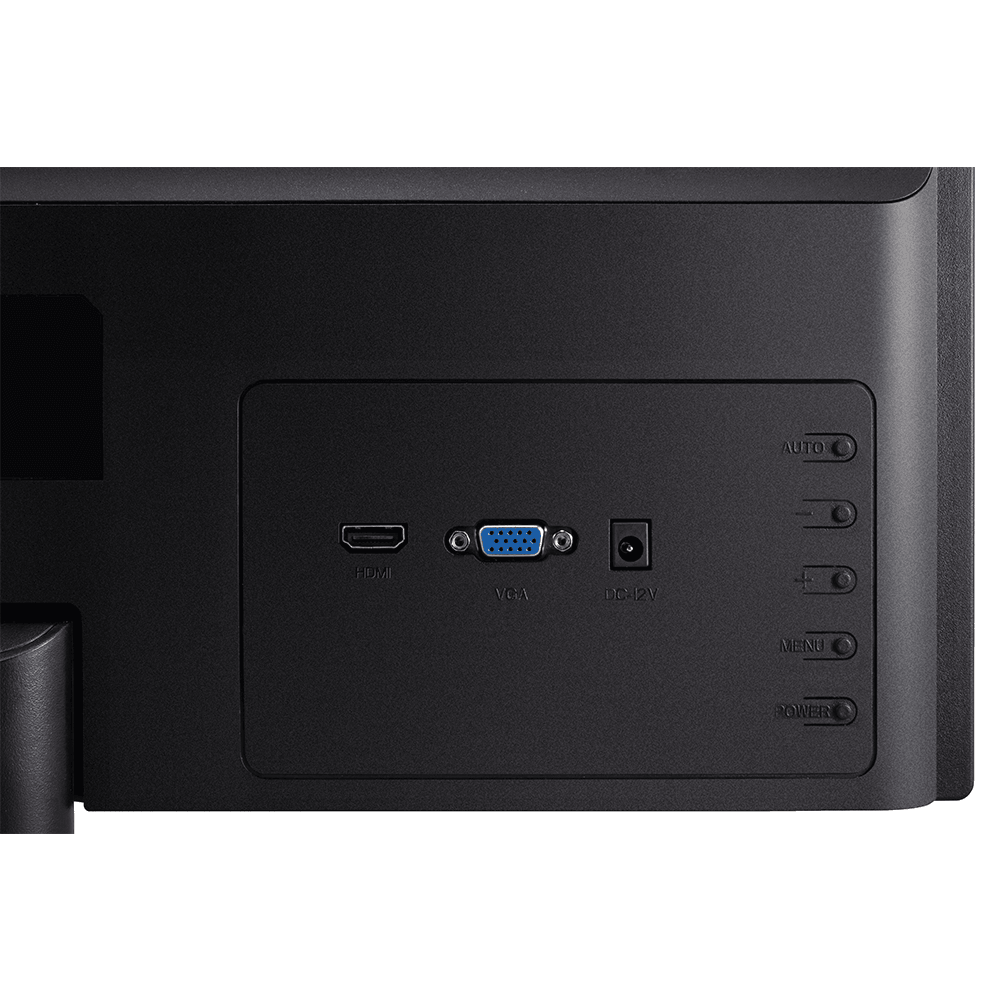

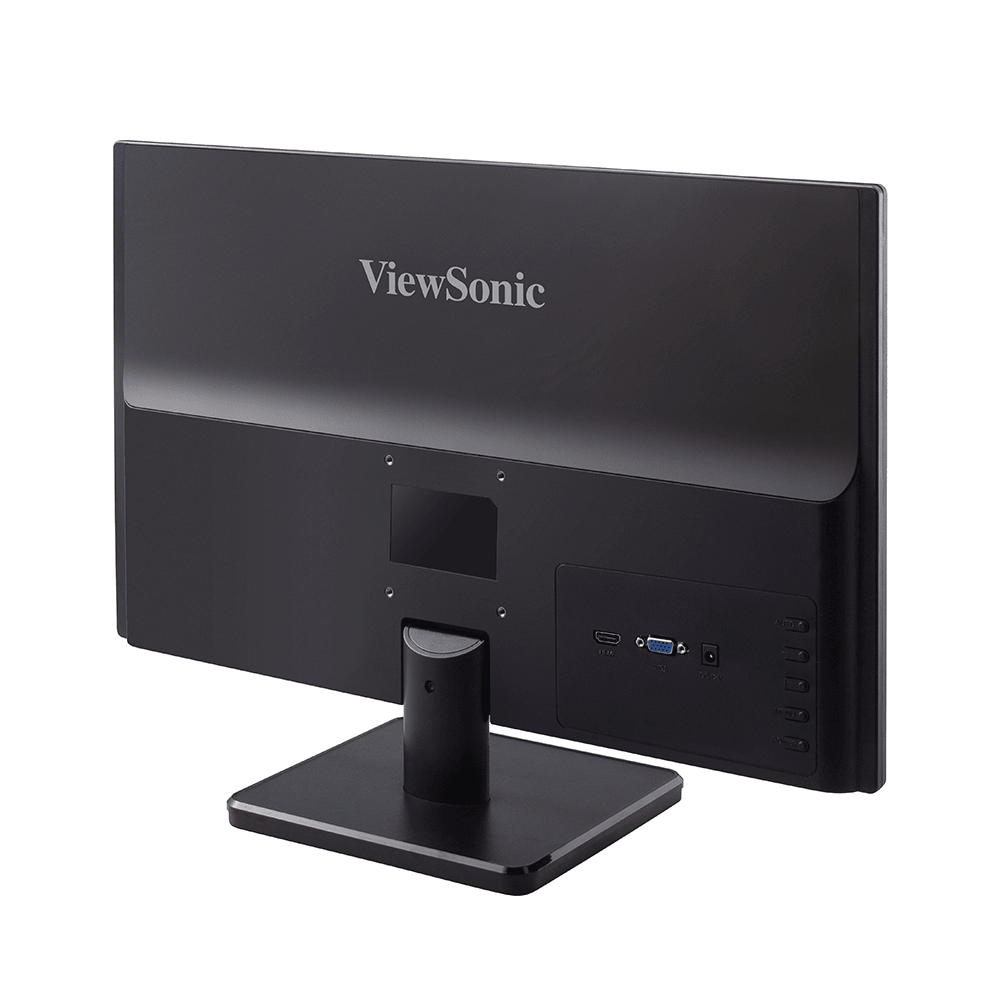

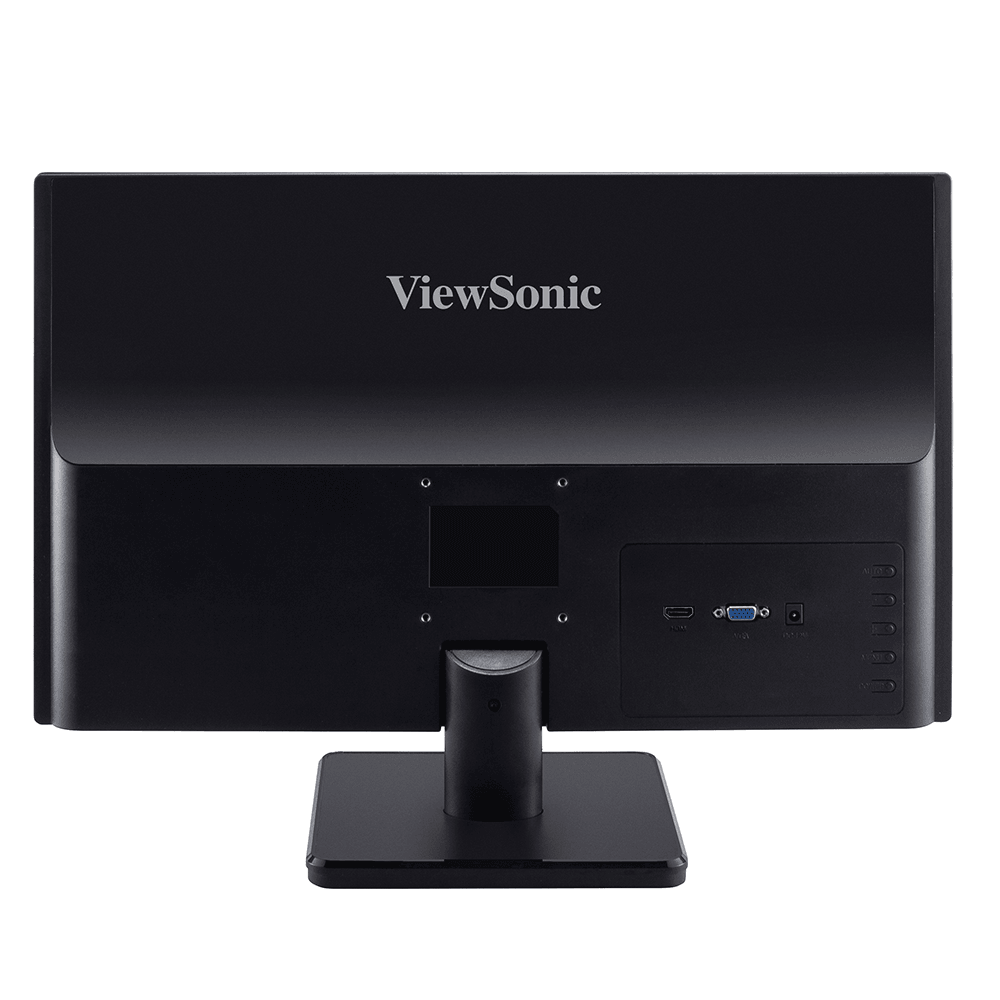

Connector
|
VGA: 1 |
| HDMI 1.4: 1 | |
| Power in: External power adapter | |
|
Power
|
Eco Mode (Conserve): 18W |
| Eco Mode (optimized): 20W | |
| Consumption (typical): 22W | |
| Consumption (max): 24W | |
| Voltage: AC 100-240V, 50/60 Hz | |
| Stand-by: 0.3W | |
| Power Supply: External | |
|
Controls
|
Physical Controls: Auto, -, +, Menu, Power |
| On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall | |
|
Operating Conditions
|
Temperature: 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): 20% to 90% | |

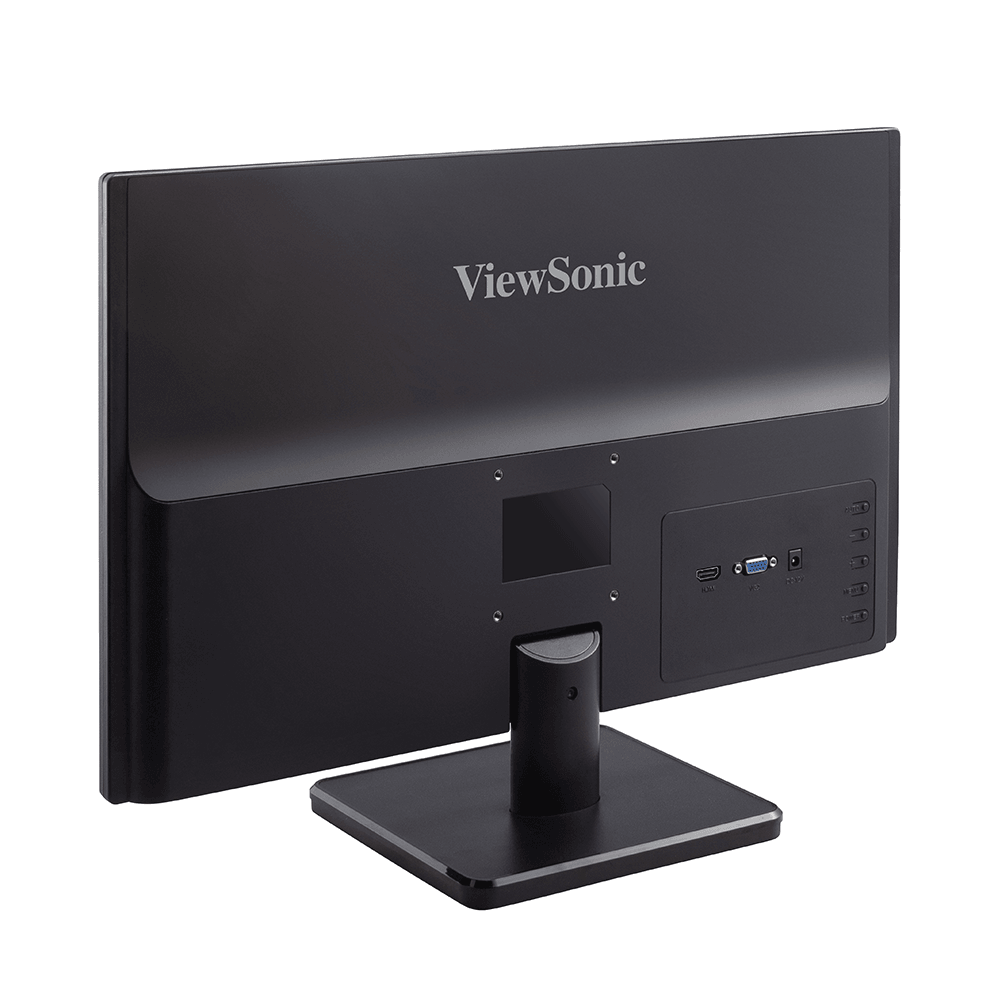

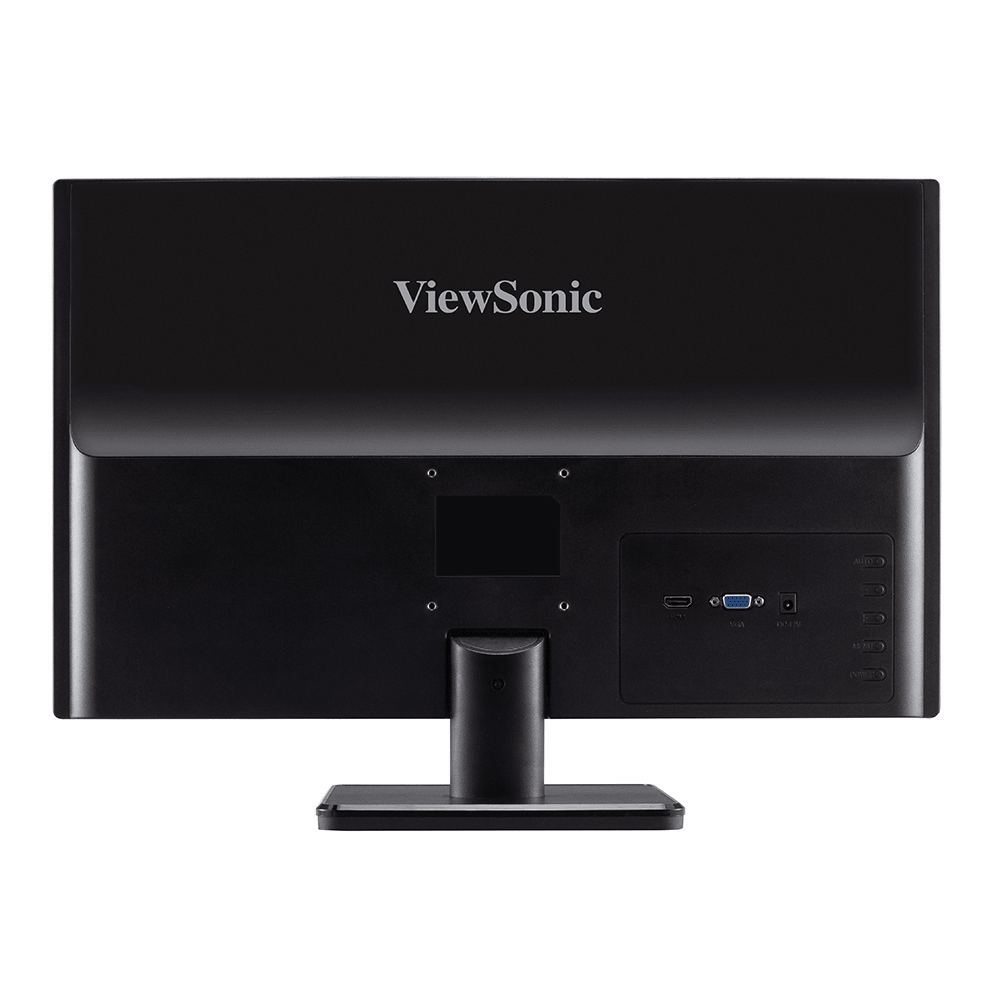

| Wall Mount | VESA Compatible: 75 x 75 mm |
|
Input Signal
|
Frequency Horizontal: 24 ~ 82KHz |
| Frequency Vertical: 50 ~ 75Hz | |
|
Video Input
|
Digital Sync: TMDS - HDMI (v1.4) |
| Analog Sync: Separate - RGB Analog | |

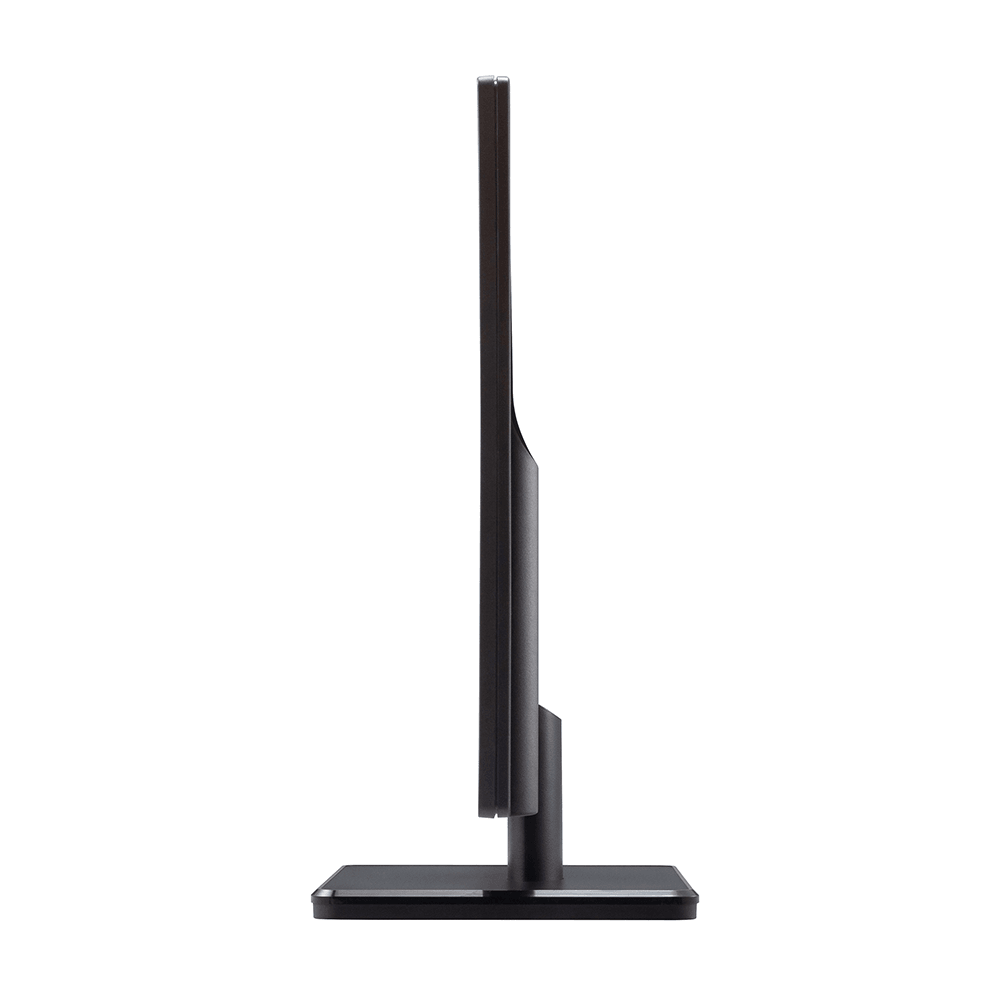

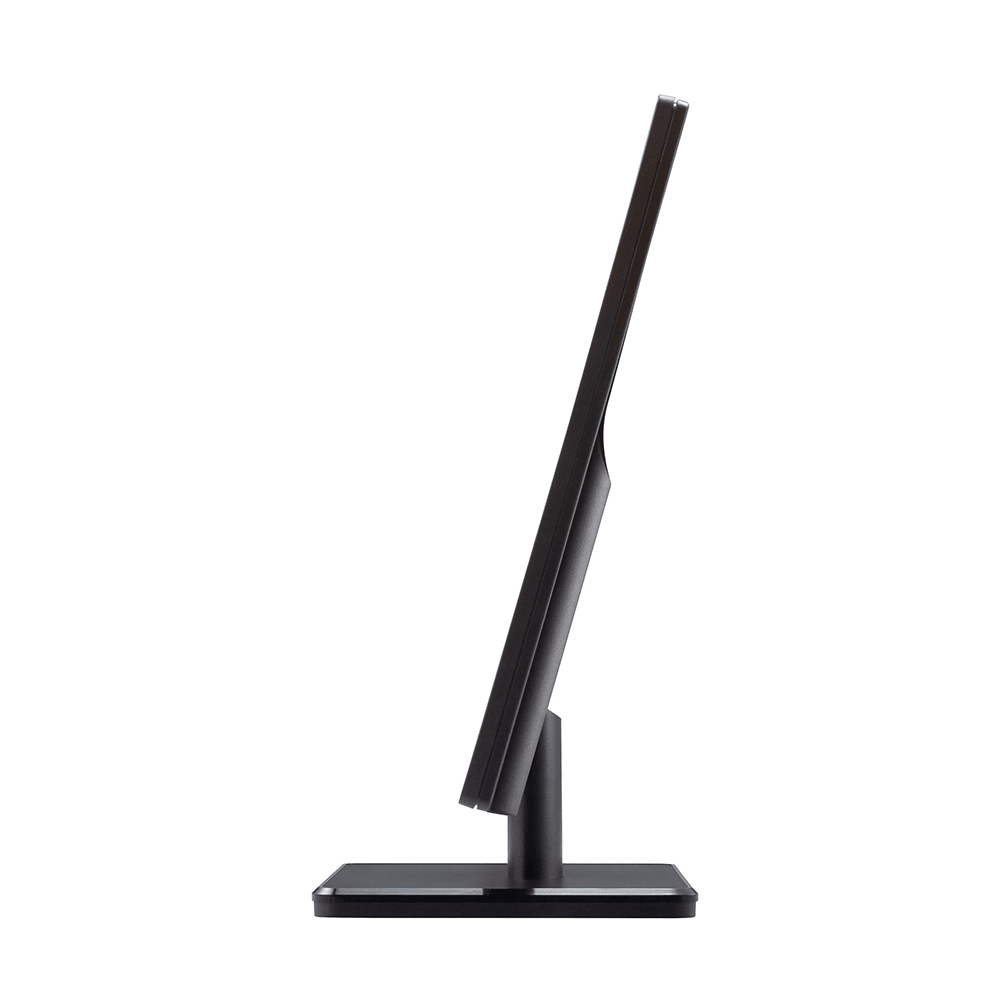

| Ergonomics | Tilt (Forward/Back): -4º / 14º |
|
Weight (imperial)
|
Net (lbs): 4.6 |
| Net Without Stand (lbs): 4 | |
| Gross (lbs): 6.6 | |
|
Weight (metric)
|
Net (kg): 2.1 |
| Net Without Stand (kg): 1.8 | |
| Gross (kg): 3 | |
|
Dimensions (imperial) (wxhxd)
|
Packaging (in.): 22.1 x 14.4 x 4.3 |
| Physical (in.): 20.1 x 14.6 x 7.3 | |
| Physical Without Stand (in.): 20.1 x 12.2 x 1 | |
|
Dimensions (metric) (wxhxd)
|
Packaging (mm): 562 x 365 x 110 |
| Physical (mm): 510 x 370 x 185 | |
| Physical Without Stand (mm): 510 x 310 x 25 |
