Description
VA2436-H-PN

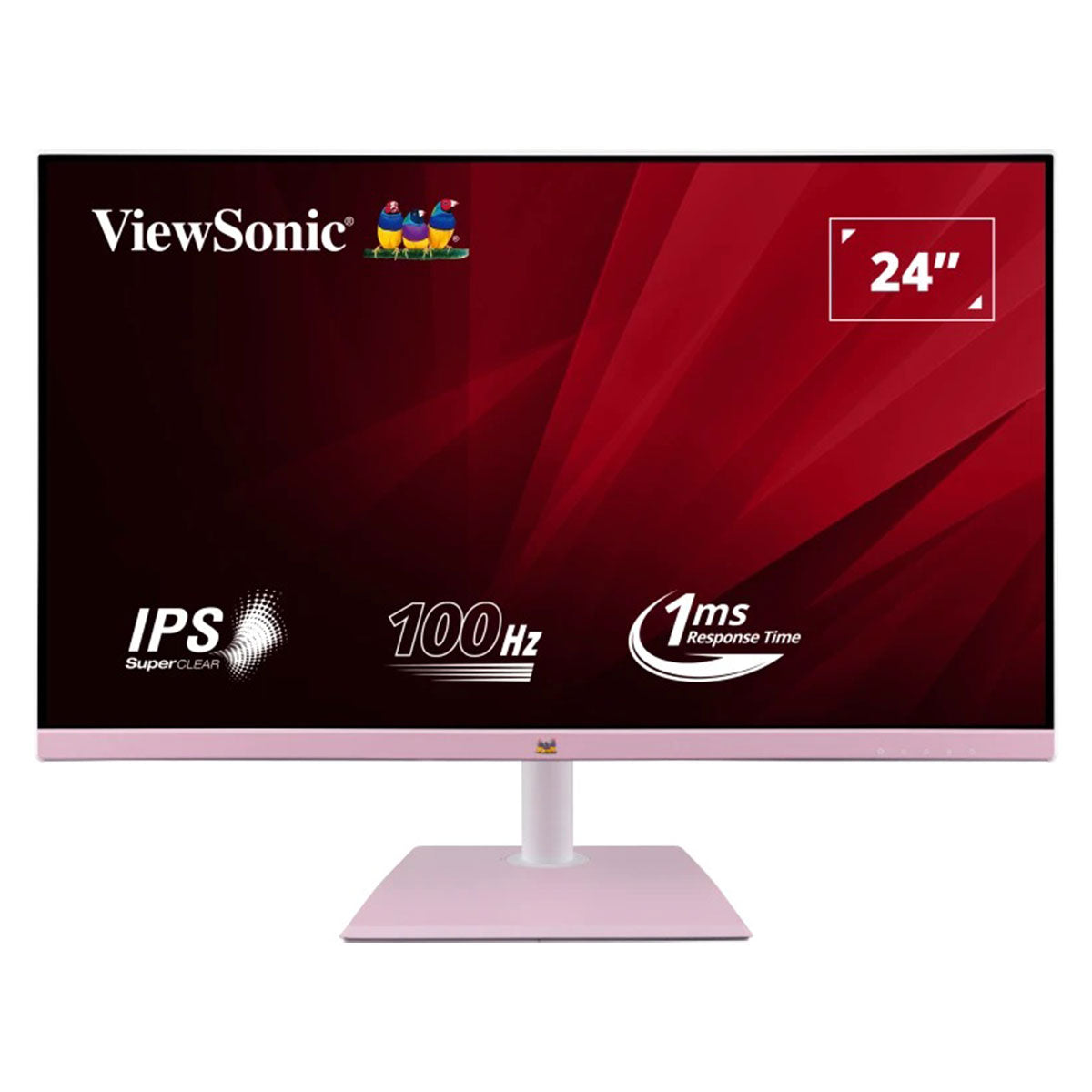

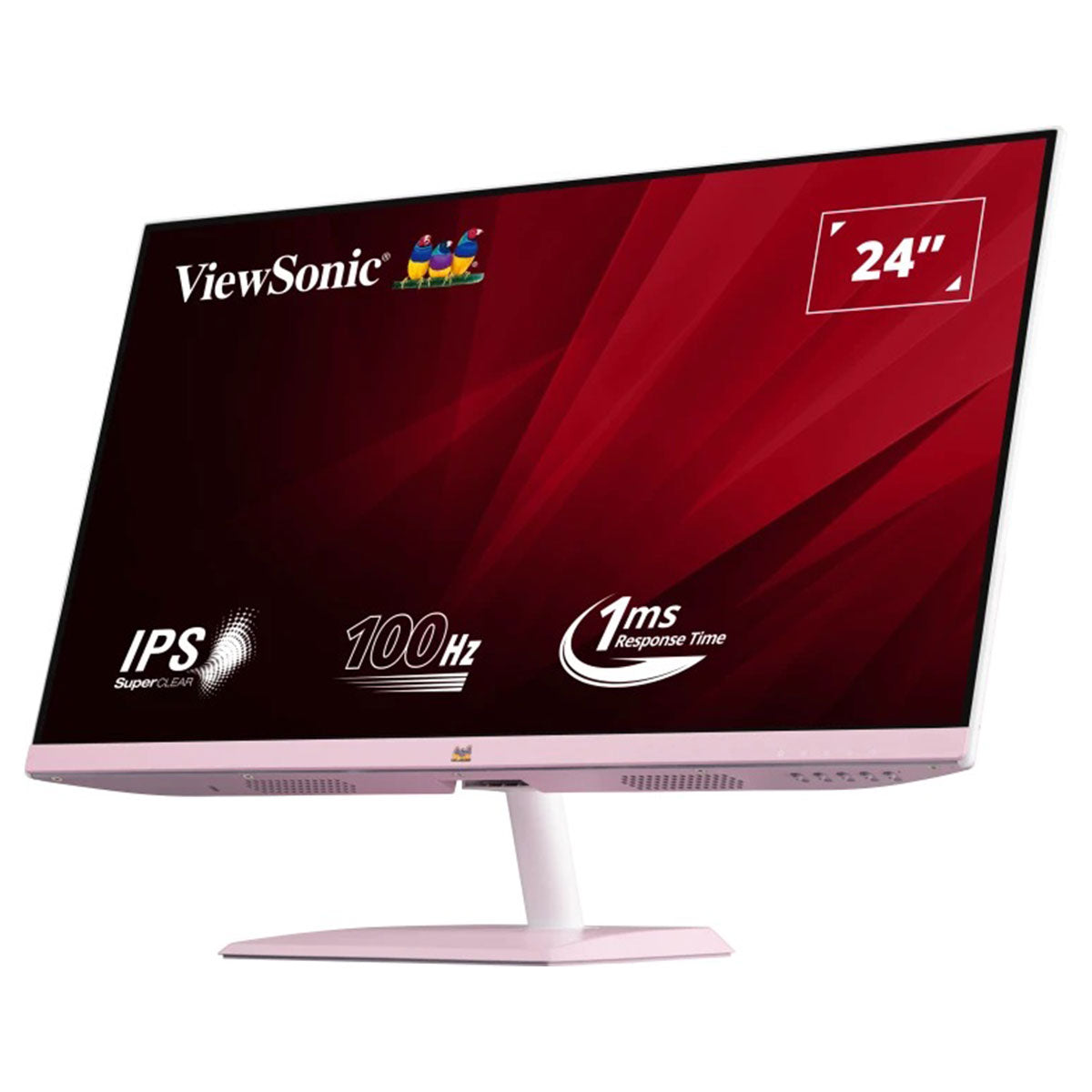

24” Full HD Monitor with Fast 1ms Response Time
- SuperClear® IPS panel
- 100Hz Refresh rate delivers fluid visuals
- 1ms (MPRT) response time for precision
- HDMI and VGA inputs for flexible connectivity
- Eye ProTech+ for always-on eye protection
OVERVIEW
The ViewSonic VA2436-H-PN is a 24” Full HD monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing without tearing or stuttering is delivered through built-in low blue light screen eye-care technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at a low power consumption.
SPECIFICATION
| Display | Display Size (in.): 24 |
| Viewable Area (in.): 23.8 | |
| Panel Type: IPS Technology | |
| Resolution: 1920 x 1080 | |
| Resolution Type: FHD (Full HD) | |
| Static Contrast Ratio: 1,000:1 (typ) | |
| Dynamic Contrast Ratio: 50M:1 | |
| Light Source: LED | |
| Brightness: 250 cd/m² (typ) | |
| Colors: 16.7M | |
| Color Space Support: 8 bit (6 bit + FRC) | |
| Aspect Ratio: 16:9 | |
| Response Time (MPRT): 1ms | |
| Viewing Angles: 178º horizontal, 178º vertical | |
| Backlight Life (Hours): 30000 Hrs (Min) | |
| Curvature: Flat | |
| Refresh Rate (Hz): 100 | |
| Variable Refresh Rate Technology: Yes | |
| Low Blue Light: Hardware and software solution | |
| Flicker-Free: Yes | |
| Color Gamut: NTSC: 75% size (Typ) | |
| sRGB: 105% size / 99% coverage (Typ) | |
| Pixel Size: 0.275 mm (H) x 0.275 mm (V) | |
| Surface Treatment: Anti-Glare, Hard Coating (3H) | |
| Compatibility | PC Resolution (max):1920x1080 |
| Mac Resolution (max):1920x1080 | |
| PC Operating System:Windows 10/11 certified; macOS tested | |
| Mac Resolution (min):1920x1080 | |

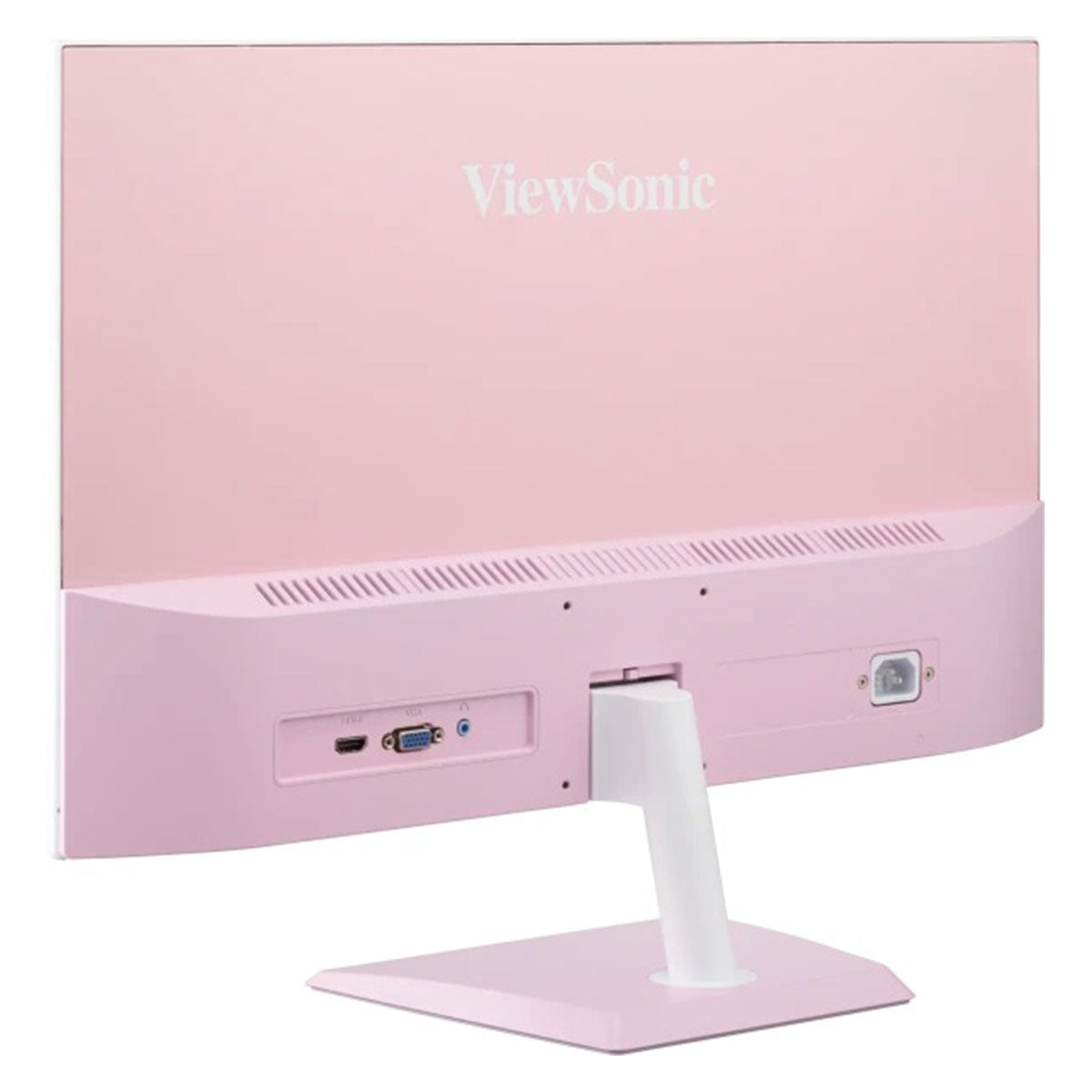

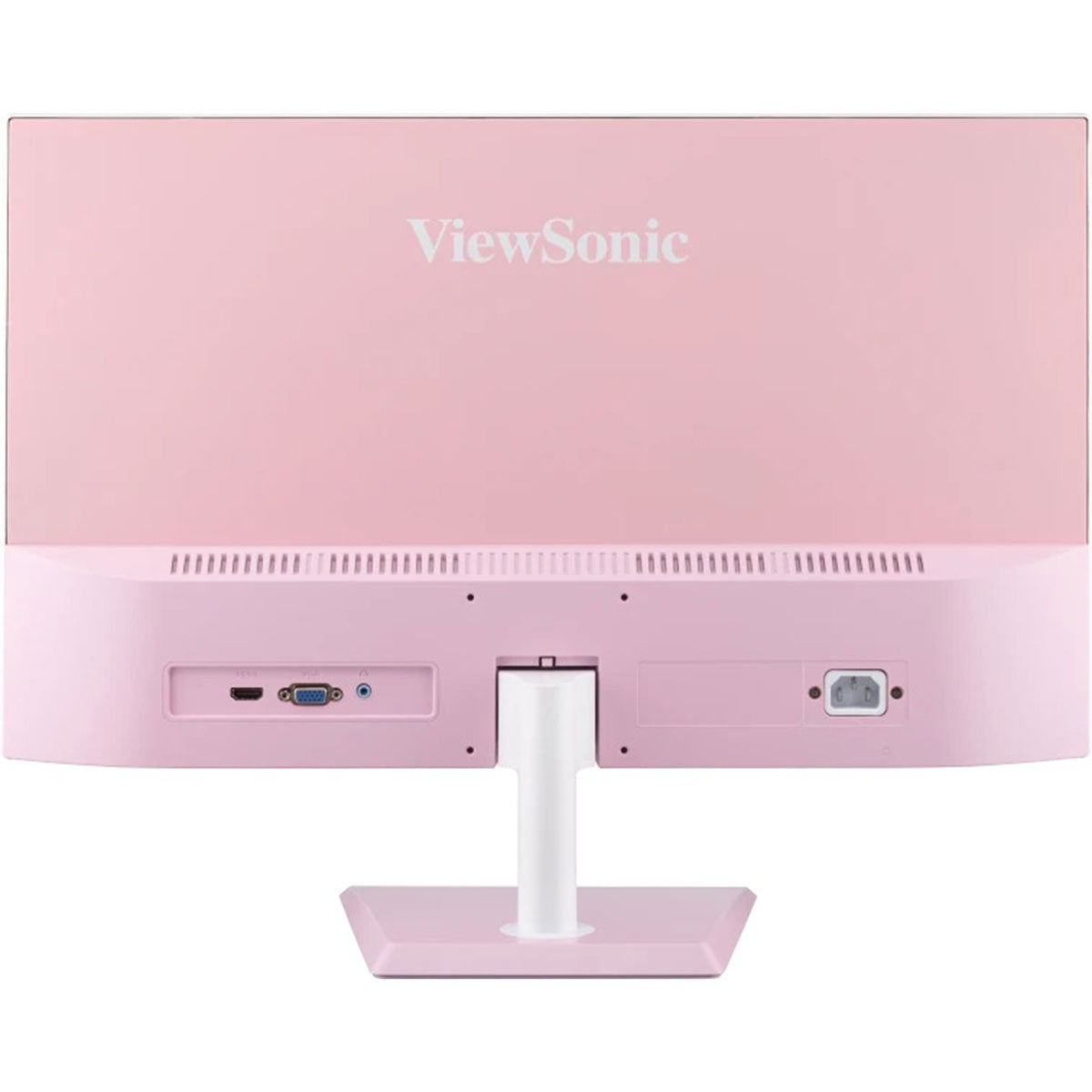

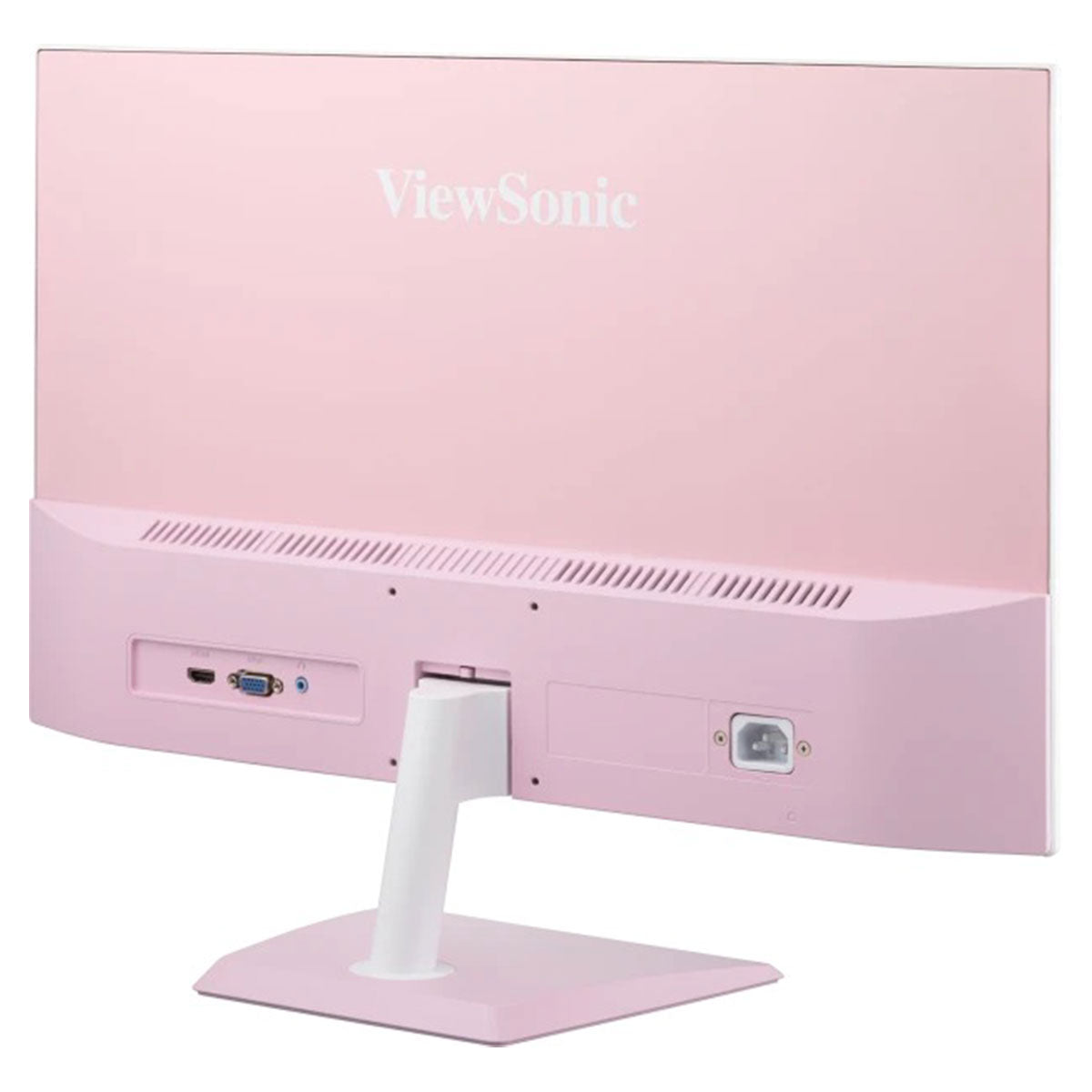

| Connector | VGA: 1 |
| 3.5mm Audio Out: 1 | |
| HDMI 1.4: 1 | |
| Power in: 3-pin Socket (IEC C14 / CEE22) | |
| Power | Eco Mode (Conserve): 14W |
| Eco Mode (optimized): 17W | |
| Consumption (typical): 21W | |
| Consumption (max): 22W | |
| Voltage: AC 100-240V | |
| Stand-by: 0.3W | |
| Power Supply: Internal Power Supply | |
| Additional Hardware | Kensington Lock Slot: 1 |
| Controls | Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) |
| On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu | |
| Operating Conditions | Temperature: 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): 20% to 90% | |
| Wall Mount | VESA Compatible: 75 x 75 mm |
| Input Signal | Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz |
| Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz | |
| Video Input | Digital Sync: TMDS - HDMI (v1.4) |
| Analog Sync: Separate - RGB Analog | |

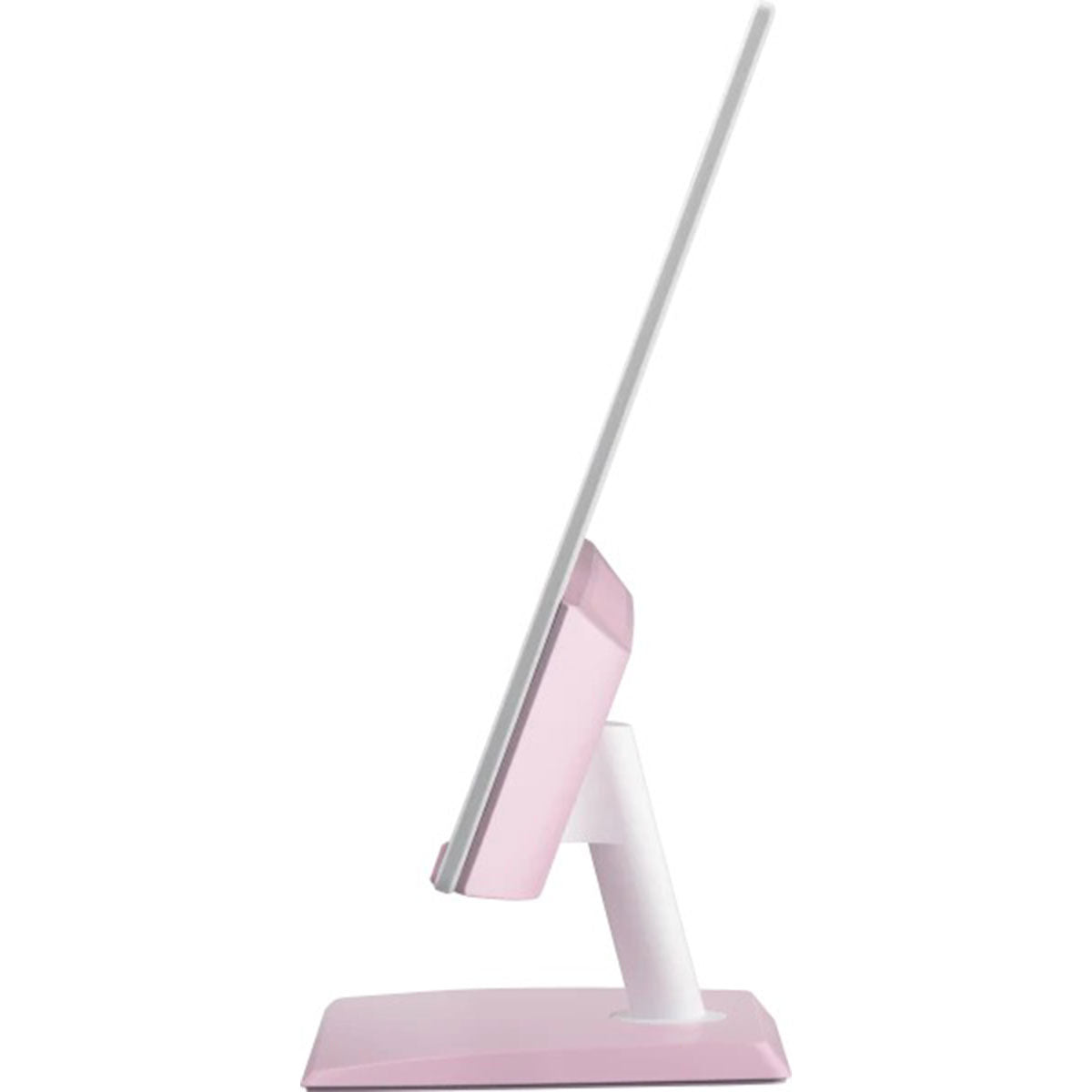

| Ergonomics | Tilt (Forward/Back): -5º / 20º |
| Weight (imperial) | Net (lbs): 6.4 |
| Net Without Stand (lbs): 5.7 | |
| Gross (lbs): 9 | |
| Weight (metric) | Net (kg): 2.9 |
| Net Without Stand (kg): 2.6 | |
| Gross (kg): 4.1 | |
| Dimensions (imperial) (wxhxd) | Packaging (in.): 23.6 x 15.6 x 4.4 |
| Physical (in.): 21.3 x 16 x 7.2 | |
| Physical Without Stand (in.): 21.3 x 12.7 x 1.4 | |
| Dimensions (metric) (wxhxd) | Packaging (mm): 600 x 395 x 112 |
| Physical (mm): 540 x 406 x 184 | |
| Physical Without Stand (mm): 540 x 322 x 36 |
