Description

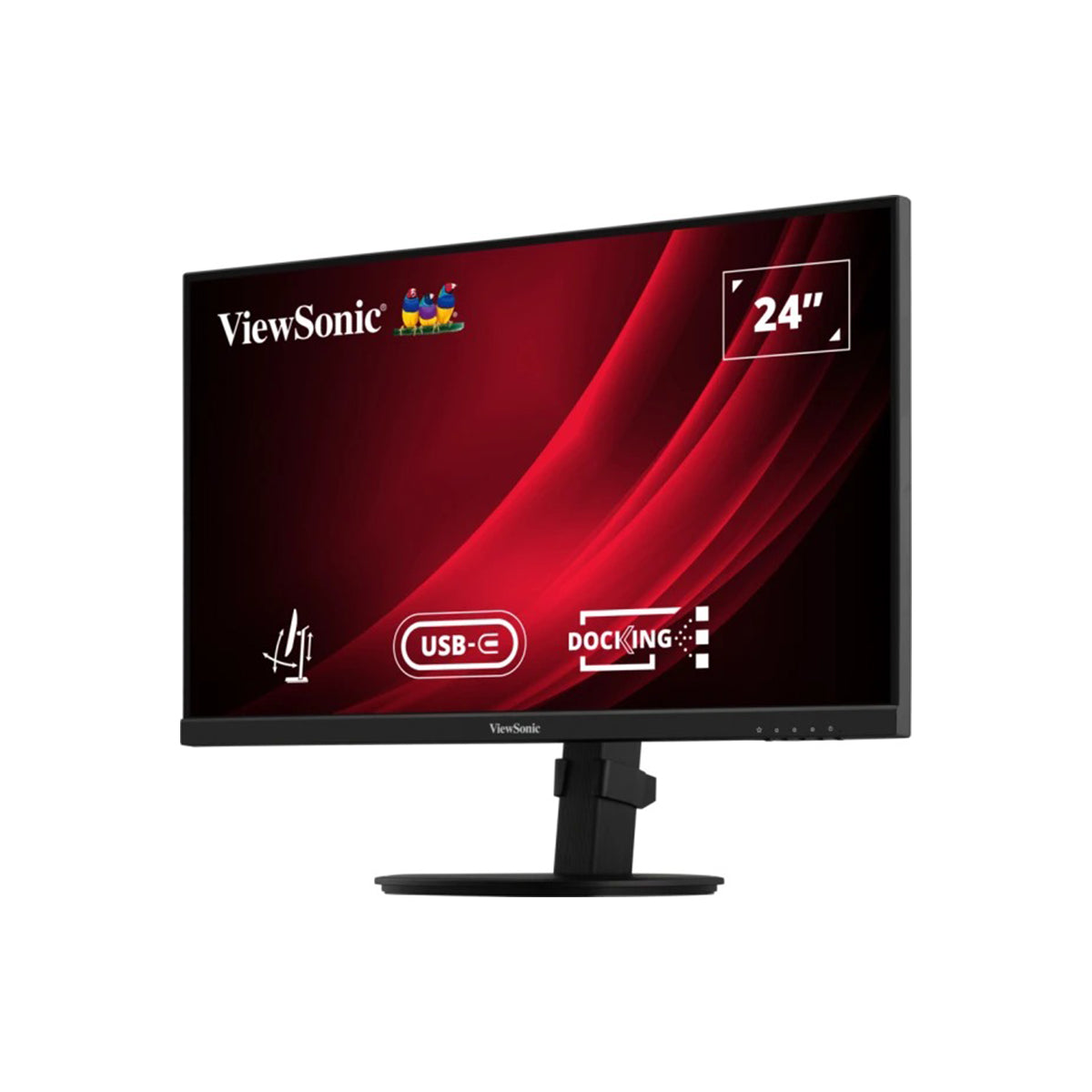

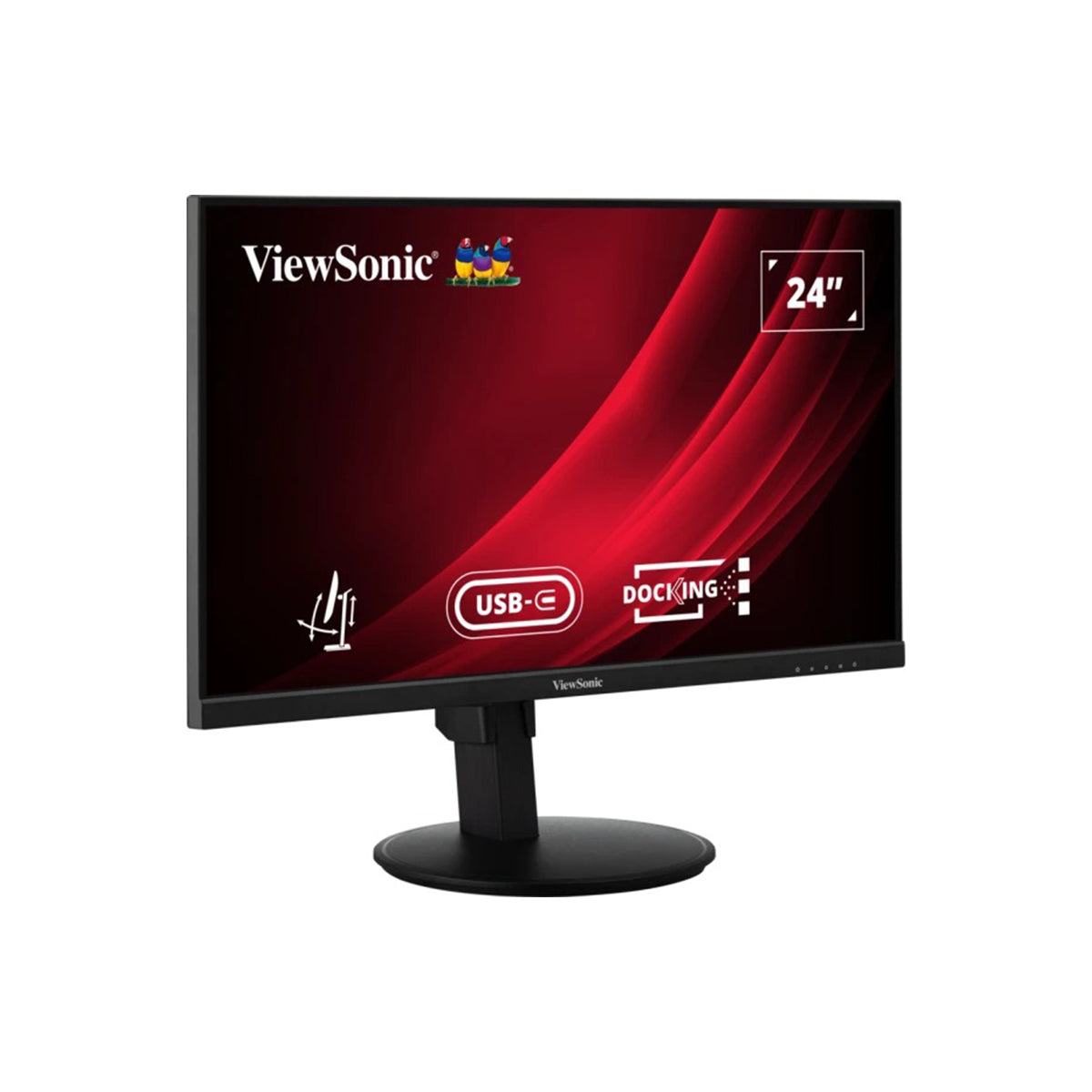

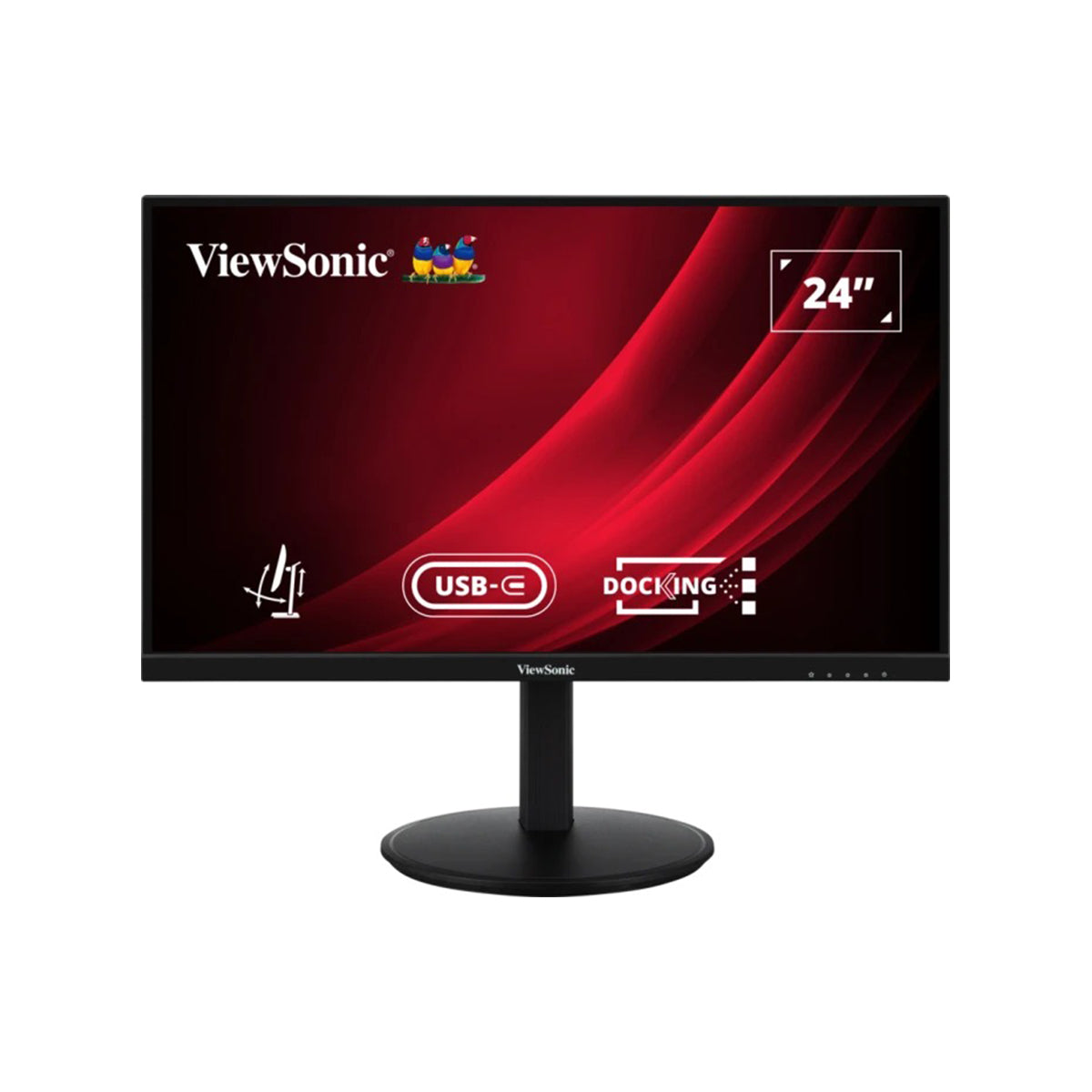

The ViewSonic VG2409U-2 is a 24” FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, DisplayPort, and DisplayPort Out for business and home use. Equipped with 65W USB-C ports, ethernet, and daisy-chain support, the VG2409U-2 serves as a complete integrated docking station for charging, audiovisual and data transfer, and network connectivity, effectively reducing cable clutter. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.
- Integrated USB-C docking station with Ethernet, Daisy Chain capability and power charge up to 65W
- USB 3.2 hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort inputs for easy connectivity
- 100Hz Variable refresh rate delivers fluid visuals
- Ergonomic tilt, swivel, pivot and height adjustment capabilities
- TCO, EnergyStar, EPEAT Silver certified for sustainability
| Specification | Details |
|---|---|
| Display Size (in.) | 24 |
| Viewable Area (in.) | 23.8 |
| Panel Type | IPS Technology |
| Resolution | 1920 x 1080 (FHD) |
| Static Contrast Ratio | 1,300:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 |
| High Dynamic Range | HDR10 |
| Light Source | LED |
| Brightness | 350 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8 bit (6 bit + FRC) |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 4ms |
| Response Time (GTG w/OD) | 4ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30000 Hrs (Min) |
| Glass Hardness | 3H |
| Curvature | Flat |
| Refresh Rate (Hz) | 100 |
| Variable Refresh Rate Technology | Yes |
| Low Blue Light | Software solution |
| Flicker-Free | Yes |
| Color Gamut | NTSC: 72% size (Typ) / sRGB: 104% size (Typ) |
| Pixel Size | 0.275 mm (H) x 0.275 mm (V) |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| PC Resolution (max) | 1920x1080 |
| Mac® Resolution (max) | 1920x1080 |
| Mac® Resolution (min) | 1920x1080 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| USB 3.2 Type A Down Stream | 2 |
| USB 3.2 Type B Up Stream | 1 |
| USB 3.2 Type C Up Stream | 1 (DisplayPort Alt mode, 65W power charger) |
| 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| DisplayPort | 1 |
| DisplayPort Out | 1 |
| Power in | 3-pin Socket (IEC C14 / CEE22) |
| Ethernet LAN (RJ45) | 1 |
| Internal Speakers | 2.5Watts x2 |
| Eco Mode (Conserve) | 12W |
| Eco Mode (optimized) | 13.5W |
| Consumption (typical) | 15.5W |
| Consumption (max) | 19.5W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply | Internal Power Supply |
| Kensington Lock Slot | 1 |
| Cable Organization | Yes |
| Physical Controls | Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) |
| On Screen Display | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity (non-condensing) | 20% to 90% |

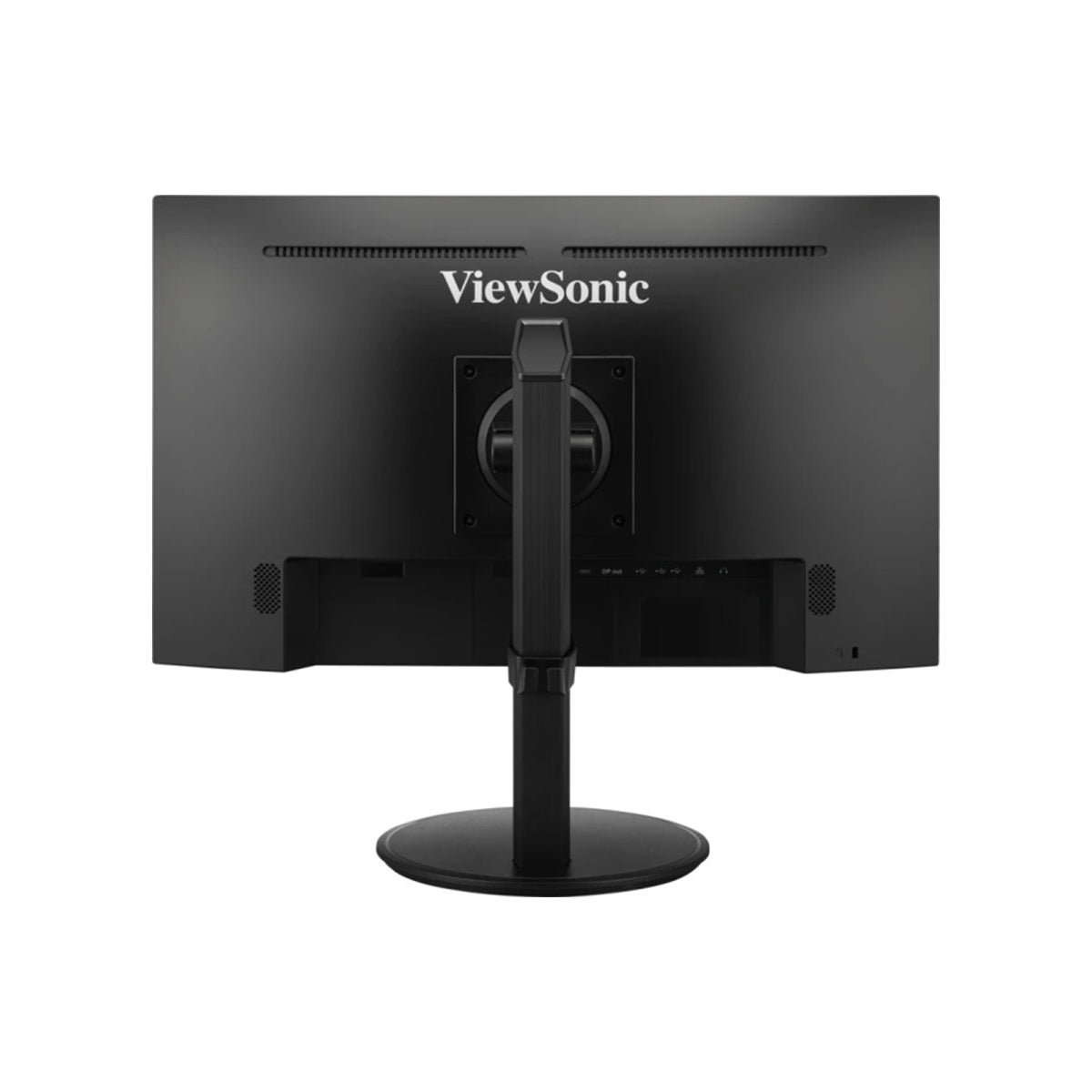

| VESA Compatible Wall Mount | 100 x 100 mm |
| Frequency Horizontal | 30 ~ 112KHz |
| Frequency Vertical | 48 ~ 100Hz |
| Digital Sync | TMDS - HDMI (v1.4), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C |
| Height Adjust (mm) | 130 |
| Swivel | 360º |

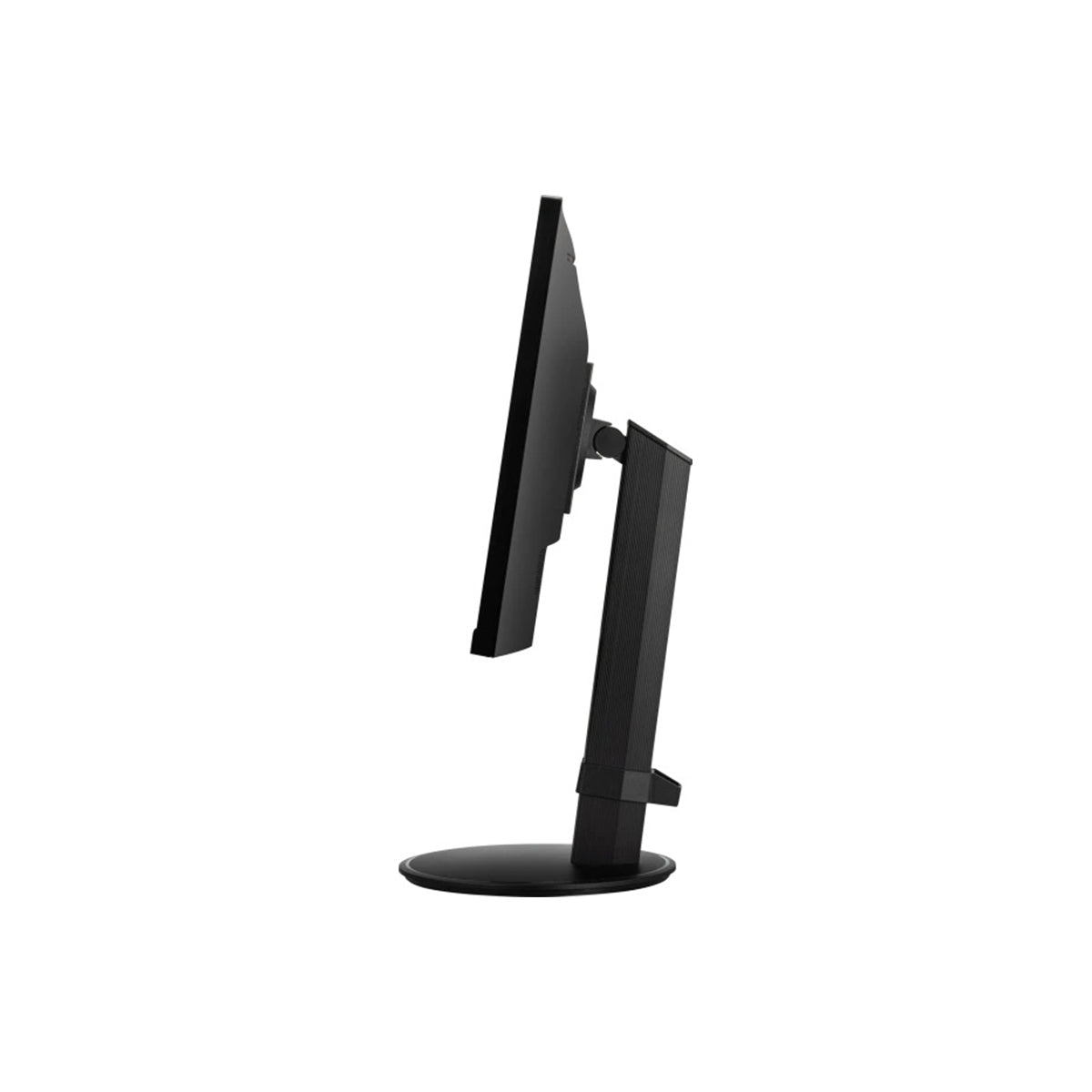

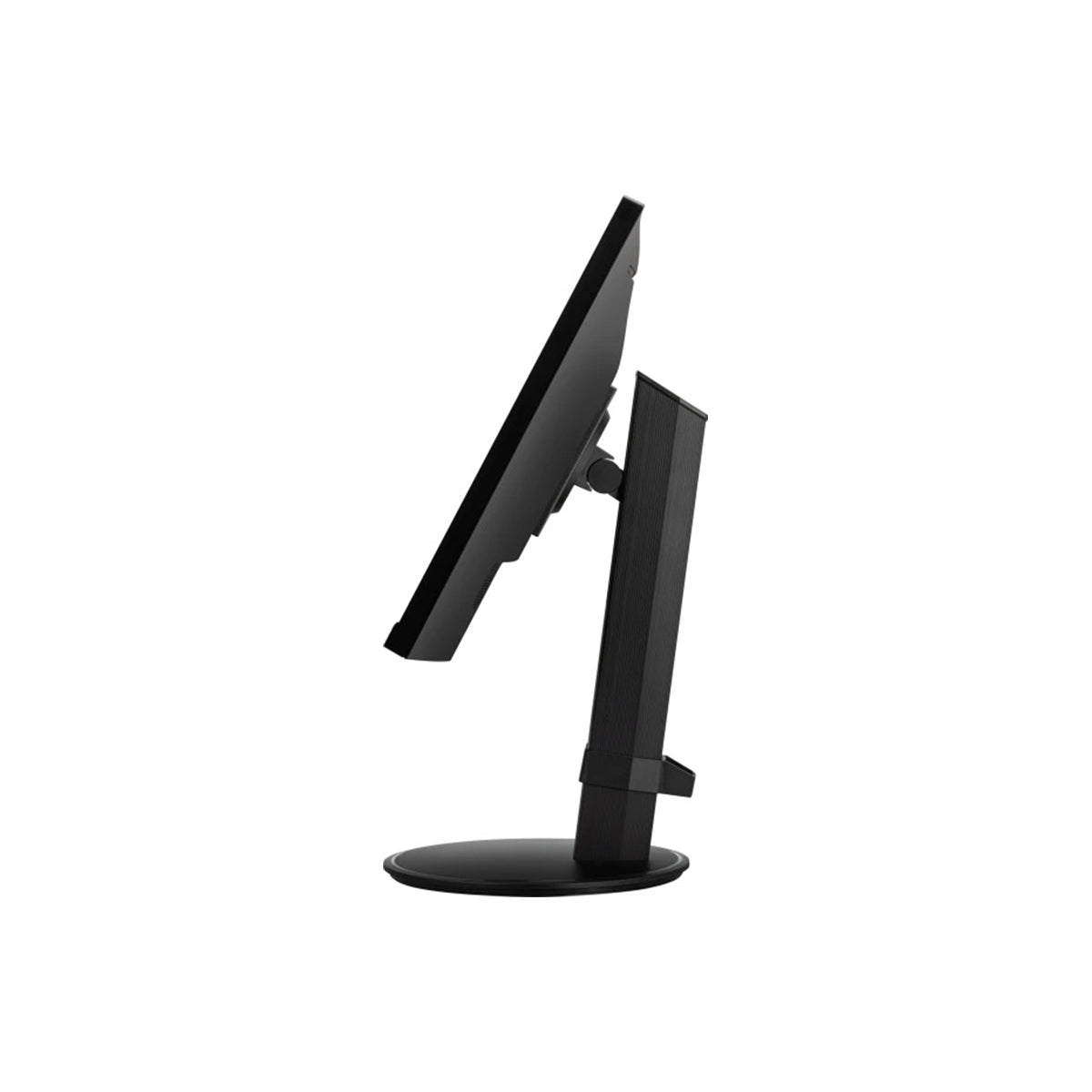

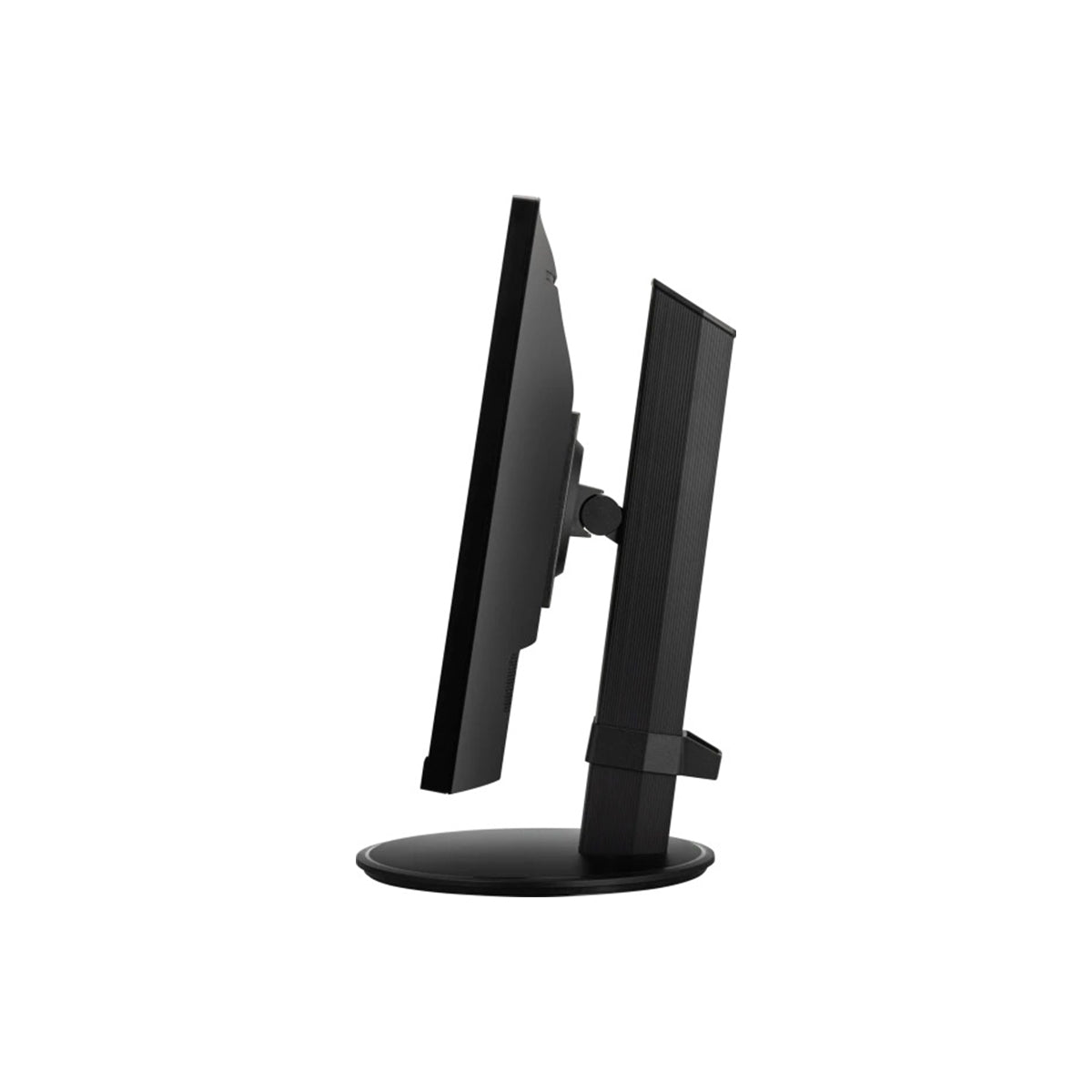

| Tilt (Forward/Back) | -3.5º / 28º |

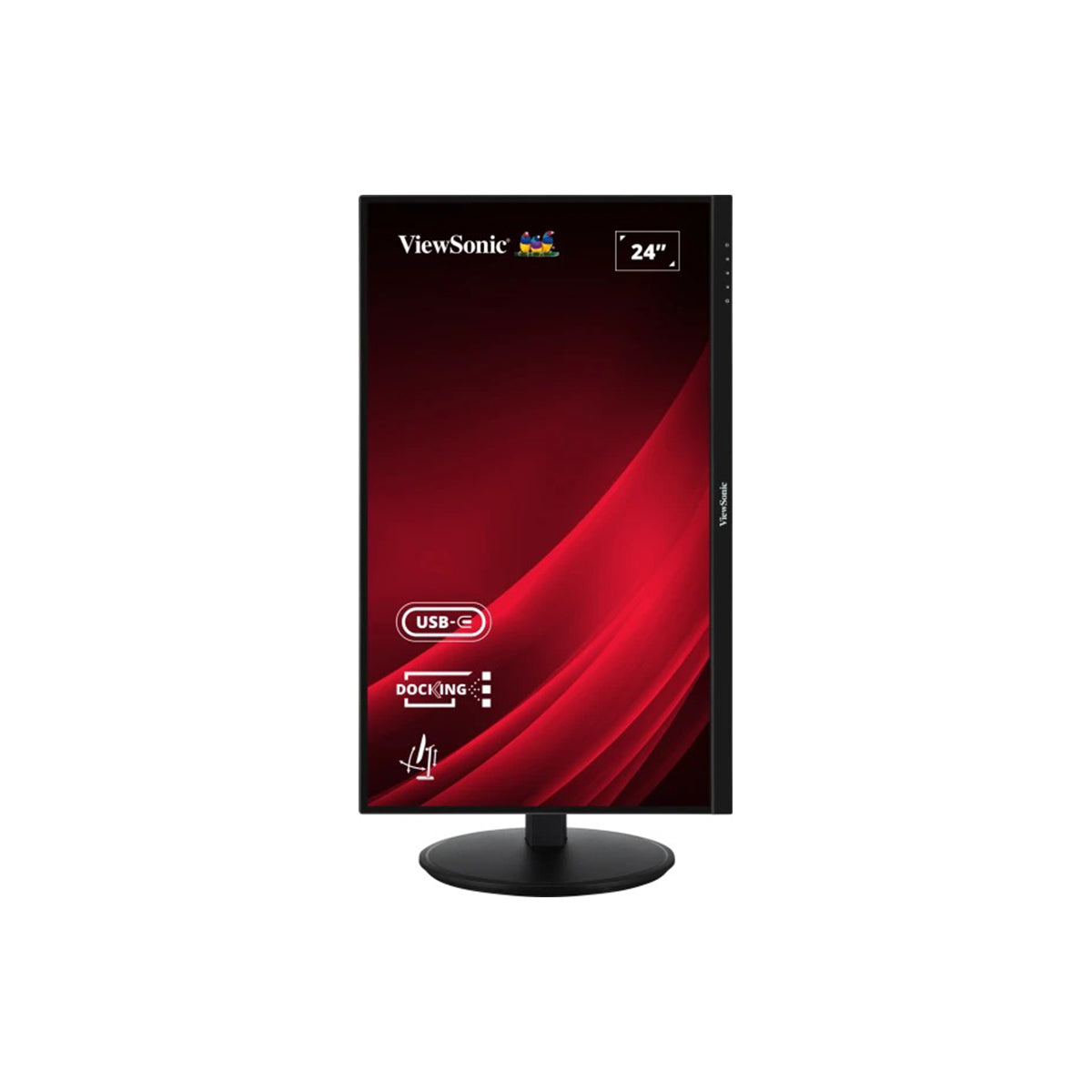

| Pivot (Right/Left) | 90º / 90º |
| Net Weight | 12.3 lbs (5.6 kg) |
| Net Weight Without Stand | 7.7 lbs (3.5 kg) |
| Gross Weight | 15.9 lbs (7.2 kg) |
| Packaging Dimensions (wxhxd) | 24.5 x 20.5 x 5.7 in. (622 x 520 x 144 mm) |
| Physical Dimensions (wxhxd) | 21.25 x 15.35~20.47 x 9.18 in. (539.7 x 389.89~519.89 x 233.29 mm) |
| Physical Dimensions Without Stand (wxhxd) | 21.25 x 12.72 x 2 in. (539.7 x 323.18 x 50.9 mm) |
| Regulations | Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BIS |
| PACKAGE CONTENTS | VG2409U-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Warranty | *Warranty offered may differ from market to market |
| Power Management | Energy Star standards, EPEAT |
