Description

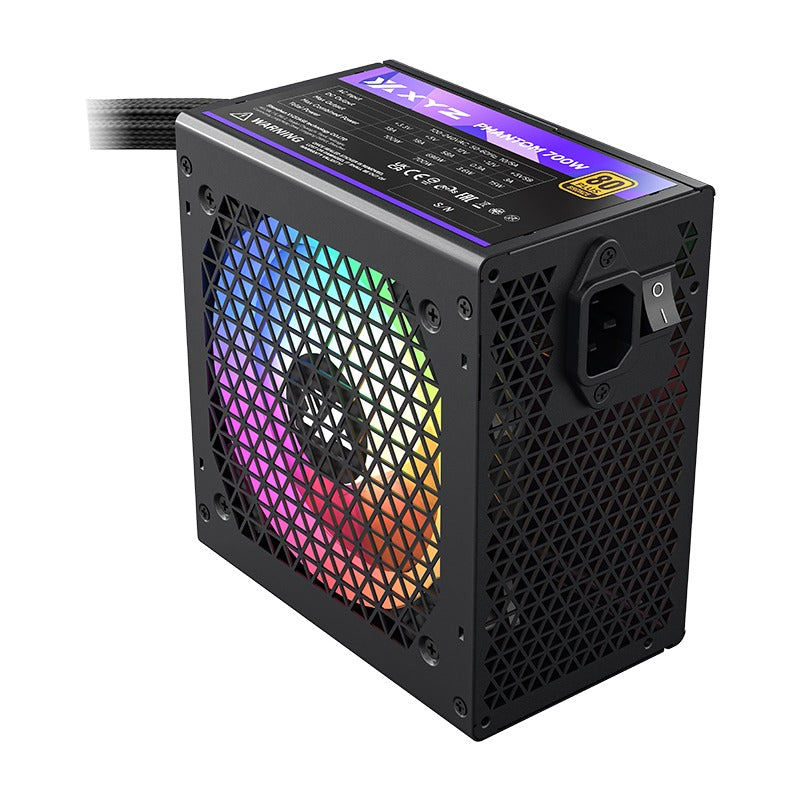

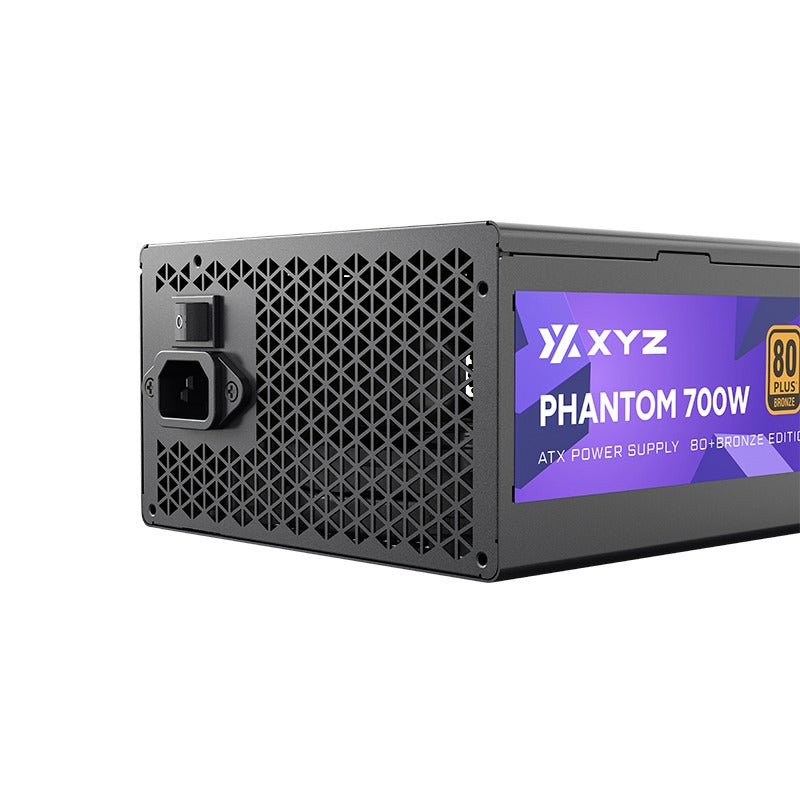

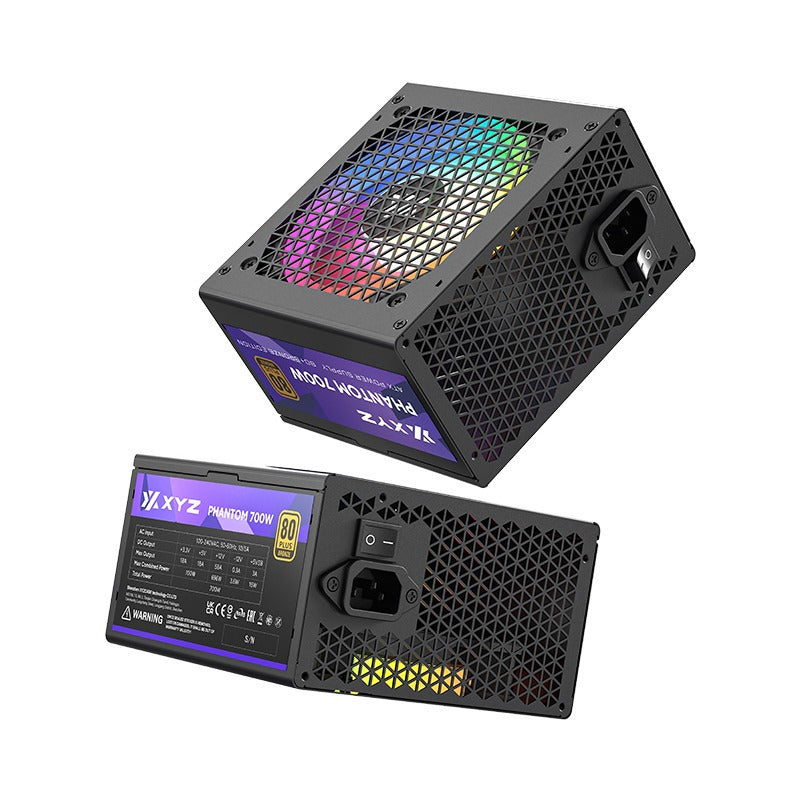

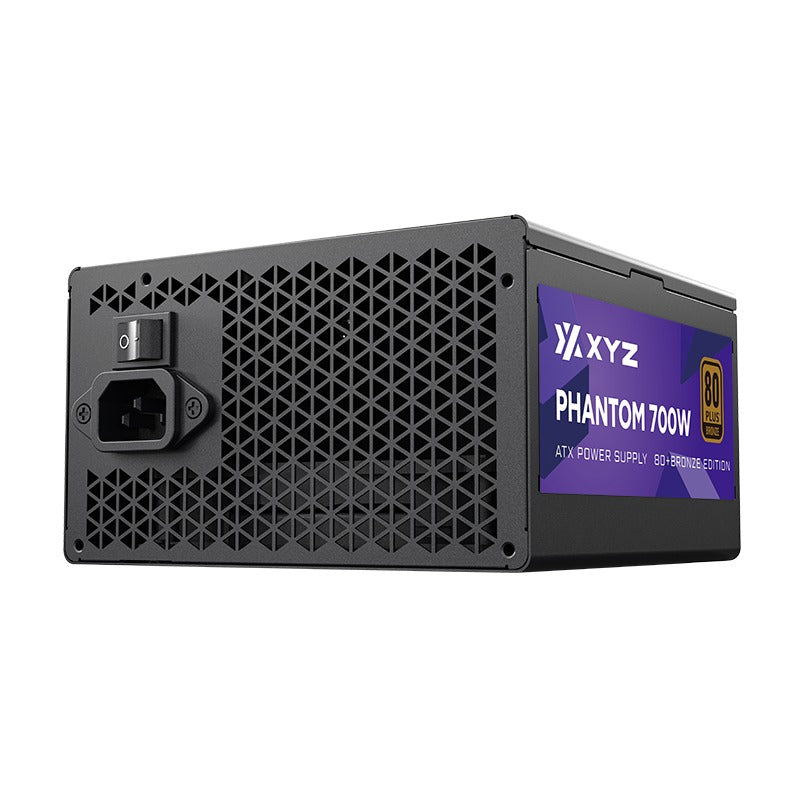

XYZ PHANTOM 700W A-RGB 80+ BRONZE
Illuminate your system with energy efficiency
Unleash the full potential of your system with the XYZ PHANTOM 700W power supply. This high-performance PSU delivers reliable and efficient power, with a sleek design and a silent ARGB fan that will add a touch of style to your PC.
Efficient Power: The 80 PLUS Bronze certification guarantees up to 82% energy efficiency at 100% load, reducing power consumption and heat generation, contributing to a cooler and quieter operation of your system.
Superior Performance: DC-DC technology provides precise and stable voltage regulation, ensuring reliable operation for your critical components.
Flat Cables: The flat cables make cable management easier and improve airflow inside your PC, keeping everything organized and optimized.
Active PFC: The active power factor correction (Active PFC) improves the power supply’s energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.

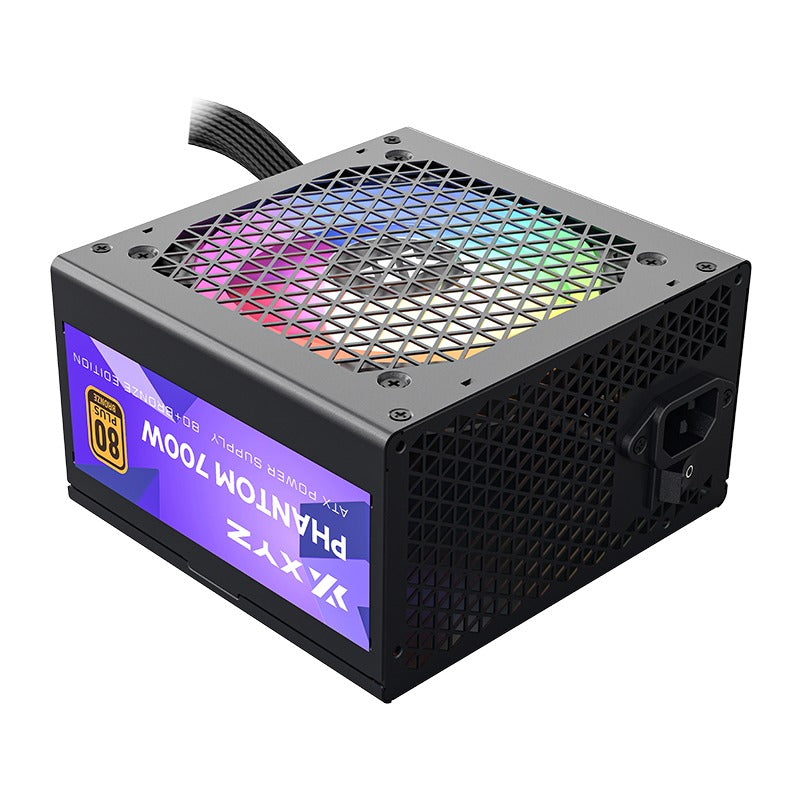

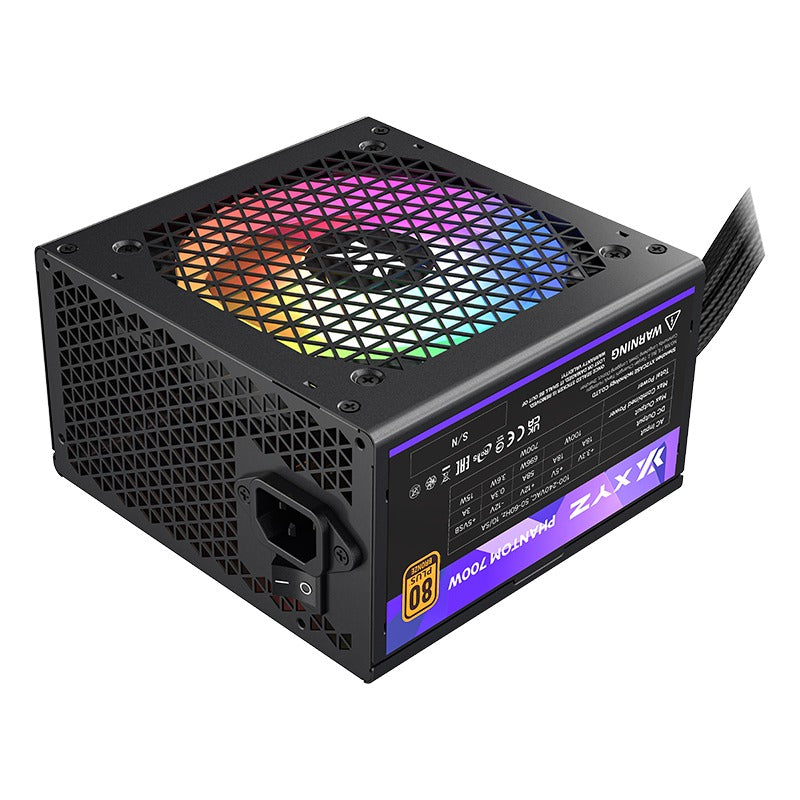

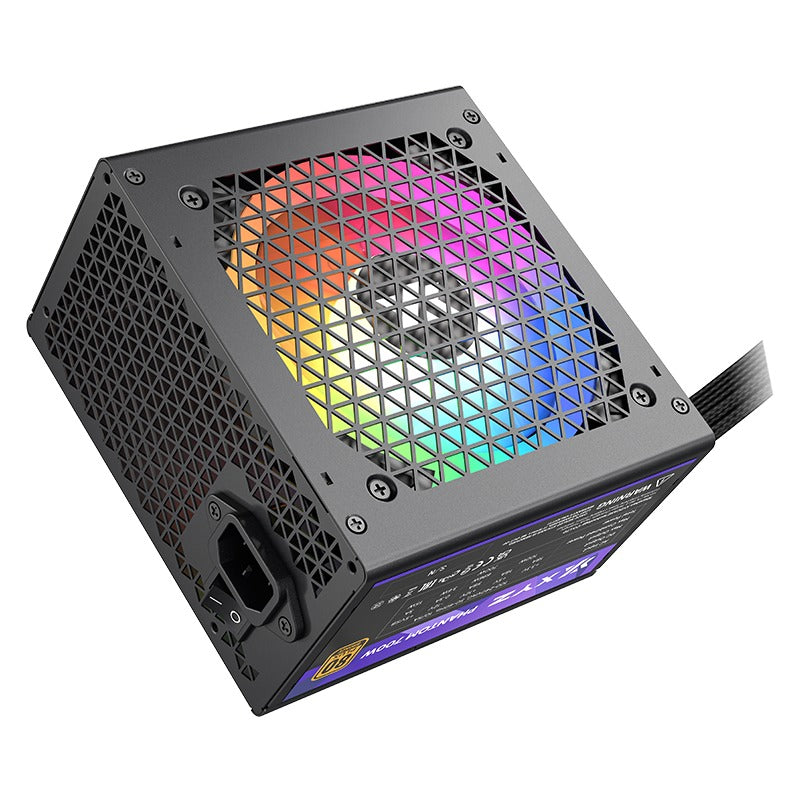

Silent 120mm A-RGB Fan: Enjoy quiet operation and customizable lighting with the 120mm ARGB fan. Synchronize the lighting effects with your motherboard and other compatible components to create a unique ambiance.
| Technical Specifications | |
|---|---|
| Model | XYZ PHANTOM 700W |
| Wattage | 700W |
| Certification | 80 PLUS Bronze (up to 82% efficiency at 100% load) |
| Technology | DC-DC |
| Form Factor | ATX |
| Fan | 120mm silent ARGB fan |
| Cables | Flat (black) |
| Dimensions | 150 x 140 x 86 mm (L x W x H) |
| AC Input | 100-230VAC, 10-5A, 50-60Hz |
| DC Outputs | |
| +3.3V | 16A |
| +5V | 16A |
| +12V | 54A |
| -12V | 0.3A |
| +5VSB | 3A |
| Combined Maximum Power | 700W |
| Connectors | |
| 1× 24 PIN | 650 mm |
| 2× IDE | 550 mm |
| 3× SATA | 550 mm |
| 2× PCIe 6+2 | 650 mm |
| 2× CPU 8 (4+4) | 650 mm |
| Certifications | EAC, CE, CB, FCC |
| MTBF | 100,000 hours |
| Safety Features | OCP, UVP, OVP, SCP, OPP, OTP |
| Operating Temperature | 0-40°C @ full load, 10-90% RH |
| Storage Temperature | -20°C to 80°C, 5-90% RH |
| Operating Altitude | ≤5000 meters |
| Storage Altitude | ≤15250 meters |
| Hi-Pot Test | |
| AC 1500V input to ground | 1 second |
| DC 1500V input to output | 1 second |
| DC 500V output to ground | 1 second |
| Grounding Resistance | <0.1Ω |
| Insulation Resistance | >50MΩ at DC 500V between AC input and ground |
| Avaliable colors | |
| SKU | X-PS-PHANTOM-PBR700 | |
