Description

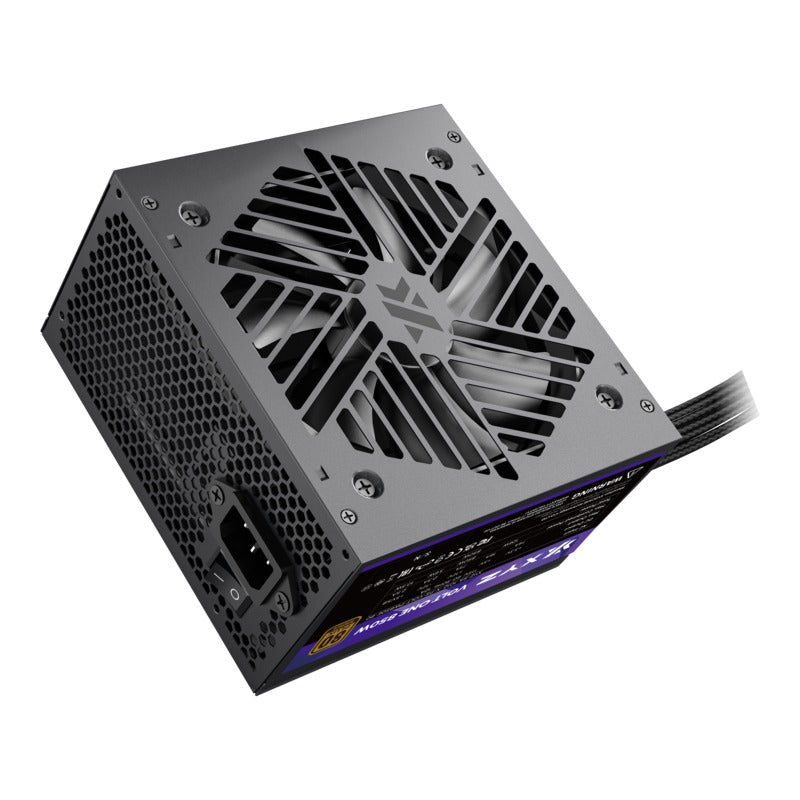

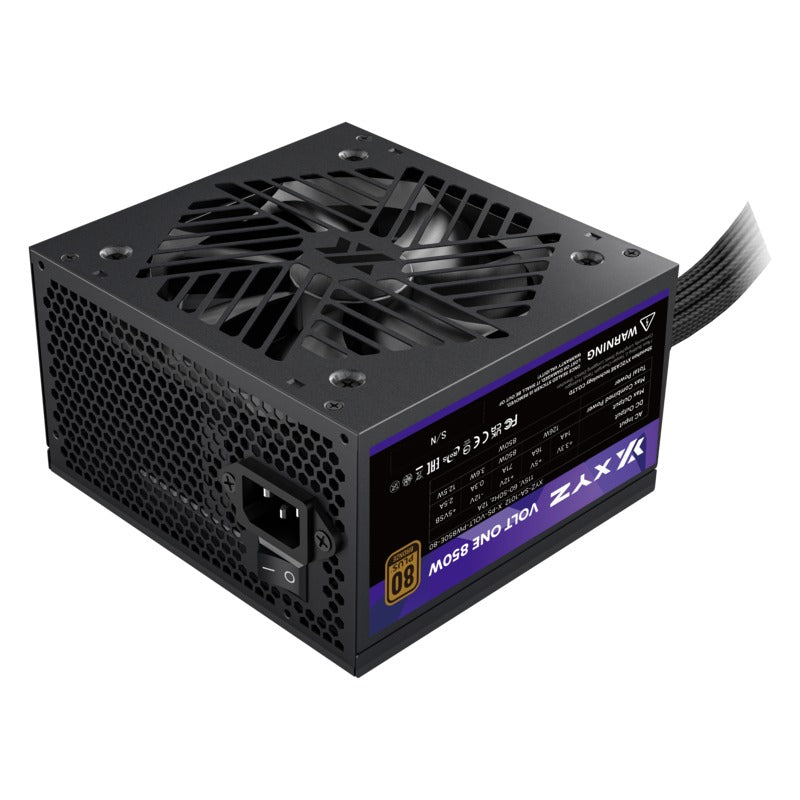

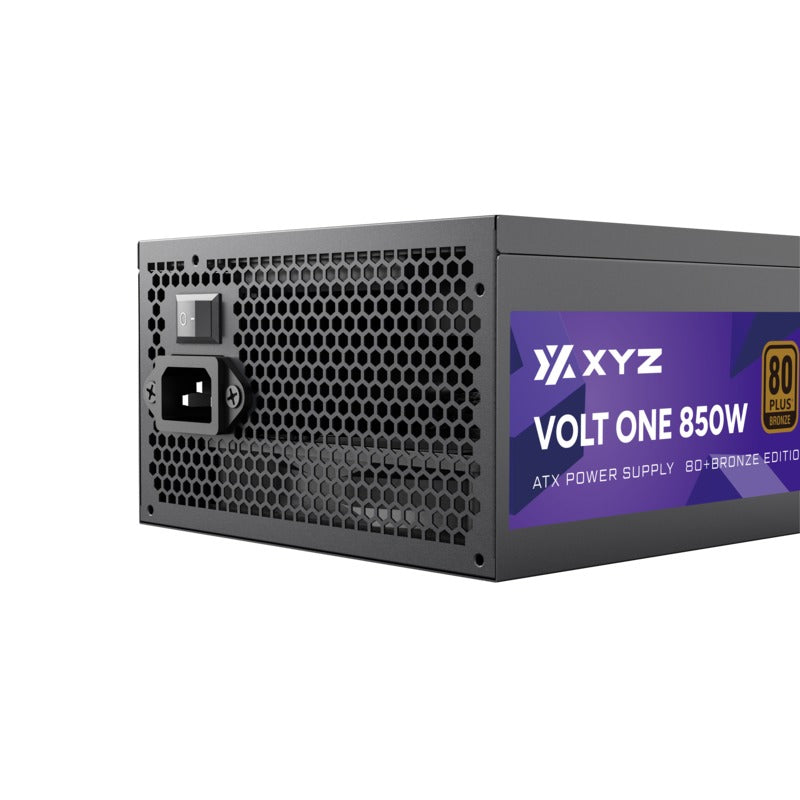

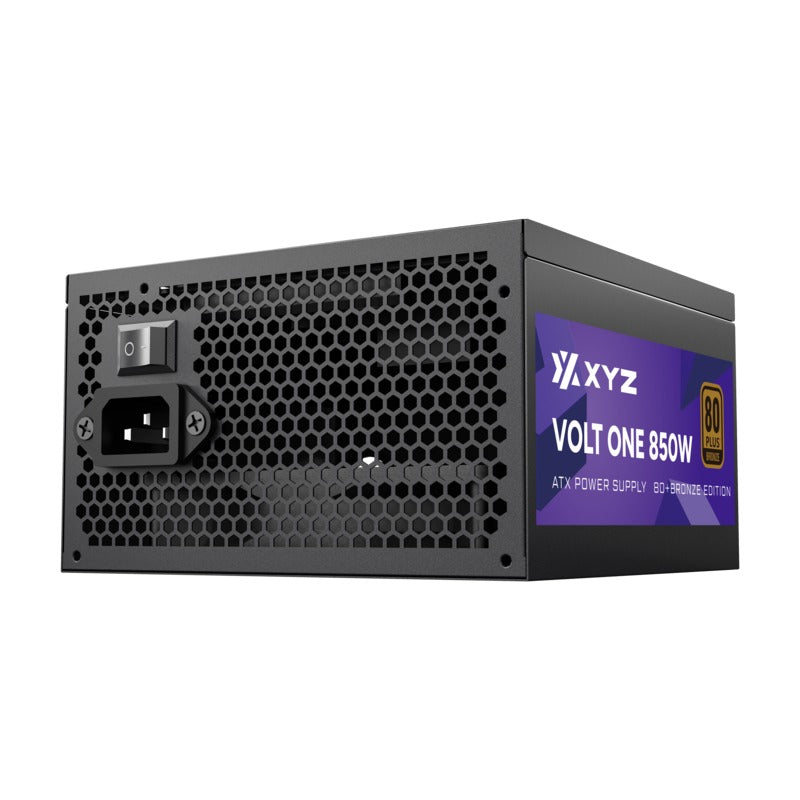

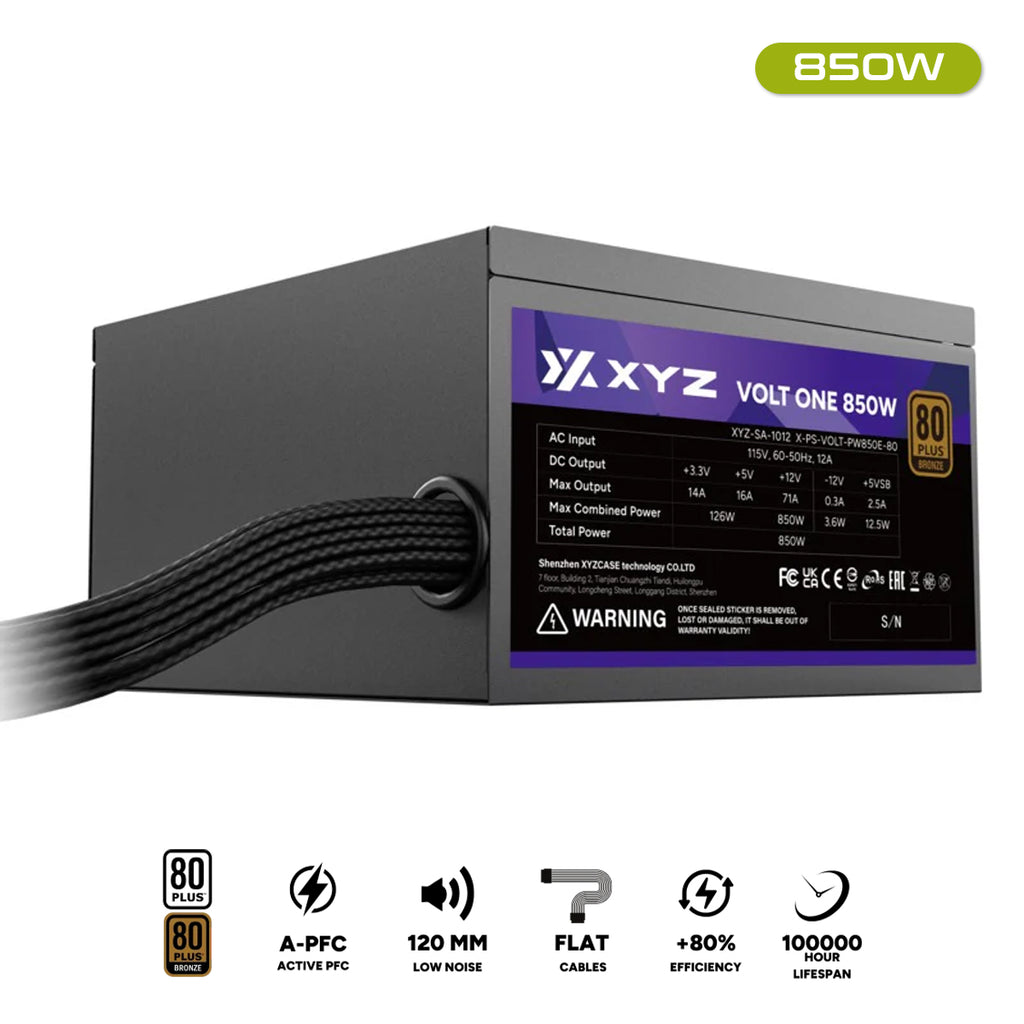

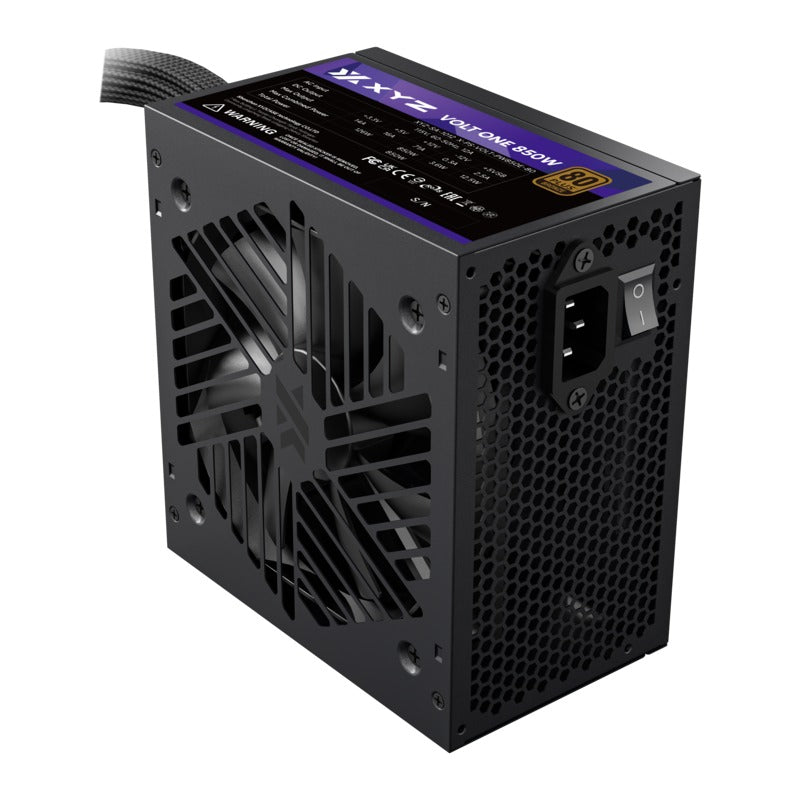

The XYZ VOLT ONE 850W is the perfect choice for mid-range systems requiring stable, efficient, and quiet power delivery. Featuring 80+ Bronze certification, Active PFC technology, and a silent 120 mm fan, it offers an ideal balance between performance, durability, and acoustic comfort. Its standard cabling ensures easy installation and compatibility with any ATX case.
80+ Bronze Certified Efficiency: Delivers 85% or higher efficiency under typical loads, reducing heat and optimizing power consumption.
Integrated Active PFC: Maintains a stable and clean current, protecting system components.

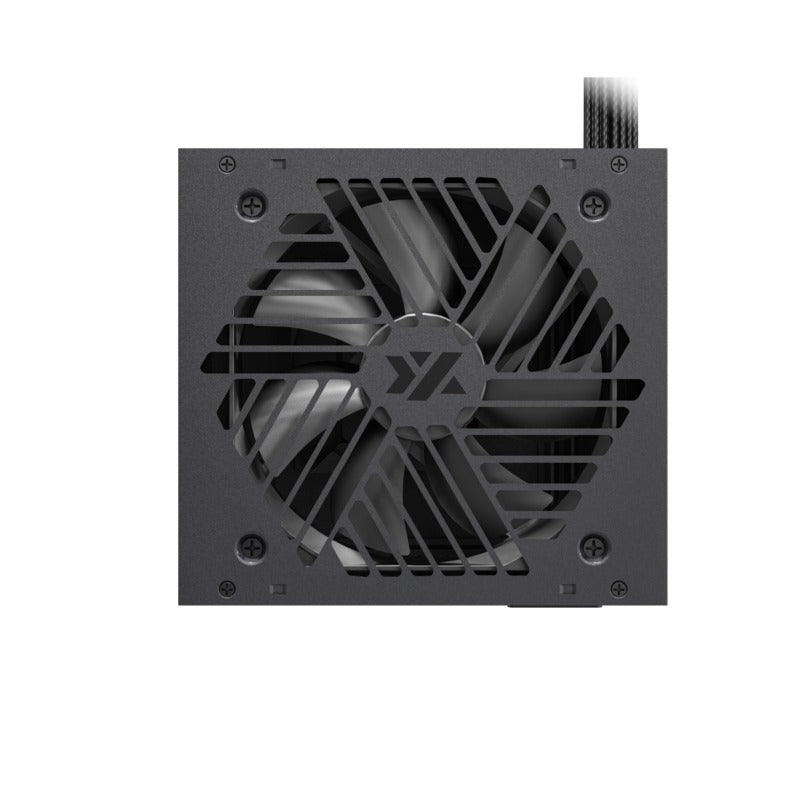

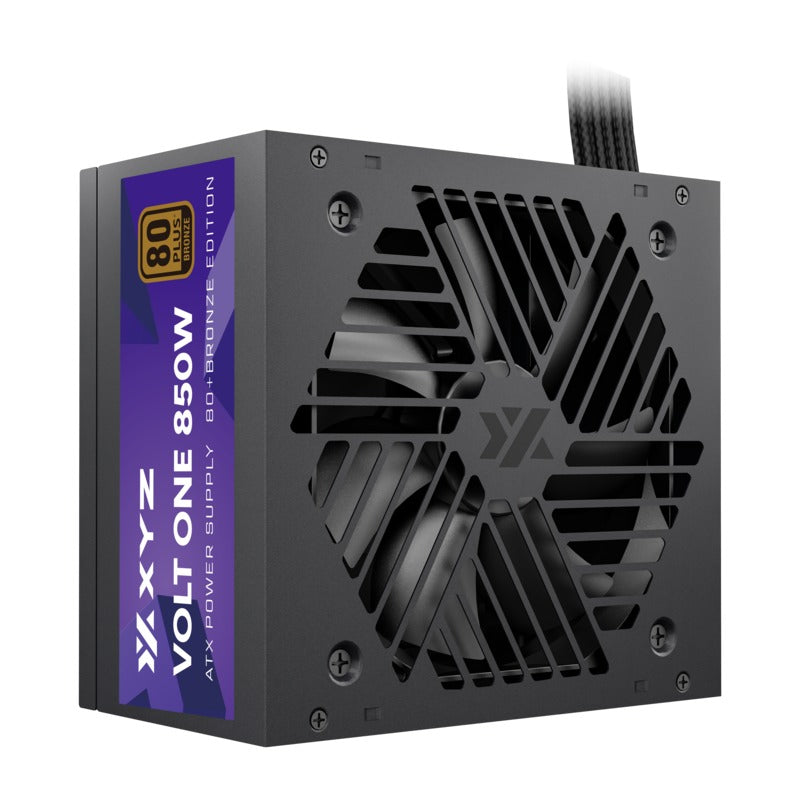

Silent 120 mm Fan: Intelligent thermal control ensures consistent airflow with low noise.
Optimized Standard Cabling: Balanced cable lengths for simple, tangle-free installation.
Long-Term Reliability: Quality components with an estimated lifespan of over 100,000 hours.
| GENERAL SPECIFICATIONS | |
|---|---|
| Output Power | 850W |
| 80PLUS Certification | 80+ Bronze |
| Dimensions | 150 x 140 x 86 mm (L x W x H) |
| Weight | 1.6 kg |
| MTBF | >100,000 hours (@ 75% load, 25 °C) |

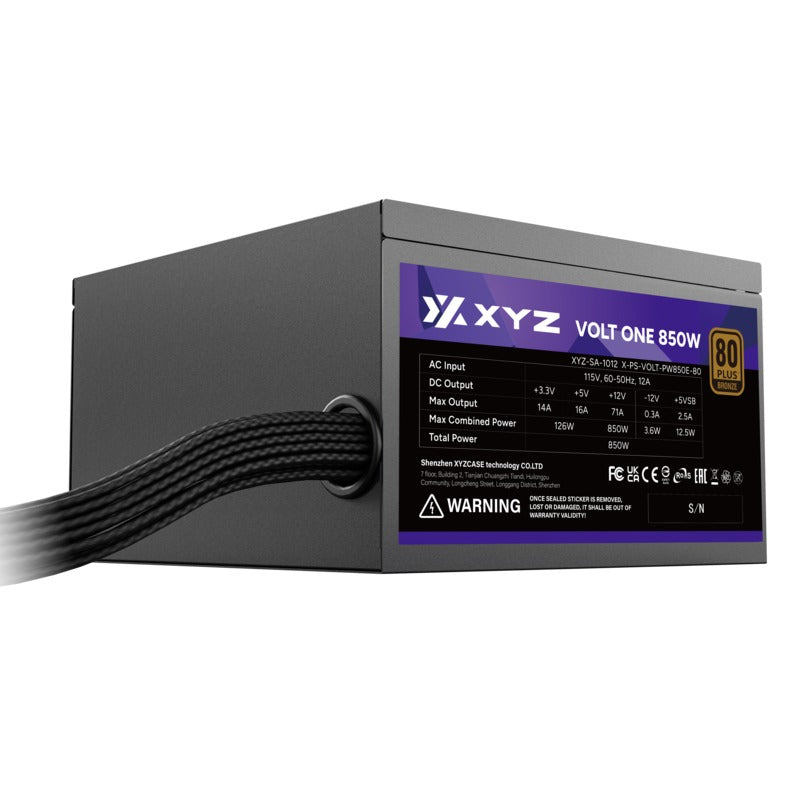

| ELECTRICAL CHARACTERISTICS | |
| AC Input | 110–230V AC, 8A, 50/60Hz |
| +12V Rail | 71A |
| +3.3V / +5V Rails | 14A / 16A |
| +5VSB / -12V Rails | 2.5A / 0.3A |
| CONNECTORS & CABLES | |
| Mainboard | 1 x 24-pin (550 mm) |
| CPU | 1 x EPS (4+4) pin (650 mm) |
| PCI-E (6+2) Pin | 4x (2 x 650 mm cables | 2 x 750 mm cables) |
| SATA / Molex | 3 x SATA + 2 x Molex (550 mm) |
| COMPLIANCE & SAFETY | |
| Certifications | EAC, CE, TUV SUD, cTUVus, FCC, CB |
